33-LITERS OF COOL
?The ASUS Prime AP201 is a breakthrough in microATX chassis design, delivering a high-performance platform that invites 360 mm AIO coolers and graphics cards up to 338 mm long, all within a compact 33-liter space. Tool-free side panels with a quasi-filter mesh also provide easy access and enhanced airflow, and they complete a tasteful, minimalist aesthetic that can be the centerpiece of any DIY PC build.
BREATHE FREELY
The AP201 mesh design is comprised of over 57,000 precision-machined 1.5mm holes, structured to increase airflow, reduce dust ingress, and collectively provide a compelling view of the components within your build.
STAY CHILLED
With support for 280 and 360mm radiators and up to 6 fans, the AP201 is primed to deal with the thermal onslaught of high-performance hardware.
SPECS, NOT SPECKS
The two 120 mm fan mounts at the bottom of the AP201 include a dust filter that can be removed for easy cleaning, or to enhance airflow even further.
LOAD UP
Despite its compact size, the AP201 supports standard ATX power supplies up to 180 mm long, graphics cards up to 338 mm long, custom liquid cooling setups, and a spread of storage devices.
UNRESTRICTED ACCESS
Instead of making you wrestle with screws or potentially awkward hinges, the side panels of the AP201 both use a simple but secure clip mechanism to attach to the case. This makes them easy to remove when you want to access the interior of the chassis, and resistant to being accidentally dislodged.
TIDY AS YOU LIKE

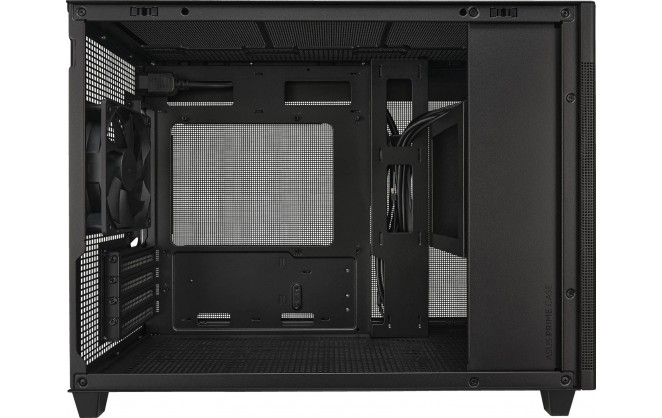

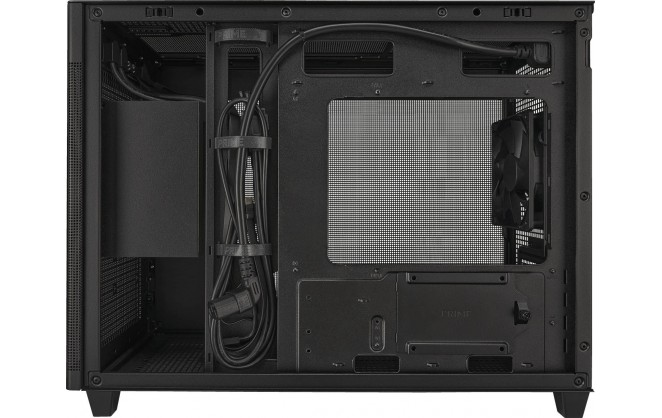

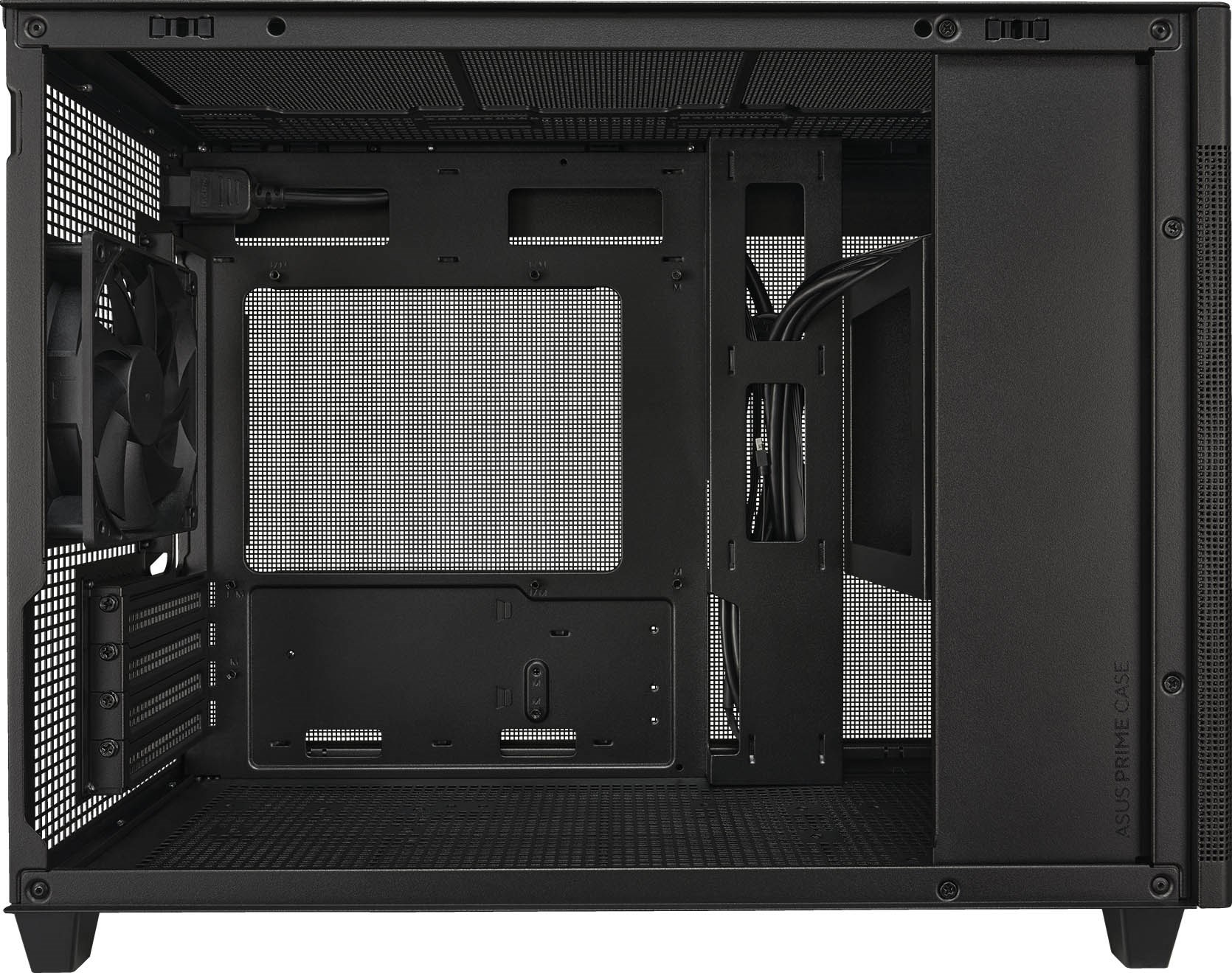

The AP201 features an extended motherboard tray with strategically placed cutouts and a 32 mm gap, giving builders ample room to tuck cables out of sight and create a clean aesthetic for their DIY PC.
NIMBLE CONNECTIONS

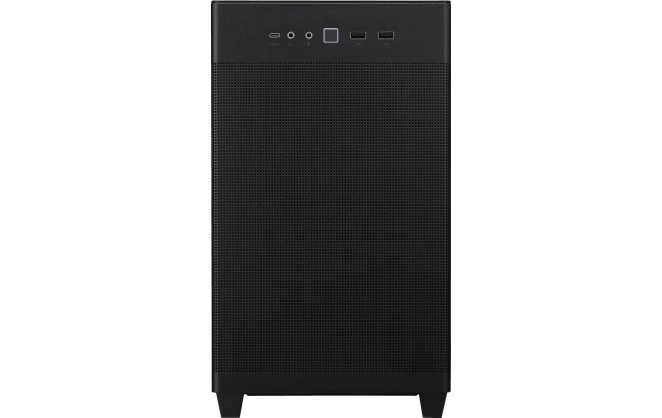

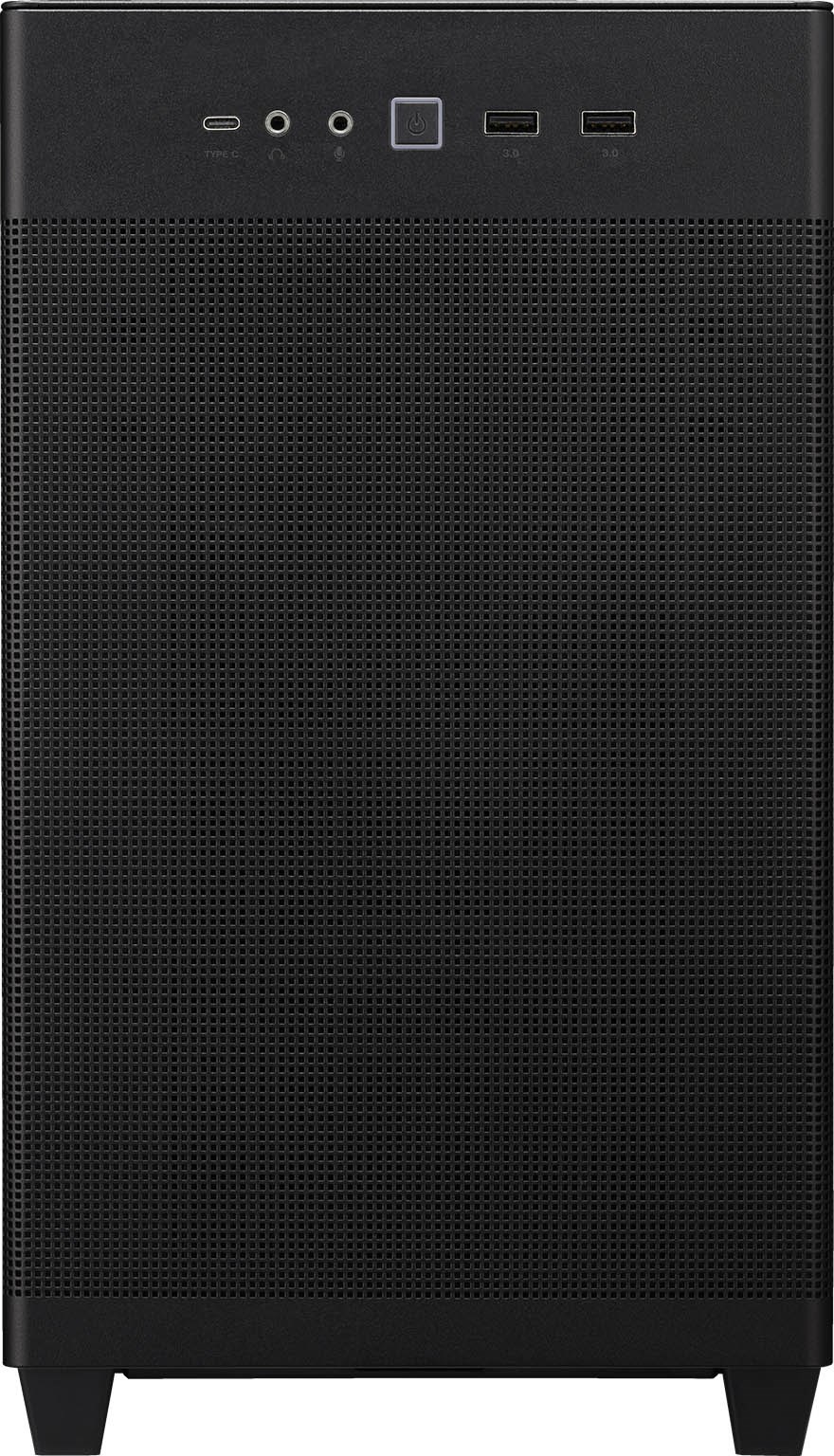

In addition to two Type-A USB 3.2 Gen 1 ports, the front panel of the AP201 also features a Type-C port that is rated for USB 3.2 Gen 2. Compatible microATX ASUS motherboards such as the TUF Gaming B660M Plus or ROG STRIX B660-G can use this port to enjoy transfer speeds of up to 10 Gbps.
CHOOSE YOUR ALLEGIANCE
The AP201 is available in either black or white, giving you options to create a rig that blends in or stands out.
ASUS Prime AP201 Mid Tower Case - Black USB 3.0
Storage
| Internal Expansion Bays | 1 x 2.5" 3 x 2.5"/3.5" |
Expansion
| Expansion Slots | 4 x Full Height |
Interfaces/Ports
| USB Ports | 1 x USB-C 3.1 2 x USB 3.0 |
| Headphone Ports | 1 x 3.5mm Jack |
| Microphone In Port | 1 x 3.5mm Jack |
Electrical
| Cooling System | Top: Supports 2 x 140mm or 3 x 120mm fans Rear: Supports 1 x 120mm fan (included) |
| Power Supply | ATX Power Supply suppoorted |
Physical
| Form Factor | Mid Tower Case |
| Case Colour | Black |
| Motherboard Compatibility | MicroATX Mini-ITX |
| Width | 205 mm |
| Depth | 460 mm |
| Height | 350 mm |
| Weight | 5.8 kg |
Warranty
| Warranty | 2 Years |
Key Features
| Firewire | |
| Power | W |
| Laptop Size Range | ins |
| Main Colour | Black |
| External Expansion Bays | |
| Case Type | Tower |
| USB 3.0 Support | Yes |
| Case Form Factor | Mid Tower |
| Power Supply Included | No |
| Optimised for | |
| Modular Cables | |
| 80Plus Rated | No |
| Bag Size | |
| PSU Form Factor | ATX |
| Display Model in Showroom | |
| Illuminated | No |
| e-SATA | |
| L.E.D Fan | No LED |
| Laptop Size | |
| Max 3.5" Drives | 3 |
| Max 2.5" Drives | 4 |
| ATX | |
| Micro-ATX | Yes |
| ITX | Yes |
| E-ATX | |
| XL-ATX | |
| Mini PC | |
| Cooler Height | 170 mm |
| Built-in Card Reader | No |
| USB Type-C Support | Yes |
| Front HDMI | No |
| Side Panel Type | Mesh |
| GPU Length | 338 mm |
| PSU Depth | 180 mm |
| Memory Speed | MHz |
| Card Reader Type | |
| Front Audio Type | Separate |
| Number of Fans | 1 fan(s) |
| LED Controller Included | No |
| LED Strip(s) Included | |
| Maximum Motherboard Size Supported | Micro-ATX |
| RGB Software Type | |
| Total 2.5" + 3.5" drive bays | 3 |
| Power Requirement (auto) | 3 W |
| USB3.0 ports | 2 |
| USB-C ports | 1 |
| Low profile expansion | No |
Item Details
| Manufacturer | ASUS |
| Manufacturer Code | 90DC00G0-B39000 |
| EAN | 4711081771821 |
| Condition | New |
