Minimize noise and maximize airstream
The air inlets on the front cater for maximum silence with a constant amount of air permeability. The specially designed vents reroute the inflowing air twice to reduce airborne noise.
Extra thick insulation for maximum stability and silence
The front, top and sides are equipped with extra thick dampening mats of 10mm, resulting in maximum stability and superb noise dampening capabilities. The decoupled PSU bracket and HDD cages also minimize vibrations. The full metal body provides stability for the case and improves its haptic.
Whisper-quiet operation
Two pre-installed Pure Wings 2 140mm fans with airflow-optimized fan blades ensure a perfect airflow and solid cooling. The integrated 3-step fan controller caters for up to three fans.
Offering a neat interior
The PSU shroud perfectly covers the cables, PSU and contains a double HDD cage. The cover plates are separately detachable to install a 140mm fan on the top. With the small cover detached a 360mm radiator can be installed at the front. Using the PSU bracket the power supply unit can be easily installed from behind.
Easy access for all kinds of modifications
The high-end side panels provide a mounting system with push-pins for secure and user-friendly detachment. By depressing the push-pins the locking mechanism releases the upper part of the side panel and this hovers safely until removed manually. Excellent usability for fast and easy access to the interior of the case.
Designed for all kinds of high-end hardware
Despite its compact design the Silent Base 601 Window provides generous dimensions and cutouts even for installing an E-ATX motherboard. The smart arrangement of components also allows multiple graphics cards and large coolers to fit in well.
Optimized for water-cooled systems
With its optimized design Silent Base 601 Window is the perfect case for water cooling. Radiators of up to 360mm can be installed at the front, top and rear. Using the detachable bracket radiators can be installed very quickly and easily at the top.
A perfect view inside your PC
The elegant, windowed side panel offers a perfect view of the components inside your PC case. The window is made of tinted and tempered glass with black painted side bars.

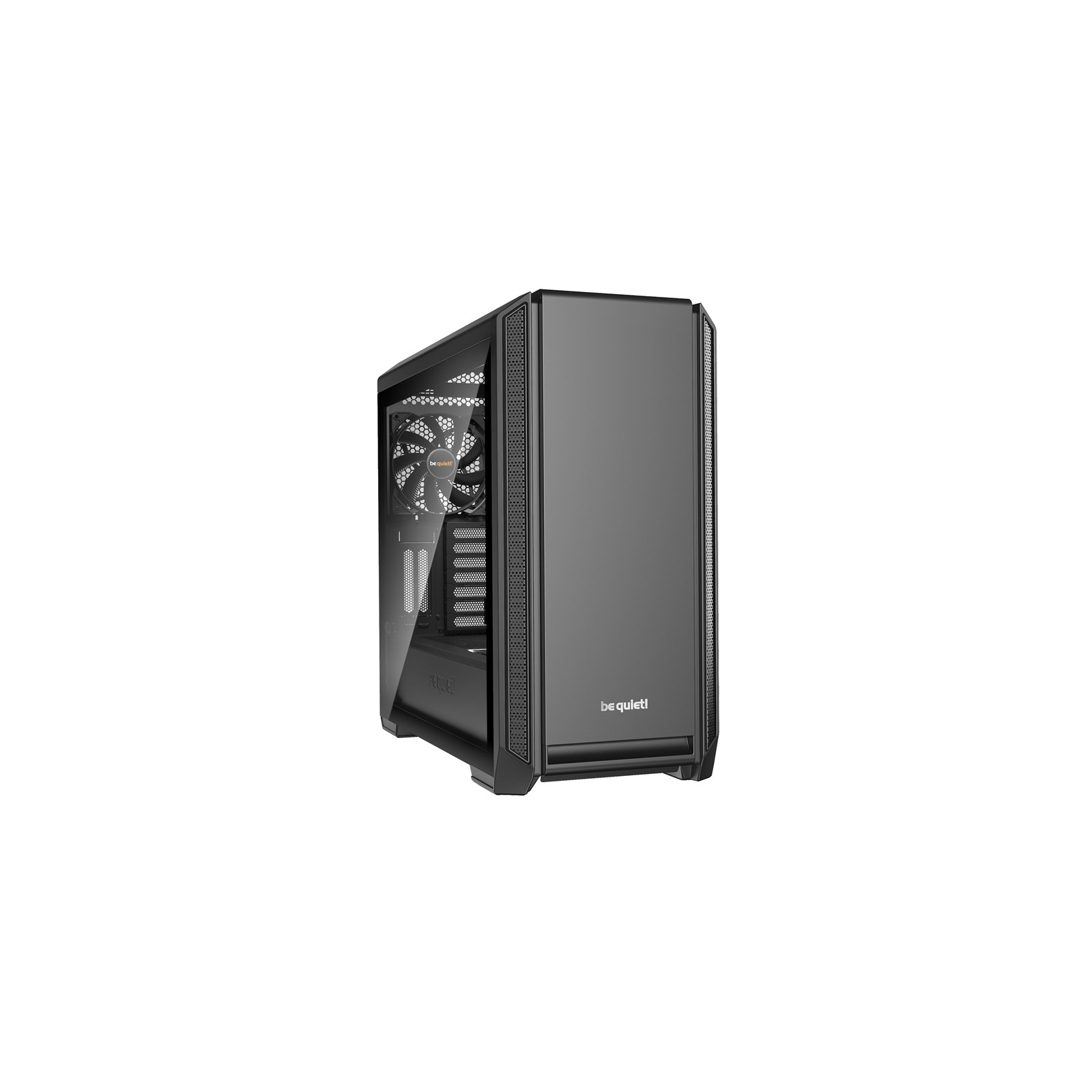

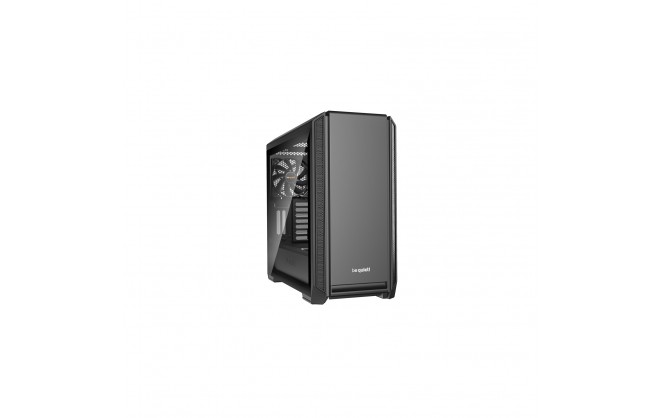

Be Quiet! Silent Base 601 Window Case - Black
User Controls
| User Controls | Power Reset Fan Control |
Storage
| Internal Expansion Bays | 6 x 2.5" 3 x 3.5" |
Expansion
| Expansion Slots | 7 +2 x Full Height |
Interfaces/Ports
| USB Ports | 2 x USB 3.0 1 x USB 2.0 |
| Headphone Ports | 1 x 3.5mm Jack |
| Microphone In Port | 1 x 3.5mm Jack |
Electrical
| Cooling System | Front: Supports 3 x 120mm or 140mm fans (1 x 140mm fan included) Top: Supports 3 x 120mm or 140mm fans Rear: Supports 1 x 120mm or 140mm fan (140mm fan included) PSU Shroud: Supports 1 x 120mm or 140mm fans |
| Power Supply | ATX Power Supply supported |
Physical
| Form Factor | Mid Tower Case |
| Case Colour | Black |
| Material | ABS Steel Tempered Glas |
| LED Status Indicators | Power HDD Activity |
| Motherboard Compatibility | E-ATX ATX MicroATX Mini-ITX |
| In The Box | Case Manual Screw Set Stand-off for E-ATX 6 x Velcro Cable Ties |

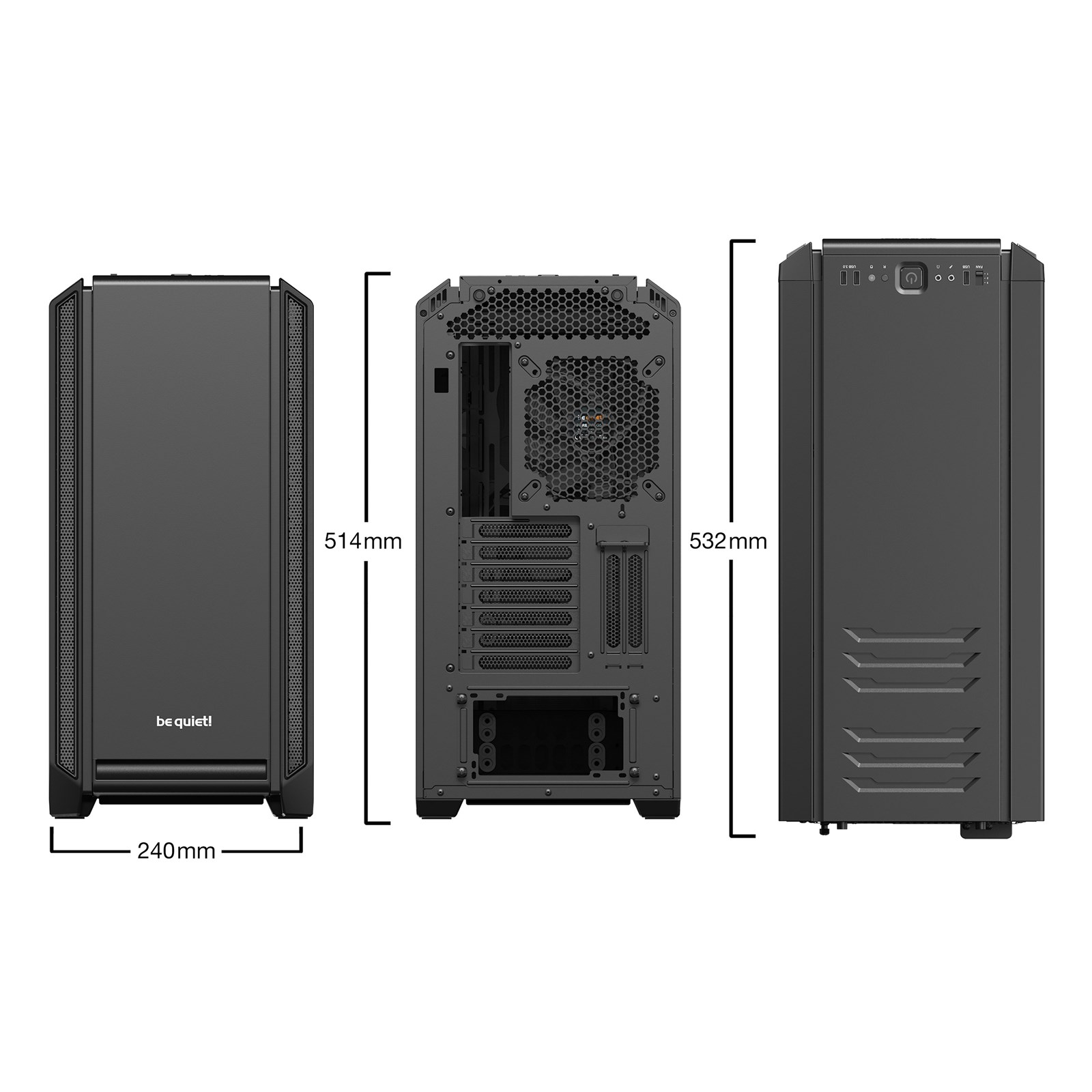

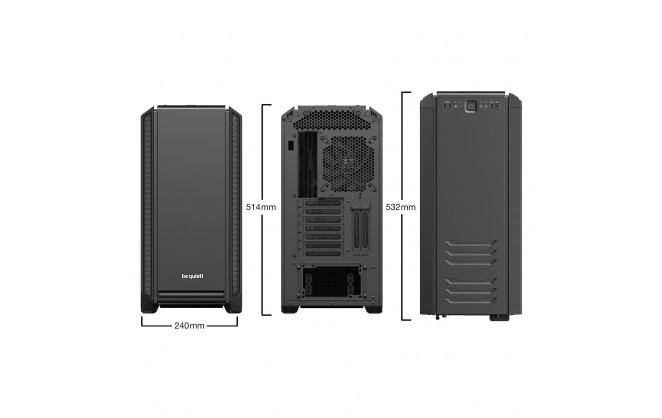

| Width | 240 mm |
| Depth | 532 mm |
| Height | 514 mm |
| Weight | 11.22 kg |
Warranty
| Warranty | 3 Years |
Key Features
| Firewire | No |
| Main Colour | Black |
| Case Type | Tower |
| USB 3.0 Support | Yes |
| Case Form Factor | Mid Tower |
| Power Supply Included | No |
| Optimised for | Gaming |
| 80Plus Rated | No |
| PSU Form Factor | ATX |
| Display Model in Showroom | No |
| e-SATA | No |
| L.E.D Fan | No LED |
| Internal 3.5" Bay | 3 |
| Internal 2.5" Bay | 6 |
| ATX | Yes |
| Micro-ATX | No |
| ITX | No |
| E-ATX | Yes |
| XL-ATX | No |
| Cooler Height | 185 mm |
| Built-in Card Reader | No |
| USB Type-C Support | No |
| Front HDMI | No |
| Side Panel Type | Tempered Glass |
| GPU Length | 287 mm |
| PSU Depth | 288 mm |
| Front Audio Type | Separate |
| Maximum Motherboard Size Supported | E-ATX |
Item Details
| Manufacturer | Be Quiet! |
| Manufacturer Code | BGW26 |
| EAN | 4260052187036 |
| Condition | New |
