£92.89 ex. vat
£111.47 inc. vat
Share:
MasterBox 520 Mesh is the ideal chassis for both novice and experienced gamers alike, providing users multiple options in case design to satisfy different needs. Whether you place upmost value on system performance and high quality gaming experiences, or dazzling aesthetics and an outlook that stands out, MasterBox 520 Mesh has something in for you. Pre-installed with three CF120 ARGB fans, your system is brought to life with stunning lighting effects, completely customizable to match your theme or preference. Additional mechanical upgrades such as a removable top panel and robust dust filter ensure a pleasant, hassle-free installation experience.

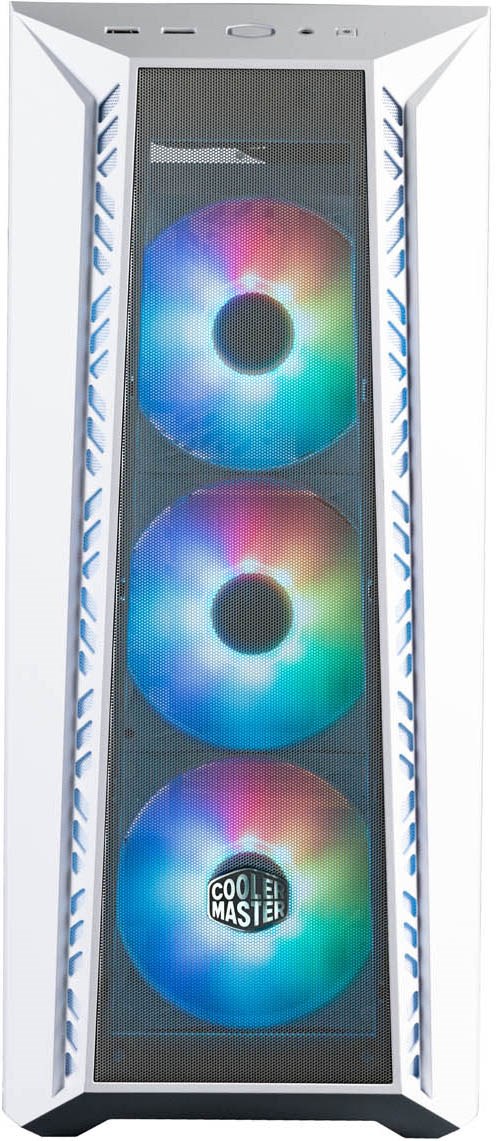

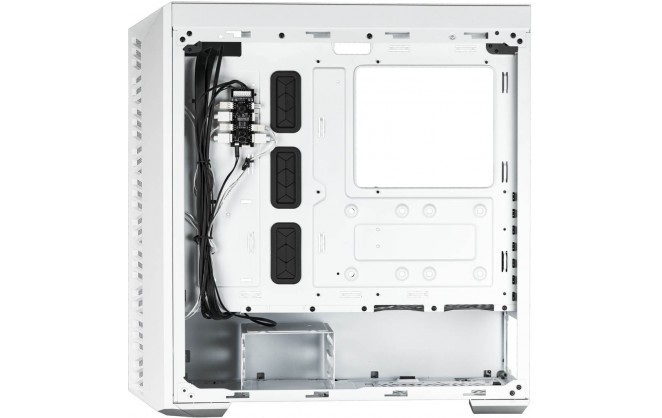

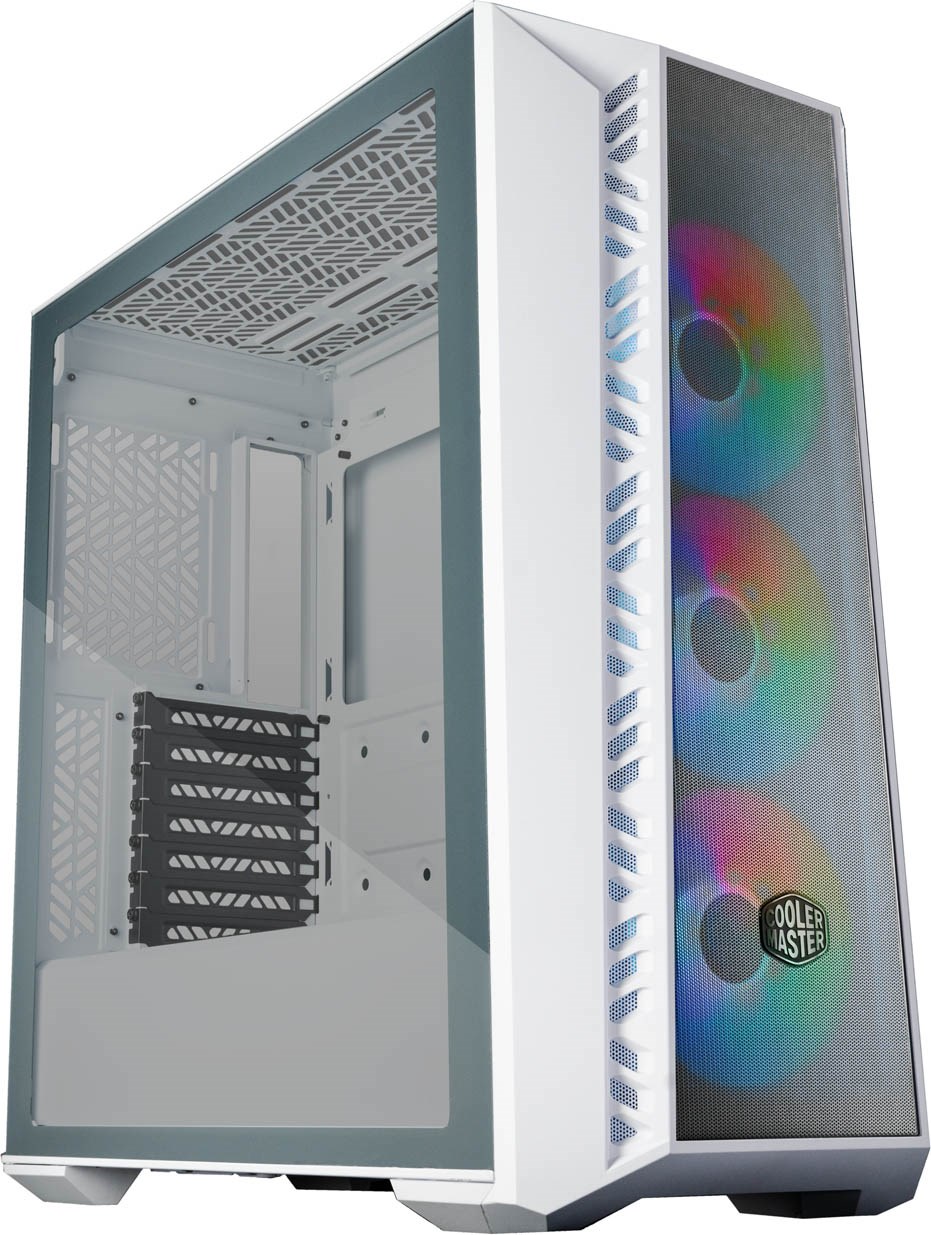

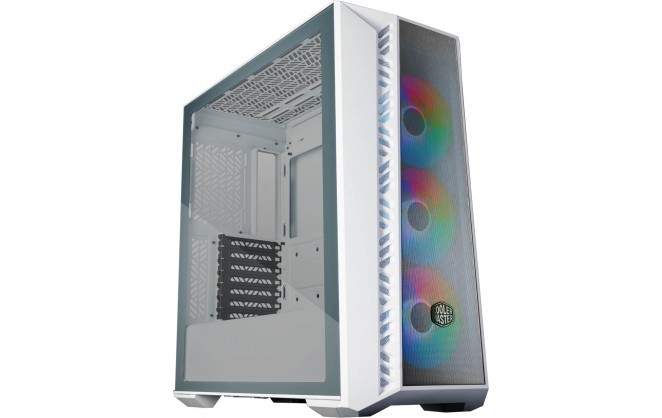

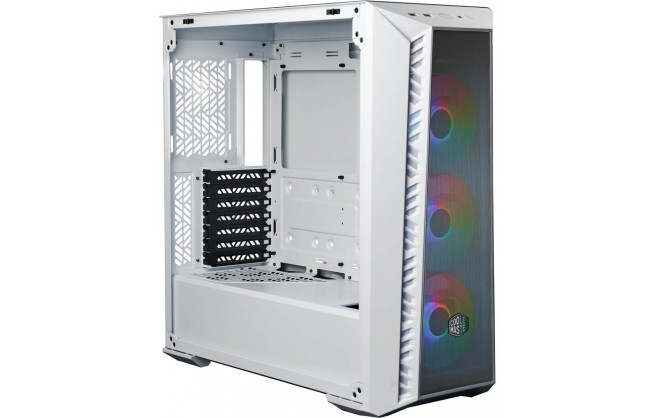

Cooler Master MasterBox 520 Mesh Mid Tower Gaming Case - White
Storage
| Internal Expansion Bays | 3 x 2.5" 2 x 3.5" |
Expansion
| Expansion Slots | 7 x Full Height |
Interfaces/Ports
| USB Ports | 1 x USB-C 3.1 1 x USB 3.0 |
| Headphone Ports | 1 x 3.5mm Jack, shared with Microphone |
| Microphone In Port | 1 x 3.5mm Jack, shared with Headphone |
Electrical
| Cooling System | Front: Supports 2 x 140mm or 3 x 120mm fans (3 x 120mm ARGB LED fans included) Top: Supports 2 x 140mm or 3 x 120mm fans Rear: Supports 1 x 120mm fan |
| Power Supply | ATX Power Supply supported |
Physical
| Form Factor | Mid Tower Case |
| Case Colour | White |
| Material | Steel Mesh ABS Plastic Tempered Glass |
| Motherboard Compatibility | E-ATX (up to 271mm wide) SSI-CEB ATX MicroATX Mini-ITX |
| Width | 210 mm |
| Depth | 502 mm |
| Height | 498 mm |
| Weight | 7.13 kg |
Warranty
| Warranty | 2 Years |
Key Features
| Firewire | |
| Power | W |
| Laptop Size Range | ins |
| Main Colour | White |
| External Expansion Bays | |
| Case Type | Tower |
| USB 3.0 Support | Yes |
| Case Form Factor | Mid Tower |
| Power Supply Included | No |
| Optimised for | Gaming |
| Modular Cables | |
| 80Plus Rated | No |
| Bag Size | |
| PSU Form Factor | ATX |
| Display Model in Showroom | |
| Illuminated | No |
| e-SATA | |
| L.E.D Fan | ARGB |
| Laptop Size | |
| Max 3.5" Drives | 2 |
| Max 2.5" Drives | 3 |
| ATX | Yes |
| Micro-ATX | Yes |
| ITX | Yes |
| E-ATX | Yes |
| XL-ATX | |
| Mini PC | |
| Cooler Height | 165 mm |
| Built-in Card Reader | No |
| USB Type-C Support | Yes |
| Front HDMI | No |
| Side Panel Type | Tempered Glass |
| GPU Length | 410 mm |
| PSU Depth | 170 mm |
| Memory Speed | MHz |
| Card Reader Type | |
| Front Audio Type | Combined |
| Number of Fans | 3 fan(s) |
| LED Controller Included | Yes |
| LED Strip(s) Included | |
| Maximum Motherboard Size Supported | E-ATX |
| RGB Software Type | |
| Total 2.5" + 3.5" drive bays | 5 |
| Power Requirement (auto) | 9 W |
| USB3.0 ports | 1 |
| USB-C ports | 1 |
| Low profile expansion | No |
Item Details
| Manufacturer | Cooler Master |
| Manufacturer Code | MB520-WGNN-S00 |
| EAN | 4719512126493 |
| Condition | New |
