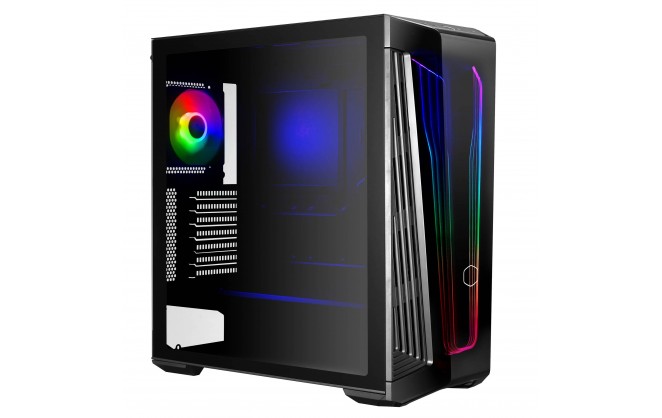

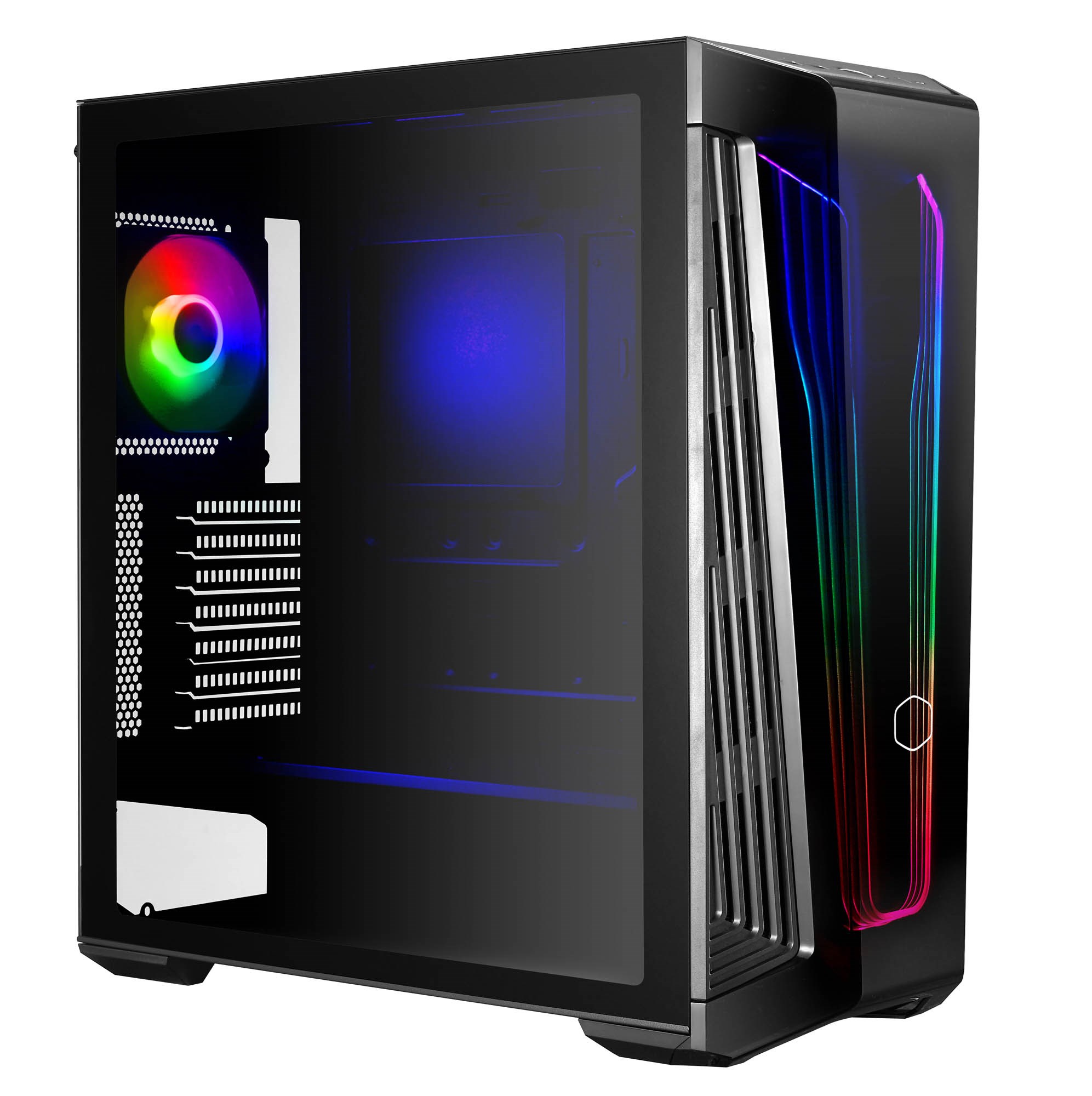

Cooler Master MasterBox 540 Mid Tower Case - Black USB 3.0

Part Number: MB540-KGNN-S00
Manufacturer: Cooler Master
Quickfind Code: 105591

Stock: In Stock

£77.84 ex. vat
£93.41 inc. vat

Product Features:

Condition: New
Form Factor E-ATX
RGB / LED Colour RGB
Main Colour Black
Side Panel Tempered Glass

+ Read More Information

Main Features

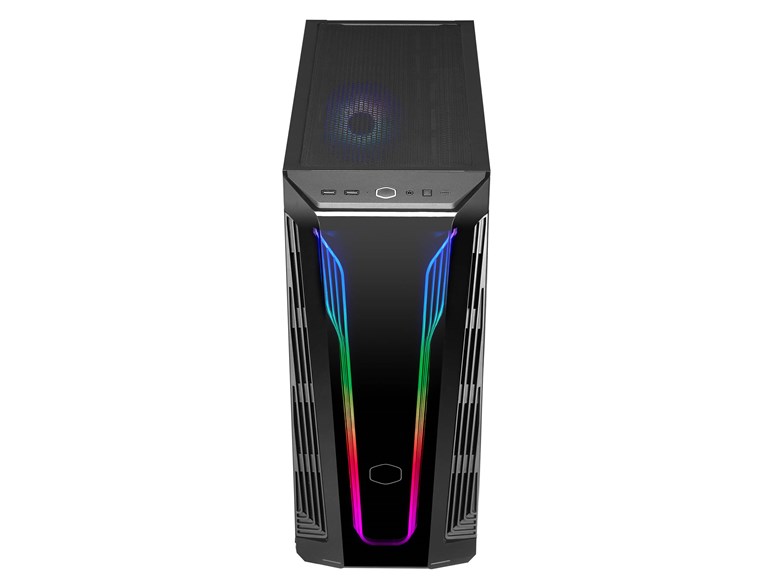

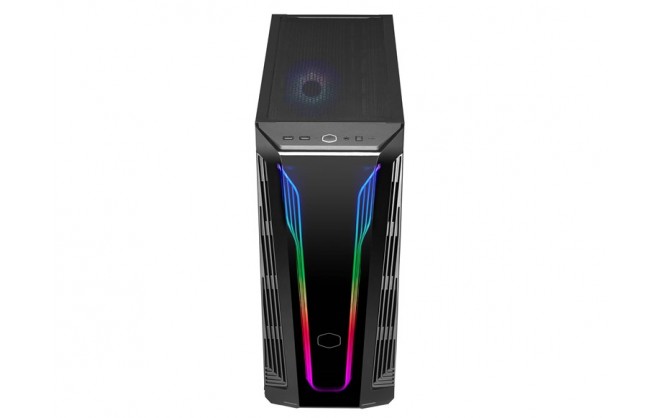

ARGB ETHER FRONT PANEL - Inspired by the design of automotive lighting, the front panel houses ARGB lighting strips paired with a front diffuser. This design element is powered by a pogo pin connector and fused to the DarkMirror finish of the fa‡ade, delivering a unique twist on conventional illumination.
STANDARDIZED ARGB CONNECTOR & CONTROLLER INCLUDED - The ARGB Ether Front Panel can be controlled either via software or the included ARGB controller, pre-loaded with unique lighting presets. The controller also comes pre-routed to the RESET/ARGB button in the front panel.

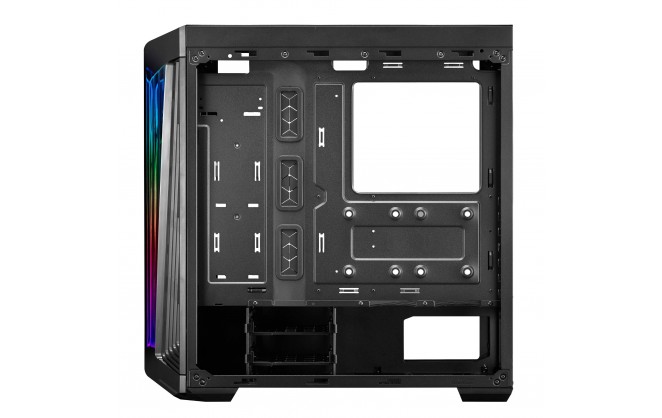

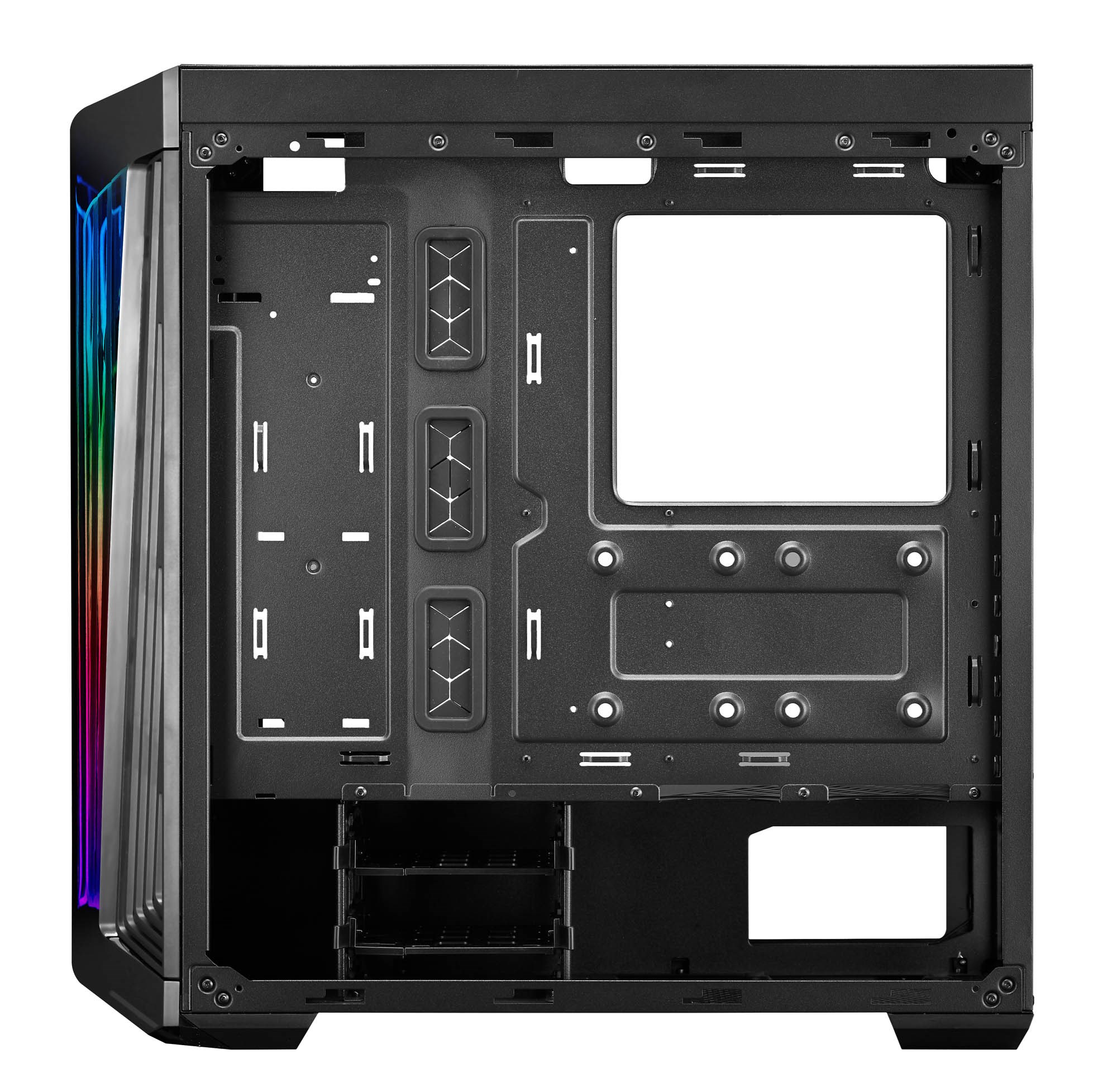

REMOVABLE TOP PANEL - The top panel is entirely removable for improved access to the components during assembly. Ease of use also facilitates the mounting of cooling solutions such as fans and radiators.
RICH CONNECTIVITY - The I/O panel comes with a USB 3.2 (Gen 2) Type-C port, two additional USB 3.2 (Gen 1) ports, and one 3.5mm (audio + mic) headset jack.

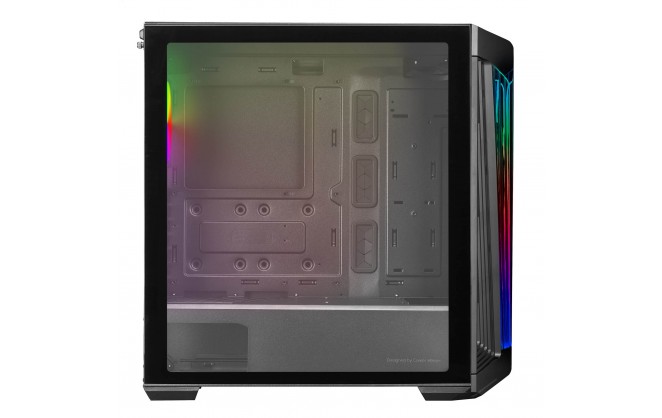

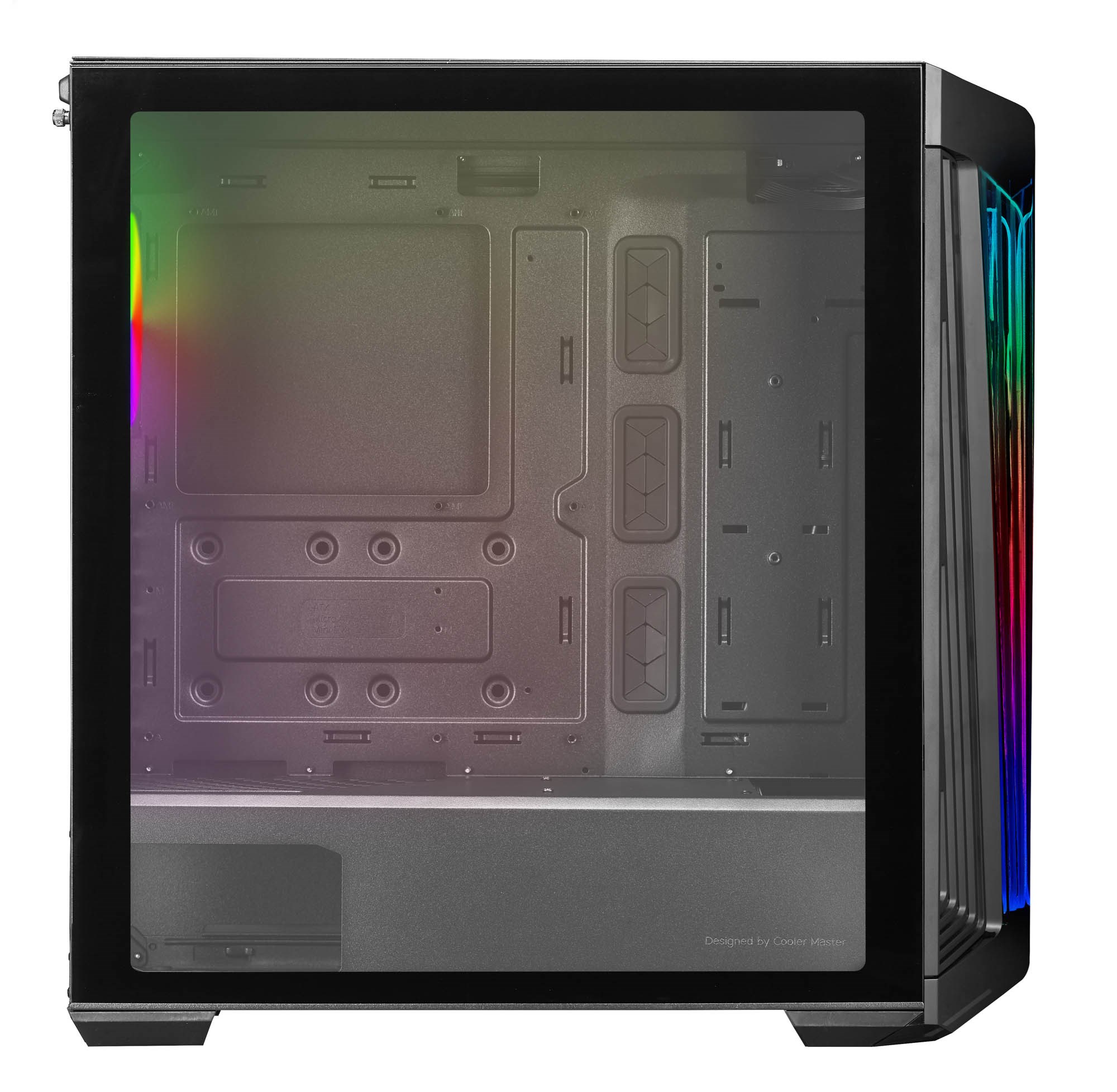

SCREWLESS & TOOL-FREE DESIGN TG SIDE PANEL - The tempered glass side panel is secured with pins for easy removal, facilitating quick access to the internals without the use of tools. An optional screw can be installed to further secure the tempered glass side panel.
VERSATILE COOLING OPTIONS - Support for up to seven 120mm fans and dual 360mm radiators on the top and front panel ensure high compatibility for liquid-cooled systems.
ROOM FOR UPGRADES - Support for up to a 410mm graphics card, a 165mm CPU cooler, and up to a 180mm PSU in length provides room for upgrades to stay ahead of the game.
BREATHABLE POWER SUPPLY SHROUD - The PSU cover is ventilated on top of the power supply location, this allows actively cooled units to be installed either with the fan facing the top or bottom, with the possibility to install passively cooled power supplies.

Technical Specification

Cooler Master MasterBox 540 Mid Tower Case - Black USB 3.0

Storage

Internal Expansion Bays

4 x 2.5"
2 x 2.5"/3.5"

Expansion

Expansion Slots

7 x Full Height

Interfaces/Ports

USB Ports	1 x USB-C 3.1 2 x USB 3.0
Headphone Ports	1 x 3.5mm Combo Jack, shared with Microphone
Microphone In Port	1 x 3.5mm Combo Jack, shared with Headphone

Electrical

Power Supply

ATX Power Supply supported

Physical

Form Factor	Mid Tower Case
Case Colour	Black
Material	Steel Mesh Plastic Tempered Glass
Motherboard Compatibility	E-ATX (*up to 12" x 10.7" motherboards, may impact cable management feature) ATX MicroATX Mini-ITX
Width	208.6 mm
Depth	499.3 mm
Height	498 mm
Weight	7.7 kg

Warranty

2 Years

Key Features

Firewire
Power	W
Laptop Size Range	ins
Main Colour	Black
External Expansion Bays
Case Type	Tower
USB 3.0 Support	Yes
Case Form Factor	Mid Tower
Power Supply Included	No
Optimised for
Modular Cables
80Plus Rated	No
Bag Size
PSU Form Factor	ATX
Display Model in Showroom
Illuminated	Yes
e-SATA
L.E.D Fan	ARGB
Laptop Size
Max 3.5" Drives	2
Max 2.5" Drives	6
ATX	Yes
Micro-ATX	Yes
ITX	Yes
E-ATX	Yes
XL-ATX
Mini PC
Cooler Height	165 mm
Built-in Card Reader	No
USB Type-C Support	Yes
Front HDMI	No
Side Panel Type	Tempered Glass
GPU Length	410 mm
PSU Depth	180 mm
Memory Speed	MHz
Card Reader Type
Front Audio Type	Combined
Number of Fans	1 fan(s)
LED Controller Included
LED Strip(s) Included
Maximum Motherboard Size Supported	E-ATX
RGB Software Type	Cooler Master MasterPlus
Total 2.5" + 3.5" drive bays	6
Power Requirement (auto)	3 W
USB3.0 ports	2
USB-C ports	1
Low profile expansion	No

Item Details

Manufacturer	Cooler Master
Manufacturer Code	MB540-KGNN-S00
EAN	4719512117927
Condition	New

Cooler Master MasterBox 540 Mid Tower Case - Black USB 3.0
