£62.48 ex. vat
£74.98 inc. vat
Share:

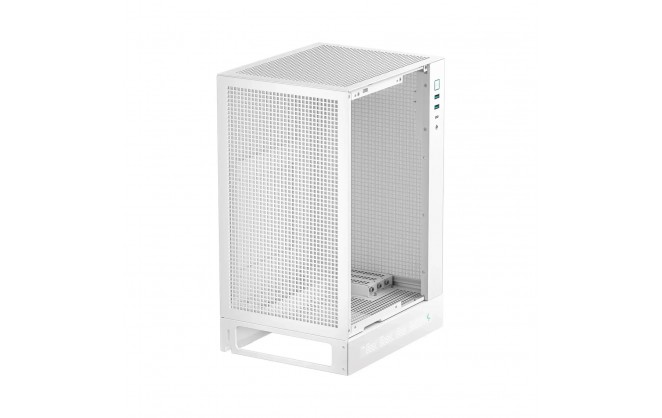

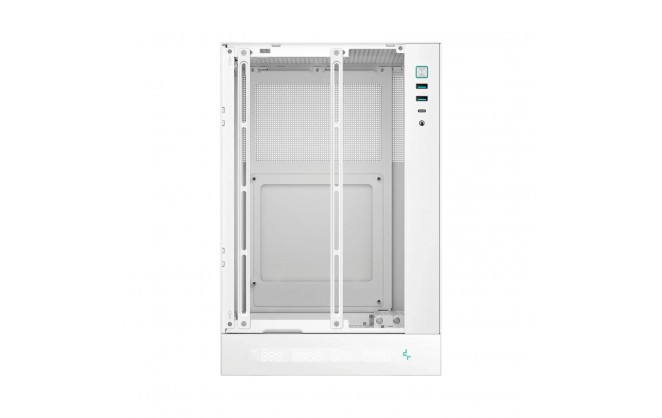

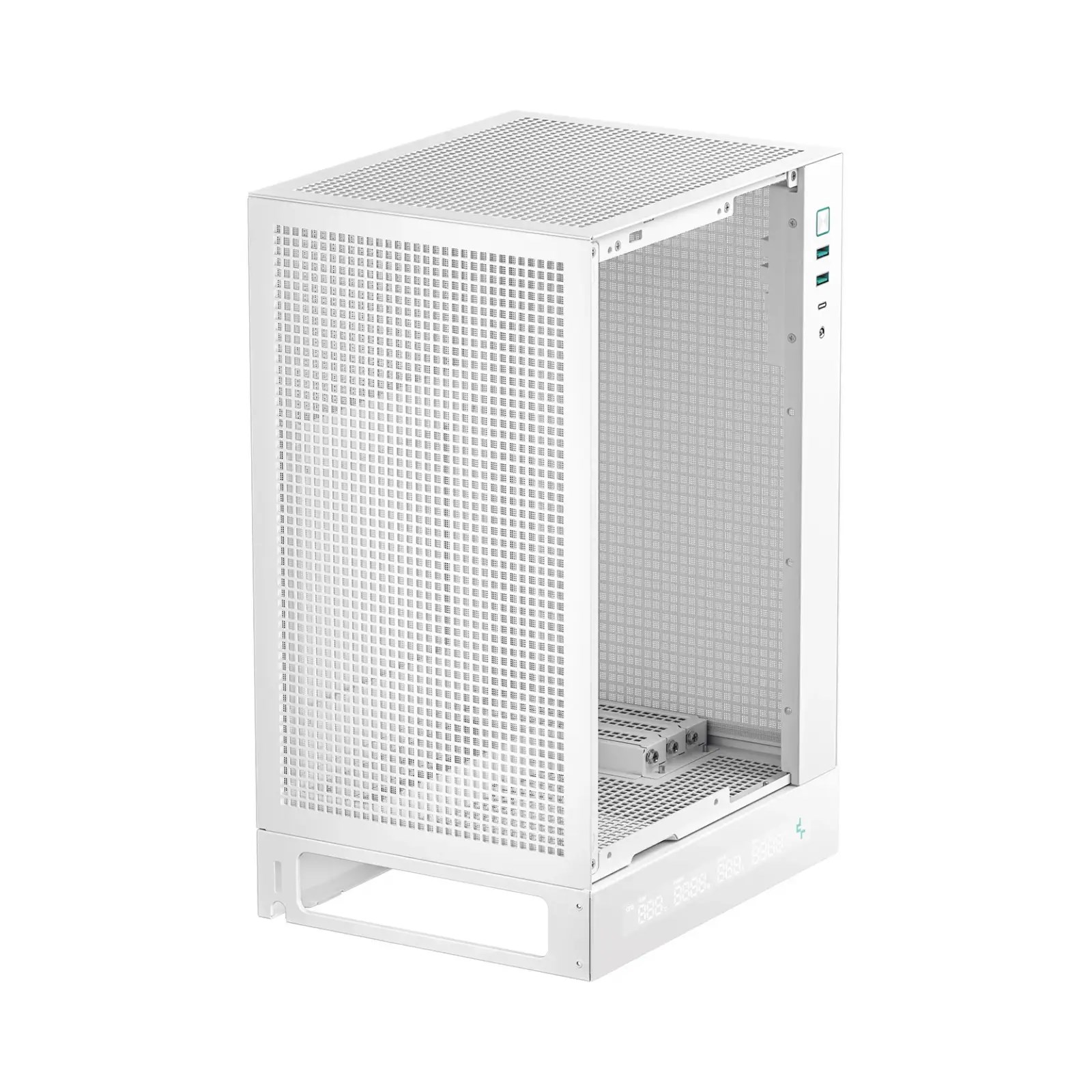

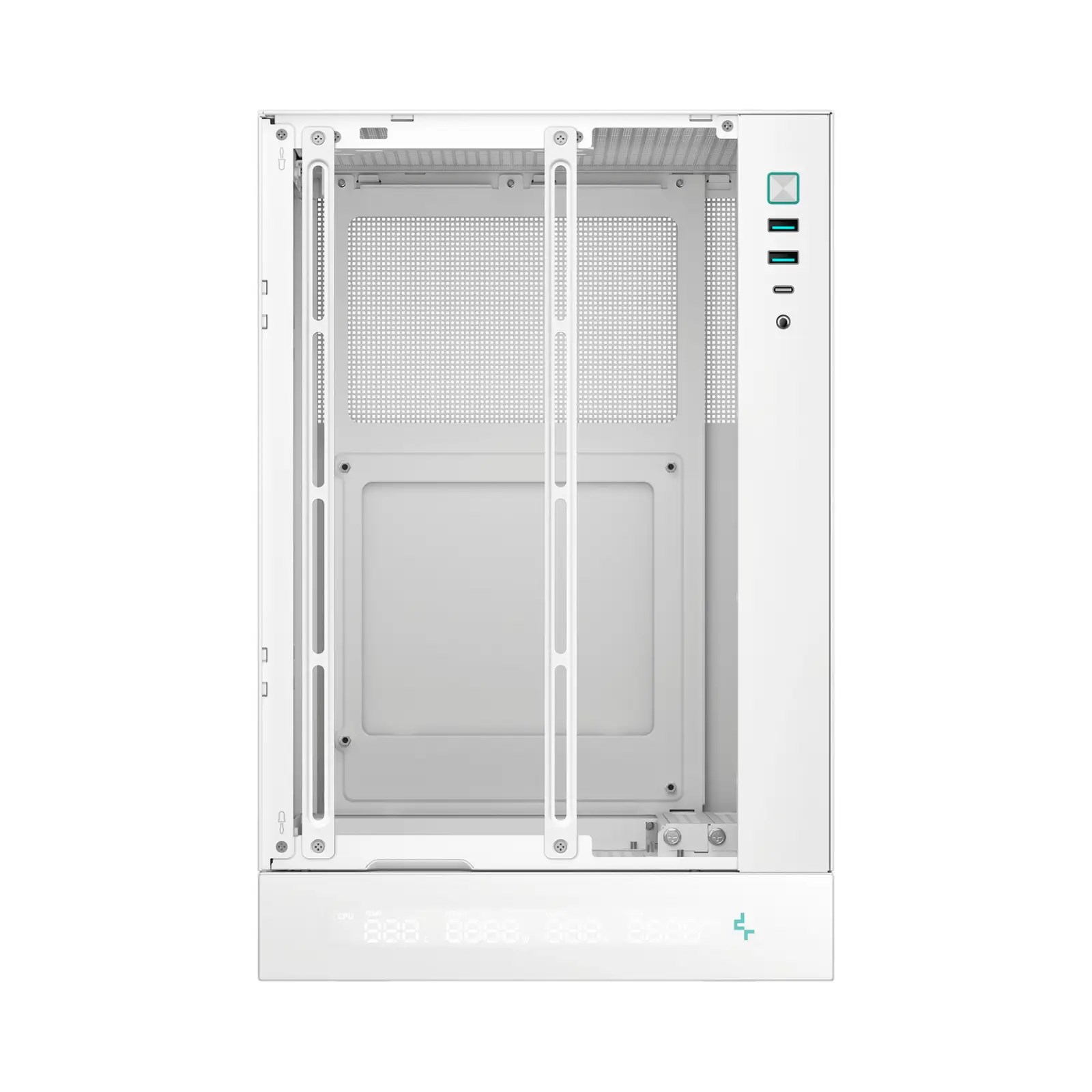

Mesh panels surround the CH170 DIGITAL WH from every side and create a high-airflow, small-form-factor case like no other.

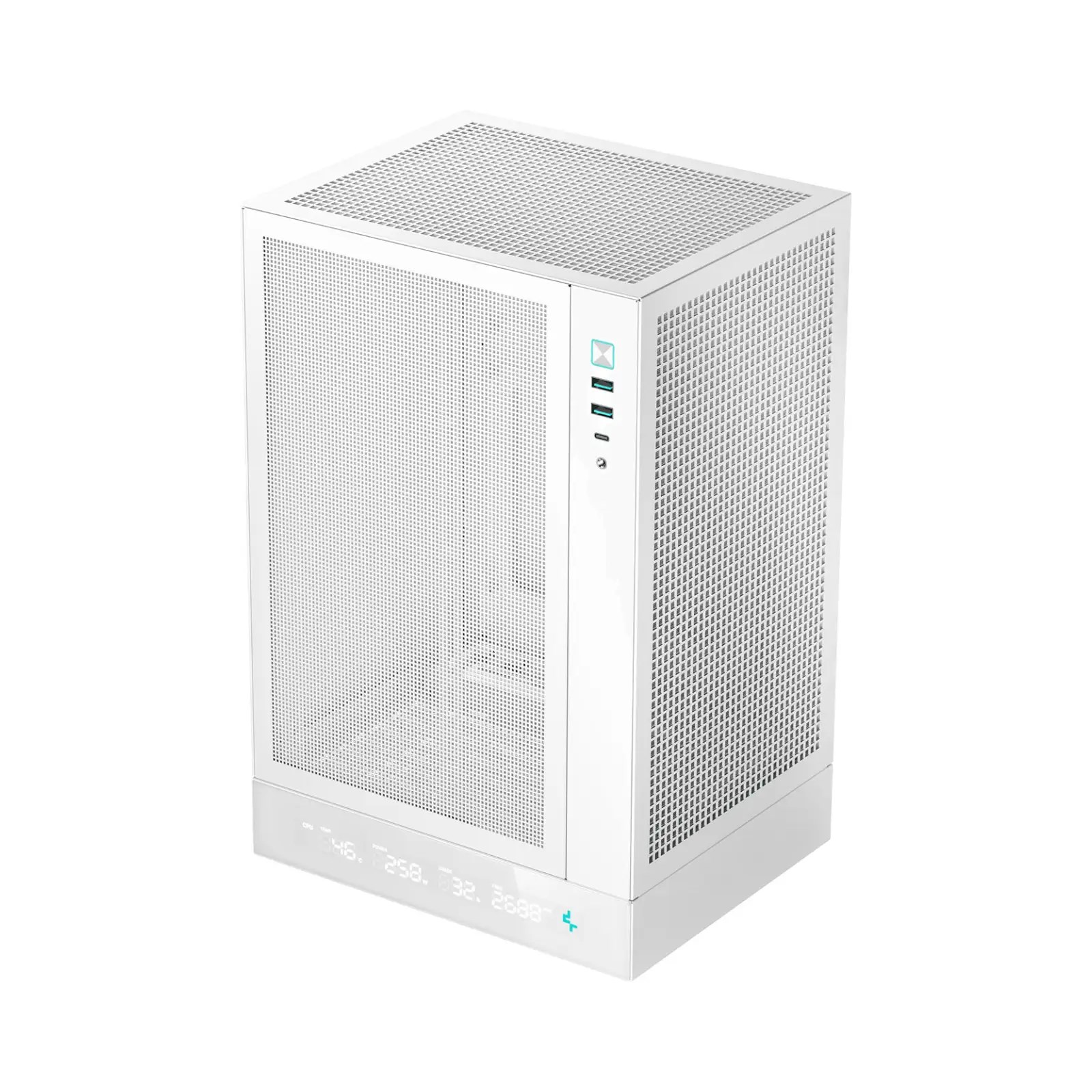

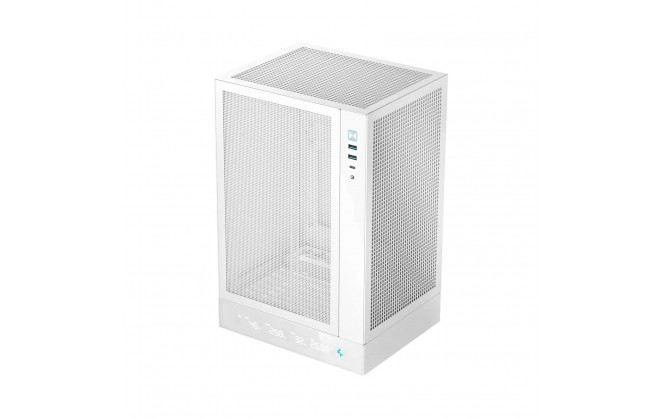

The CH170 DIGITAL WH has a digital base that displays four vital points of data at the same time. The display can focus on CPU, GPU, and PSU information at any given point in time. It can scroll through all aspects at a timed interval.
Lack of air cooler support in small mITX cases is a thing of the past. The CH170 DIGITAL WH can support giant air coolers up to 172mm in height!
If liquid cooling is preferred, that is also an option with the CH170 DIGITAL WH. A specialized radiator bracket and a full mesh panel make it possible to mount a standard-sized 240mm AIO without any worries.
Designed to accommodate most 65mm thick dual-fan GPUs that are shorter than 305mm in length and up to 138mm in width, it can be directly inserted into the motherboard without the assistance of a riser cable—no added GPU latency concerns!
Whether you choose to go with ATX, SFX, or SFX-L power supplies, the CH170 DIGITAL WH can support any of them up to 140mm.
DeepCool PIXEL bits are colorful rubber pieces offered to add creativity and playfulness to the case panels for customized designs, currently compatible with CH series and MORPHEUS cases.Let out your inner designer and create with PIXEL bits on DeepCool PC cases.

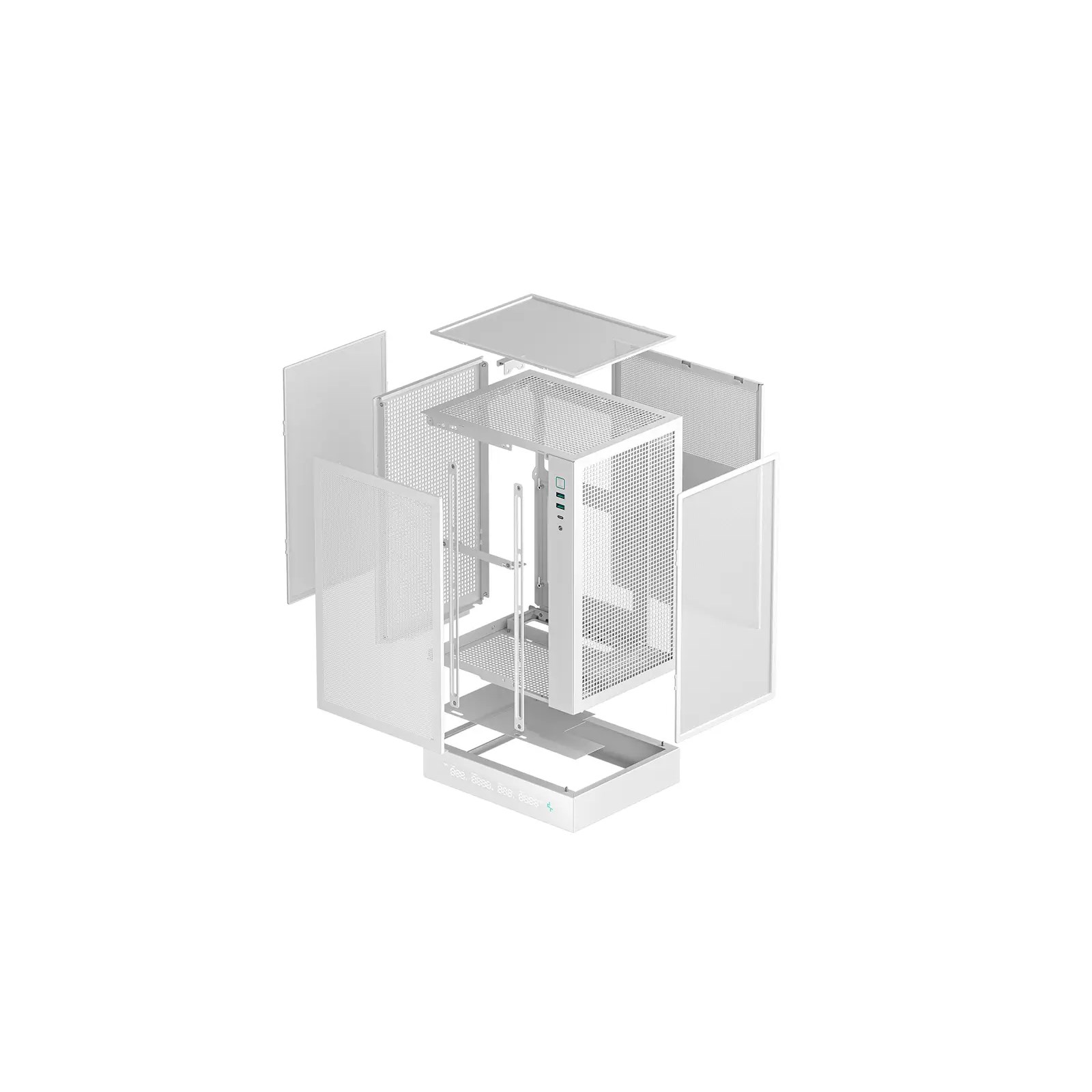

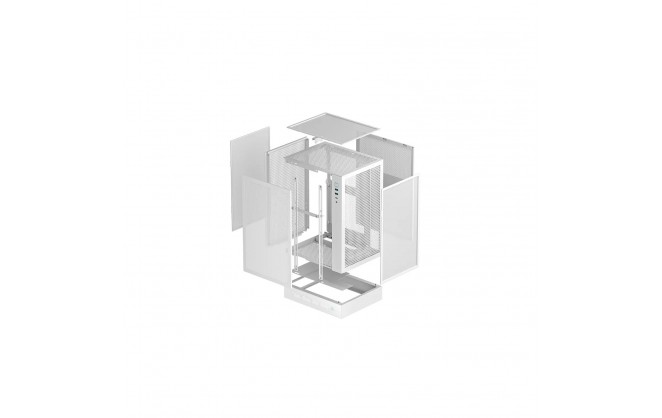

Equipped with options such as removable fan brackets, where the top fan bracket can be utilized to support either an SSD, HDD drive, or a 120mm fan; three removable dust filters for ease of cleaning; two USB 3.0, a Type-C, and a hybrid audio port, the CH170 DIGITAL WH makes everything a little easier.
DeepCool CH170 Digital WH SFF Case - White
Storage
| Internal Expansion Bays | 1 x 2.5"/3.5" |
Expansion
| Expansion Slots | 3 x Full Height |
Interfaces/Ports
| USB Ports | 1 x USB-C 3.1 2 x USB 3.0 |
| Headphone Ports | 1 x 3.5mm COMBO Jack |
| Microphone In Port | Shared with Headphone |
Electrical
| Cooling System | Top: Supports 1 x 120mm fan Rear: Supports 2 x 120mm fans Bottom: Supports 1 x 120mm fan Side: Supports 2 x 120mm fans |
| Power Supply | ATX (up to 140mm), SFX-L or SFX PSU supported |
Warranty
| Warranty | 2 Years |
Physical
| Form Factor | SFF Case |
| Case Colour | White |
| Material | ABS SPCC |
| Motherboard Compatibility | Mini-ITX Motherboard |
| Width | 200 mm |
| Depth | 250 mm |
| Height | 380 mm |
| Weight | 3.4 kg |
Key Features
| Max Motherboard Width | 170 mm |
| Max Motherboard Height | 170 mm |
| Supports AIO Cooler | Yes |
| Main Colour | White |
| Case Type | SFF |
| Case Form Factor | SFF |
| Power Supply Included | No |
| 80Plus Rated | No |
| PSU Form Factor | SFX |
| Illuminated | No |
| L.E.D Fan | No LED |
| Max 3.5" Drives | 1 |
| Max 2.5" Drives | 1 |
| ATX | No |
| Micro-ATX | No |
| ITX | Yes |
| E-ATX | No |
| Cooler Height | 172 mm |
| Built-in Card Reader | No |
| USB Type-C Support | Yes |
| Side Panel Type | Mesh |
| GPU Length | 305 mm |
| PSU Depth | 140 mm |
| RGB LED Controller Included | No |
| LED Strip(s) Included | No |
| Maximum Motherboard Size Supported | ITX |
| RGB Software Type | None |
| Total 2.5" + 3.5" drive bays | 1 |
| USB3.0 ports | 2 |
| USB-C ports | 1 |
| Low profile expansion | No |
| Max Supported Radiator Length | 240 mm |
| Create Your Own Gaming PC (CCL) | Yes |
| Back Connect Support | No |
Item Details
| Manufacturer | DeepCool |
| Manufacturer Code | R-CH170-WHNPI0D-G-1 |
| EAN | 6933412774211 |
