Fractal Design Define 7 Compact Case - White Tempered Glass

Part Number: FD-C-DEF7C-04
Manufacturer: Fractal Design
Quickfind Code: 105377

Stock: Out Stock

Contact for availability

Product Features:

Condition: New
Main Colour White
Side Panel Tempered Glass
Form Factor ATX

+ Read More Information

Product Description

The new Define 7 Compact takes the strongest features of the contemporary 7 Series design and places them in a conveniently compact frame. Highly modular for its size, the Define 7 Compact is easily customizable to meet your exact needs – and the instantly removable top panel ensures an easy build, even with high-end components.

Main Features

Compact yet spacious interior accommodates ATX, mATX and mITX motherboards
Room for GPUs up to 360 mm with a 240 mm radiator in the top, or up to 360/280 mm front radiators with GPUs under 305 mm
Support for two 2.5"/3.5" drives plus up to four SSDs (two SSD brackets included)
Top panel effortlessly swaps from solid steel to filtered ventilation
New removable top panel design opens up to fully expose the case interior for effortless installation and cable routing
Silence-optimized construction with industrial sound-damped front, top, and side panels
Brushed aluminum front and top-latching side panels offer a clean sophisticated look
Install up to 7 x 120 mm or 4 x 140 mm fans (1 x 120 mm and 1 x 140 mm Dynamic X2 fans included)
Five front USB ports including one USB 3.1 Gen 2 Type-C with fast charging support and speeds up to 10Gbps
Bridgeless expansion slots ensure obstruction-free connections for easier installation and hookup
Ventilated PSU shroud with two-part removable cover for optimal coverage and front radiator support
Easy-to-clean high airflow nylon filters on the front, top and base with full PSU coverage and convenient front access

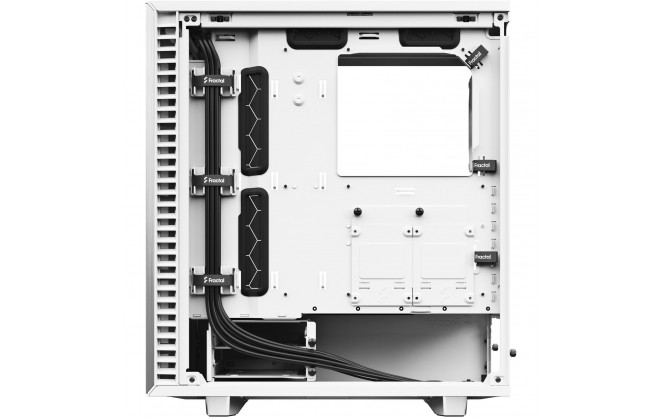

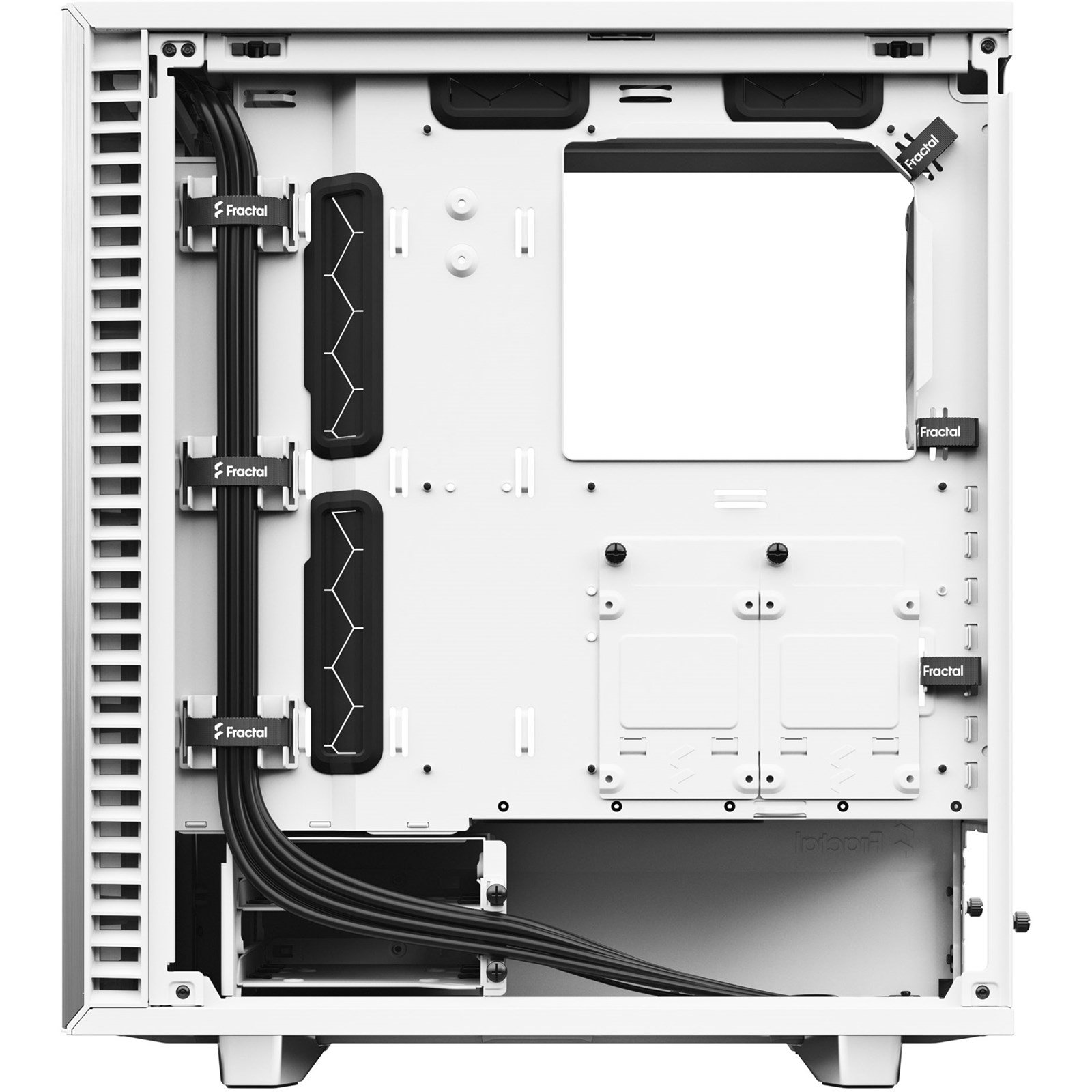

Integrated cable guides with Velcro straps further simplify cable management behind the board

Technical Specification

Fractal Design Define 7 Compact Case - White Tempered Glass

User Controls

Power
Reset

Storage

Internal Expansion Bays

2 x 2.5"
2 x 2.5"/3.5"

Expansion

Expansion Slots

7 x Full Height

Interfaces/Ports

USB Ports	1 x USB 3.1 Type-C 2 x USB 3.0 2 x USB 2.0
Headphone Ports	1 x 3.5mm Jack
Microphone In Port	1 x 3.5mm Jack

Electrical

Cooling System	Front: Supports 3 x 120mm or 2 x 140mm fans (1 x 140mm fan included) Top: Supports 2 x 120mm or 140mm fans Rear: Supports 1 x 120mm fan (included) Bottom: Supports 1 x 120mm fan (requires removal of HDD cage)
Power Supply	ATX Power Supply supported

Physical

Form Factor	Mid Tower Case
Case Colour	White with Light Tint Tempered Glass
Material	Steel Light Tint Tempered Glass
Motherboard Compatibility	ATX MicroATX Mini-ITX
In The Box	Define 7 Compact Accessory box User manual Ventilated top panel
Width	210 mm
Depth	427 mm
Height	474 mm
Weight	8.76 kg

Warranty

2 Years

Key Features

Firewire	No
Main Colour	White
Case Type	Tower
USB 3.0 Support	Yes
Case Form Factor	Mid Tower
Power Supply Included	No
80Plus Rated	No
PSU Form Factor	ATX
Display Model in Showroom	No
Illuminated	No
e-SATA	No
L.E.D Fan	No LED
Internal 3.5" Bay	2
Internal 2.5" Bay	2
ATX	Yes
Micro-ATX	Yes
ITX	Yes
Cooler Height	169 mm
Built-in Card Reader	No
USB Type-C Support	Yes
Front HDMI	No
Side Panel Type	Tempered Glass
GPU Length	341 mm
PSU Depth	200 mm
Front Audio Type	Separate
Number of Fans	2 fan(s)
LED Controller Included	No
LED Strip(s) Included	No
Maximum Motherboard Size Supported	ATX

Item Details

Manufacturer	Fractal Design
Manufacturer Code	FD-C-DEF7C-04
EAN	7340172702719
Condition	New
