The Define 7 XL sets a new standard for what you should expect from a full tower case in terms of modularity, flexibility and ease of use. With its dual-layout interior, industrial sound damping and massively versatile layout supporting the largest E-ATX and enterprise boards, multi-GPU setups, outlandish water loops, and almost two dozen storage devices (in Storage layout), you’ll be hard pressed to find a limit to what you can do with your build in the Define 7 XL.
Extra Spacious
An expansive internal layout easily accommodates large motherboards up to E-ATX and SSI-EEB.
Superlative Storage
Install up to 18 HDDs alongside 5 SSDs mounts in the default Storage Layout. (6 HDD/SSD trays + 2 SSD brackets + 2 multi-brackets included)
Flexible Dual-Layout Design
Convert to Open Layout and get more than enough room for your custom water loop with large reservoirs and radiators up to 480 mm.
Exceptionally Silent
Solid construction with industrial high-density sound damping helps maintain whisper silent operation.
Open and Interchangeable

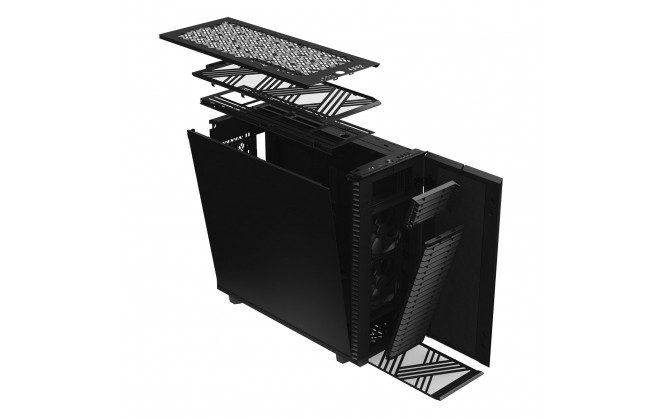

Remove the entire top to build and route with zero hindrance. Swap in the ventilated panel to add four filtered fan positions.
Elegant New Front Design
Brushed aluminium encases a refined front door design with dual-handed reversible hinges and magnetic latching.
Superior Airflow
Three Dynamic X2 GP-14 fans come pre-installed with room to expand up to a total of 9 x 140 mm or 11 x 120 mm fans.
Versatile New Multi-Brackets
The included multi-bracket lets you convert any unused fan position to an HDD, SSD or pump mount.
Fractal Design Define 7 XL Full Tower Case
User Controls
| User Controls | Power Reset |
Storage
| External Expansion Bays | 2 x 5.25" |
| Internal Expansion Bays | 2 x 2.5" (5 positions total) 8 x 2.5"/3.5" (18 positions total) |
Expansion
| Expansion Slots | 9 x Full Height 3 x Vertical |
Interfaces/Ports
| USB Ports | 1 x USB 3.1 Type-C 2 x USB 3.0 2 x USB 2.0 |
| Headphone Ports | 1 x 3.5mm Jack |
| Microphone In Port | 1 x 3.5mm Jack |
Electrical
| Cooling System | Front: Supports 4 x 120mm or 3 x 140mm fans (2 x 140mm fans included) Top: Supports 4 x 120mm or 3 x 120mm fans Rear: Supports 1 x 120mm or 140mm fan (140mm fan included) Bottom: Supports 2 x 120mm or 140mm fans |
| Power Supply | ATX Power Supply supported (up to 250mm depth) |
Warranty
| Warranty | 2 Years |
Physical
| Form Factor | Full Tower Case |
| Case Colour | Black |
| Motherboard Compatibility | SSI-EEB SSI-CEB EE-ATX E-ATX ATX MicroATX Mini-ITX |
| In The Box | Define 7 XL Accessory Box User Manual Ventilated Top Panel ODD Bracket ODD Bay Cover 2 x SSD/HDD Trays (for a total of 6) |
| Width | 240 mm |
| Depth | 604 mm |
| Height | 566 mm |
| Weight | 16.53 kg |
Key Features
| Firewire | No |
| Main Colour | Black |
| Case Type | Tower |
| USB 3.0 Support | Yes |
| Case Form Factor | Full Tower |
| Power Supply Included | No |
| 80Plus Rated | No |
| PSU Form Factor | ATX |
| Display Model in Showroom | No |
| Illuminated | No |
| e-SATA | No |
| L.E.D Fan | No LED |
| Internal 3.5" Bay | 8 |
| External 5.25" Bay | 2 |
| Internal 2.5" Bay | 2 |
| ATX | Yes |
| Micro-ATX | Yes |
| ITX | Yes |
| E-ATX | Yes |
| Cooler Height | 185 mm |
| Built-in Card Reader | No |
| USB Type-C Support | Yes |
| Front HDMI | No |
| Side Panel Type | Solid |
| GPU Length | 549 mm |
| PSU Depth | 250 mm |
| Front Audio Type | Separate |
| Number of Fans | 3 fan(s) |
| LED Controller Included | No |
| LED Strip(s) Included | No |
| Maximum Motherboard Size Supported | E-ATX |
Item Details
| Manufacturer | Fractal Design |
| Manufacturer Code | FD-C-DEF7X-01 |
| EAN | 7340172702047 |
| UPC | 843276102043 |
| Condition | New |
