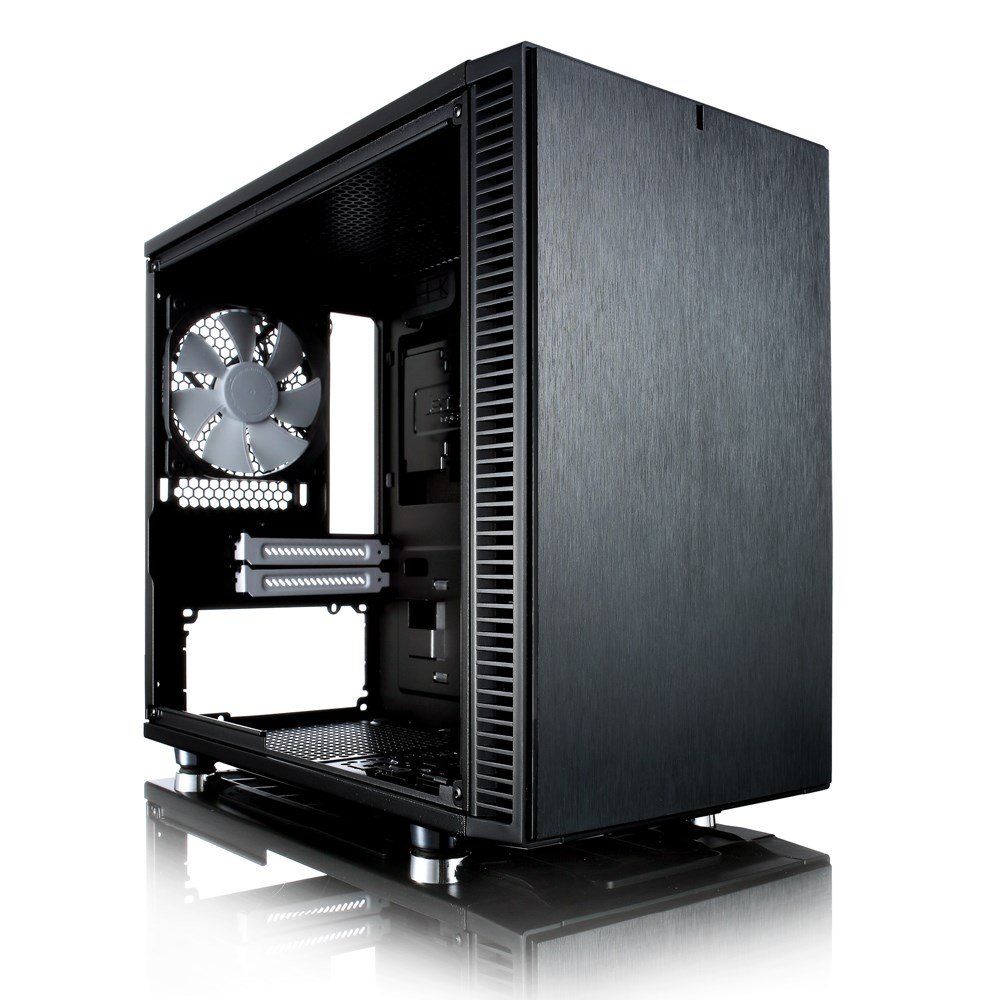

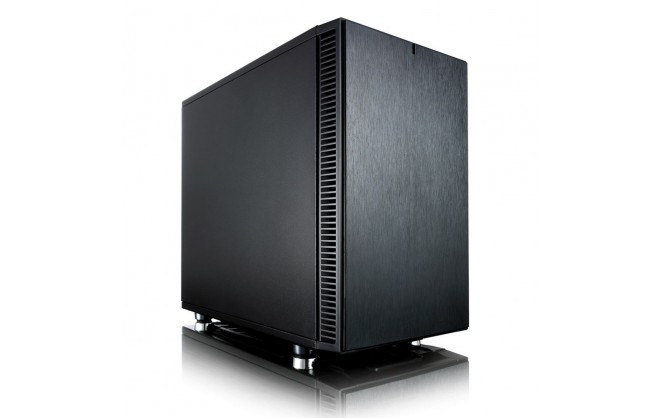

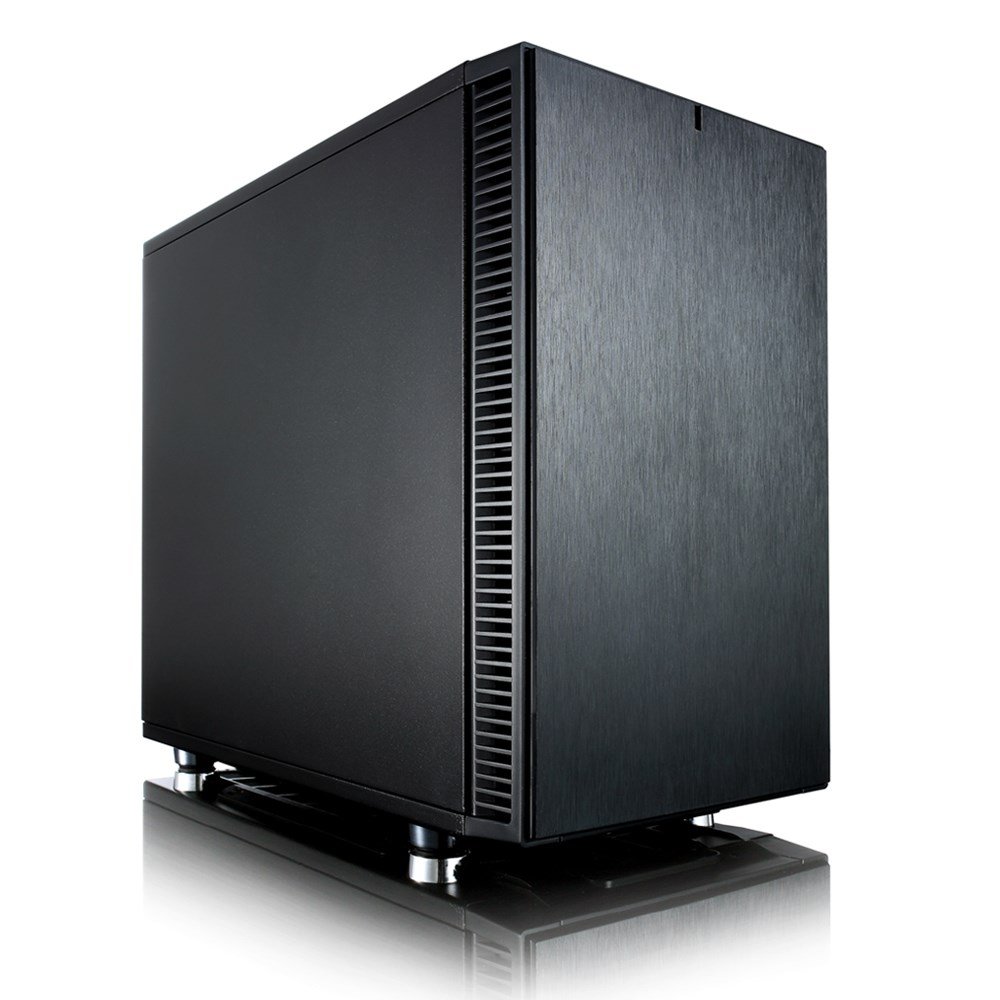

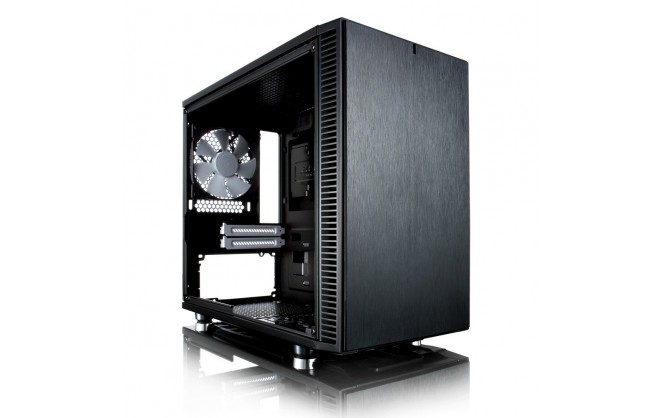

Fractal Design Define Nano S ITX Gaming Case

  • Part Number: FD-CA-DEF-NANO-S-BK
  • Manufacturer: Fractal Design
  • Quickfind Code: 105006
  • Stock: Out Stock

Contact for availability

Product Features:
  • Condition: New
  • Form Factor ITX
  • Main Colour Black
  • Side Panel Solid
+ Read More Information

Share:

Product Description

The Define Nano S is an ITX case that features compatibility with high end, full-size components, superior sound dampening, and an ATX-like layout.

The case includes two Dynamic Series fans with both bottom and front intakes protected by easy-to-clean, removable dust filters.

With its mounting capabilities for simultaneous radiators and unobstructed airflow path, the Define Nano S can cool enthusiast-level components.

Equipped with Fractal Design’s signature ModuVent™ technology on the top vents and sound dampening throughout, the Define Nano S can run a powerful system quietly, a hallmark of the Define series.

Specifications

  • ITX motherboard compatibility
  • 2 expansion slots
  • 2 - 3.5" HDD/2.5" SSD positions; 2 - 2.5" dedicated SSD unit positions (fits SSDs up to 13mm thick)
  • 6 - Fan positions (1 Fractal Design Dynamic GP14 140mm fan + 1 Fractal Design Dynamic GP-12 120mm fan included)
  • Filtered fan slots in the front and bottom (ejects from the front of the case)
  • CPU coolers up to 162mm in height
  • ATX PSUs up to 160mm deep
  • Graphics cards up to 315mm in length with front fans mounted (Cards wider than the dual slot bracket are not recommended)

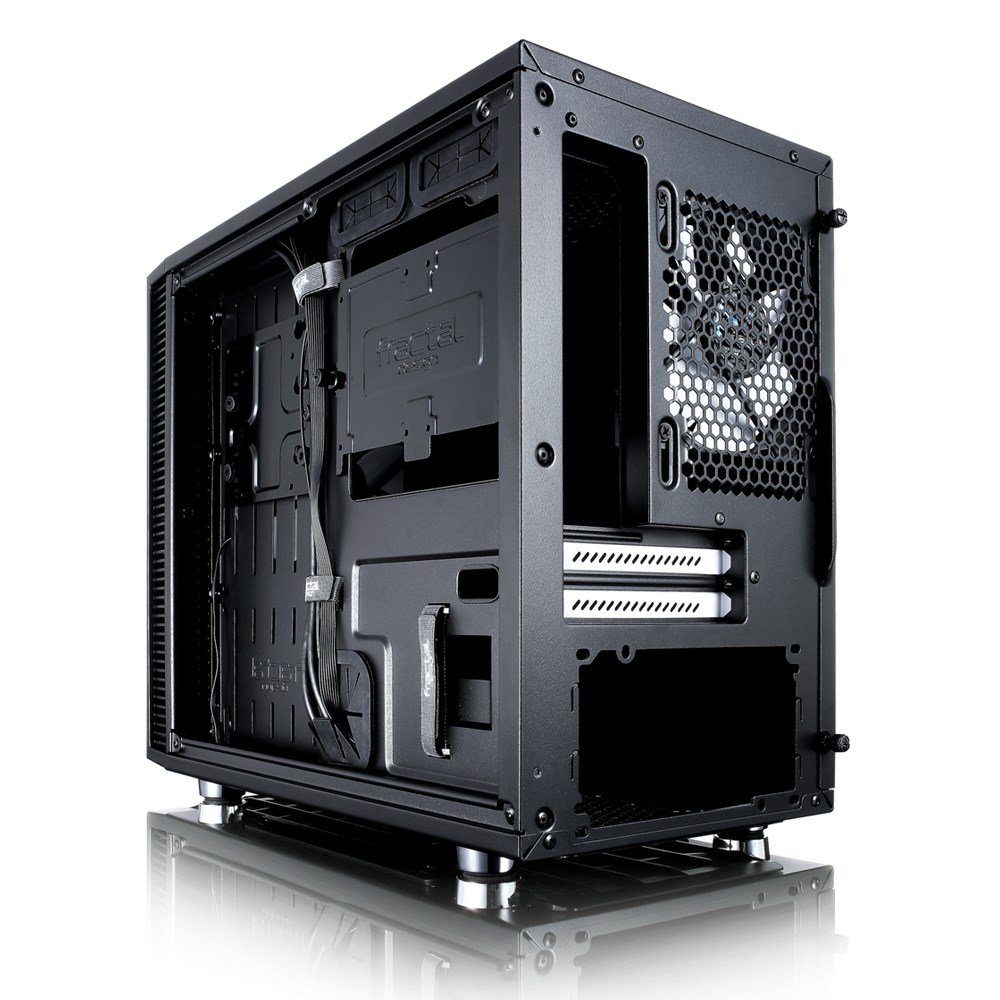

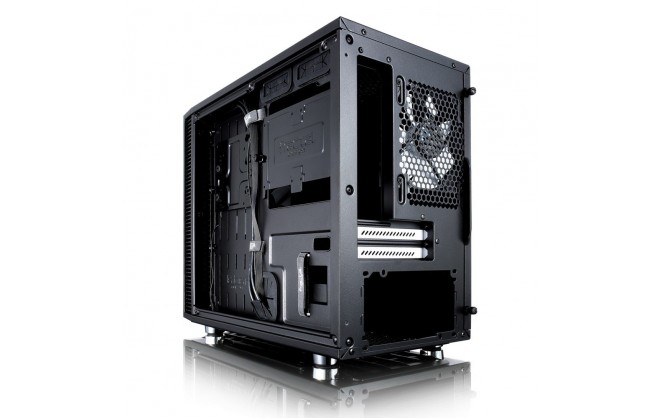

  • 17 - 35mm of space for cable routing behind the motherboard plate

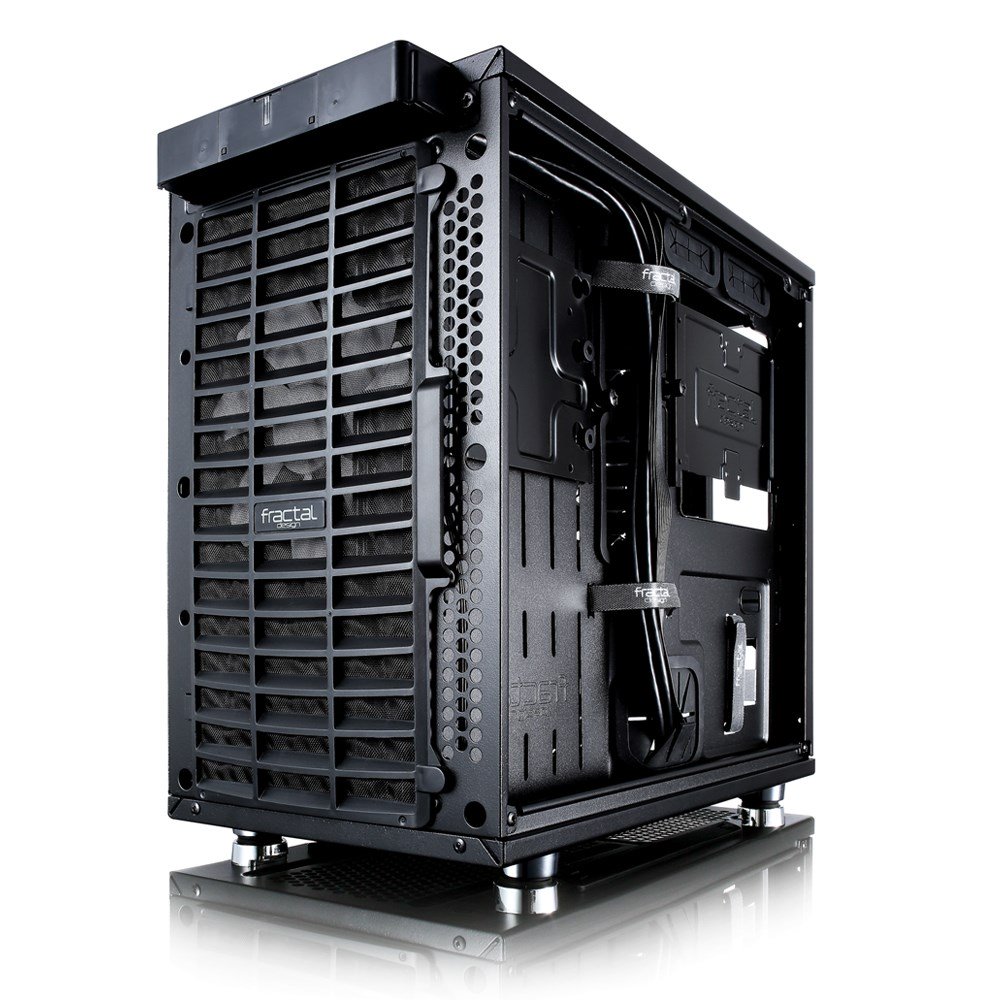

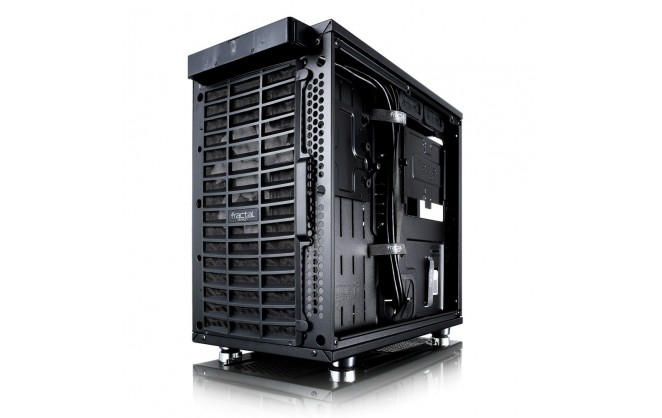

  • Velcro straps included for easy cable management
  • Both side panels and rear HDD/SSD brakcets feature smart captive thumbscrews
  • Dense sound dampening material on front, left and right side panels
  • ModuVent™ on top of case for further silent computing or additional ventilation
  • Colours available: Black
  • Case dimensions (WxHxD): 203 x 330 x 400mm
  • Case dimensions - with feet/protrusions/screws: 203 x 344 x 412mm
  • Net weight: 5 kg
  • Case volume: 26.80 litres
  • Package dimensions (WxHxD): 275 x 485 x 420mm
  • Package weight: 6.2 kg

Cooling system

  • Front: 2 – 120/140 mm fans (included is 1 Fractal Design Dynamic GP14 fan, 1000 RPM speed)
  • Rear: 1 – 120 mm fan (included is 1 Fractal Design Dynamic GP12 fan, 1200 RPM speed)
  • Top: 2 - 120/140 mm fan (not included)
  • Bottom: 1 – 120 mm fan (not included)
  • Dust filters: Bottom and front intakes

Water cooling compatibility - Radiators

  • Front – 120/240mm, 140/280mm (max width 147, length 312; some radiators extend beyond the screw holes)
  • Top – 120/240mm (max component height on motherboard 35mm. Big heatsinks on RAM or power regulators around CPU could conflict with this restriction)
  • Bottom – 120mm (max thickness & length: 85mm x 160mm)
  • Rear – 120mm (max width 125mm; some radiators extend beyond the screwholes)

Water cooling compatibility - Pumps

  • Pre-drilled holes on multi-bracket, supports many DDC and D5 variants (see manual for detailed measurements)

Water cooling compatibility - Reservoirs

  • Adjustable mounting brackets allow for almost any rectangular mounting screw pattern. Maximum distance between the mounting bracket screw positions: 270mm height / 80mm width.

Front interface

  • 2 USB 3.0
  • Audio in/out
  • Power button with LED (blue)
  • HDD activity LED (blue)
  • Reset button

Package contents

  • Define Nano S computer case
  • User manual
  • Accessory box

Main Features

  • A Define Series ITX case designed for silent computing with sound dampening and ModuVent technology
  • User-friendly construction with superior cable management and compatibility for full-size components
  • Flexible storage options with room for up to 4 drives
  • Accommodates a variety of radiator sizes and includes brackets for reservoir and pump mounting
  • Features two Dynamic Series fans - 1 GP-12 and 1 GP-14 - with an adapter included for motherboards with limited fan headers
  • Featuring an open interior allowing an unobstructed airflow path from the front of the case to the rear exhaust
  • Easy-to-clean filters on the top and bottom, spanning the PSU position, with the bottom filter ejecting from the front for easy-access.
Technical Specification

Fractal Design Define Nano S ITX Gaming Case

Storage

Internal Expansion Bays2 x 3.5/2.5 inch • 2 x 2.5 inch

Expansion

Expansion Slots2

Interfaces/Ports

USB Ports2 x USB 3.0
Audio Line In Ports1 x Audio In
Audio Line Out Ports1 x Audio Out

Electrical

Cooling System6 x Fan positions (1 Fractal Design Dynamic GP14 140mm fan + 1 Fractal Design Dynamic GP-12 120mm fan included)

Physical

Form FactorCase
Case ColourBlack
LED Status IndicatorsHDD activity LED (blue)
Motherboard CompatibilityITX
In The BoxDefine Nano S computer case • User manual • Accessory box
Width20.30 cm
Depth40.0 cm
Height33.0 cm
Weight5.0 kg

Key Features

FirewireNo
Main ColourBlack
Case TypeSFF
USB 3.0 SupportYes
Case Form FactorITX
Power Supply IncludedNo
Optimised forGaming
80Plus RatedNo
PSU Form FactorATX
Display Model in ShowroomNo
e-SATANo
L.E.D FanNo LED
Internal 3.5" Bay2
Internal 2.5" Bay2
ATXNo
Micro-ATXNo
ITXYes
E-ATXNo
XL-ATXNo
Built-in Card ReaderNo
USB Type-C SupportNo
Front HDMINo
Side Panel TypeSolid
Front Audio TypeSeparate
Maximum Motherboard Size SupportedITX

Warranty

Warranty1 Year

Item Details

ManufacturerFractal Design
Manufacturer CodeFD-CA-DEF-NANO-S-BK
EAN7350041084129
UPC817301014120
ConditionNew
