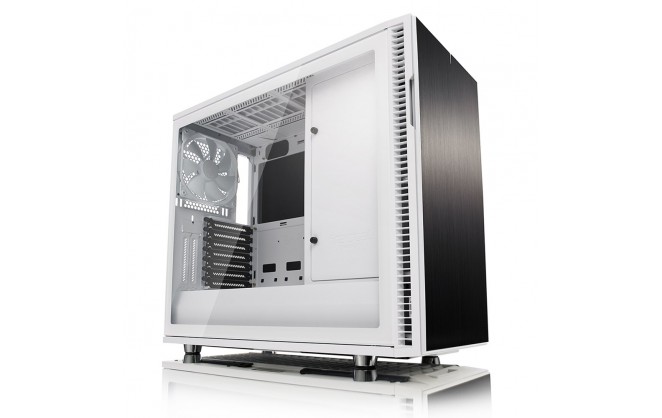

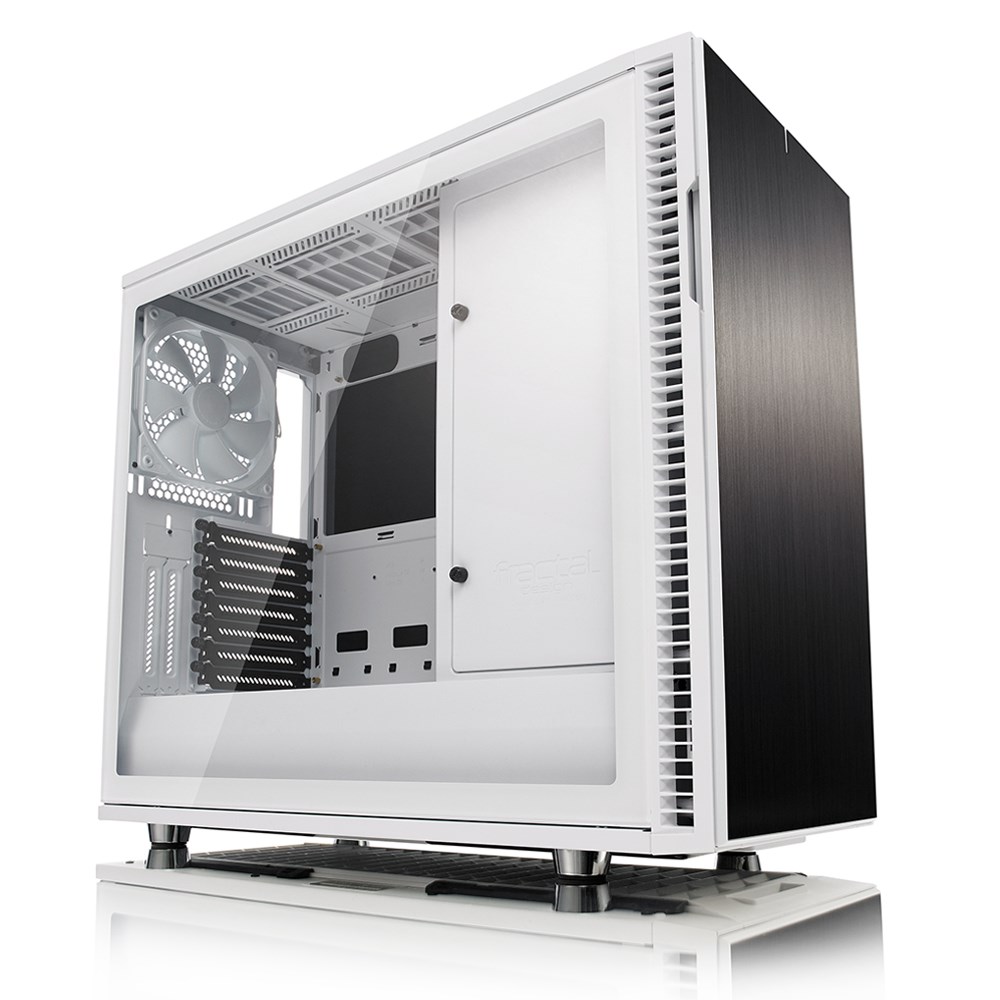

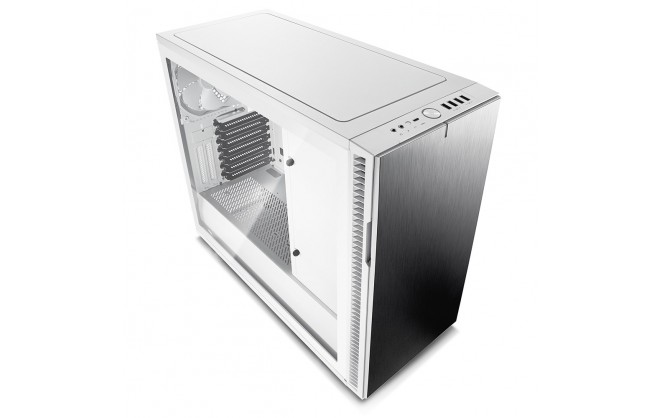

Fractal Design Define R6 USB-C TG Case White

Part Number: FD-CA-DEF-R6C-WT-TGC
Manufacturer: Fractal Design
Quickfind Code: 105228

Stock: Out Stock

Contact for availability

Product Features:

Condition: New
Form Factor E-ATX
Main Colour White
Side Panel Tempered Glass

+ Read More Information

Product Description

Designed from the ground up, the Define R6 goes beyond iteration with a profound stride of innovation – the latest and largest step in the legacy of the world-renowned Define Series.

Seamless tempered glass and sound dampened steel panels with an elegant push-to-lock latching mechanism encase an entirely redesigned interior with unprecedented component support and storage flexibility. Six 3.5”/2.5” drives and two 2.5” drives can be installed with precision placement in countless configurations throughout the case.

The spacious and fully adaptable framework of the Define R6 sports nine fan mounts, integrated PWM fan hub and support for radiators up to 420mm, making it the perfect platform for building your dream water loop. Improved third generation ModuVent™ technology allows an effortless transition from steel-clad sound dampened top panel to filtered high airflow multi-fan ventilation setup.

Expanding on the timeless elegant form and silent modular function that brought so much success to its predecessors, the new Define R6 offers the most demanding hardware enthusiast a solid foundation and flexible framework with limitless potential.

Clearances

Max GPU Length: 440mm
Max CPU Cooler Height: 185mm
Max PSU Depth: 300mm
Cable Routing Space: 23mm

Main Features

Full-size seamless scratch-resistant tempered glass side panel
Optimized for silence with high-density industrial dampening on side, top and front panels
USB 3.1 Gen 2 Type-C with Fast Charging support and up to 10Gbps transfer speeds
Reversible front door with anodized aluminum cover and dual-handed mounting system for adaptability with elegance
Nine fan positions with intuitive layout and clear airflow paths offer massive cooling capacity
Nexus+ Smart Hub offers superior fan control of six additional case fans and three PWM devices via your motherboard
Three silent, airflow-optimized Fractal Design Dynamic X2 GP-14 140 mm fans come pre-installed, ensuring optimal airflow via two intake fans and a single exhaust
Extensive water cooling support with room for up to a 420 mm radiator in the top, 360 mm in the front, and 280 mm in the base
Power supply shroud and Modular Storage Plate conceal HDD trays and excess cabling for a clean, clutter-free interior

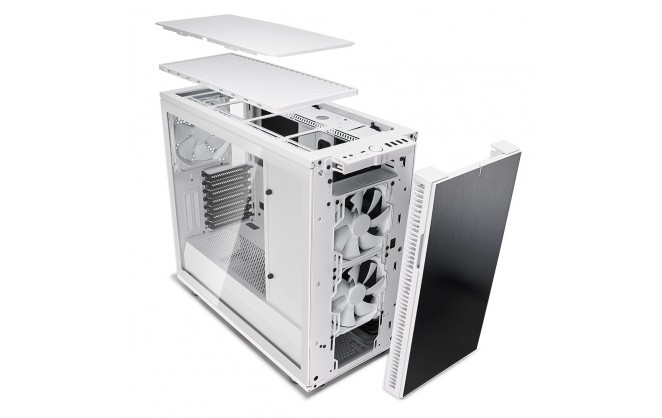

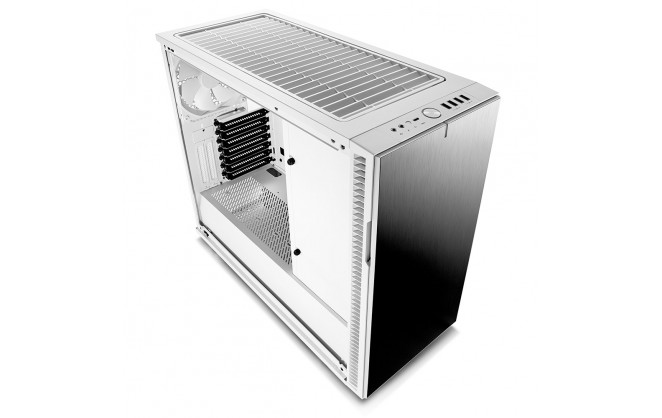

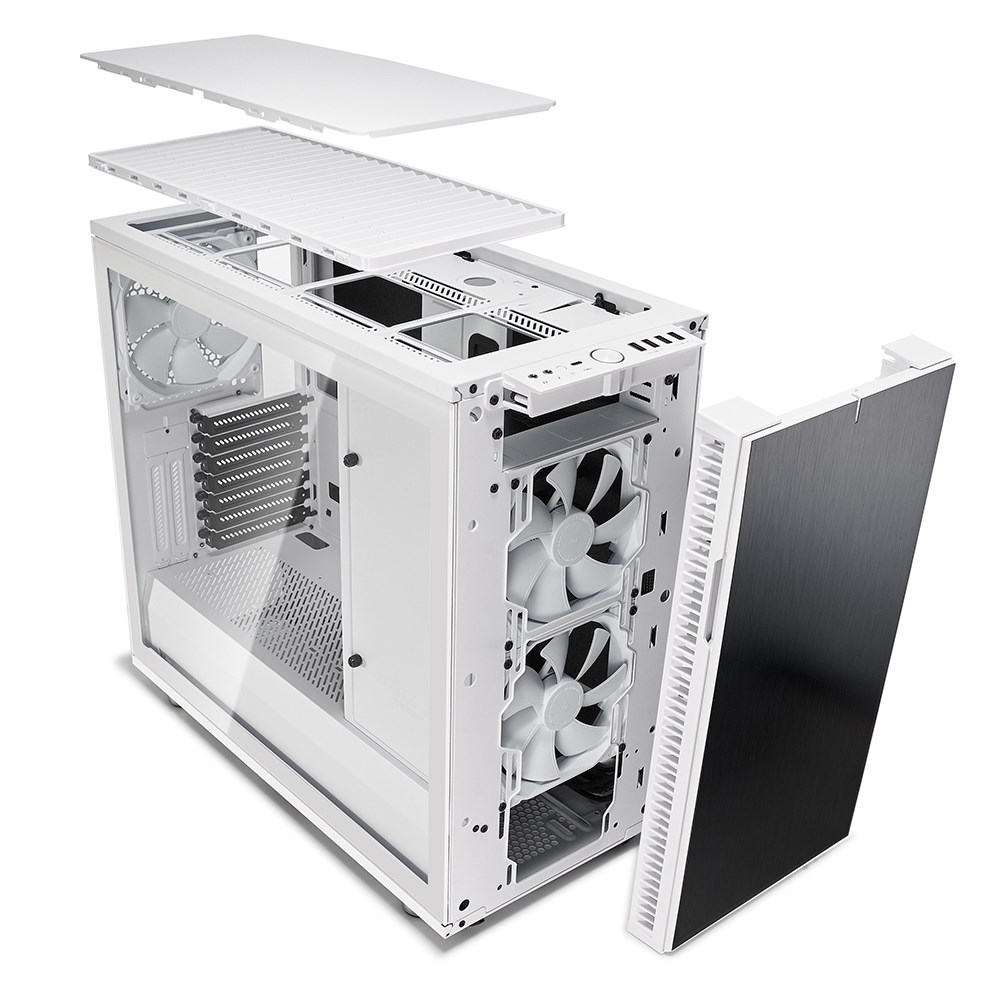

Third generation ModuVent™ technology gives users the choice between a soundproof steel cover or filtered multi-fan ventilation in the top panel
Easy-to-clean high airflow nylon filters on the front, top, and base with full PSU coverage and front access for convenience
Modular Storage Plate lets users easily convert between the Standard Layout for maximum storage capacity or the new Open Layout for superior water cooling support and clear air flow paths
Vertical 2.5 slot GPU mount showcases your graphics hardware with full visibility (PCIe riser sold separately)
Highly modular interior includes six universal SSD/HDD trays that can be independently repositioned to suit components, cooling, and cable routing
Customizable 2.5" storage solution consists of two brackets and a choice of four tray locations to keep drives hidden behind the motherboard tray or display them prominently on top of the PSU shroud

Technical Specification

Fractal Design Define R6 USB-C TG Case White

Storage

Internal Expansion Bays

2 x 2.5"
6 x 3.5" (convertable to 2.5")

Expansion

Expansion Slots

7 +2 x Full Height

Interfaces/Ports

USB Ports	1 x USB 3.1 Type-C 2 x USB 2.0 2 x USB 2.0
Headphone Ports	1 x 3.5mm Jack
Microphone In Port	1 x 3.5mm Jack

Electrical

Cooling System	Front: Supports 3 x 120mm or 2 x 140mm fans (2 x 140mm fans included) Top: Supports 3 x 120mm or 2 x 140mm fans Rear: Supports 1 x 120mm or 140mm fans (140mm fan included) Bottom: Supports 2 x 120mm or 140mm fans
Power Supply	ATX Power Supply supported

Physical

Form Factor	Mid Tower Case
Case Colour	White
Motherboard Compatibility	E-ATX (up to 285mm wide) ATX MicroATX Mini-ITX
Width	233 mm
Depth	543 mm
Height	465 mm
Weight	12.4 kg

Key Features

Firewire	No
Main Colour	White
Case Type	Tower
USB 3.0 Support	Yes
Case Form Factor	Mid Tower
Power Supply Included	No
Optimised for	Gaming
80Plus Rated	No
PSU Form Factor	ATX
Display Model in Showroom	No
e-SATA	No
L.E.D Fan	No LED
Internal 3.5" Bay	6
Internal 2.5" Bay	2
ATX	Yes
Micro-ATX	No
ITX	No
E-ATX	Yes
XL-ATX	No
Cooler Height	185 mm
Built-in Card Reader	No
USB Type-C Support	Yes
Front HDMI	No
Side Panel Type	Tempered Glass
GPU Length	440 mm
PSU Depth	300 mm
Front Audio Type	Separate
Maximum Motherboard Size Supported	E-ATX
