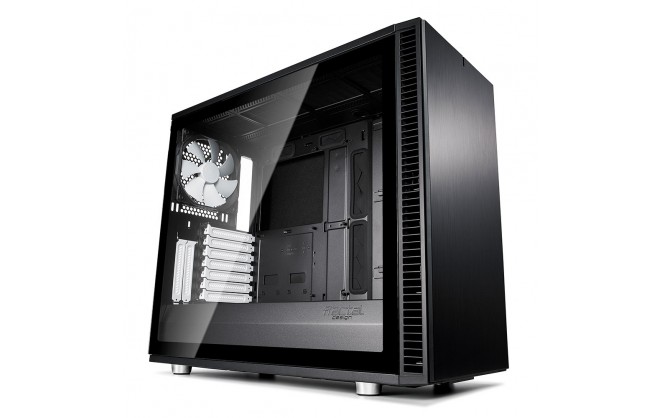

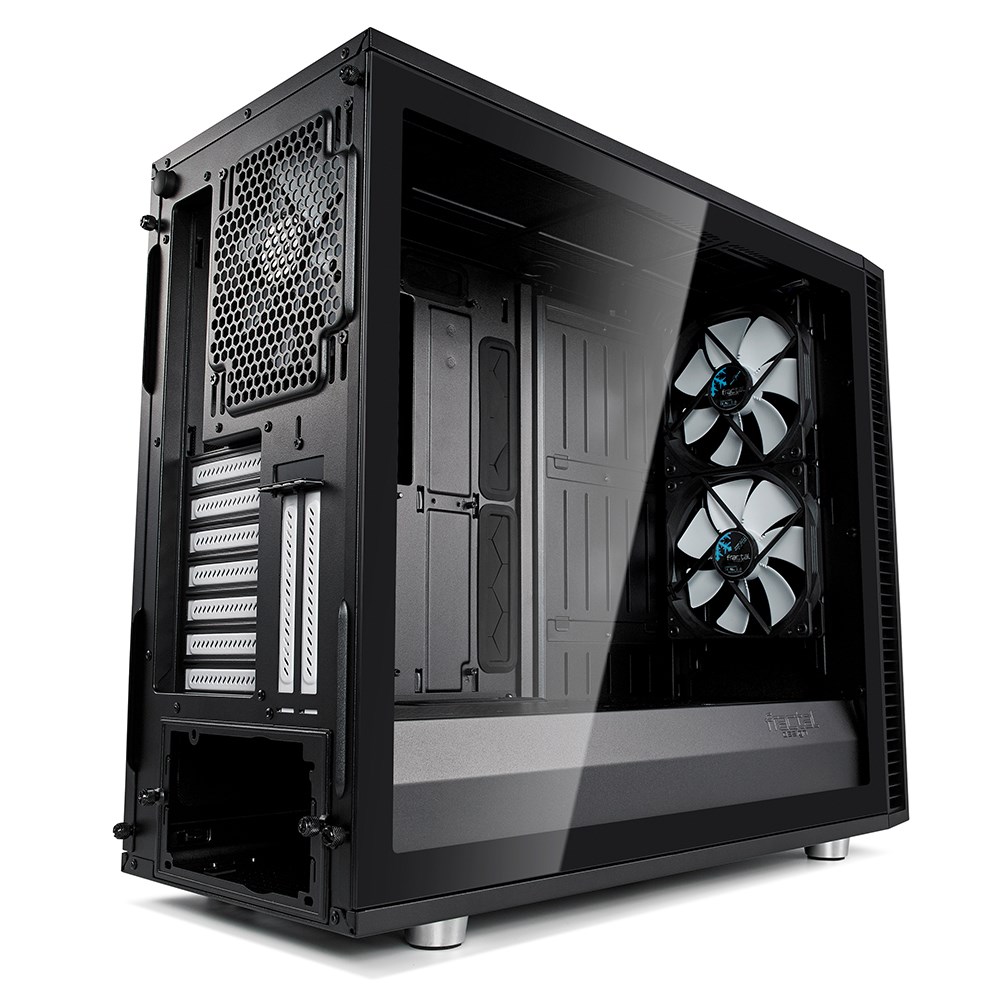

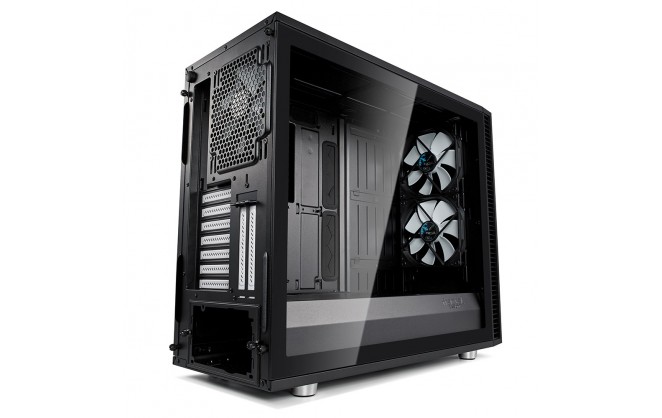

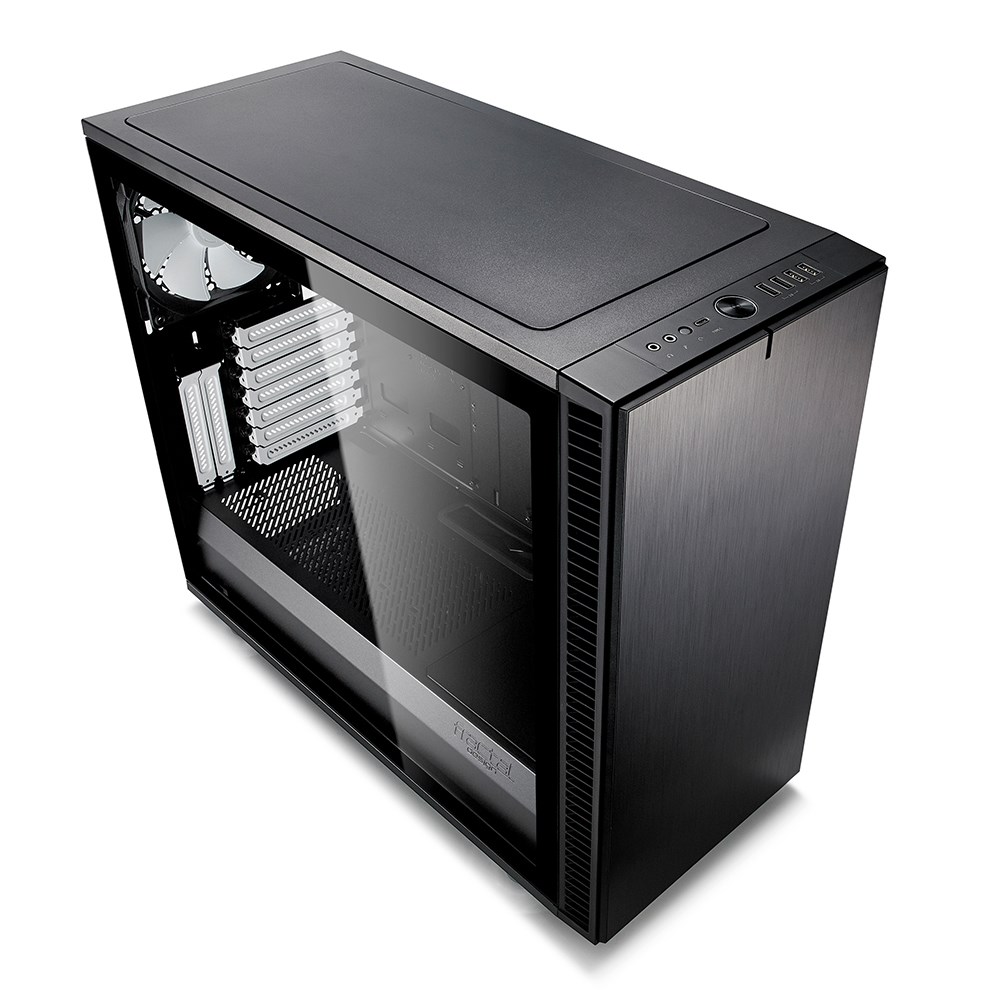

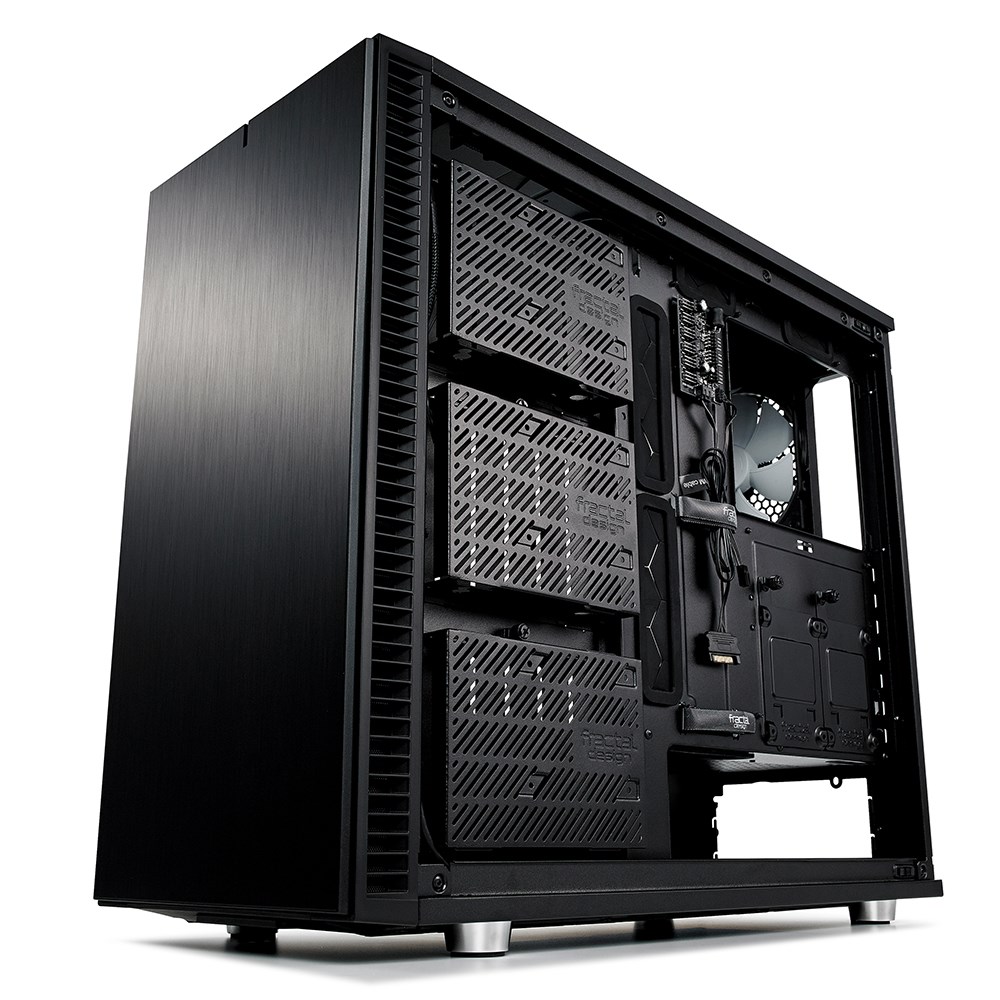

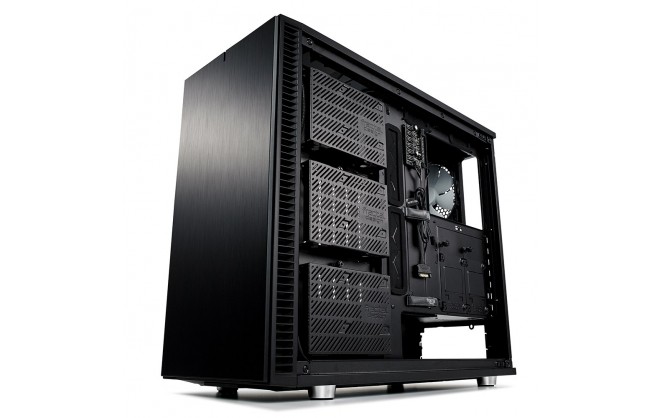

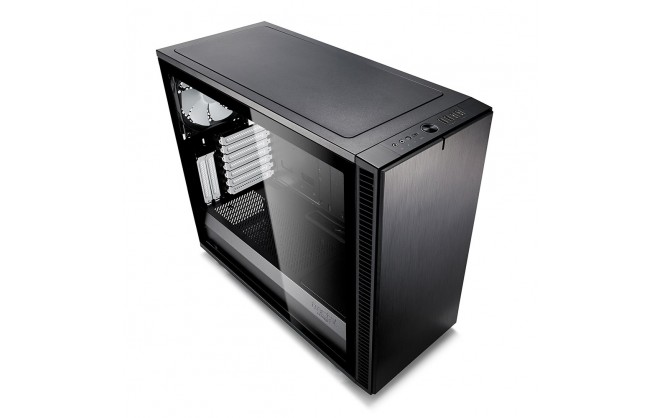

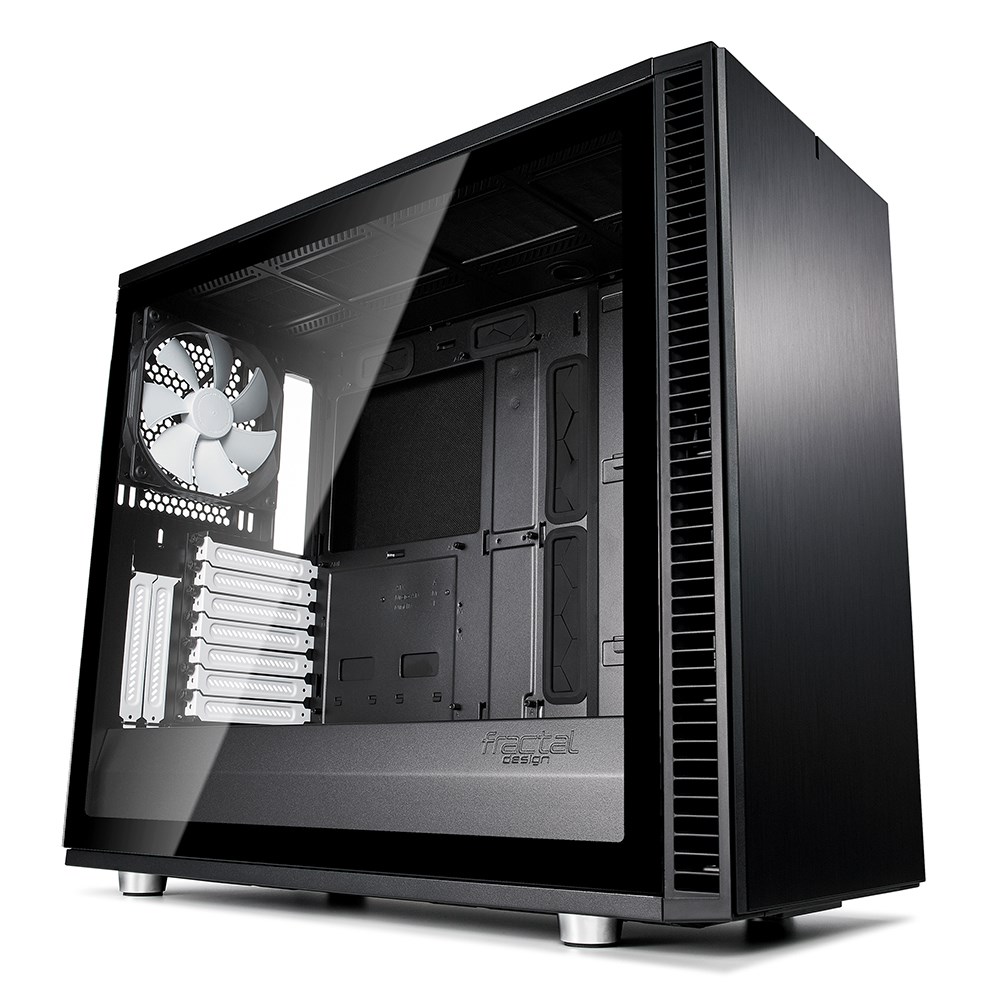

Fractal Design Define S2 Mid Tower Gaming Case

Part Number: FD-CA-DEF-S2-BK-TGL
Manufacturer: Fractal Design
Quickfind Code: 105235

Stock: Out Stock

Contact for availability

Product Features:

Condition: New
Form Factor E-ATX
Main Colour Black
Side Panel Tempered Glass

+ Read More Information

Product Description

The Define S2 is the latest leap forward in open-layout case design—an ingenious refinement of the zero-obstruction formula that cemented the series as the de facto standard for the silent high-performance build.

The S2 achieves increased airflow and water cooling capacity with nine total fan positions and 15% larger intake area vs. the previous generation. Radiators up to 420 mm install directly through the top by way of an innovative removable bracket with built-in fill port for easy access, and there’s room for radiators up to 360 mm in the front and 280 mm in the base. Pumps and reservoirs are supported right out of the box with integrated mounting locations and adjustable brackets.

Full USB 3.1 Gen 2 Type-C comes standard along with three Dynamic X2 fans, full length ventilated PSU shroud with alternate SSD mounts, and support for vertical GPU installation via the Flex VRC-25 riser, available separately.

Bolt-free tempered glass offers an exceptionally clear interior view thanks to an elegant push-to-lock latching mechanism, and Third generation ModuVent™ technology complements a generous application of industrial sound dampening to ensure your hardware is seen but not heard.

Whether your aim is silence, efficiency or sheer water-cooled extravagance, the Define S2 hits the mark.

Clearances

Max GPU Length: 440mm (exc. Front Fan)
Max CPU Cooler Height: 185mm
Max PSU Depth: 300mm
Cable Routing Space: 23mm

Main Features

Seamless, scratch-resistant tempered glass side panel
Optimized for silence with high-density industrial dampening on side, top and front panels
Full USB 3.1 Gen 2 Type-C with support for fast charging and up to 10Gbps transfer speeds
Nine fan positions with intuitive layout and clear airflow paths for massive cooling capacity
Extensive water cooling support with room for radiators up to 420 mm in the top, 360 mm in the front, and 280 mm in the base
Full-length power supply shroud hides excess cables for a clean interior and features a removable panel for installation of larger front radiators
Third generation ModuVent™ technology gives users a choice between a soundproof steel cover or filtered multi-fan ventilation setup in the top panel
Easy-to-clean high airflow nylon filters on the front, top, and base with full PSU coverage and front access for convenience
Nexus+ Smart Hub offers superior control of six additional case fans and three PWM devices via your motherboard
Three Fractal Design Dynamic X2 GP-14 140 mm fans come pre-installed with dual intakes and rear exhaust for optimal airflow right out of the box
Concealed drive mounts for up to three 3.5" HDDs leave ample forward space for reservoirs and advanced water cooling setups
Customizable 2.5" storage solution with two brackets and a choice of four locations to hide drives beneath the motherboard tray or display them prominently on top of the PSU shroud
Sleek anodized aluminum front panel with sound absorbent inlay

Technical Specification

Fractal Design Define S2 Mid Tower Gaming Case

Storage

Internal Expansion Bays

2 x 2.5"
3 x 2.5"/3.5"

Expansion

Expansion Slots

7 +2 x Full Height

Interfaces/Ports

USB Ports	1 x USB 3.1 Type-C 2 x USB 3.0 2 x USB 2.0
Headphone Ports	1 x 3.5mm Jack
Microphone In Port	1 x 3.5mm Jack

Electrical

Cooling System	Front: Supports 3 x 120mm or 140mm fans (2 x 140mm fans included) Top: Supports 3 x 120mm or 140mm fans Rear: Supports 1 x 120mm or 140mm fan (140mm fan included) Bottom: Supports 2 x 120mm or 140mm fans
Power Supply	ATX Power Supply supported

Physical

Form Factor	Mid Tower Case
Case Colour	Black
Material	Tempered Glass Steel
Motherboard Compatibility	E-ATX (up to 285mm) ATX MicroATX Mini-ITX
In The Box	Define S2 Case User Manual Accessory Box
Width	233 mm
Depth	543 mm
Height	465 mm
Weight	11.6 kg

Key Features

Firewire	No
Main Colour	Black/White
Case Type	Tower
USB 3.0 Support	Yes
Case Form Factor	Mid Tower
Power Supply Included	No
Optimised for	Gaming
80Plus Rated	No
PSU Form Factor	ATX
Display Model in Showroom	No
e-SATA	No
L.E.D Fan	No LED
Internal 3.5" Bay	3
Internal 2.5" Bay	2
ATX	Yes
Micro-ATX	No
ITX	No
E-ATX	Yes
XL-ATX	No
Cooler Height	185 mm
Built-in Card Reader	No
USB Type-C Support	Yes
Front HDMI	No
Side Panel Type	Tempered Glass
GPU Length	440 mm
PSU Depth	300 mm
Front Audio Type	Separate
Maximum Motherboard Size Supported	E-ATX
