Fractal Design Meshify 2 XL Full Tower Case Black

  • Part Number: FD-C-MES2X-02
  • Manufacturer: Fractal Design
  • Quickfind Code: 105398
  • Stock: In Stock

£154.84 ex. vat
£185.81 inc. vat

Product Features:
  • Condition: New
  • Form Factor E-ATX
  • Main Colour Black
  • Side Panel Tempered Glass
+ Read More Information

Share:

Product Description

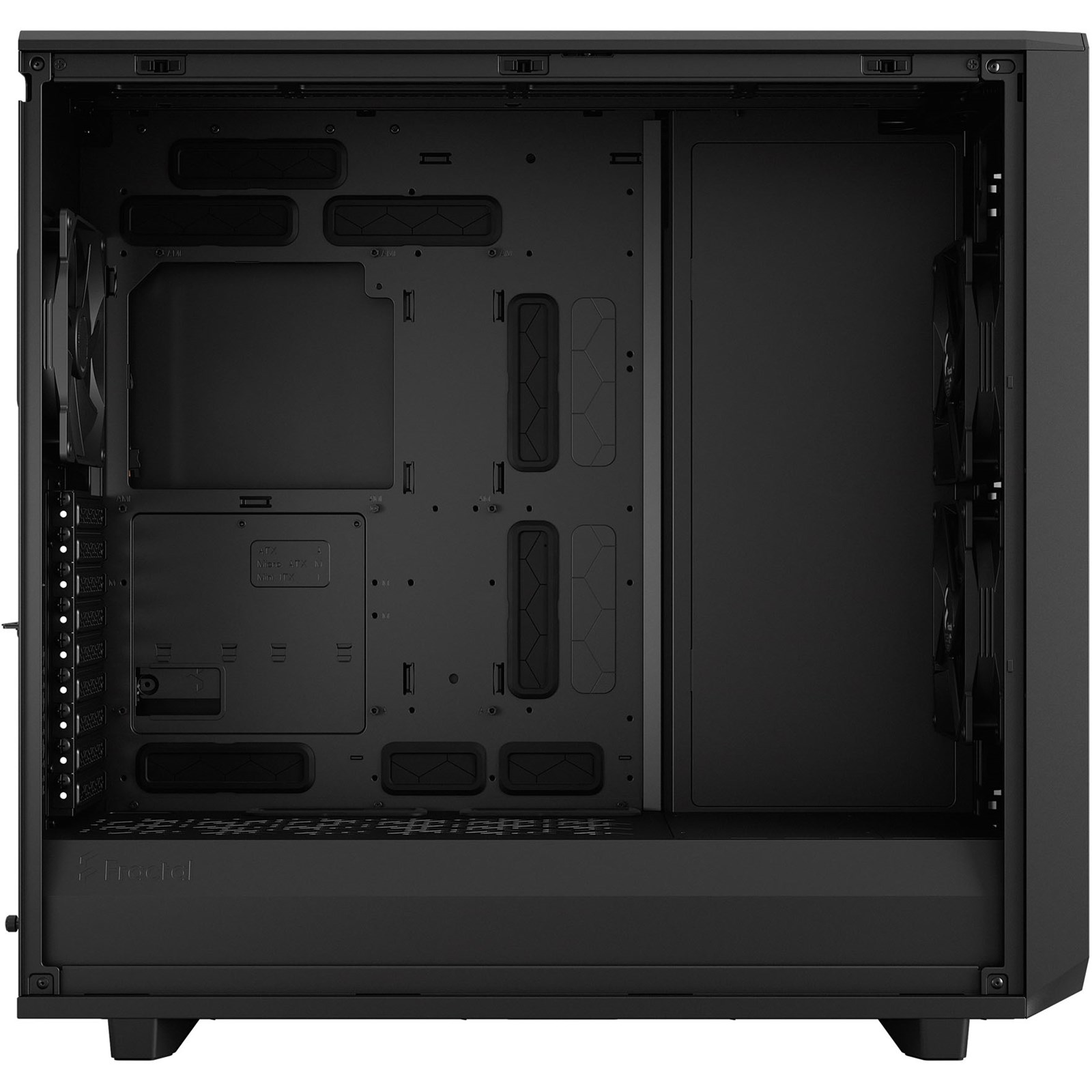

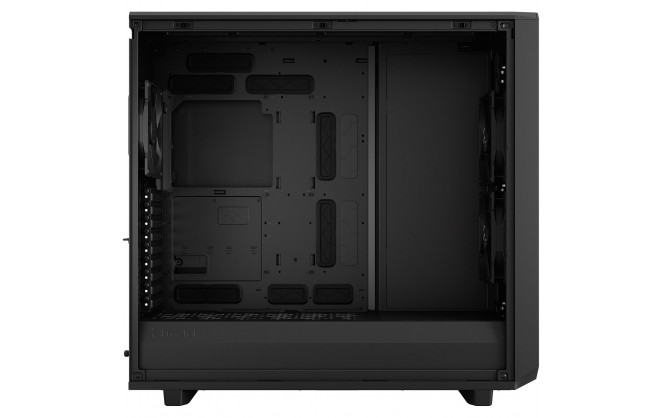

The Meshify 2 XL is a massive high-performance case with a bold, stealth-inspired aesthetic. Its striking exterior features bolt-free, flush tempered glass, a fully removable top granting excellent interior access, and a fully redesigned front complete with USB 3.1 Gen 2 Type-C. The enormous dual-layout interior supports full-sized E-ATX and SSI-EEB boards, gigantic storage arrays and radiators up to 480 mm to make cooling a breeze.

Extra Spacious

An expansive internal layout easily accommodates large motherboards up to E-ATX and SSI-EEB.

Superlative Storage

Optional accessories allow expansion up to 18 HDDs and 5 SSDs in Storage Layout. (6x HDD/SSD trays + 2 SSD brackets + 2 Multibrackets included)

Flexible Dual-layout Design

Convert to Open Layout andget more than enough room for your custom water loop with large reservoirs and radiators up to 480 mm.

Detachable Front Filter

The new front nylon filter can be easily removed from the hinged mesh panel for increased airflow.

Open and Interchangeable

Remove the entire top to build and route with zero hindrance.

Easy Access From The Front

New front panel design with hinged removable mesh filter and tether-free bezel for easier access to front fan mounts.

Smooth Airflow

Three Dynamic X2 GP-14 fanscome preinstalled with room to expand up to a total of 9x 140 mm or 11x 120 mm fans.

Versatile Multibrackets

The included Multibrackets lets you convert any unused fan position to an HDD, SSD or pump mount.

Main Features

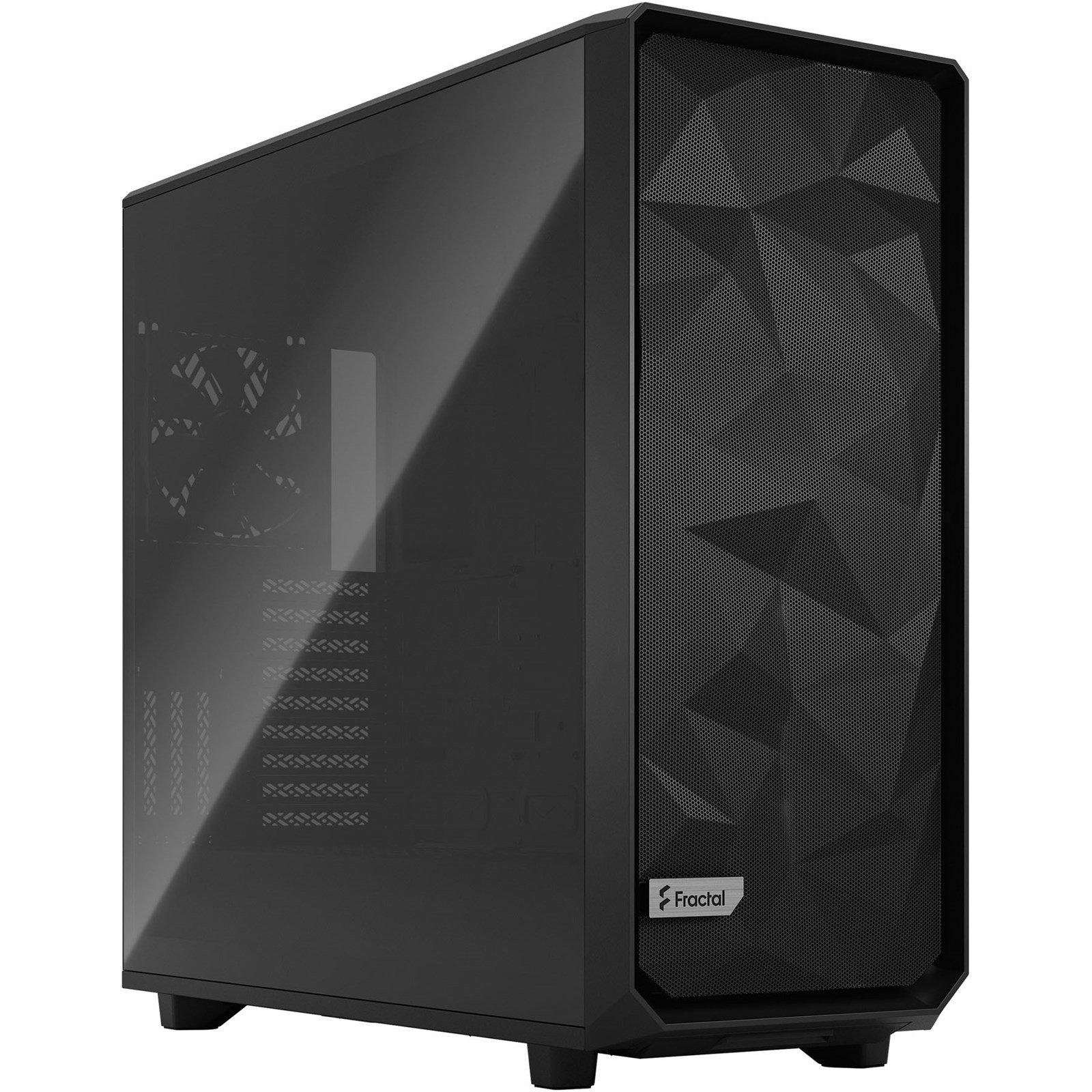

  • Iconic angular mesh design provides filtered airflow with a bold, stealth-inspired aesthetic
  • Spacious and extensively adaptable dual-layout interior easily accommodates large motherboards up to and including E-ATX and SSI-EEB
  • Support for radiators up to 480/420 mm in front, 480/420 mm up top, or 280/240 mm in the base in the default Open Layout
  • Includes 6 HDD/SSD trays, 2 SSD brackets, and 2 universal Multibrackets for mounting up to 10 drives
  • Expandable to 16 trays and 5 SSD brackets with 2 Multibrackets installed in the top for a max of up to 23 drives in Storage Layout

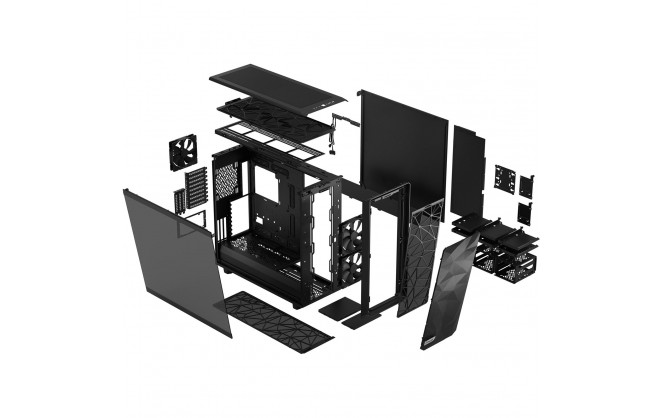

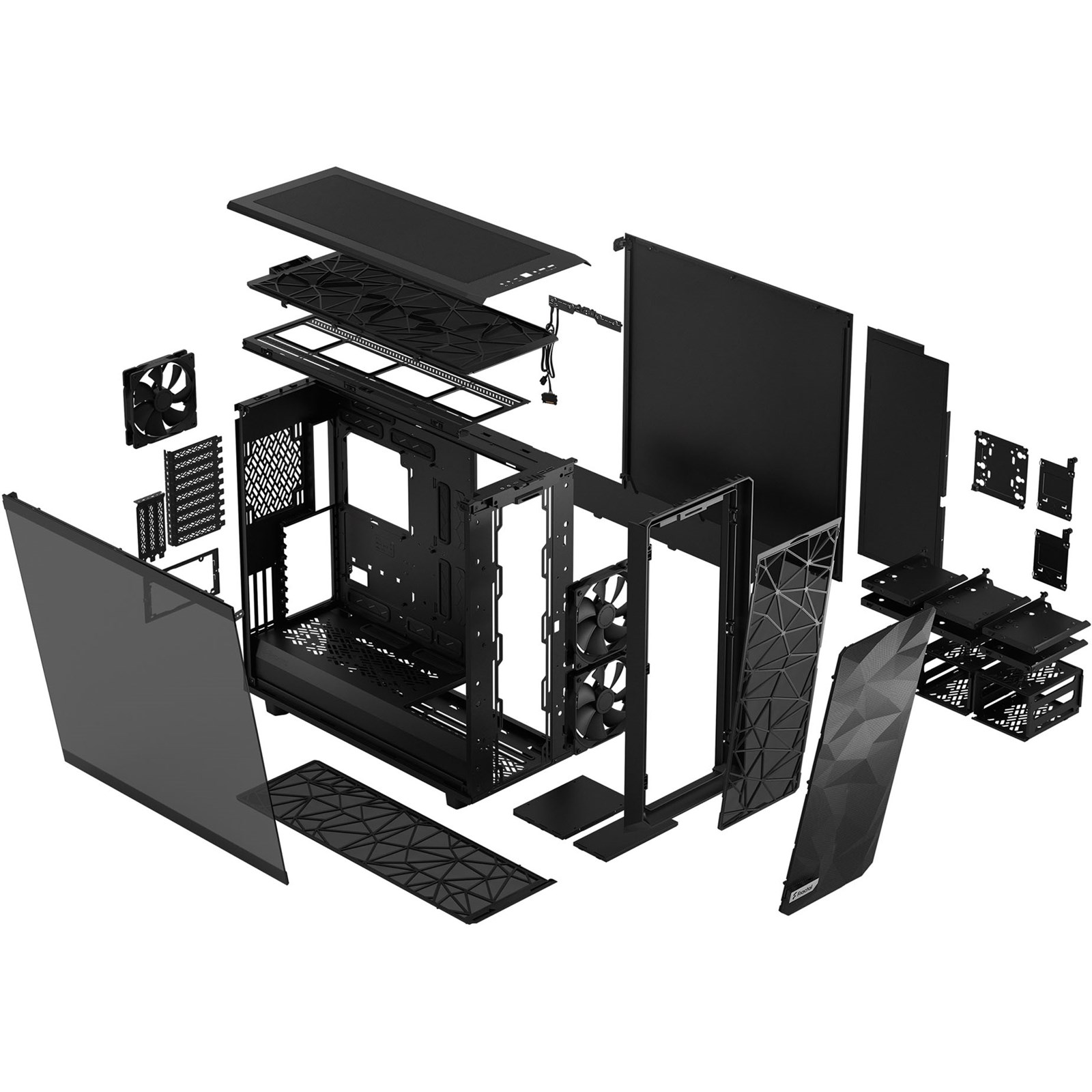

  • New chassis design opens up to fully expose the case interior on three sides for totally unhindered installation and cable routing
  • New front nylon filter that can be removed for increased airflow
  • New front panel design with hinged removable mesh filter and tether-free bezel for easier access to front fan mounts
  • Three front USB ports including one USB 3.1 Gen 2 Type-C with fast charging support and speeds up to 10Gbps
  • Ultra-slim Nexus+ 2 fan hub connects up to three PWM fans and six 3-pin fans directly in line with cable channels along the edge of the case
  • Outstanding cooling capacity with a total of eleven 120 or nine 140 mm fan mounts and three preinstalled Dynamic X2 GP-14 fans

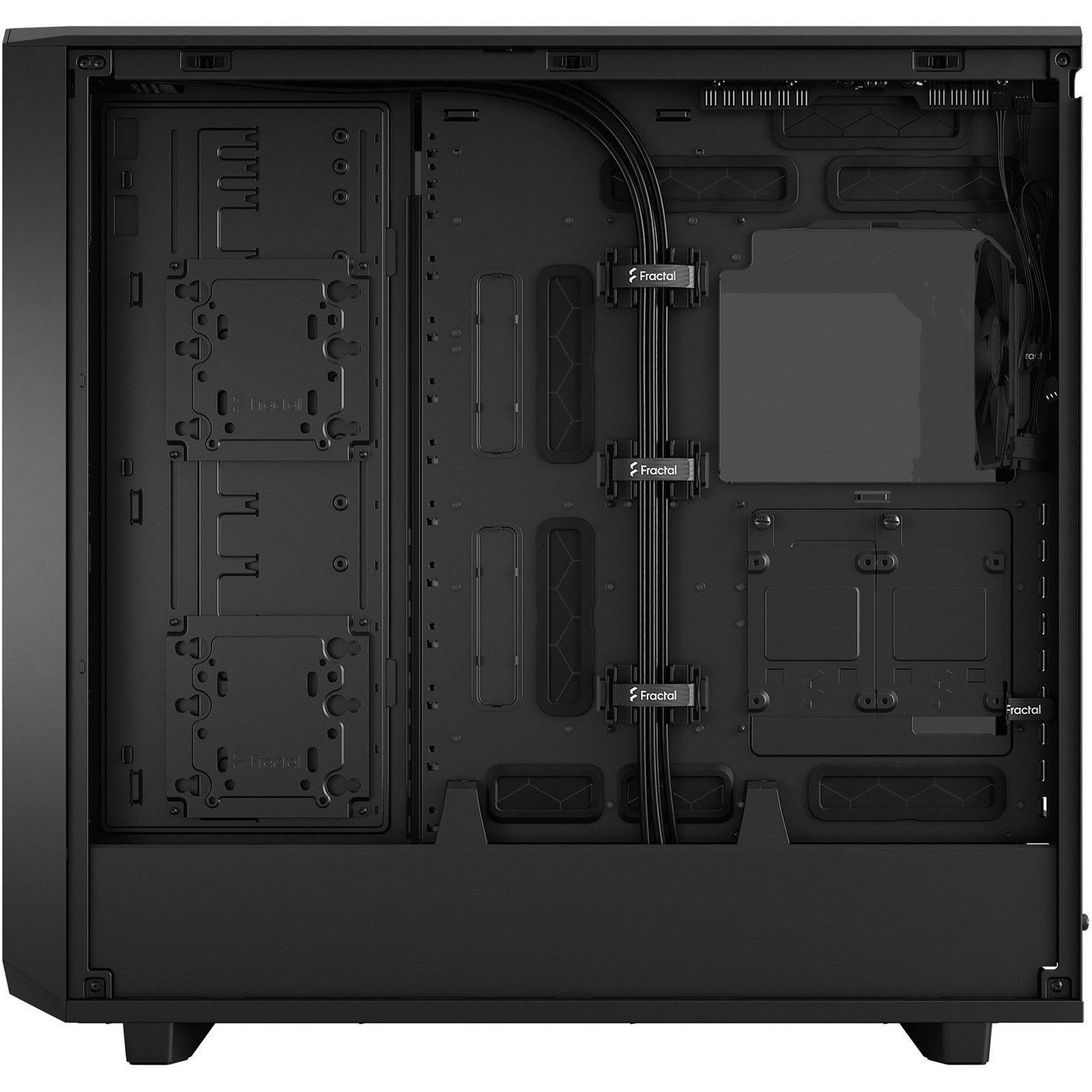

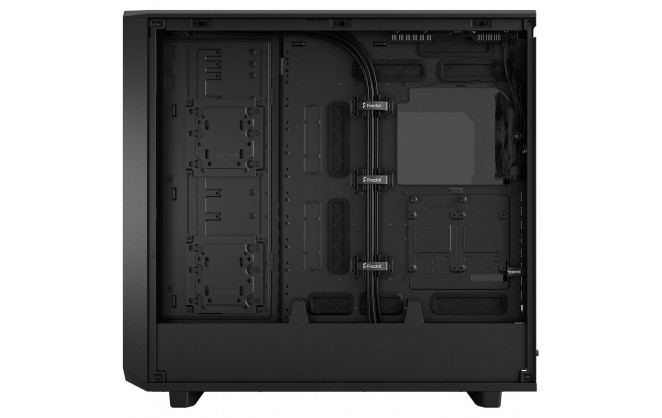

  • Detachable PSU cable shield and integrated cable guides with velcro straps further simplify cable management behind the board
  • Versatile Multibrackets that convert any unused fan position to an HDD, SSD or pump mount
  • Bridgeless expansion slots ensure obstruction-free connections and allow for a more centered vertical GPU installation via the new Flex B-20 PCIe riser (sold separately)
  • Three vertical GPU slots for use with the Flex VRC-25 PCIe riser, available separately
  • Easy-to-clean high airflow nylon filters on the front, top and base with full PSU coverage and convenient front access
  • Ventilated PSU shroud with two-part removable cover for optimal cable concealment and front radiator support
  • Tool-less, top-latching side panels allow quick access while preventing accidental drops
Technical Specification

Fractal Design Meshify 2 XL Full Tower Case Black

User Controls

User ControlsPower
Reset

Storage

Internal Expansion Bays2 x 2.5"
6 x 2.5"/3.5"

Expansion

Expansion Slots9 x Full Height
3 x Vertical

Interfaces/Ports

USB Ports1 x USB 3.1 Type-C
2 x USB 3.0
Headphone Ports1 x 3.5mm Jack
Microphone In Port1 x 3.5mm Jack

Electrical

Cooling SystemFront: Supports 3 x 140mm or 4 x 120mm fans (2 x 140mm fans included)
Top: Supports 3 x 140mm or 4 x 120mm fans
Rear: Supports 1 x 140mm or 120mm fan (140mm fan included)
Bottom: Supports 2 x 140mm or 120mm fans
Power SupplyATX Power Supply supported

Physical

Form FactorFull Tower
Case ColourBlack with Light Tint Tempered Glass
MaterialSteel
Tempered Glass
Motherboard CompatibilityE-ATX
ATX
MicroATX
Mini-ITX
EE-ATX
SSI-CEB
SSI-EEB
In The BoxMeshify 2 XL Case
User Manual
Accessory Box
Screw Box
Width240 mm
Depth600 mm
Height566 mm
Weight14.1 kg

Warranty

Warranty2 Years

Key Features

FirewireNo
Main ColourBlack
Case TypeTower
USB 3.0 SupportYes
Case Form FactorFull Tower
Power Supply IncludedNo
80Plus RatedNo
PSU Form FactorATX
Display Model in ShowroomNo
IlluminatedNo
e-SATANo
L.E.D FanNo LED
Internal 3.5" Bay6
Internal 2.5" Bay2
ATXYes
Micro-ATXYes
ITXYes
E-ATXYes
Cooler Height185 mm
Built-in Card ReaderNo
USB Type-C SupportYes
Front HDMINo
Side Panel TypeTempered Glass
GPU Length359 mm
PSU Depth250 mm
Front Audio TypeSeparate
Number of Fans3 fan(s)
LED Controller IncludedNo
LED Strip(s) IncludedNo
Maximum Motherboard Size SupportedE-ATX

Item Details

ManufacturerFractal Design
Manufacturer CodeFD-C-MES2X-02
EAN7340172702566
ConditionNew
