Lian Li O11D EVO Mid Tower Case - Grey

Part Number: O11DEG
Manufacturer: Lian Li
Quickfind Code: 105558

Stock: Out Stock

Contact for availability

Product Features:

Condition: New
Form Factor E-ATX
Main Colour Grey
Side Panel Tempered Glass

+ Read More Information

BUILD WITH THE FINEST MATERIALS

With only a few steps, the O11D EVO can be flipped in reverse mode to experience a seamless front and side tempered glass showroom view on the right side of the chassis.

Presenting an all-new color option with grey coated aluminum and darker tinted tempered glass panels.

Grey Coated Mesh Panel
Dark Tinted Tempered Glass
Black Interior
Aliminum with harbor grey powder coating
Light Grey Rubber Grommets
Black Feet

VERSATILE ORIENTATION

With only a few steps, the O11D EVO can be flipped in reverse mode to experience a seamless front and side tempered glass showroom view on the right side of the chassis.

EXQUISITE, YET FUNCTIONAL

Following the style of the O11 Dynamic series, the aluminum panels feature an updated fine mesh which provides an optimal ratio of airflow and dust filtering.

INNOVATIVE AND FLEXIBLE CONFIGURATION

Featuring a modular design, the O11D EVO offers many configuration potentials when making use of optional kits, both for air cooling and water cooling.

AIR COOLING

UNRESTRICTED AIRFLOW

The more direct the airflow, the better the cooling performance. Thanks to the upright GPU kit and the front mesh kit, which makes the addition of 3 extra fans at the front possible, the O11D EVO can provide powerful and direct airflow to the GPU and the CPU.

UPGRADED VERTICAL GPU AIRFLOW

The upgraded vertical GPU kit provides more room for bottom-mounted fans and radiators to increase the cooling capability and efficiency of the O11D EVO. Users can either mount the GPU vertically at the lower position which provides 50mm of clearance at the bottom of the chassis, or the upper position for 90.5mm of clearance.

CUSTOM WATER COOLING

SUPREME THERMAL CONTROL

With the upright GPU kit, users can move their water-cooled GPU next to the motherboard. This opens up the main chamber of the chassis, allowing simpler and more efficient tube runs to reach the components, and creating a restriction-free chimney-style airflow that allows the top and bottom radiators to perform more effectively.

SPACIOUS COOLING SUPPORT

The O11D EVO features sufficient space to accommodate 3x 360mm radiators, and up to 10 fans.

MASSIVE STORAGE CAPACITY

Multiple easily accessible storage mounting points are provided to support up to 9x SSDs or 6x HDDs + 3x SSDs.

Mounting points for a 60mm fan are provided on the hard drive cage, located in the second chamber, to improve the temperature of hard drives. The same location can be used to mount a fan hub.

CLEAN LOOK

The O11D EVO keeps the front panel as clean as possible with a multi-directional power button that can be pressed from both the front and the side of the chassis.

PERSONALIZED ARGB LIGHTING STRIP

The front panel LED strip features 7 built-in lighting effects which can be controlled via the M button. An 8th mode is available to enable motherboard software synchronization or L-Connect control.

FRIENDLY BUILDING PROCESS

EASILY REMOVABLE PANELS

The new mechanism to mount the side panels simplifies the process to reach the interior of the case by eliminating the need to first open the top panel.

STRUGGLE-FREE FAN BRACKETS

While each fan bracket features a quick-release design, they can be fixed to the chassis via a straightforward process.

The side bracket can be oriented in two ways to provide more clearance for fan/radiator combinations next to the motherboard.

EFFORTLESS CABLE MANAGEMENT

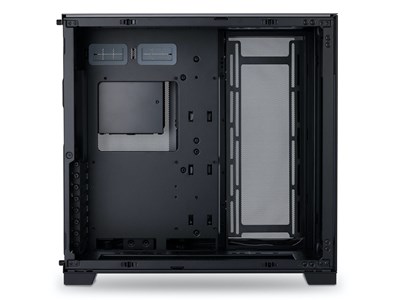

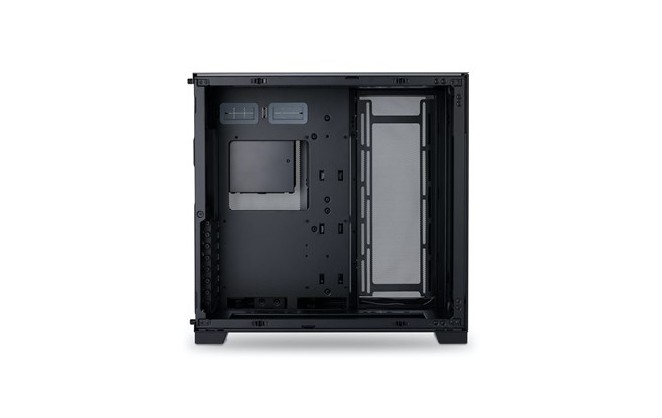

The O11D EVO optimizes the user’s ability to cable manage their system with a dual-chamber design and a removable bracket.

RELOCATABLE I/O PORT

At the bottom of the chassis, the I/O module can be relocated to 3 different locations without the use of any tools.

Main Features

Mid-tower chassis with two modes: Normal Mode/ Reverse Mode
Feature multi-directional power button and movable IO module
Front and side tempered glass panels for components and RGB display
Supports up to 3x 360 radiators and a maximum of 10 fans
Offers 9 storage drives mounting space
Dual-chamber layout with hooks friendly cable management compartment
Five optional accessories: Vertical GPU Kit / Upright GPU Kit / Additional I/O kit / Front Mesh Kit / Top I/O Kit

Technical Specification

Lian Li O11D EVO Mid Tower Case - Grey

User Controls

Power
Reset
LED Colour
LED Mode

Storage

Internal Expansion Bays

Bottom: 2.5" SSD x 4 or 3.5" HDD x 2
Side: 2.5" SSD x 4 or 3.5" HDD x 2
Drive Cage: 2.5" SSD x 3 or 3.5" HDD x 2 + 2.5" SSD x 1
Cable Management Bar: 2.5" SSD x 2
*Only 9 sets of 2.5" SSD mounting pads are provided

Expansion

Expansion Slots

8 x Full Height

Interfaces/Ports

USB Ports	1 x USB-C 3.1 2 x USB 3.0
Headphone Ports	1 x 3.5mm Jack, shared with Microphone
Microphone In Port	1 x 3.5mm Jack, shared with Headphone

Electrical

Cooling System	Top: Supports 2 x 140mm or 3 x 120mm fans Side: Supports 2 x 140mm or 3 x 120mm fans Bottom: Supports 2 x 140mm or 3 x 120mm fans Rear: Supports 1 x 120mm fan Drive Cage: Supports 1 x 60mm fan
Power Supply	ATX Power Supply supported

Physical

Form Factor	Mid Tower Case
Case Colour	Harbor Grey
Material	Steel Aluminium Tempered Glass
Motherboard Compatibility	E-ATX (up to 280mm) ATX MicroATX Mini-ITX
Width	285 mm
Depth	465 mm
Height	459 mm

Warranty

1 Year

Key Features

Firewire	No
Main Colour	Grey
Case Type	Tower
USB 3.0 Support	Yes
Case Form Factor	Mid Tower
Power Supply Included	No
80Plus Rated	No
PSU Form Factor	ATX
Illuminated	Yes
e-SATA	No
L.E.D Fan	No LED
Max 3.5" Drives	3
Max 2.5" Drives	9
ATX	Yes
Micro-ATX	Yes
ITX	Yes
E-ATX	Yes
Cooler Height	167 mm
Built-in Card Reader	No
USB Type-C Support	Yes
Front HDMI	No
Side Panel Type	Tempered Glass
GPU Length	426 mm
PSU Depth	220 mm
Front Audio Type	Combined
LED Controller Included	No
LED Strip(s) Included	No
Maximum Motherboard Size Supported	E-ATX
