NZXT H510 Elite Gaming Case

  • Part Number: CA-H510E-B1
  • Manufacturer: NZXT
  • Quickfind Code: 105187
  • Stock: Out Stock

Contact for availability

Product Features:
  • Condition: New
  • Form Factor ATX
  • RGB / LED Colour RGB
  • Main Colour Black
  • Side Panel Tempered Glass
+ Read More Information

Share:

Product Description

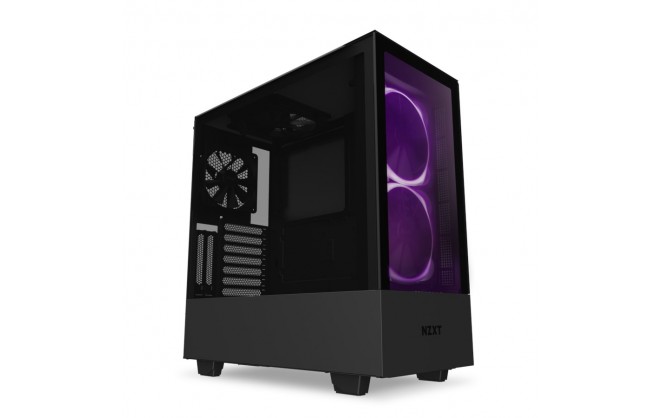

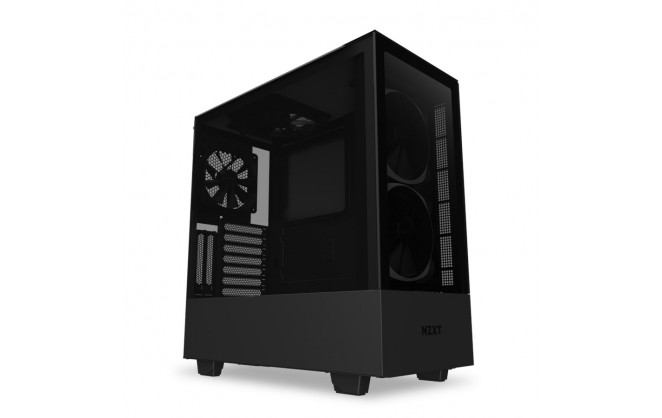

The H510 Elite compact ATX mid-tower is perfect for your RGB build. Behind the flush-mounted, tempered glass front panel, you’ll discover our renowned Aer RGB 2 fans keeping your components brilliantly cool. Well-engineered airflow, removable radiator mounting bracket, multiple fan filters, vertical GPU mount, a front panel USB-C connector, and an all-steel and tempered glass construction are just some of the key features you’ll get. The H510 Elite also includes the NZXT Smart Device V2, powering the built-in RGB light strips and case fans.

Main Features

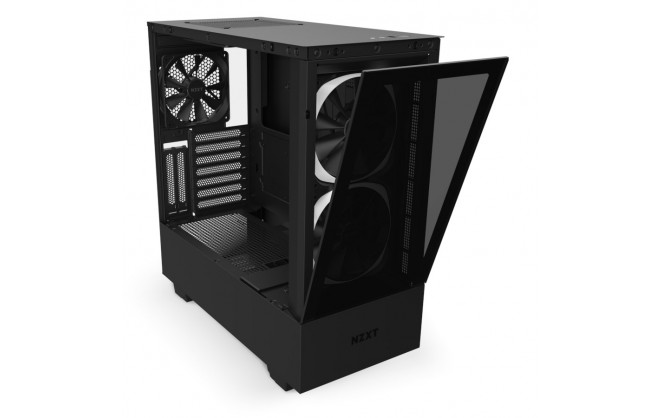

  • Two tempered glass panels top off your build, perfectly showcasing your RGB build. We've included two Aer RGB 2 fans and an RGB LED strip to get you started.

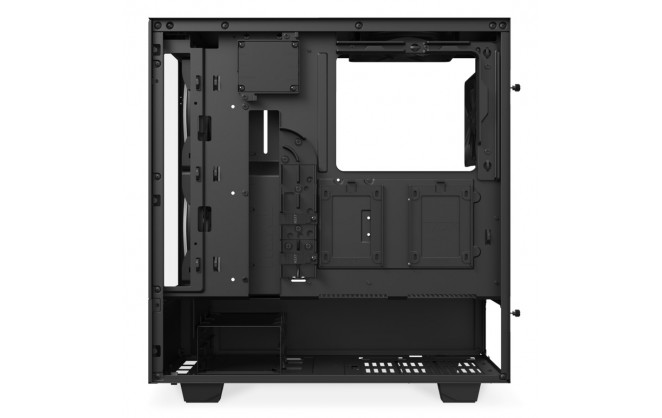

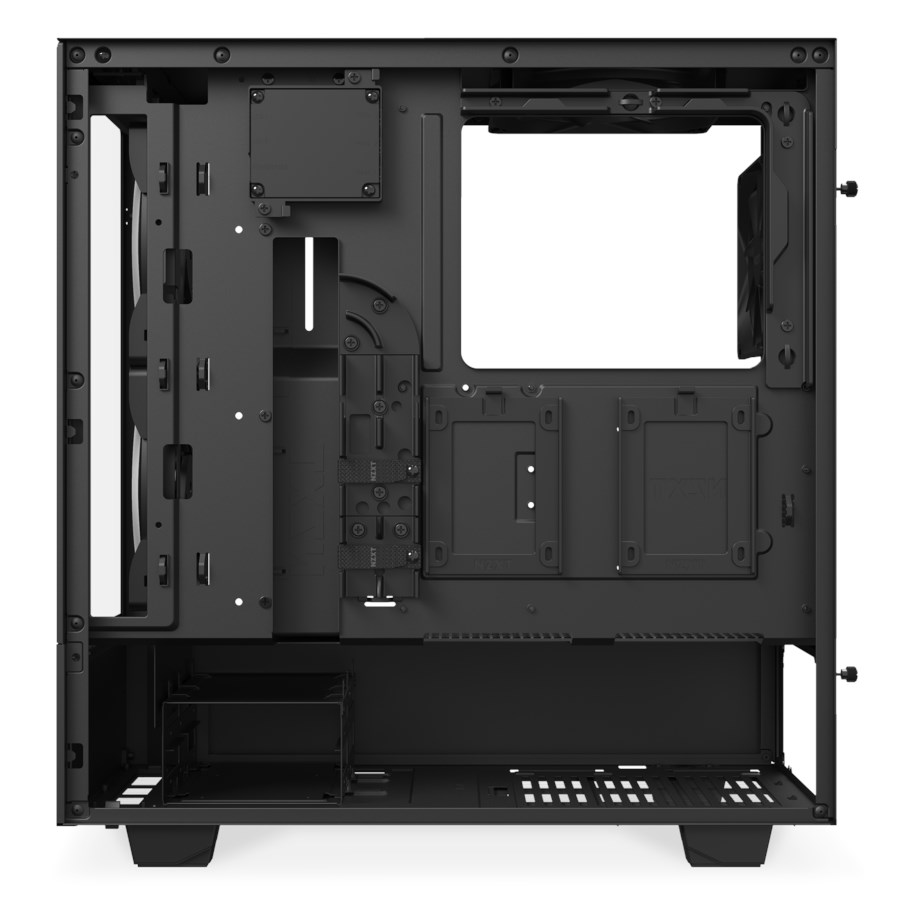

  • The H510 Elite features a removable radiator mounting bracket, simple-to-use SSD trays, and a patented cable management system for a smarter, easier build experience. The new Smart Device 2 includes two HUE 2 RGB lighting channels, and three fan channels that support 0dB modes for voltage-regulated or PWM fans.
  • The USB 3.1 Gen 2-compatible USB-C connector on the front panel makes it easier than ever to connect smartphones, high-speed external storage, and the latest peripherals to your PC.
  • The clean, modern design, iconic cable management bar, and uninterrupted tempered-glass panels all showcase your stunning build.
  • Use the intuitive NZXT CAM application to monitor and control your build, choosing from presets or custom controls for your RGB lighting and fans to create your dream PC.
Technical Specification

NZXT H510 Elite Gaming Case

Storage

Internal Expansion Bays2 x 2.5"
2 x 3.5"

Expansion

Expansion Slots7 x Full Height
2 x Vertical Full Height

Interfaces/Ports

USB Ports1 x USB 3.1 Type-C
1 x USB 3.0
Headphone Ports1 x 3.5mm COMBO Jack
Microphone In PortShared with Headphones

Electrical

Cooling SystemFront: Supports 2 x 120mm or 140mm fans (2 x 140mm RGB fans included)
Top: Supports 1 x 120mm or 140mm fan (140mm fan included)
Rear: Supports 1 x 120mm fan (included)
Power SupplyATX Power Supply supported

Physical

Form FactorMid Tower Case
Case ColourMatte Black
MaterialSGCC Steel
Tempered Glass
Motherboard CompatibilityATX
MicroATX
Mini-ITX
In The BoxCaseInstallation Screws
10 x Cable Ties
1 x 4-pole to 3-pole Headset Audio Jack Splitter
Smart Device V2
1 x Addressable LED Strip
Width210 mm
Depth428 mm
Height460 mm
Weight7.5 kg

Warranty

Warranty2 Years

Key Features

FirewireNo
Main ColourBlack
Case TypeTower
USB 3.0 SupportYes
Case Form FactorMid Tower
Power Supply IncludedNo
Optimised forGaming
80Plus RatedNo
PSU Form FactorATX
Display Model in ShowroomNo
e-SATANo
L.E.D FanRGB
Internal 3.5" Bay2
Internal 2.5" Bay2
ATXYes
Micro-ATXYes
ITXYes
Cooler Height165 mm
Built-in Card ReaderNo
USB Type-C SupportYes
Front HDMINo
Side Panel TypeTempered Glass
GPU Length368 mm
Front Audio TypeSeparate
Maximum Motherboard Size SupportedATX

Item Details

ManufacturerNZXT
Manufacturer CodeCA-H510E-B1
EAN5060301695287
UPC815671015105
ConditionNew
