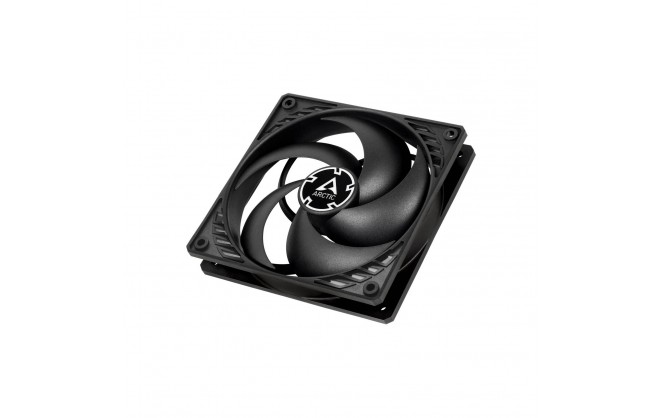

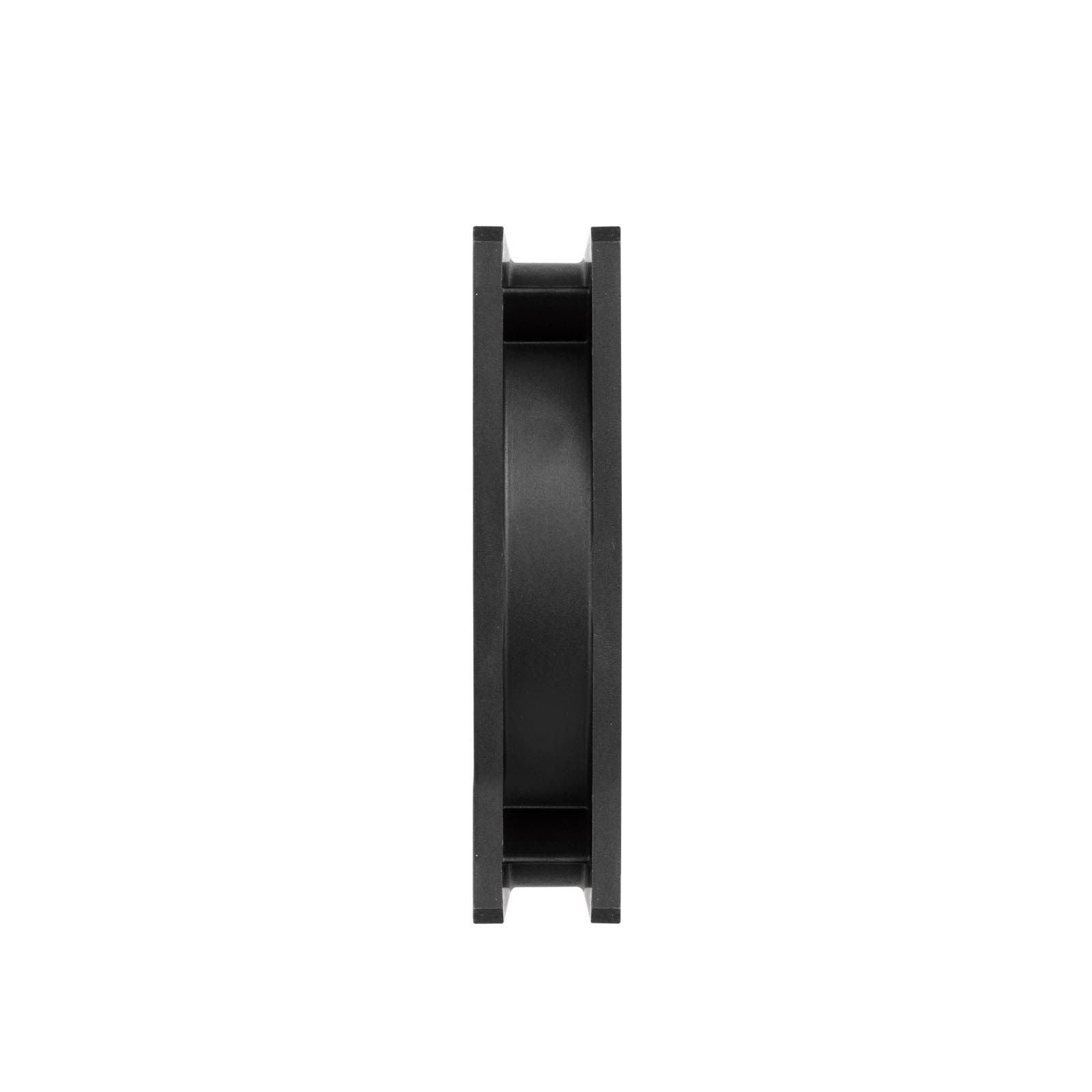

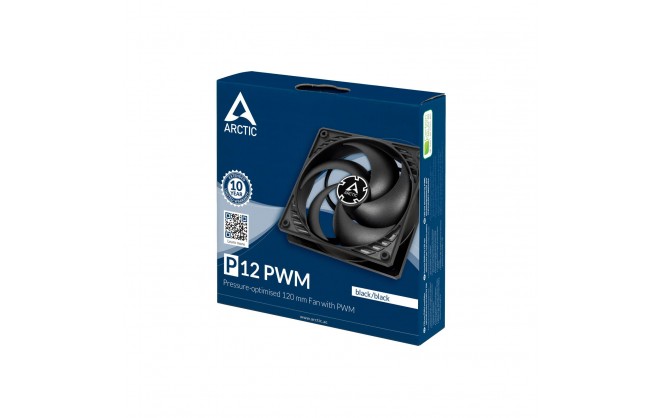

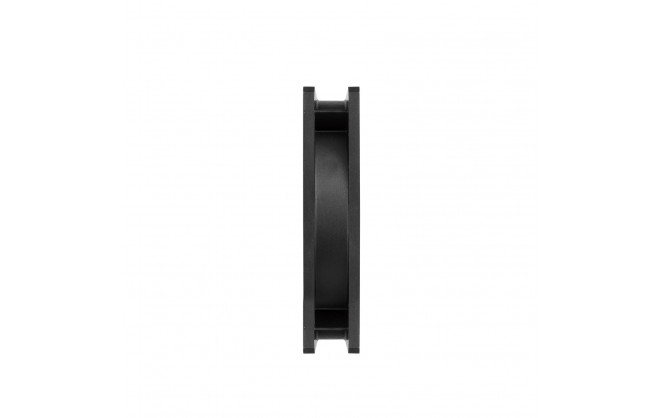

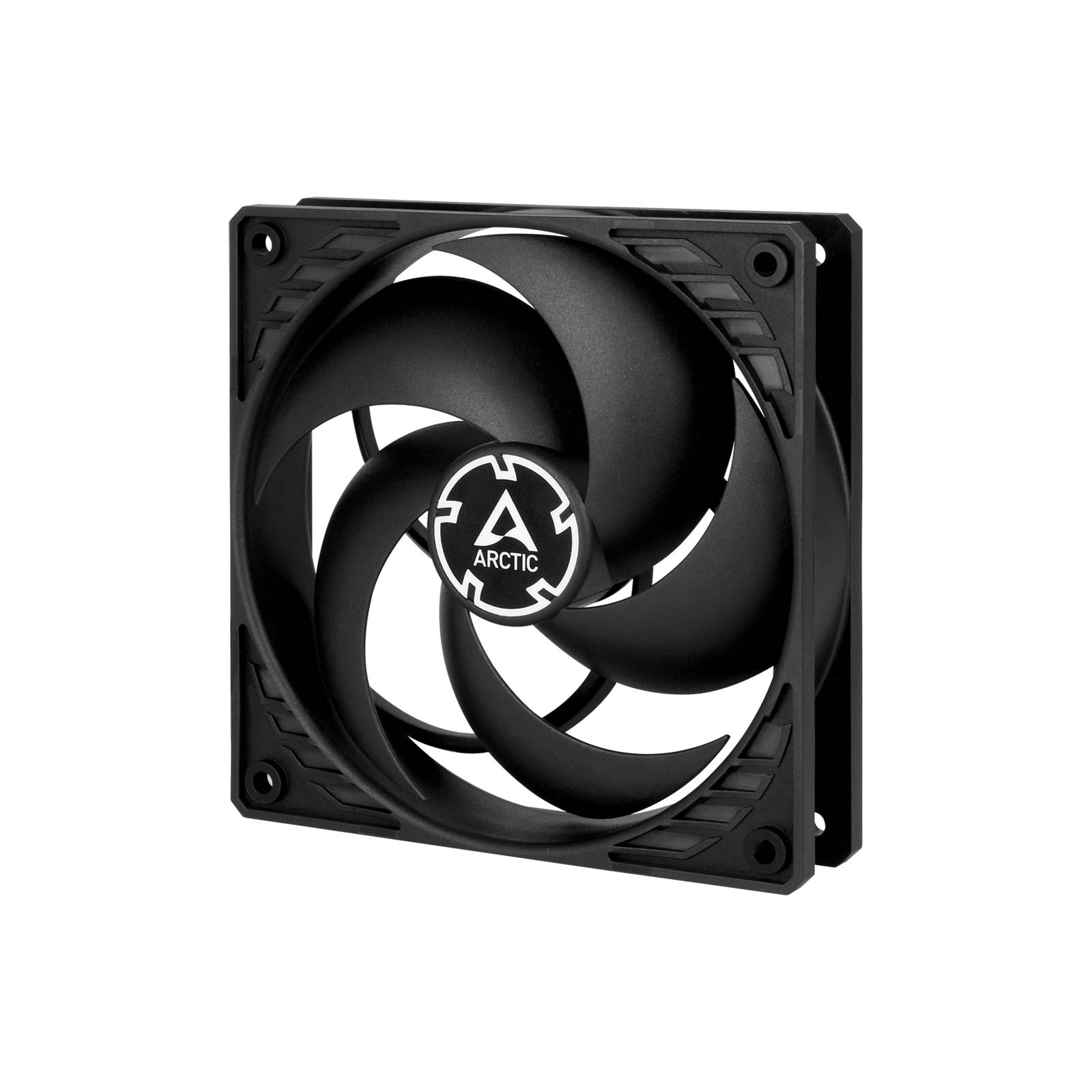

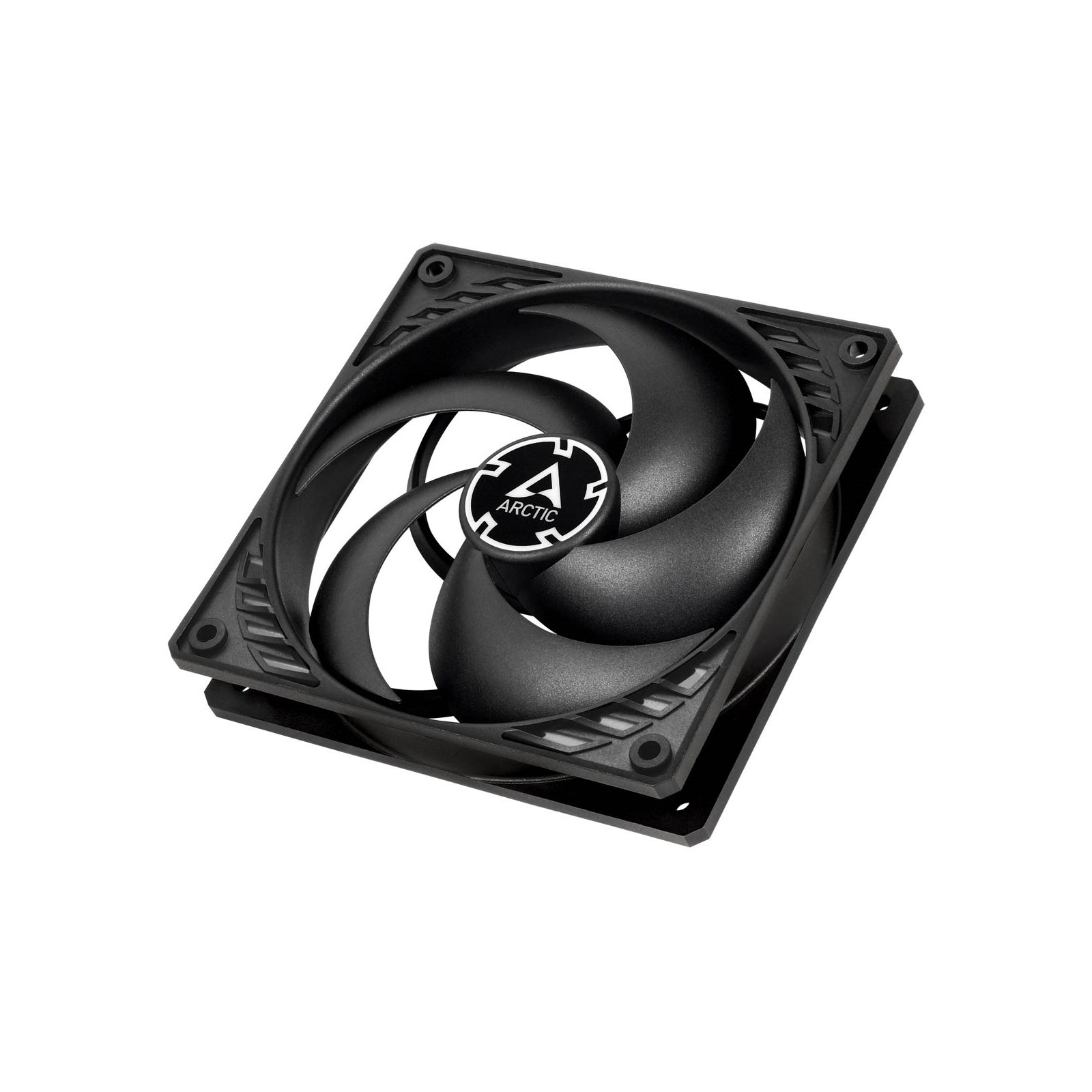

Arctic P12 PWM Fan 120mm Pressure Optimised PWM Chassis Fan Black

Part Number: ACFAN00119A
Manufacturer: Arctic Cooling
Quickfind Code: 120677

Stock: In Stock

£5.99 ex. vat
£7.19 inc. vat

Product Features:

Condition: New
Size 120mm
Type Case Fans

+ Read More Information

OPTIMISED FOR STATIC PRESSURE

During the development of the new P12 PWM, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P12 PWM is particularly suitable for use on heatsinks and radiators.

STRONG COOLING PERFORMANCE

Numerous improvements, such as an updated engine technology and a newly developed fan design, have noticeably increased the performance of P-fans. In internal performance tests leveled to 28 dB (A), the new P-fans left many competitors behind.

MORE EFFICIENT TECHNOLOGY

The motor is powered by a Neodym-Iron-Boron-Magnet ring of the newest generation, which allows the new P12 PWM to run much more efficiently than its predecessors. This saves energy and lowers the coil temperature without comprimising the performance.

MAXIMUM QUIETNESS, MINIMUM VIBRATION

Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable. Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor.

EXTENDED LIFE SPA

A 10 °C lower motor temperature roughly doubles the life span of a fan. The new ARCTIC motor has a four times longer service life through its low coil temperature. Consequently, we have extended the warranty to 10 years.

200 TO 1800 RPM REGULATED VIA PWM

Thanks to the 4-pin connector, the RPM can be regulated in a broad spectrum via PWM. In this way, noise is kept at a minimum while maximum cooling performance is guaranteed when needed.

HIGH QUALITY BEARING

Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.

Technical Specification

Arctic P12 PWM Fan 120mm Pressure Optimised PWM Chassis Fan Black

Attributes

Fan Speed	200 ~ 1800 RPM
Air Flow	Up to 56.3 CFM
Bearing Type	Fluid Dynamic
Connector	4-pin PWM
Static Pressure	Up to 2.2 mmH2O

Electrical

Voltage	12 V DC
Current	0.08 A

Environmental

Operating Temperature	0 ~ 40 °C
Noise Level	Up to 0.3 Sone

Physical

Form Factor	Chassis Fan
Case Colour	Black
Cable length	400 mm
In The Box	Fan 4 x Screws
Fan Width	120 mm
Fan Depth	120 mm
Fan Height	25 mm
Fan Weight	139 g

Warranty

10 Years

Key Features

Requires Corsair iCUE RGB Lighting Controller	No
Main Colour	Black
Fan Size	120 mm
L.E.D Fan	No LED
Number of Fans	1 fan(s)
RGB LED Controller Included	No
LED Strip(s) Included	No
Fan Connector	4-pin PWM
Power Requirement (auto)	3 W
