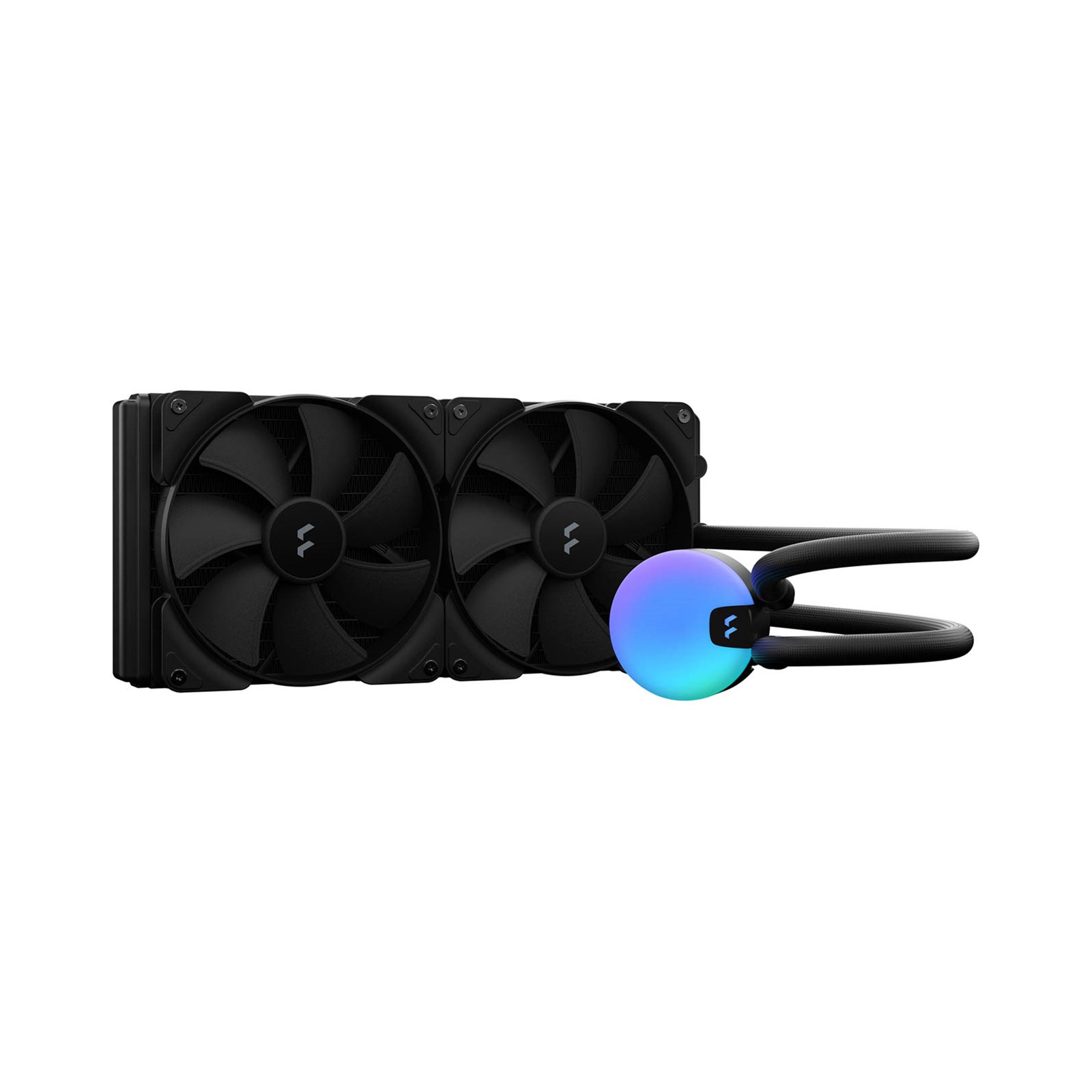

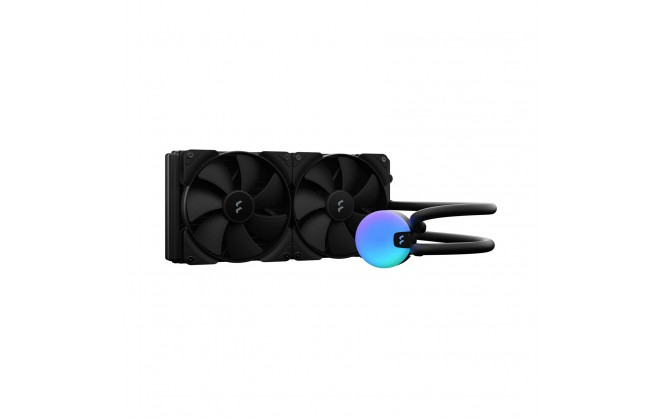

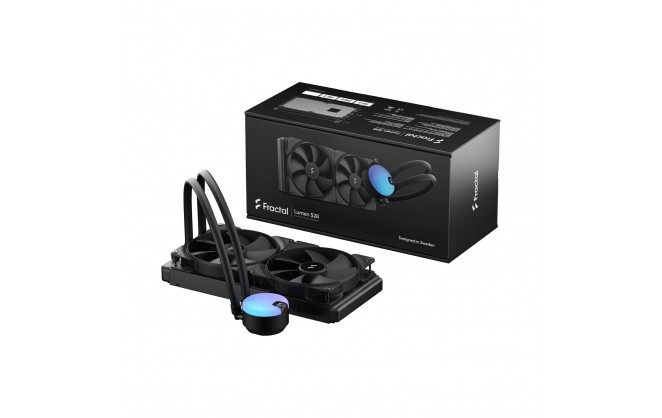

Fractal Lumen 280mm All-in-One Liquid CPU Cooler

  • Part Number: FD-W-L1-S2801
  • Manufacturer: Fractal Design
  • Quickfind Code: 120186
  • Stock: Out Stock

Contact for availability

Product Features:
  • Condition: New
  • Size 280mm
  • Socket Type Multi Socket
  • Type CPU AIO Watercooler
  • RGB / LED Colour RGB
+ Read More Information

Share:

Product Description

Customize your water-cooling from subtle to stunning with Lumen’s six addressable LEDs that you can command via motherboard or controller. Compatible with most common Intel/AMD sockets and RGB certified by industry standards, the Lumen is an attractive proposition for starting and seasoned builders alike.

Main Features

  • Duality design provides both a stealthy and illuminated look, controlled from your motherboard RGB UI
  • Six ARGB LEDs are yours to command via your motherboard or controller
  • The removable top can be turned at 90-degree intervals, making the logotype horizontal independent of the mounting orientation
  • Pre-applied thermal paste ensures an easy installation
  • Supports the most common sockets for both Intel and AMD
  • Aspect fans for low turbulence and chaining support
  • Articulating elbow fittings make tubes easier to route and reduces tension on the cold plate housing
  • Current certifications include Asus AURA, Gigabyte Fusion, MSI Mystic Light, Razer Chroma and ASRock Polychrome support
  • Low-permeability rubber tubes with braided nylon sleeves
Technical Specification

Fractal Lumen 280mm All-in-One Liquid CPU Cooler

CPU Types

SocketIntel: LGA 1150/1151/1155/1156/1200, LGA 1366/2011/2011-3/2066
AMD: AM4/FM2+/FM2/FM1/AM3+/AM3/AM2+/AM2

Fan

Fan Bearing TypeRifle
Fan Speed500 ~ 1700 RPM
Fan Noise Level< 10 ~ 35.5 dBA
Static Pressure0.3 ~ 2.05 mmH2O
Lifetime90,000 hours
Airflow20 ~ 78 CFM

Fan Speed Controller

Connector4-pin PWM
Voltage12 V
Current0.24 A

Physical

Form FactorCPU Cooler
Case ColourBlack
Cable Length500 mm
Base MaterialCopper
Heatsink MaterialAluminium

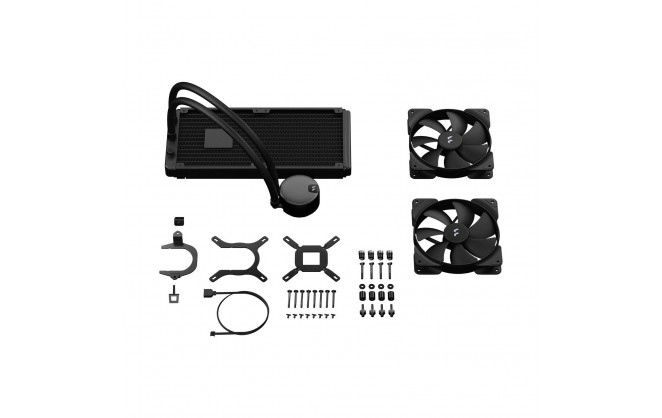

In The BoxCPU Cooler Assembly
2x Aspect 14 BLCK fans
User Manual x1
Thumb screw x4
6-32 Mounting Screw (short/long) x8
Bracket for Intel x1
Washer x4
Washer x4
Intel 115X Backplate x1
Intel 115X Mounting Standoff x4
Intel 2011 Mounting Standoff x4
AMD Mounting Standoff x2
Bracket for AMD x1
5V ARGB cable x1
Width79 mm
Depth67 mm
Height43 mm
Fan Width140 mm
Fan Depth140 mm
Fan Height25 mm
Heatsink Width312 mm
Heatsink Height27 mm
Heatsink Depth140 mm

Warranty

Warranty5 Years

Key Features

Compatible with Socket AM3Yes
Compatible with Socket AM2+Yes
Compatible with Socket AM2Yes
Compatible with Socket 1366Yes
Compatible with Socket 1156Yes
Heatpipe TechnologyNo
Includes FanYes
Compatible with Socket 2011Yes
Compatible with Socket 1155Yes
Compatible with Socket AM3+Yes
Compatible with Socket FM1Yes
Display Model in ShowroomNo
L.E.D FanNo LED
Compatible with Socket FM2Yes
Liquid CoolerYes
Compatible with Socket 1150Yes
WatercoolerYes
Compatible with Socket 1151Yes
Compatible with Socket AM4Yes
Compatible with Socket 2066Yes
Radiator Size280 mm
Compatible with Socket 1200Yes
RGB Software TypeNone

Item Details

ManufacturerFractal Design
Manufacturer CodeFD-W-L1-S2801
EAN7340172703426
UPC843276103422
ConditionNew
