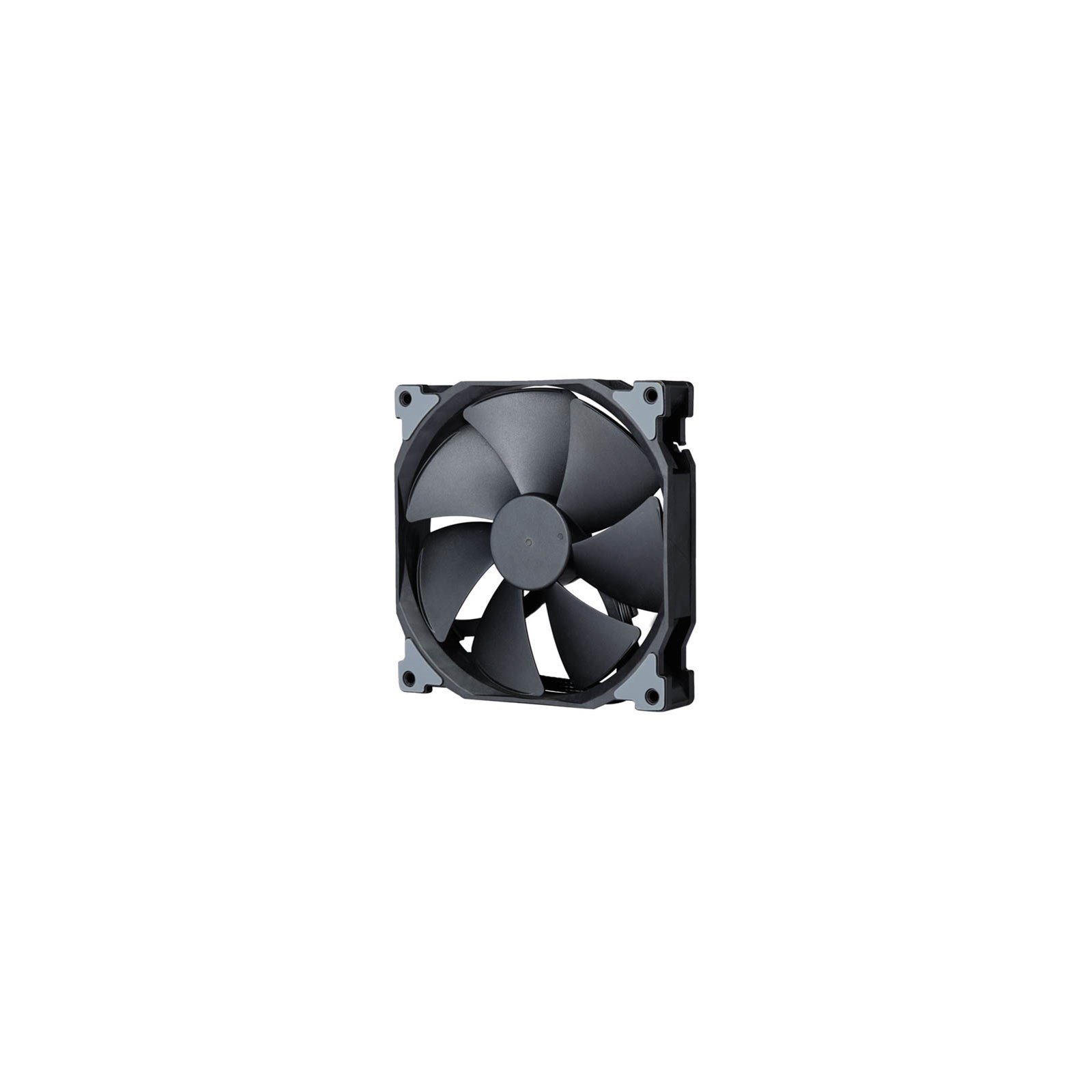

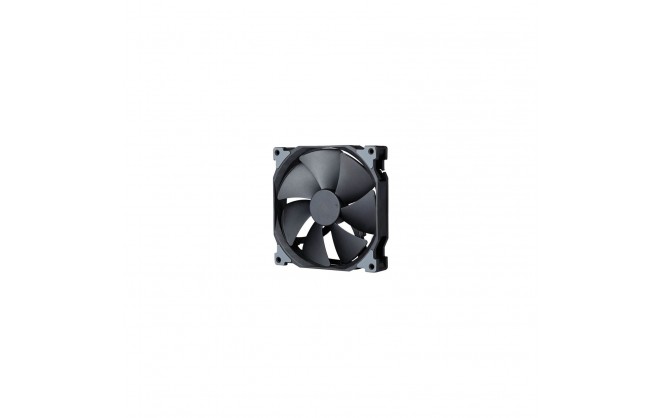

Phanteks MP 140mm v2 High Static Pressure PWM Fan in Black

  • Part Number: PH-F140MP_BBK02
  • Manufacturer: Phanteks
  • Quickfind Code: 120238
  • Stock: Out Stock

Contact for availability

Product Features:
  • Condition: New
  • Size 140mm
  • Type Case Fans
+ Read More Information

Share:

Product Description

The PH-F140MP, a high static pressure fan, can have the ability to overcome the airflow restriction caused by high fin density. PHF140MP produces high static air pressure allowing for a direct and focused airflow making them ideal for the densely packed fins of a radiator.

The PH-F140MP has a larger base size with a magnetic brushless DC motor to avoid the effects of resonance and for rotational stability. To create better structural strength, Phanteks redesigned the back frame of the PH-F140MP. Phanteks fans now comes with pre-installed rubber pads to help reduce vibration occurrences.

With the noise reduction challenges in mind, we modified the component for lower actuator noise, PCBA for lower electromagnetic noise, brushless motor structure for lower operating noise and frame rib for lower wind and vibration noise.

Technical Specification

Phanteks MP 140mm v2 High Static Pressure PWM Fan in Black

Attributes

Fan Speed500 ~ 2000 RPM
Air Flow93 CFM Max
Bearing TypeUpdraft Floating Balance
Connector4-pin PWM
Static Pressure3.59 mmH2O Max
Lifetime> 150,000 hours

Electrical

Voltage12 V
Current0.23 A

Environmental

Noise Level39.1 dBA Max

Physical

Form FactorChassis Fan
Case ColourBlack
Cable length145 mm
In The Box1 x Fan
1 x 500mm Extension Cable
4 x Fan Screws
Fan Width140 mm
Fan Depth140 mm
Fan Height25 mm
Fan Weight206 g

Warranty

Warranty5 Years

Key Features

Main ColourBlack
Fan Size140mm mm
Display Model in ShowroomNo
L.E.D FanNo LED
Number of Fans1 fan(s)
LED Controller IncludedNo
LED Strip(s) IncludedNo
Fan Connector4-pin PWM

Item Details

ManufacturerPhanteks
Manufacturer CodePH-F140MP_BBK02
EAN0886523001966
UPC886523001966
ConditionNew
