ASUS GeForce® GT1030’s single-slot design doesn’t block neighboring PCIe slots, maximizing expansion flexibility, and the small size offers great compatibility with smaller chassis. Exclusive Auto-Extreme Technology with Super Alloy Power II components for superior stability. It also has GPU Tweak II for intuitive performance tweaking.
The slimline cooling fan and single-slot design means that GT1030 doesn’t block neighboring PCI Express slots, maximizing your ability to fit additional expansion cards. The small size also offers great compatibility with a wide variety of smaller chassis, so you can build in whatever form is best for your needs.
ASUS graphics cards are produced using Auto-Extreme technology, an industry-first 100% automated production process, and feature premium Super Alloy Power II components that enhance efficiency, reduce power loss, decrease component buzzing under load, and lower thermal temperatures for unsurpassed quality and reliability.
Redesigned with an intuitive, all-new UI, GPU Tweak II makes overclocking easier and more visual than ever, while still retaining advanced options for seasoned overclockers. With one click, the new Gaming Booster function maximizes system performance by removing redundant processes and allocating all available resources automatically.

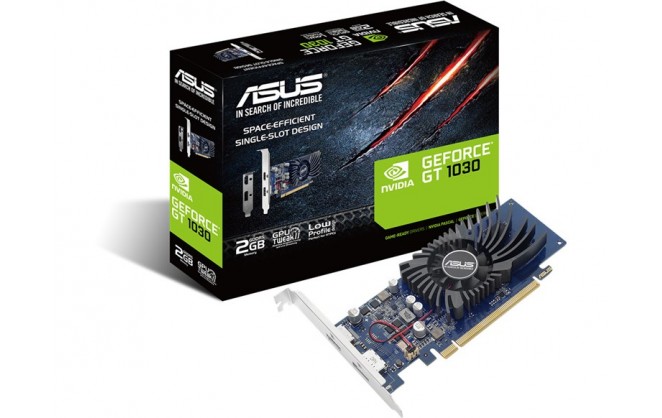

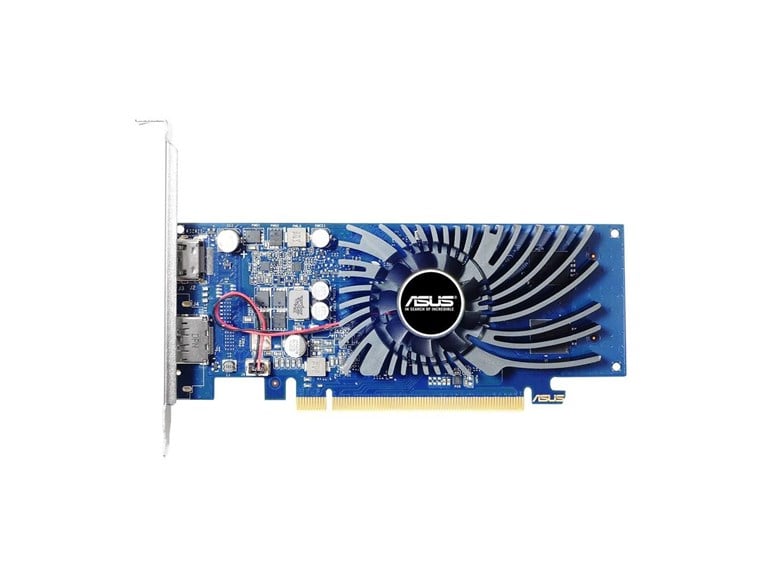

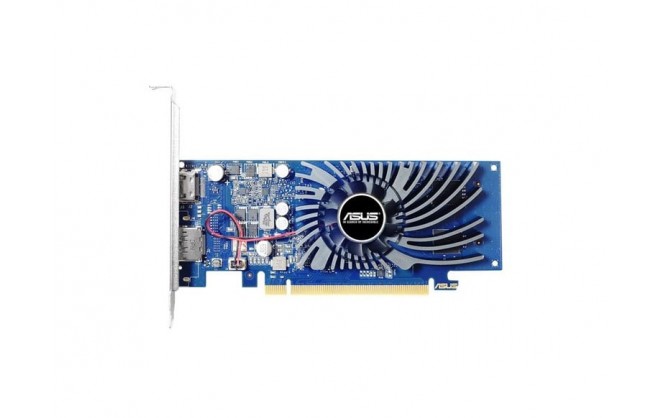

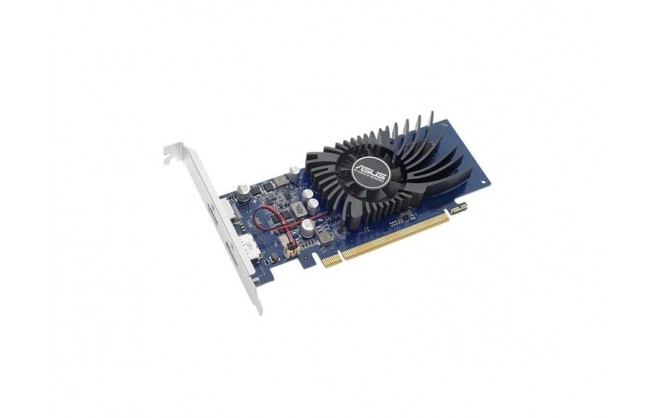

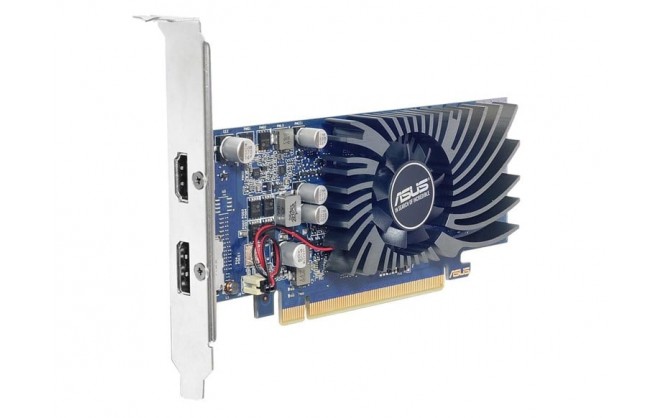

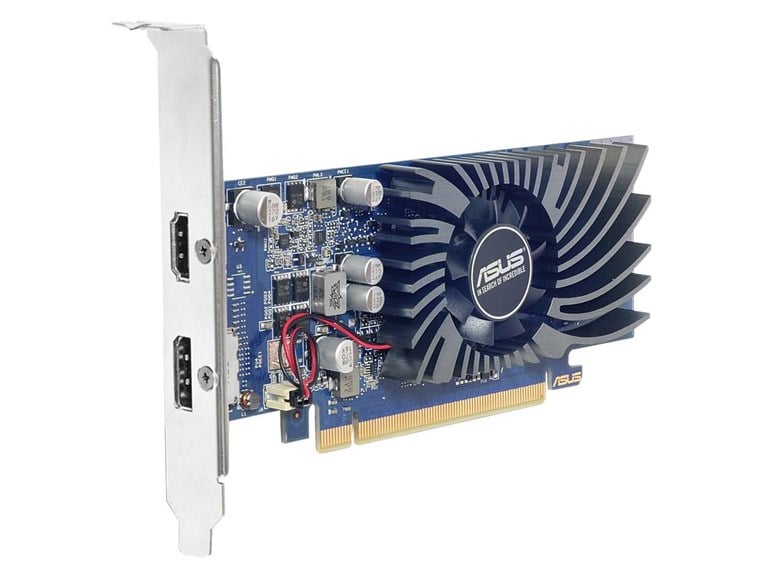

ASUS GeForce GT 1030 2GB Graphics Card
GPU
| Chipset Manufacturer | NVIDIA |
| Chipset Model Name | GeForce GT |
| Chipset Model Number | 1030 |
| Base Chip Clock | 1228 MHz |
| Boost Chip Clock | 1506 MHz |
| Graphics Core | CUDA |
| Number of Cores | 384 cores |
Memory
| Memory Size | 2048 MB |
| Memory Clock | 6 Gbps |
| Memory Type | GDDR5 |
| Memory Width | 64 bit |
Interfaces/Ports
| Video Card Bus Type | PCI Express |
| Video Card Bus Version | 3.0 x16 |
| HDMI Port | 1 x HDMI 2.0b |
| DisplayPort | 1 x DisplayPort 1.4 |
Resolution
| Maximum Resolution | Yes (2) |
| DVI (Digital) resolution (Max) | 7680 x 4320 pixels |
System
| Software Included (may be trial or restricted) | ASUS GPU Tweak II Drivers |
System Requirements
| System Requirements | 1 x PCI Express 3.0 x16 slot Recommended 300W PSU or greater |
Electrical
| Power Connector | N/A |
| Recomended Power Supply | 300 W |
Physical
| Form Factor | Graphics Card |
| In The Box | Asus GeForce GT 1030 Quick Guide CD |
| Width | 21 mm (Single Slot) |
| Depth | 169 mm |
| Height | 69 mm |
Warranty
| Warranty | 3 Years |
Key Features
| Interface Type | PCI Express 3.0 x16 |
| VGA Connection | No |
| DVI Connection | No |
| HDMI Connection | Yes |
| Graphics Usability | Mainstream |
| DisplayPort Connection | Yes |
| Direct X Support | Direct X 12 |
| Cooler Type | Active Fan |
| Low Profile | Yes |
| Interface Type | |
| NVIDIA GeForce | GT 1030 |
| AMD Radeon | |
| PCI-E Pin Type | None |
| Screen Type | |
| FreeSync | |
| Cooling Technology | Active Fan |
| VR Ready | No |
| VR Ready PC | |
| GPU Length | 169 mm |
| Card Width | 1 |
| GPU Power (TDP) | W |
| Graphics card count | 1 |
| PCIe Physical Slot required | 16 |
Graphics
| Graphics Chipset | GeForce GT 1030 |
Graphics Device
| G-Sync | No |
Compatibility
| Lite Hash Rate |
Item Details
| Manufacturer | ASUS |
| Manufacturer Code | 90YV0AT2-M0NA00 |
| Alternative Part Number | GT1030-2G-BRK |
| EAN | 4712900910223 |
| UPC | 889349910221 |
| Condition | New |
