Reinforced Fan Blade
The Advanced Fan Blade design increases the stability of fan rotation. With the carves on the blades, the air flow is smoother. So fan vibration and fan noises are much lower.
ARGB Lighting
Addressable RGB allows gamers to customize each LED color. You can personalize the lighting effects with GAINWARD Expertool Utility
U-Type Heat Pipe
The heat pipes are specially formed into a double-U shape to enlarge the heat dissipation area. The efficiency of heat transfer is much higher than traditional heat pipe design.
ZERO RPM FAN
The fans Keep stop rotation while you are experiencing the multimedia application or general workload. The fans start rotation while working on heavier loading such as gaming that the GPU temperature surpasses 60°C

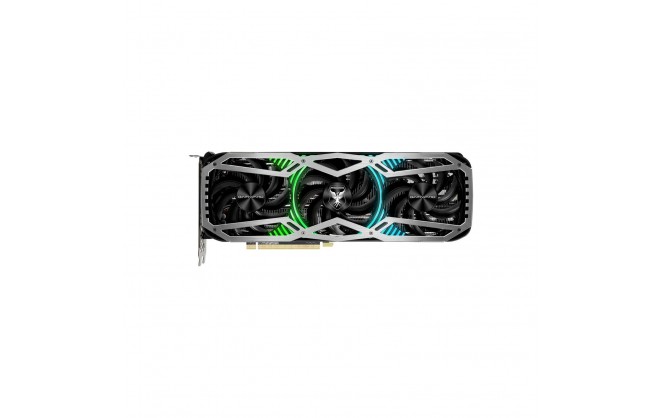

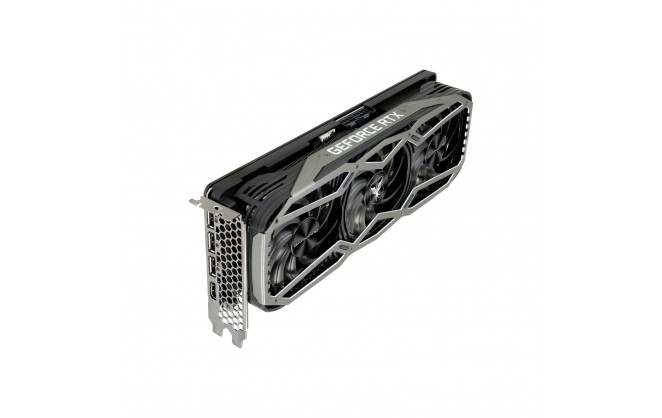

Gainward GeForce RTX 3070 Ti Phoenix 8GB GPU
GPU
| Chipset Manufacturer | NVIDIA |
| Chipset Model Name | GeForce RTX |
| Chipset Model Number | 3070 Ti |
| Chipset Additional Information | Phoenix |
| Boost Chip Clock | 1770 MHz |
| Number of Cores | 6144 units |
| Graphics Core | CUDA |
Memory
| Memory Size | 8192 MB |
| Memory Clock | 19 Gbps |
| Memory Type | GDDR6X |
| Memory Width | 256 bit |
| Memory Bandwidth | 608 GB/s |
Interfaces/Ports
| Video Card Bus Type | PCI Express |
| Video Card Bus Version | 4.0 x16 |
| HDMI Port | 1 x HDMI 2.1 |
| DisplayPort | 3 x DisplayPort 1.4a |
Resolution
| Multiple Monitor Support (Max) | Yes (4) |
| Maximum Resolution | 7680 x 4320 pixels |
System Requirements
| System Requirements | 1 x PCI Express 4.0 x16 slot Recommended 750W PSU with 2 x 8-pin PCIe connectors |
Electrical
| Power Connector | 2 x 8-pin PCIe |
| Recomended Power Supply | 750 W |
Physical
| Form Factor | Graphics Card |
| In The Box | Graphics Card |
| Width | Triple Slot |
| Depth | 294 mm |
| Height | 112 mm |
Warranty
| Warranty | 2 Years |
Key Features
| Interface Type | PCI Express 4.0 x16 |
| VGA Connection | No |
| DVI Connection | No |
| HDMI Connection | Yes |
| Graphics Usability | Gaming |
| DisplayPort Connection | Yes |
| Direct X Support | Direct X 12 |
| Cooler Type | Dynamic Fan |
| Low Profile | No |
| NVIDIA GeForce | RTX 3070 Ti |
| PCI-E Pin Type | 8-Pin + 8-Pin |
| Cooling Technology | Dynamic Fan |
| VR Ready | NVIDIA |
| GPU Length | 294 mm |
| Card Width | Triple Slot |
Graphics
| Graphics Chipset | GeForce RTX 3070 Ti |
Graphics Device
| G-Sync | Yes |
Compatibility
| Lite Hash Rate | Yes |
Item Details
| Manufacturer | Gainward |
| Manufacturer Code | NED307T019P2-1046X |
| EAN | 4710562242713 |
| Condition | New |
