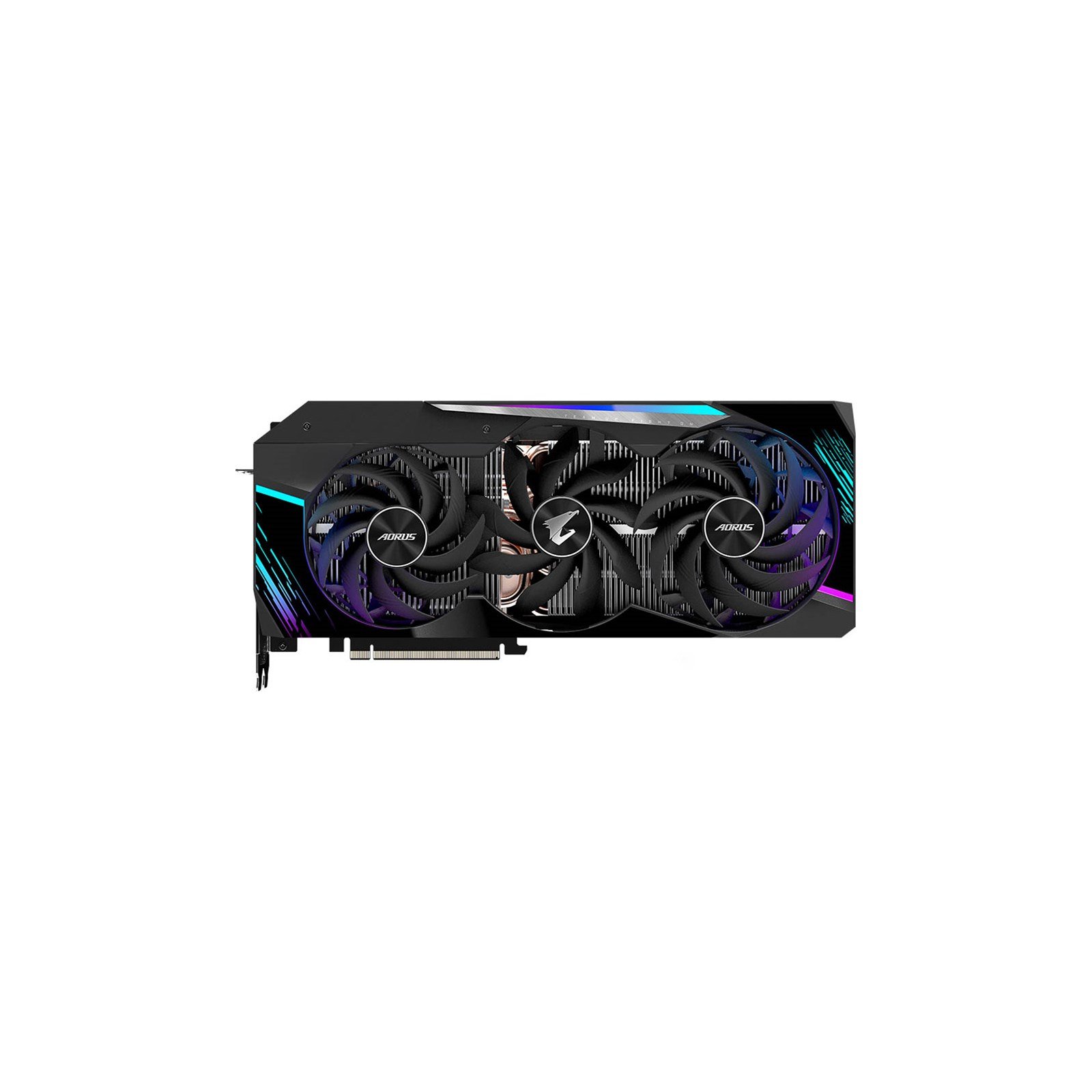

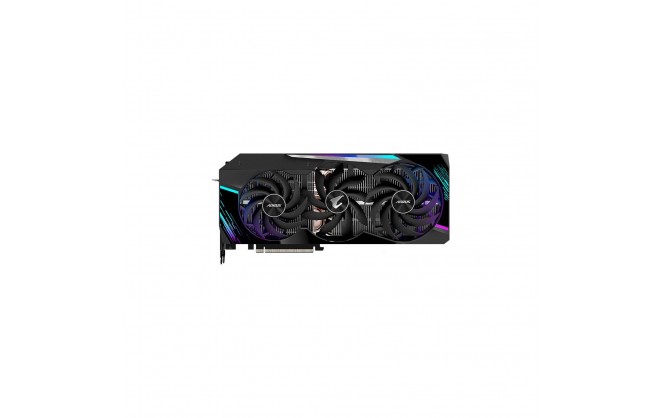

The Max-Covered cooling features two 115mm and one 100mm unique blade stack fans with wind claw design and alternate spinning, so the air pressure can completely cover the heatsink.
Wind claw design
Reinforce and channel the airflow to completely cover the heat sink.
Screen cooling
Extended heatsink design allows air flow to pass through, providing better heat dissipation.
Angular fin design
The angular and unequal fins height can channel the airflow through the fins and enlarge the contact surface.
Alternate Spinning
Alternate Spinning can reduce the turbulence of adjacent fans and increase air pressure.
Vapor chamber and heat pipe
With direct contact to the GPU and VRAM, the large copper plate combines the composite heat pipes to efficiently transfer heat generated from the interior cores to the heat sink.
Double Ball Bearing
The double ball bearing structure has better heat endurance and efficiency than sleeve structure.
3D Active Fan
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.

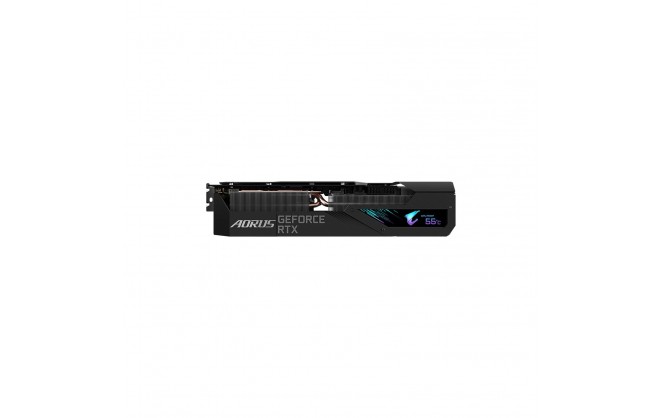

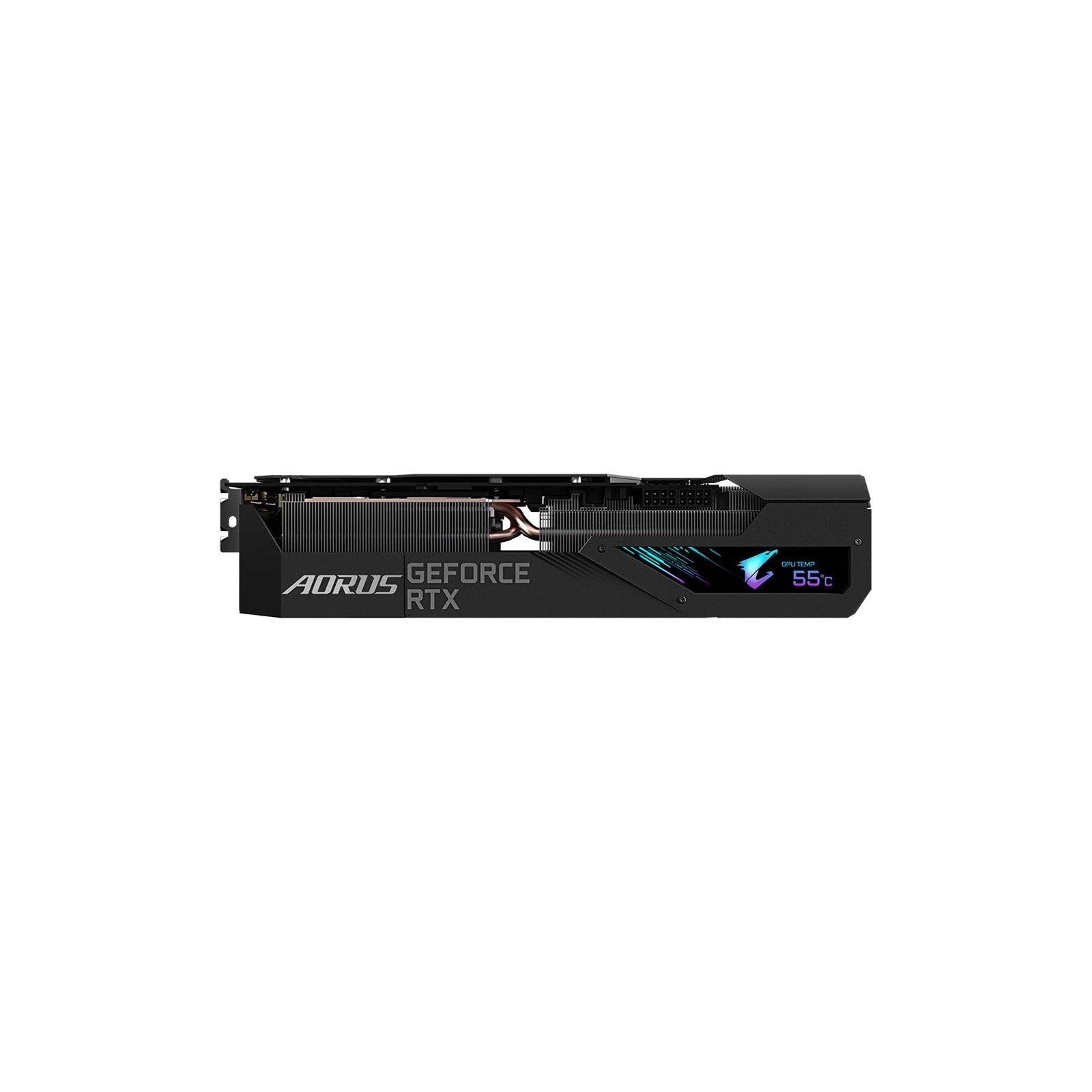

The LCD monitor not only display graphics card information, but also various favorite texts, pictures and GIFs. You can also adjust lighting effects via RGB FUSION 2.0 software.

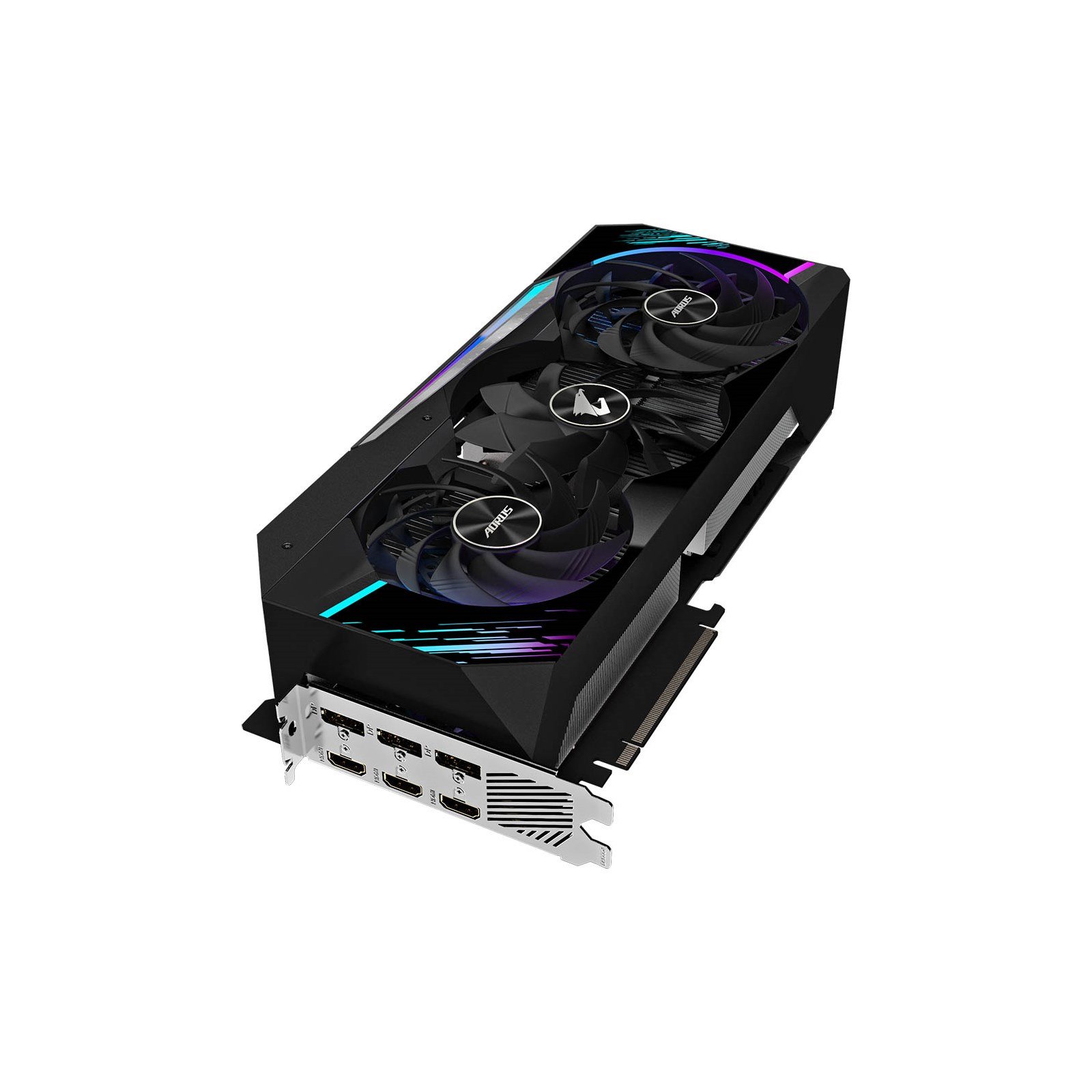

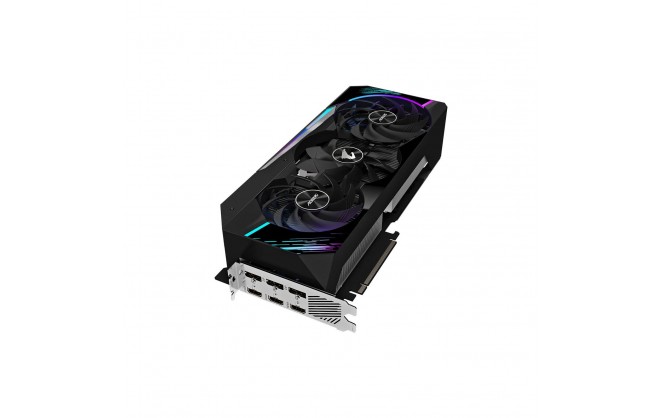

You can choose three HDMI or three DP 1.4a for your monitors without any adaptors. (Option 4 views)
Silent mode will provide a quieter experience. The mode switch requires a reboot to take effect. The default is OC mode.
The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
When experiencing any power supply abnormality, the indicator will alert gamers by flashing light.
The graphics card uses the better power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life.
Dust resistant - shields from dust, insects, dropped screws, drill shavings, and abrasion.
Moisture resistant - prevents unwanted conduction paths and board damage.
Corrosion resistant - protects from salt spray, humidity, and corrosion.
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
We want you to experience the best service you have ever had. This is why, on top of our standard 3-year warranty, we would like to offer you an additional 1 year of protection to your graphics card free of charge. You can enjoy a 4-year warranty by registering on the website within 30 days of purchase.
RGB FUSION - SYNC WITH ONE CLICK
There are various modes you can select from and easily achieve RGB synchronization with just one single click.
RGB FUSION - INDIVIDUAL LIGHTING CONTROL
An easy way to customize the colors and the lighting effects individually just the way you want.

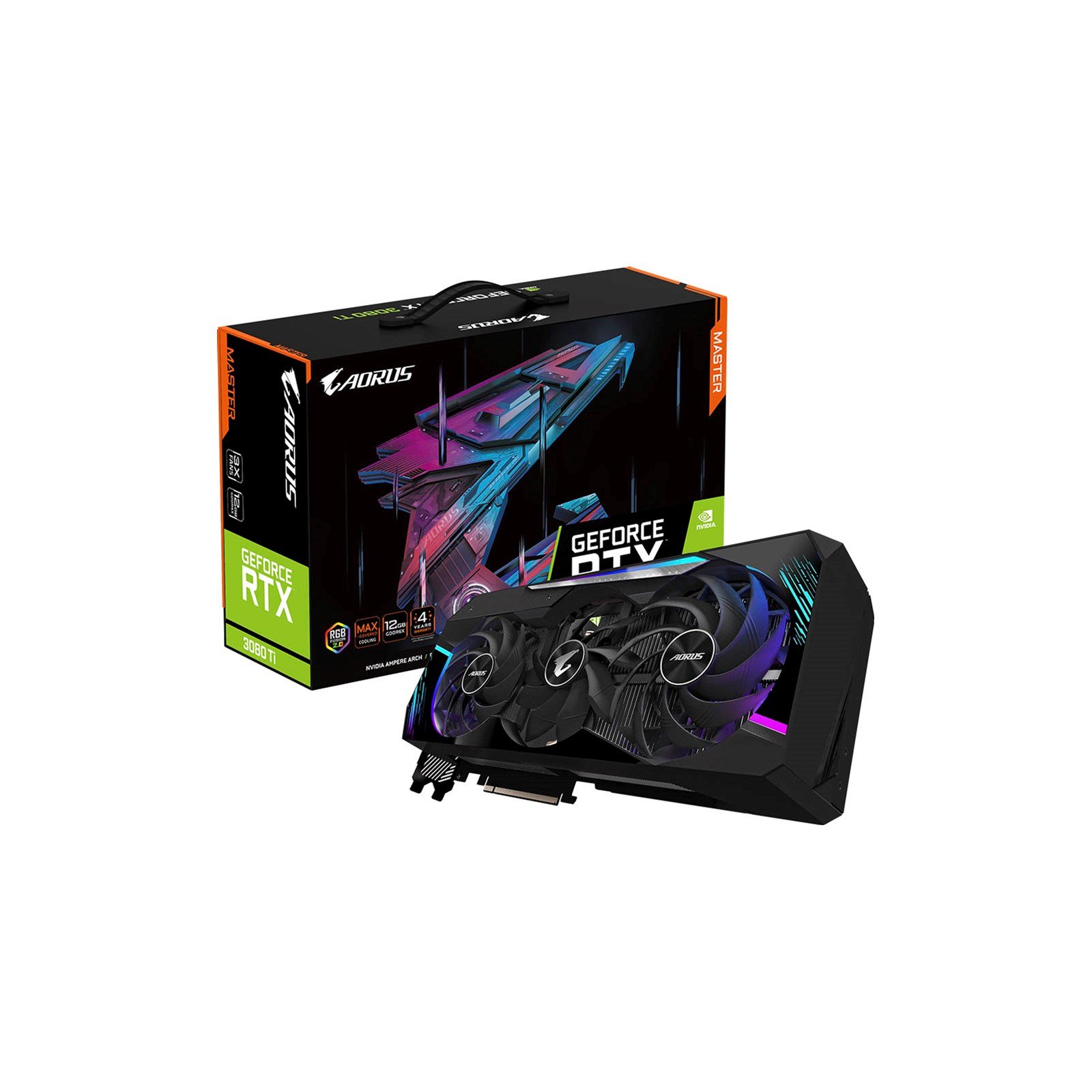

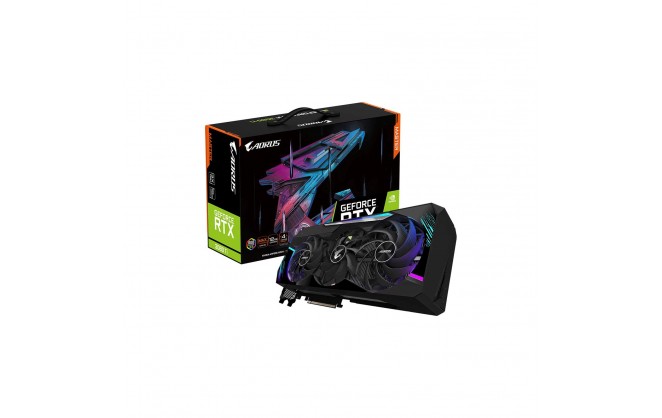

Gigabyte GeForce RTX 3080 Ti Aorus Master 12GB OC
GPU
| Chipset Manufacturer | NVIDIA |
| Chipset Model Name | GeForce RTX |
| Chipset Model Number | 3080 Ti |
| Chipset Additional Information | AORUS MASTER |
| Boost Chip Clock | 1770 MHz |
| Number of Cores | 10240 units |
| Graphics Core | CUDA |
Memory
| Memory Size | 12288 MB |
| Memory Clock | 19 Gbps |
| Memory Type | GDDR6 |
| Memory Width | 384 bit |
| Memory Bandwidth | 912 GB/s |
Interfaces/Ports
| Video Card Bus Type | PCI Express |
| Video Card Bus Version | 4.0 x16 |
| HDMI Port | 2 x HDMI 2.1 1 x HDMI 2.0 |
| DisplayPort | 3 x DisplayPort 1.4a |
Resolution
| Multiple Monitor Support (Max) | Yes (4) |
| Maximum Resolution | 7680 x 4320 pixels |
System Requirements
| System Requirements | 1 x PCI Express 4.0 x16 slot Recommended 850W PSU with 3 x 8-pin PCIe connectors |
Electrical
| Power Connector | 3 x 8-pin PCIe |
| Recomended Power Supply | 850 W |
Physical
| Form Factor | Graphics Card |
| In The Box | Graphics Card Quick Guide Warranty Registration Metal Sticker |
| Width | 70 mm (3.5 slot) |
| Depth | 319 mm |
| Height | 140 mm |
| Weight | 1.77 kg |
Warranty
| Warranty | 3 Years 4 Years with Registration |
Key Features
| Interface Type | PCI Express 4.0 x16 |
| VGA Connection | No |
| DVI Connection | No |
| HDMI Connection | Yes |
| Graphics Usability | Gaming |
| DisplayPort Connection | Yes |
| Direct X Support | Direct X 12 |
| Cooler Type | Dynamic Fan |
| Low Profile | No |
| NVIDIA GeForce | RTX 3080 Ti |
| PCI-E Pin Type | 8-Pin x 3 |
| Cooling Technology | Dynamic Fan |
| VR Ready | NVIDIA |
| GPU Length | 319 mm |
| Card Width | Quadruple Slot |
Graphics
| Graphics Chipset | GeForce RTX 3080 Ti |
Graphics Device
| G-Sync | Yes |
Item Details
| Manufacturer | Gigabyte |
| Manufacturer Code | GV-N308TAORUS M-12GD |
| EAN | 4719331308865 |
| UPC | 889523027981 |
| Condition | New |
