Supports DASH LAN
DASH (Desktop and mobile Architecture for System Hardware) is a web services-based standard for secure out-of-band and remote management of desktops and mobile systems.
Why DASH LAN?
DASH LAN is able to perform “Out-of-band management” and allows a system administrator to :
Ultra M.2 32Gb/s (PCIe Gen3 x4 & SATA3)
The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules.
AMD SMART ACCESS MEMORY
Conventional PC systems processor can only access a fraction of graphics memory and limits system performance. With AMD Smart Access Memory, the data channel gets expanded to harness the full potential of GPU memory, removes the bottleneck and increase performance.
Supports All Kinds Of Display
Complete with all types of most used connectors! Packed with a D-Sub + DVI-D + HDMI + DisplayPort combo, the HDMI & DisplayPort also capable of 4K resolution output!
* Only DVI-D will function if DVI-D and DisplayPort 1.4 ports are both connected.
HDMI 4k @60Hz
Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.
Super Alloy Motherboard
High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.
Sapphire Black PCB
Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.
Premium 50A Power Choke
Compared to traditional chokes, ASRock’s premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
Connect All Devices
Besides a COM and print header, there’s also a PCI slot for legacy devices.
Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.
Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.

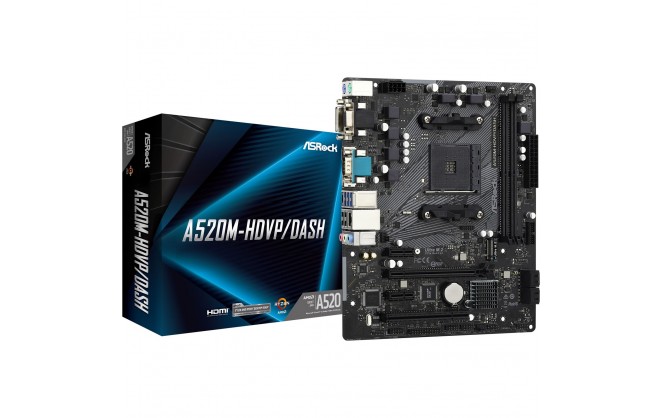

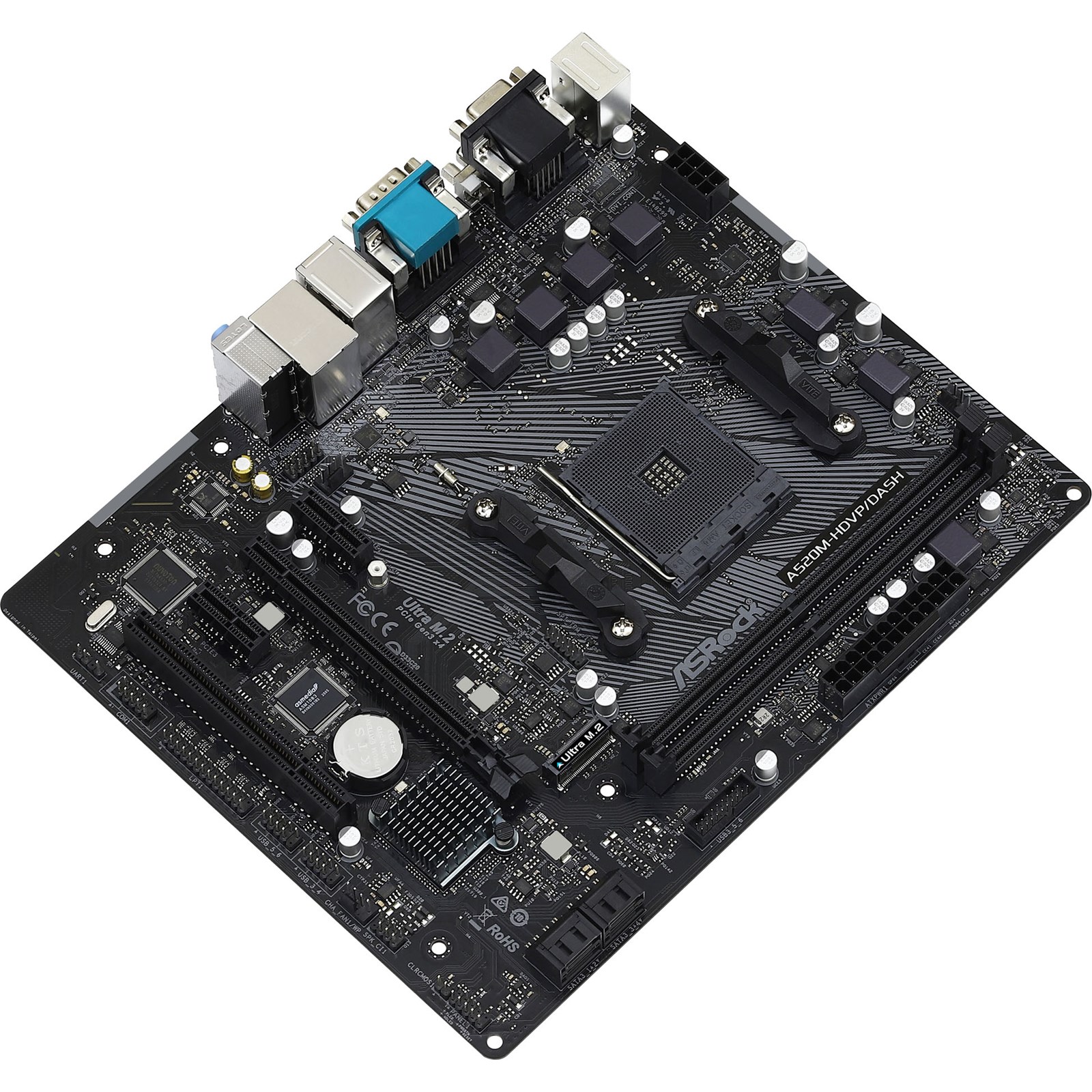

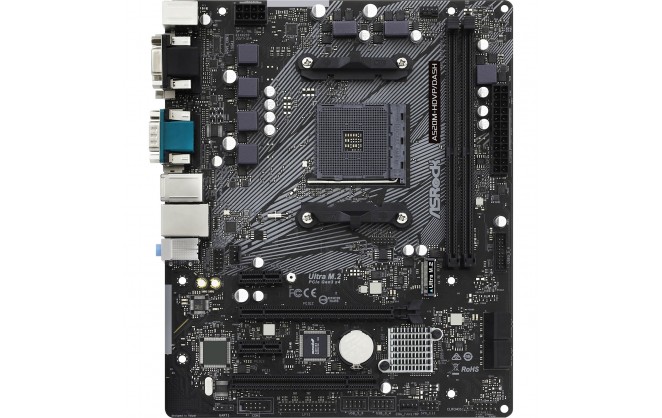

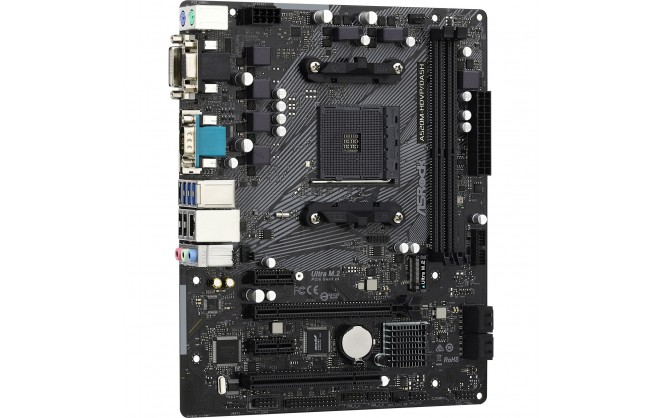

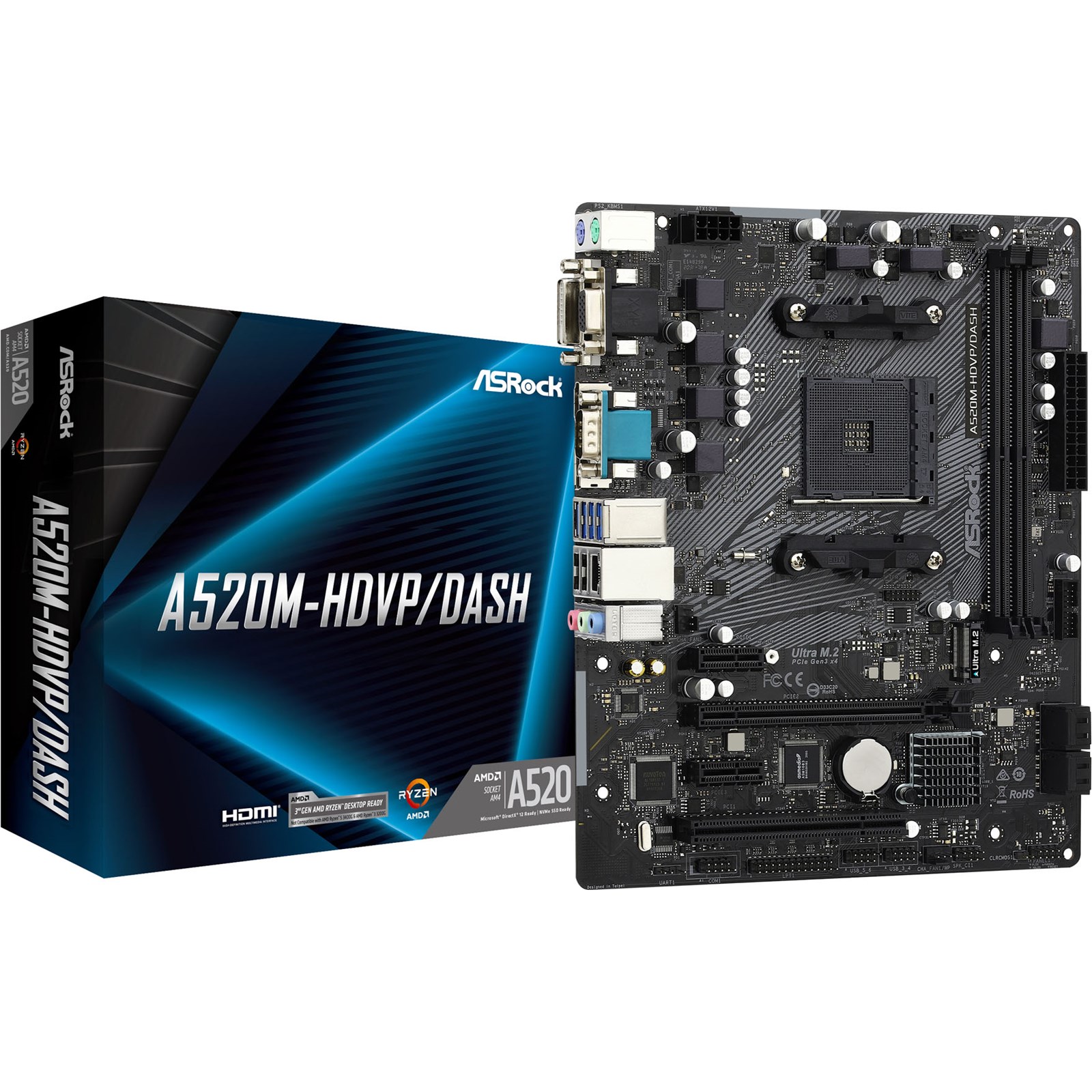

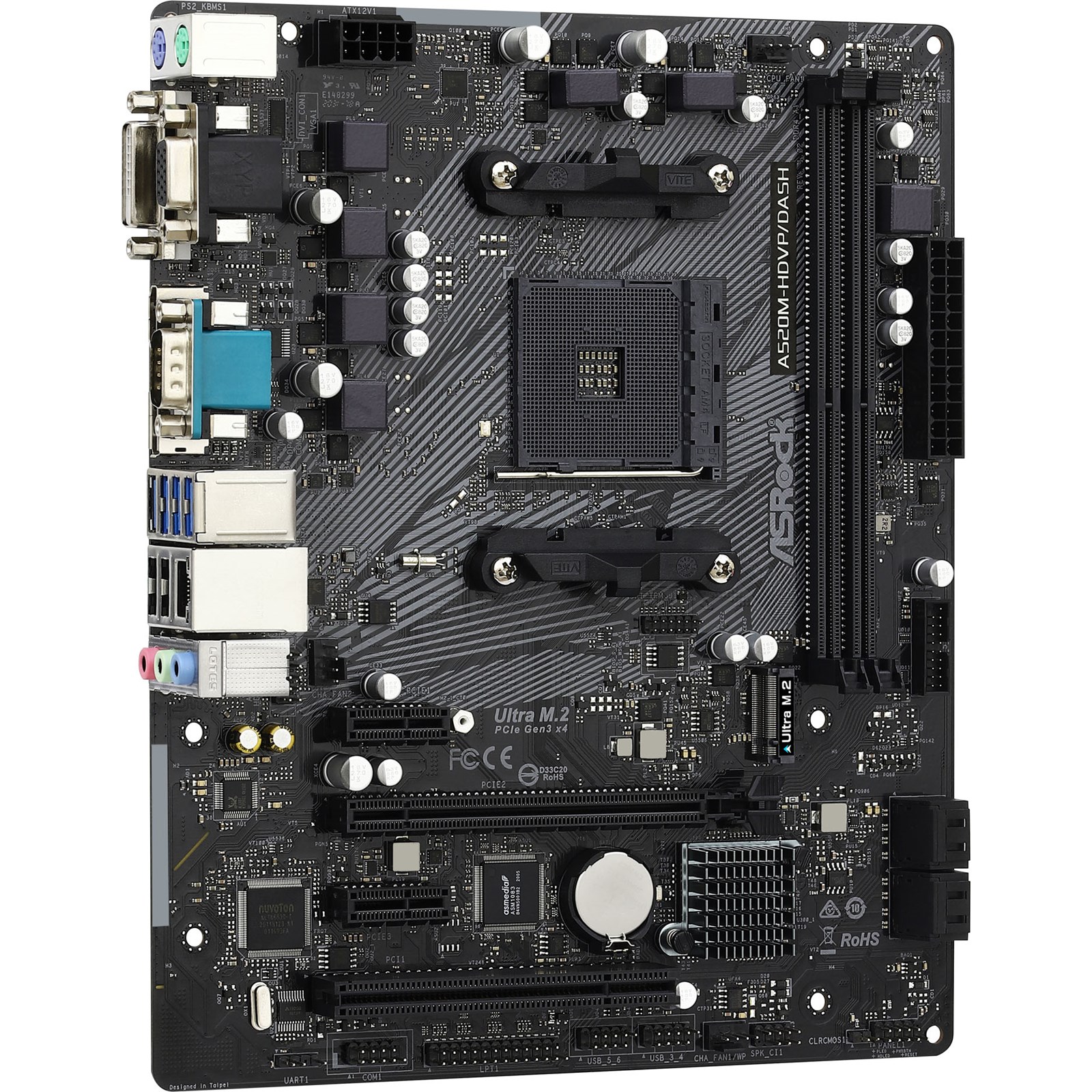

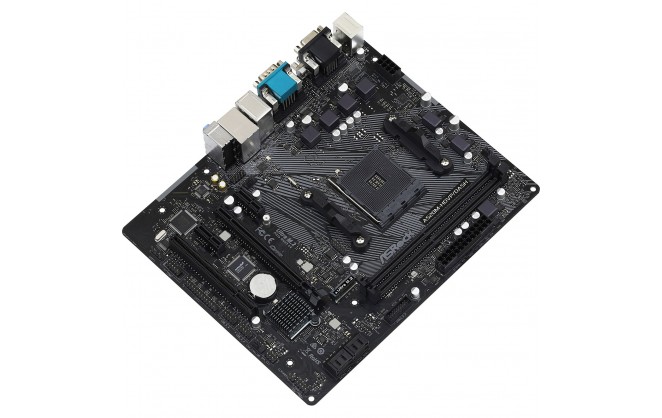

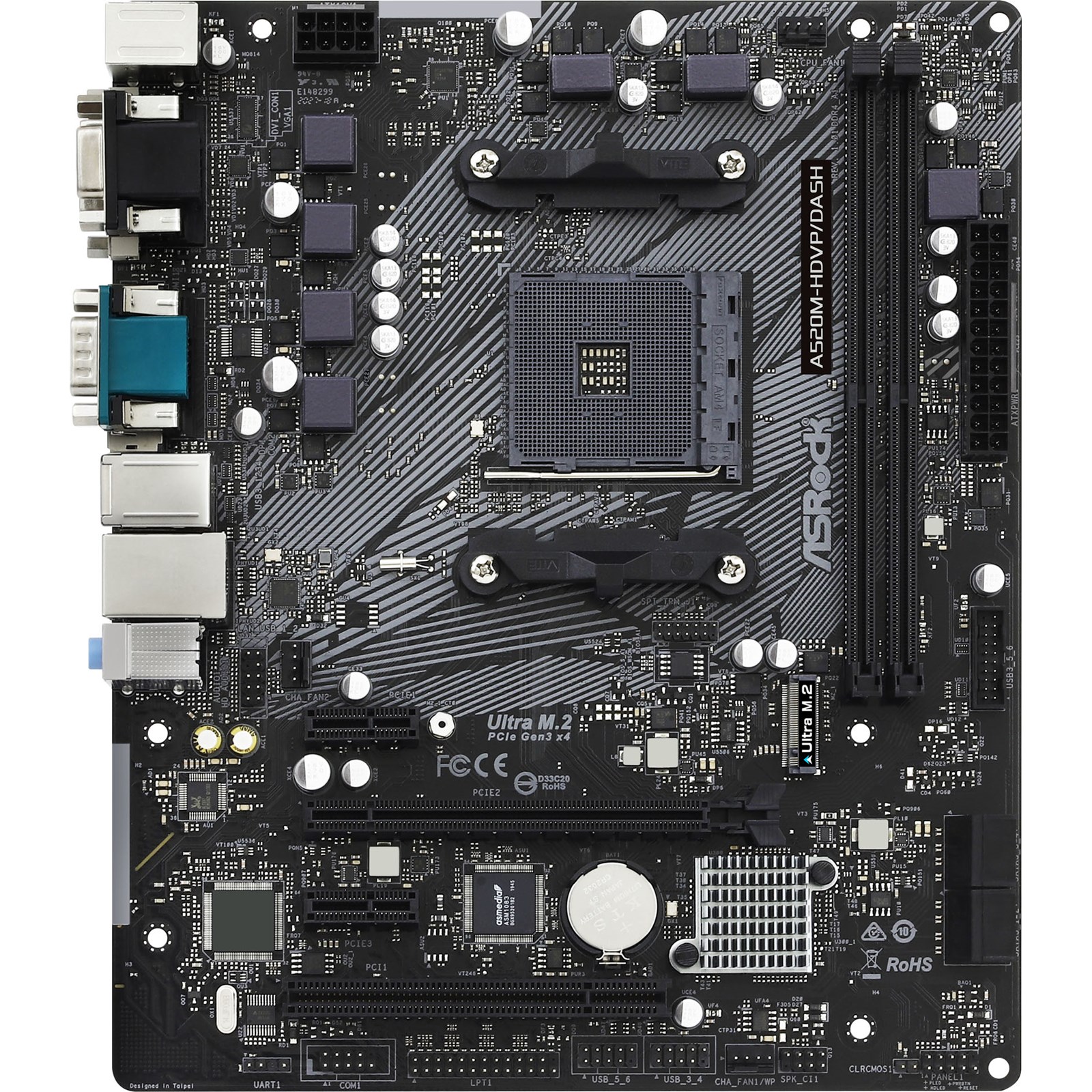

ASRock A520M-HDVP/DASH AMD Socket AM4 Motherboard
CPU
| CPU Socket | Socket AM4 |
| CPU Brand | AMD |
| Installed Processors (Max) | 0 (1) |
| Supported Processor Manufacturer | AMD |
| Supported Processors | Supports AMD AM4 Socket Ryzen 3000, 4000 G-Series and 5000 Series Desktop Processors |
| 64-bit Support | Yes |
| Socket | AM4 |
Rear Panel I/O Ports
| USB Ports | 4 x USB 3.0 2 x USB 2.0 |
| DisplayPorts | 1 x DisplayPort 1.4 |
| HDMI Port | 1 x HDMI 2.1 |
| VGA Port | 1 x D-Sub |
| Serial Ports | 1 x COM |
| Keyboard Port | 1 x PS/2 |
| Mouse Port | 1 x PS/2 |
| RJ-45 Ports | 1 x RJ-45 |
| Digital Port | 1 x DVI-D |
| Audio Line In Ports | 1 x 3.5mm Jack |
| Audio Line Out Ports | 1 x 3.5mm Jack |
| Microphone In Port | 1 x 3.5mm Jack |
Internal I/O Connectors
| SATA Connectors | 4 x SATA III |
| USB Connectors | 1 x USB 3.0 header (supports 2 ports) 2 x USB 2.0 headers (supports 4 ports) |
| Speaker | 1 x Speaker header |
| Cooling Fan Support | 1 x CPU fan header 1 x Chassis fan header 1 x Chassis/Water Pump fan header |
| Parallel Connectors | 1 x Parallel header |
| Serial Connectors | 1 x COM header |
| TPM Header | 1 x SPI TPM header |
| Power Connector Port | 1 x 20+4-pin ATX 1 x 4+4-pin EPS |
| Other Connectors | 1 x M.2, Socket 3, M Key (Type 2280) |
Memory
| Memory Bus Speed | 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 MHz |
| Memory Type | DDR4 |
| Maximum RAM | 64 GB |
| Memory Slot | 2 x DIMM |
Motherboard
| Chipset Manufacturer | AMD |
| Northbridge | A520 |
| RAID Supported | Yes |
| RAID Format | RAID 0, 1, 10 |
| SATA Supported | Yes |
Expansion
| Number of PCI Slots | 1 slot(s) |
| Number of PCI Express Slots | 1 x PCI Express 3.0 x16 2 x PCI Express 3.0 x1 |
Graphics Device
| Integrated Graphics Supported | Yes |
Sound
| Integrated Sound | Realtek ALC887 |
Warranty
| Warranty | 3 Years |
Network
| Integrated Network | Realtek RTL8111EPV |
| Network Speeds Supported | Up to 1 Gbps |
| Wireless LAN | No |
| Bluetooth | No |
System Requirements
| Operating Systems Supported | Microsoft Windows 10 64-bit |
System
| BIOS | 128Mb AMI UEFI Legal BIOS with GUI support Supports "Plug and Play" ACPI 5.1 compliance wake up events Supports jumperfree SMBIOS 2.3 support 1.8V, DRAM, VDDP Voltage Multi-adjustment |
Physical
| Form Factor | MicroATX Motherboard |
| In The Box | A520M-HDVP/DASH Motherboard Quick Installation Guide Support CD I/O Shield 2 x SATA Data Cables 1 x Screw for M.2 Socket |
| Width | 244 mm |
| Length | 201 mm |
Key Features
| M.2 Support | Yes |
| On-board RGB Control | None |
| Memory Speed | 4733 MHz |
| RGB Header Type | None |
| Addressable RGB | No |
| Firewire | No |
| Wireless Network | No |
| Memory Channel | Dual |
| On-board Audio Type | 7.1 |
| Number of SATA Ports | 4 port(s) |
| Number of USB Ports | 6 port(s) |
| SATA III Support | Yes |
| USB 3.0 Support | Yes |
| Multi GPU Support | No |
| VGA Connection | Yes |
| DVI Connection | Yes |
| HDMI Connection | Yes |
| DisplayPort Connection | Yes |
| Motherboard Form Factor | mATX |
| Motherboard Power Connectors | 4 + 4-Pin |
| Motherboard Chipset | AMD A520 |
| Thunderbolt | No |
| Motherboard Model | ASRock A520M-HDVP/DASH |
| USB 3.1 Support | No |
| Internal USB3.0 Header | Yes |
Item Details
| Manufacturer | ASRock |
| Manufacturer Code | 90-MXBEA0-A0UAYZ |
| Alternative Part Number | A520M-HDVP/DASH |
| EAN | 4710483932571 |
| Condition | New |
