Ultra M.2 32 Gb/s (PCIe Gen3 x4 & SATA3)
The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules, and is compatible with ASRock’s U.2 Kit for installing some of the world’s fastest U.2 PCIe Gen3 x4 SSDs.
Intel® LAN
Intel® LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!
Intel® Optane™ Memory Ready
Supports Intel® Optane™ memory technology and Intel® Optane™ storage technology that redefines a new standard of high performance and responsiveness.
Super Alloy Motherboard
Sapphire Black PCB
Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.
High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.
Triple Monitor
Graphics, graphics and even more graphics! You've demanded for more eye candy, so this motherboard supports Triple Monitor. You may choose up to three display interfaces from the rear i/o to connect monitors and use them simultaneously without installing another graphics card.
3 Graphics Outputs
Complete with all three types of most used connectors! Packed with a D-Sub + DVI-D + HDMI combo. Plus the HDMI port supports 4K resolution.
ELNA Audio Caps
Who says high quality audio is only available on high-end motherboards? ASRock applied ELNA audio capacitors on mainstream and entry-level motherboards! Compared with traditional solid caps, the leakage current of ELNA audio caps is merely 3uA. This is the key to reduce noise level significantly and satisfy even the pickiest audiophiles.
A-Tuning
A-Tuning is ASRock's multi purpose software suite with a new interface, more new features and improved utilities.
Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.

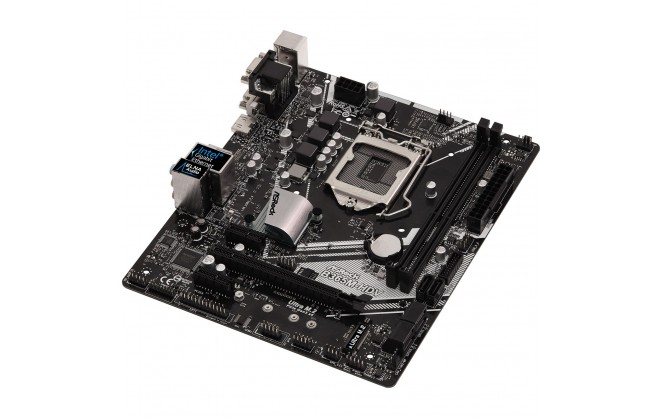

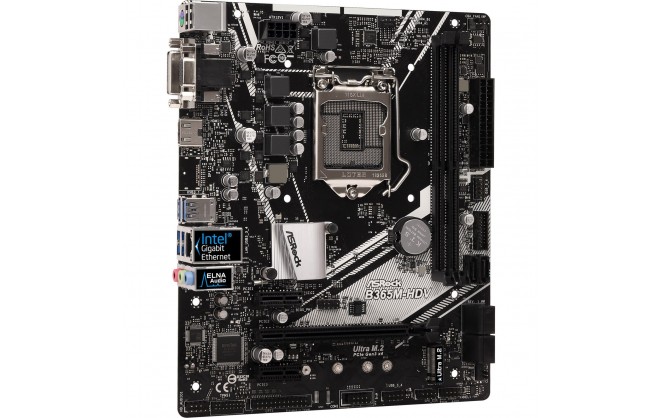

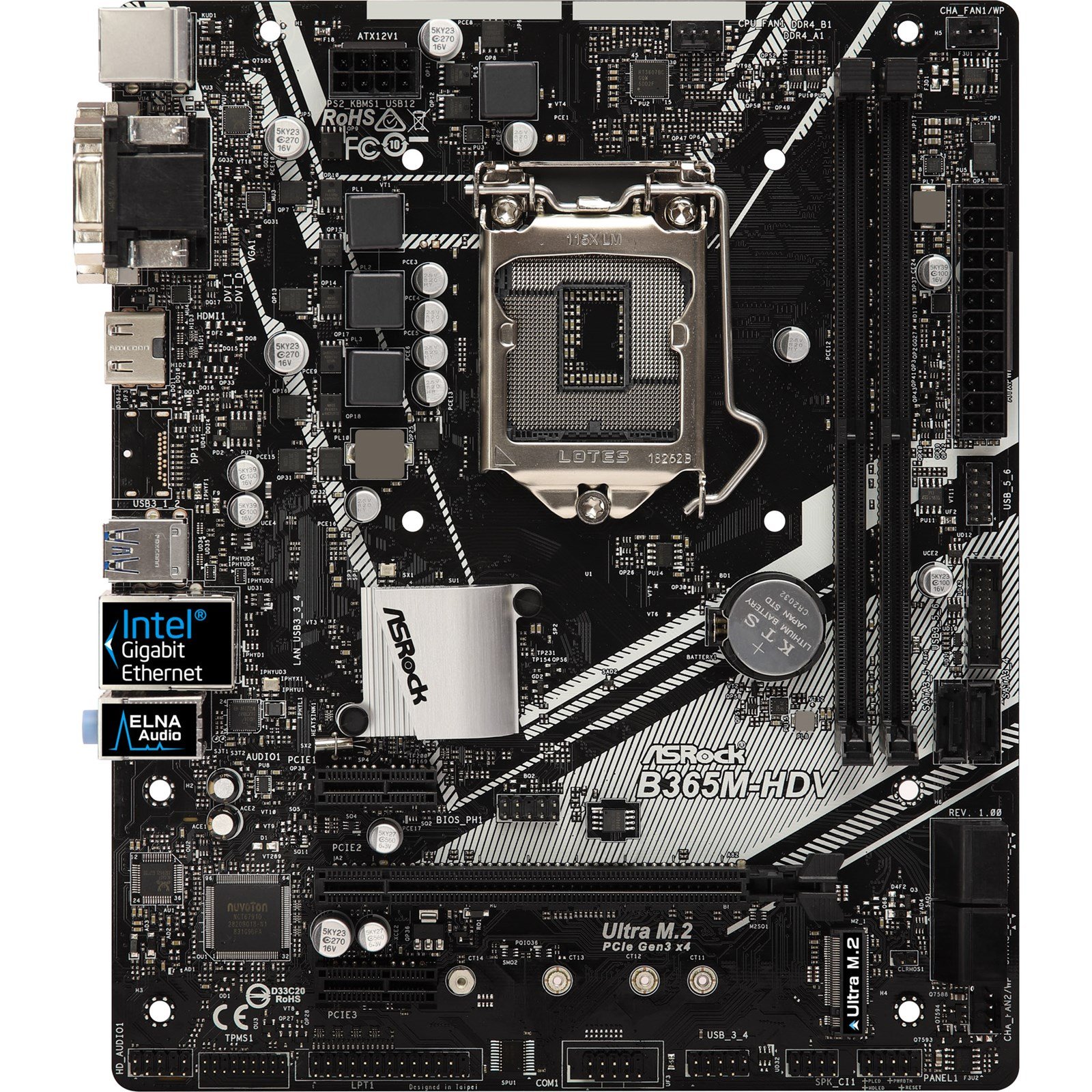

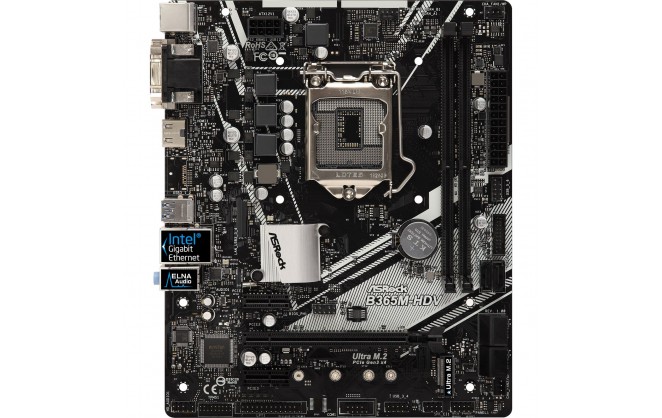

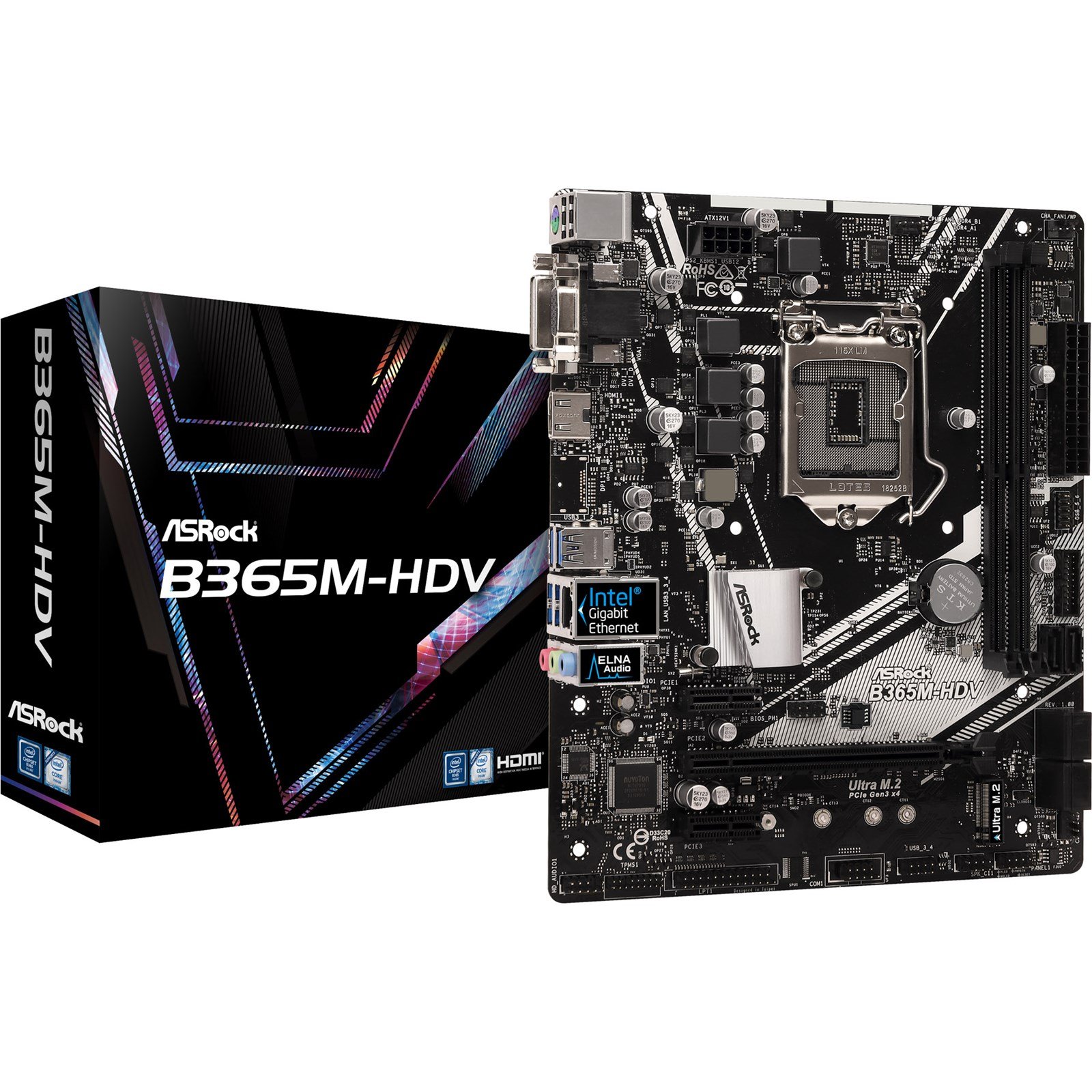

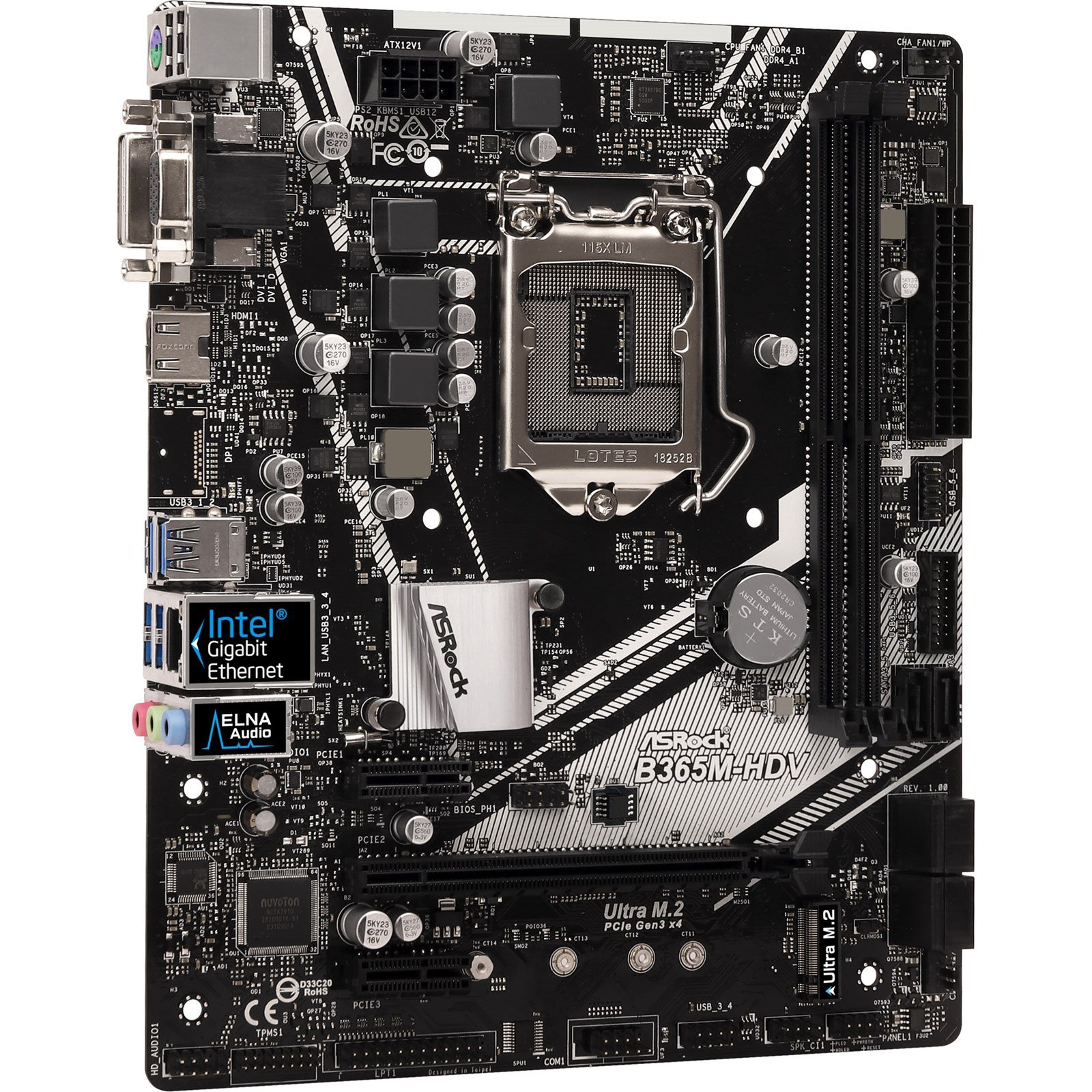

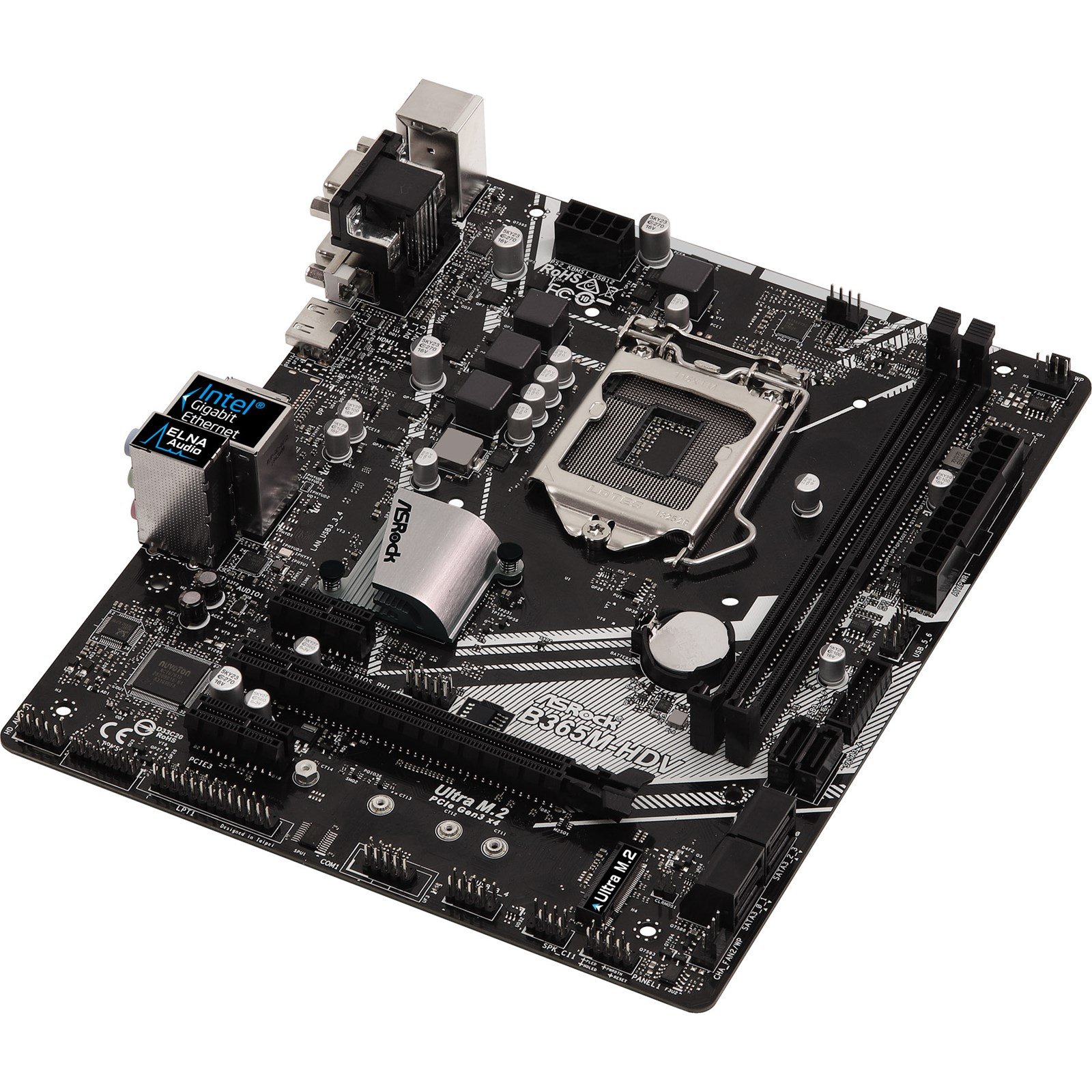

ASRock B365M-HDV Intel Socket 1151 Motherboard
CPU
| CPU Socket | Socket 1151 |
| CPU Brand | Intel |
| Installed Processors (Max) | 0 (1) |
| Supported Processor Manufacturer | Intel |
| Supported Processors | 9th and 8th Gen Intel Core Processors (up to 95W TDP) |
| 64-bit Support | Yes |
| Socket | LGA1151 |
Rear Panel I/O Ports
| USB Ports | 4 x USB 3.0 2 x USB 2.0 |
| HDMI Port | 1 x HDMI 1.4 |
| VGA Port | 1 x D-Sub (VGA) |
| Keyboard/Mouse Combo Port | 1 x PS/2 |
| RJ-45 Ports | 1 x RJ-45 |
| Digital Port | 1 x DVI-D Dual Link |
| Audio Line In Ports | 1 x 3.5mm Jack |
| Audio Line Out Ports | 1 x 3.5mm Jack |
| Microphone In Port | 1 x 3.5mm Jack |
Internal I/O Connectors
| SATA Connectors | 6 x SATA III |
| USB Connectors | 1 x USB 3.0 header (supports 2 ports) 2 x USB 2.0 headers (supports 4 ports) |
| Speaker | 1 x Speaker header |
| Front Panel Connectors | 1 x Front Panel 1 x Front Audio |
| Cooling Fan Support | 1 x CPU fan header 2 x Chassis/Water Pump fan headers |
| Parallel Connectors | 1 x Parallel header |
| Serial Connectors | 1 x COM header |
| Chassis Intrusion Connector | 1 x Chassis Intrusion header |
| Power Connector Port | 1 x 20+4-pin ATX 1 x 4+4-pin EPS |
| Other Connectors | 1 x M.2, Socket 3, M Key (Type 2230/2242/2260/2280) |
Memory
| Memory Bus Speed | 2666 / 2400 / 2133 MHz |
| Memory Type | DDR4 |
| Maximum RAM | 32 GB |
| Memory Slot | 2 x DIMM |
Motherboard
| Chipset Manufacturer | Intel |
| Northbridge | B365 |
| RAID Supported | Yes |
| RAID Format | RAID 0, 1, 5, 10) |
| SATA Supported | Yes |
Expansion
| Number of PCI Express Slots | 1 x PCI Express 3.0 x16 2 x PCI Express 3.0 x1 |
Graphics Device
| Integrated Graphics Supported | Yes |
Sound
| Integrated Sound | Realtek ALC887 |
Warranty
| Warranty | 3 Years |
Network
| Integrated Network | Intel I219-V |
| Network Speeds Supported | 10/100/1000 Mbps |
| Wireless LAN | No |
| Bluetooth | No |
System Requirements
| Operating Systems Supported | Microsoft Windows 10 64-bit |
System
| BIOS | 128Mb AMI UEFI Legal BIOS with multilingual GUI support ACPI 6.0 Compliant wake up events SMBIOS 2.7 Support CPU, GT_CPU, DRAM, PCH 1.05V Voltage Multi-adjustment |
| Software Included (may be trial or restricted) | Yes |
| Drivers | Yes |
Physical
| Form Factor | MicroATX Motherboard |
| In The Box | B365M-HDV Motherboard Quick Installation Guide Support CD I/O Shield 2 x SATA Data Cables 1 x Screw for M.2 Socket |
| Width | 226 mm |
| Length | 188 mm |
Key Features
| RGB Header Type | None |
| Addressable RGB | No |
| Firewire | No |
| Wireless Network | No |
| Memory Channel | Dual |
| On-board Audio Type | 7.1 |
| Number of SATA Ports | 6 port(s) |
| Number of USB Ports | 6 port(s) |
| SATA III Support | Yes |
| USB 3.0 Support | Yes |
| Multi GPU Support | No |
| VGA Connection | Yes |
| DVI Connection | Yes |
| HDMI Connection | Yes |
| DisplayPort Connection | No |
| Motherboard Form Factor | mATX |
| Motherboard Power Connectors | 4 + 4-Pin |
| Motherboard Chipset | Intel B365 |
| Thunderbolt | No |
| Motherboard Model | ASRock B365M-HDV |
| USB 3.1 Support | No |
| Internal USB3.0 Header | Yes |
| M.2 Support | Yes |
| On-board RGB Control | None |
| Memory Speed | 2666 MHz |
Item Details
| Manufacturer | ASRock |
| Manufacturer Code | 90-MXB9R0-A0UAYZ |
| Alternative Part Number | B365M-HDV |
| EAN | 4717677338157 |
| Condition | New |
