Ultra M.2 32 Gb/s (PCIe Gen3 x4)
The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s, and is compatible with ASRock’s U.2 Kit for installing some of the world’s fastest U.2 PCIe Gen3 x4 SSDs.
Intel® LAN
Intel® LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!
Intel® Optane™ Memory Ready
Supports Intel® Optane™ memory technology and Intel® Optane™ storage technology that redefines a new standard of high performance and responsiveness.
Super Motherboard Alloy
Premium 50A Power Choke
Compared to traditional chokes, ASRock’s premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
Sapphire Black PCB
Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.
High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.
Digi Power
This motherboard uses a next generation Hybrid Digi Power design to bring precise control and smooth power. With the ensured efficient and clean power delivery to the CPU, the stability and lifespan of motherboard is also greatly enhanced.
3 Graphics Outputs
Complete with all three types of most used connectors! Packed with a D-Sub + DVI-D + HDMI combo.
Triple Monitor
Graphics, graphics and even more graphics! You've demanded for more eye candy, so this motherboard supports Triple Monitor. You may choose up to three display interfaces from the rear i/o to connect monitors and use them simultaneously without installing another graphics card.
ELNA Audio Caps
Who says high quality audio is only available on high-end motherboards? ASRock applied ELNA audio capacitors on mainstream and entry-level motherboards! Compared with traditional solid caps, the leakage current of ELNA audio caps is merely 3uA. This is the key to reduce noise level significantly and satisfy even the pickiest audiophiles.
A-Tuning
A-Tuning is ASRock's multi purpose software suite with a new interface, more new features and improved utilities.
Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.

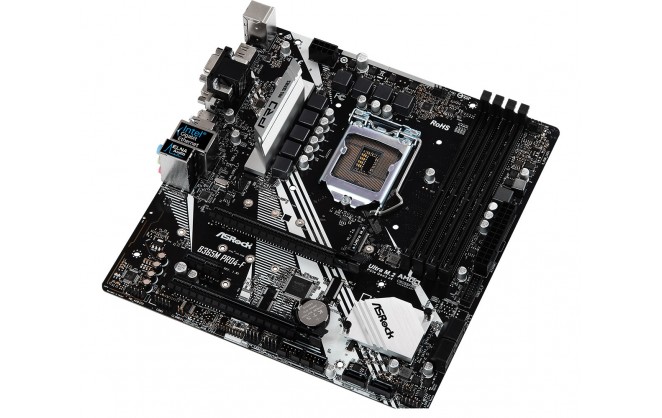

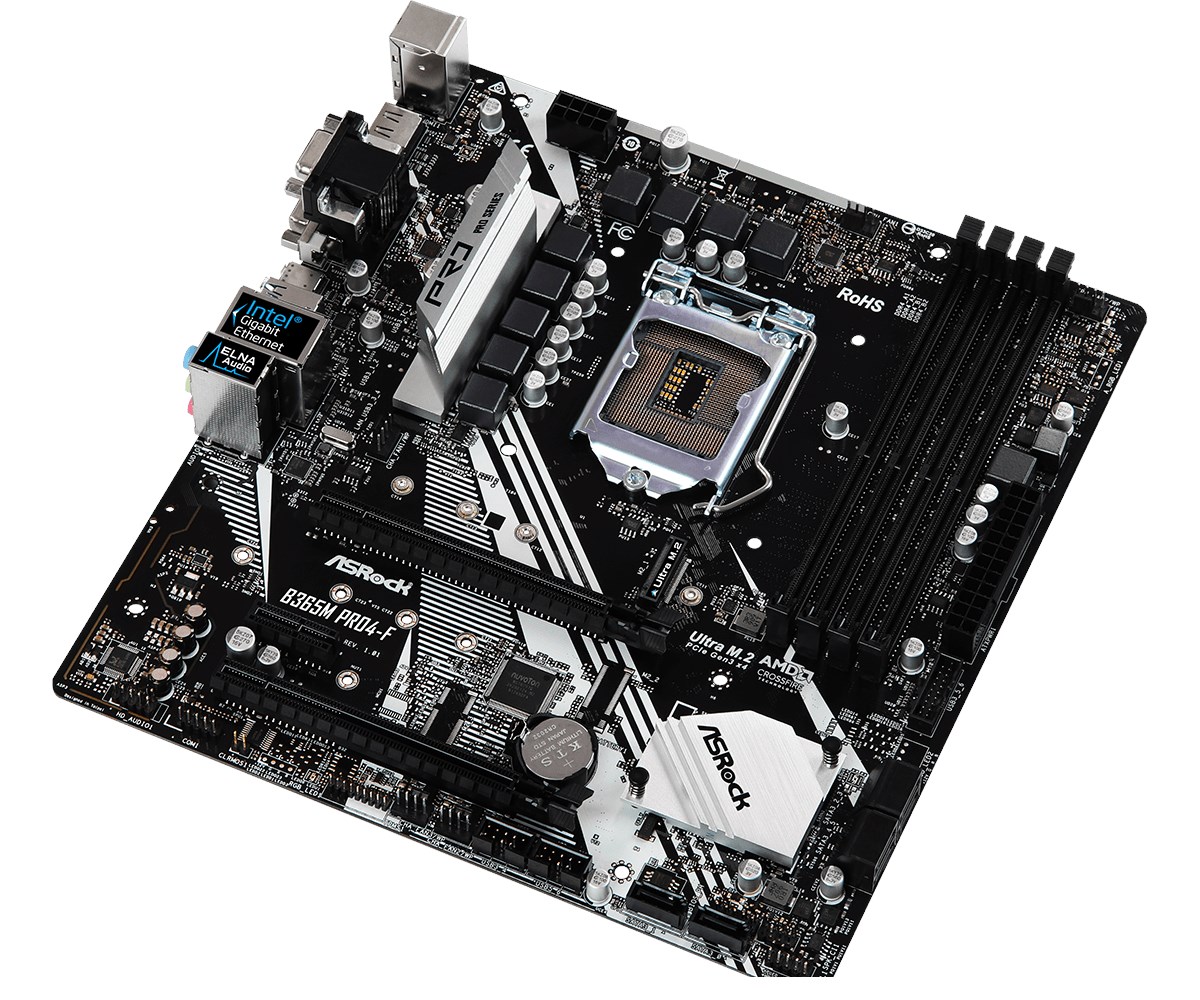

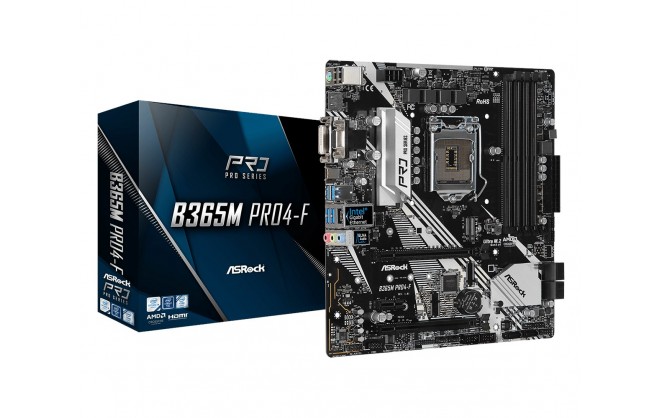

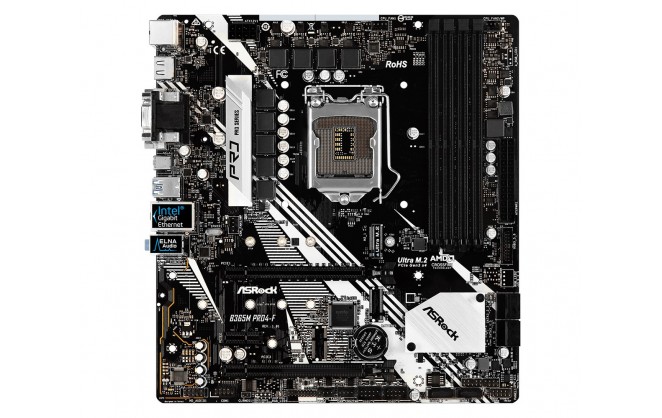

ASRock B365M Pro4-F Intel Socket 1151 9th Gen DDR4 Retail Motherboard
CPU
| CPU Socket | Socket 1151 |
| CPU Brand | Intel |
| Installed Processors (Max) | 0 (1) |
| Supported Processor Manufacturer | Intel |
| Supported Processors | 9th and 8th Gen Intel Core Processors |
| 64-bit Support | Yes |
| Socket | LGA1151 |
Rear Panel I/O Ports
| USB Ports | 1 x USB 3.0 Type-C 4 x USB 3.0 Type-A 2 x USB 2.0 |
| HDMI Port | 1 x HDMI |
| VGA Port | 1 x D-Sub |
| Keyboard/Mouse Combo Port | 1 x PS/2 |
| RJ-45 Ports | 1 x RJ-45 |
| Digital Port | 1 x DVI-D |
| Audio Line In Ports | 1 x 3.5mm Jack |
| Audio Line Out Ports | 1 x 3.5mm Jack |
| Microphone In Port | 1 x 3.5mm Jack |
Internal I/O Connectors
| SATA Connectors | 6 x SATA III |
| USB Connectors | 1 x USB 3.0 2 x USB 2.0 |
| Speaker | 1 x Speaker |
| Front Panel Connectors | 1 x Front Panel 1 x Front Audio |
| Cooling Fan Support | 1 x CPU fan 1 x CPU/Water Pump fan 3 x Chassis/Water Pump fans |
| Serial Connectors | 1 x COM |
| Chassis Intrusion Connector | 1 x Chassis Intrusion |
| TPM Header | 1 x TPM |
| Power Connector Port | 1 x 20+4-pin ATX 1 x 4+4-pin EPS |
| Other Connectors | 1 x M.2, M Key (Type 2242/2260/2280) |
Memory
| Memory Bus Speed | 2666 / 2400 / 2133 MHz |
| Memory Type | DDR4 |
| Maximum RAM | 64 GB |
| Memory Slot | 4 x DIMM |
Compliance
| Certifications | FCC, CE, ErP/EuP ready (ErP/EuP ready power supply is required) |
Motherboard
| Chipset Manufacturer | Intel |
| Northbridge | B365 |
| RAID Supported | Yes |
| RAID Format | RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 17 |
| SATA Supported | Yes |
Expansion
| Number of PCI Express Slots | 2 x PCI Express 3.0 x16 (@ x16, x4) 1 x PCI Express 3.0 x1 |
Graphics Device
| Integrated Graphics Supported | Yes |
Sound
| Integrated Sound | Realtek ALC892 |
Network
| Integrated Network | Giga PHY Intel I219V |
| Network Speeds Supported | 10/100/1000 Mbps |
| Wireless LAN | No |
| Bluetooth | No |
System Requirements
| Operating Systems Supported | Microsoft Windows 10 64-bit |
System
| BIOS | 128Mb AMI UEFI Legal BIOS with multilingual GUI support ACPI 6.0 Compliant wake up events SMBIOS 2.7 Support CPU, DRAM, PCH 1.0V, VCCSA, VCCST Voltage Multi-adjustment |
| Software Included (may be trial or restricted) | ASRock A-Tuning ASRock XFast LAN AntiVirus Software (Trial) Google Chrome Browser & Toolbar |
| Drivers | Yes |
| SLi/Crossfire Features | Supports AMD Quad CrossFireX and CrossFireX |
Physical
| Form Factor | MicroATX Motherboard |
| In The Box | Motherboard Quick Installation Guide Support Disc I/O Shield 2 x SATA Cables 1 x M.2 Screw |
| Width | 244 mm |
| Length | 229 mm |
Key Features
| Memory Speed | 2666 MHz |
| RGB Header Type | None |
| Addressable RGB | No |
| Firewire | No |
| Wireless Network | No |
| Memory Channel | Dual |
| On-board Audio Type | 7.1 |
| Number of SATA Ports | 6 port(s) |
| Number of USB Ports | 7 port(s) |
| SATA III Support | Yes |
| USB 3.0 Support | Yes |
| Multi GPU Support | ATi CrossFire |
| VGA Connection | Yes |
| DVI Connection | Yes |
| HDMI Connection | Yes |
| DisplayPort Connection | No |
| Motherboard Form Factor | mATX |
| Motherboard Power Connectors | 4 + 4-Pin |
| Motherboard Chipset | Intel B365 |
| Thunderbolt | No |
| USB 3.1 Support | No |
| Internal USB3.0 Header | Yes |
| M.2 Support | Yes |
| On-board RGB Control | None |
Warranty
| Warranty | 1 Year |
Item Details
| Manufacturer | ASRock |
| Manufacturer Code | 90-MXBB30-A0UAYZ |
| Alternative Part Number | B365M PRO4-F |
| EAN | 4717677339079 |
| Condition | New |
