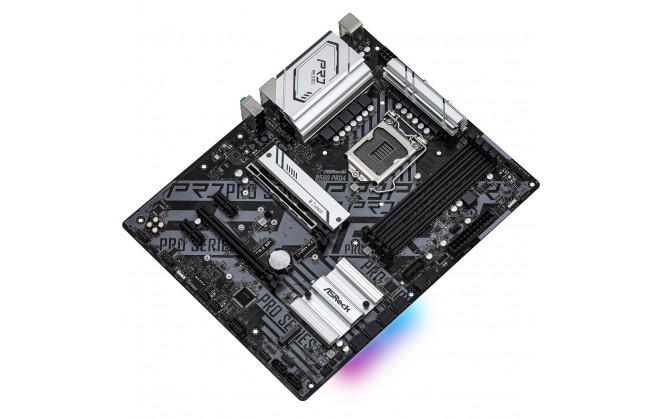

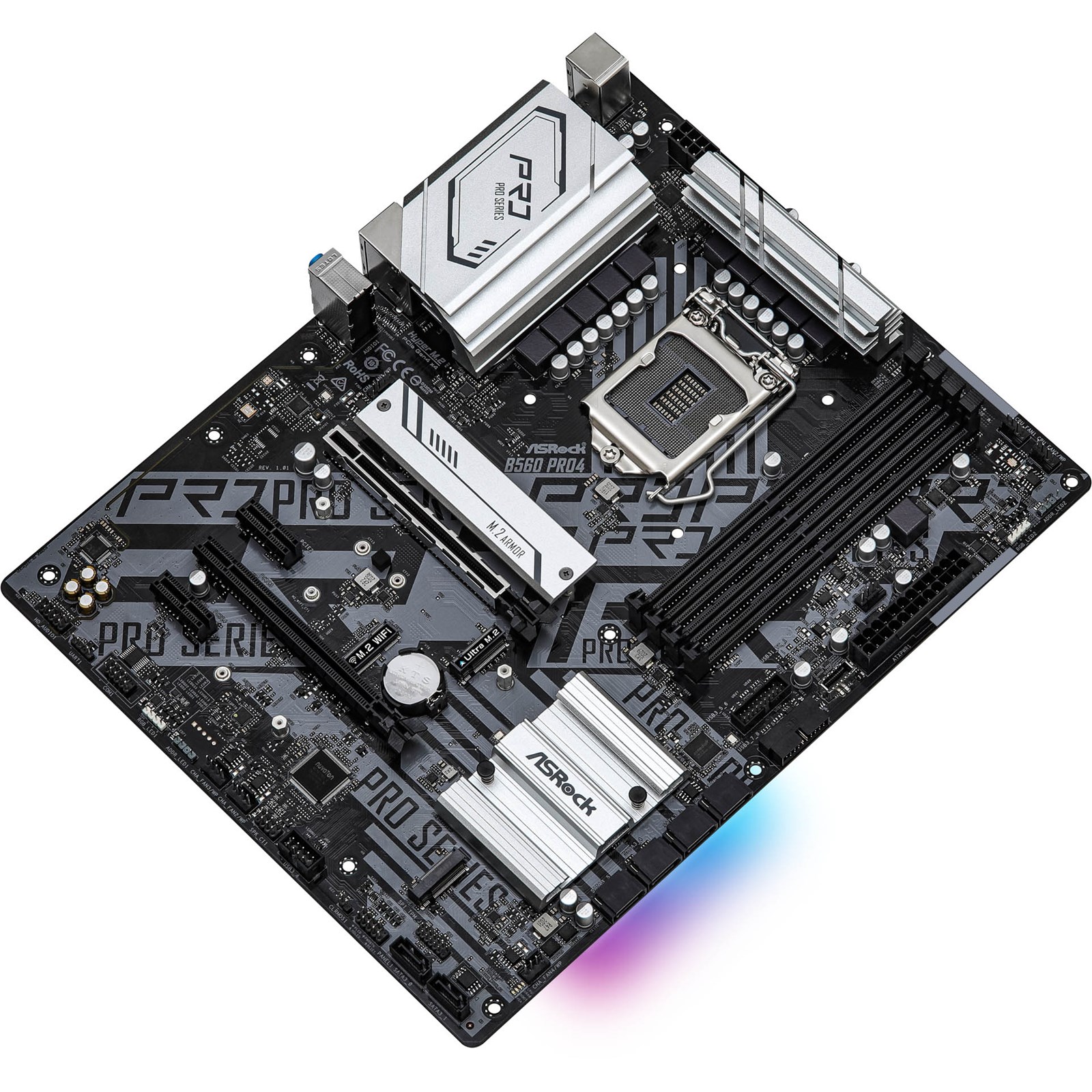

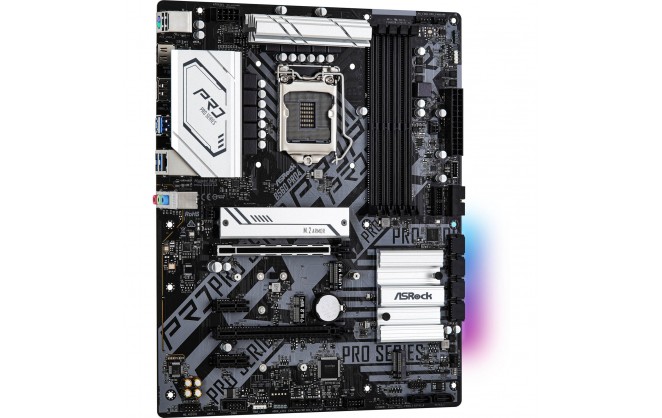

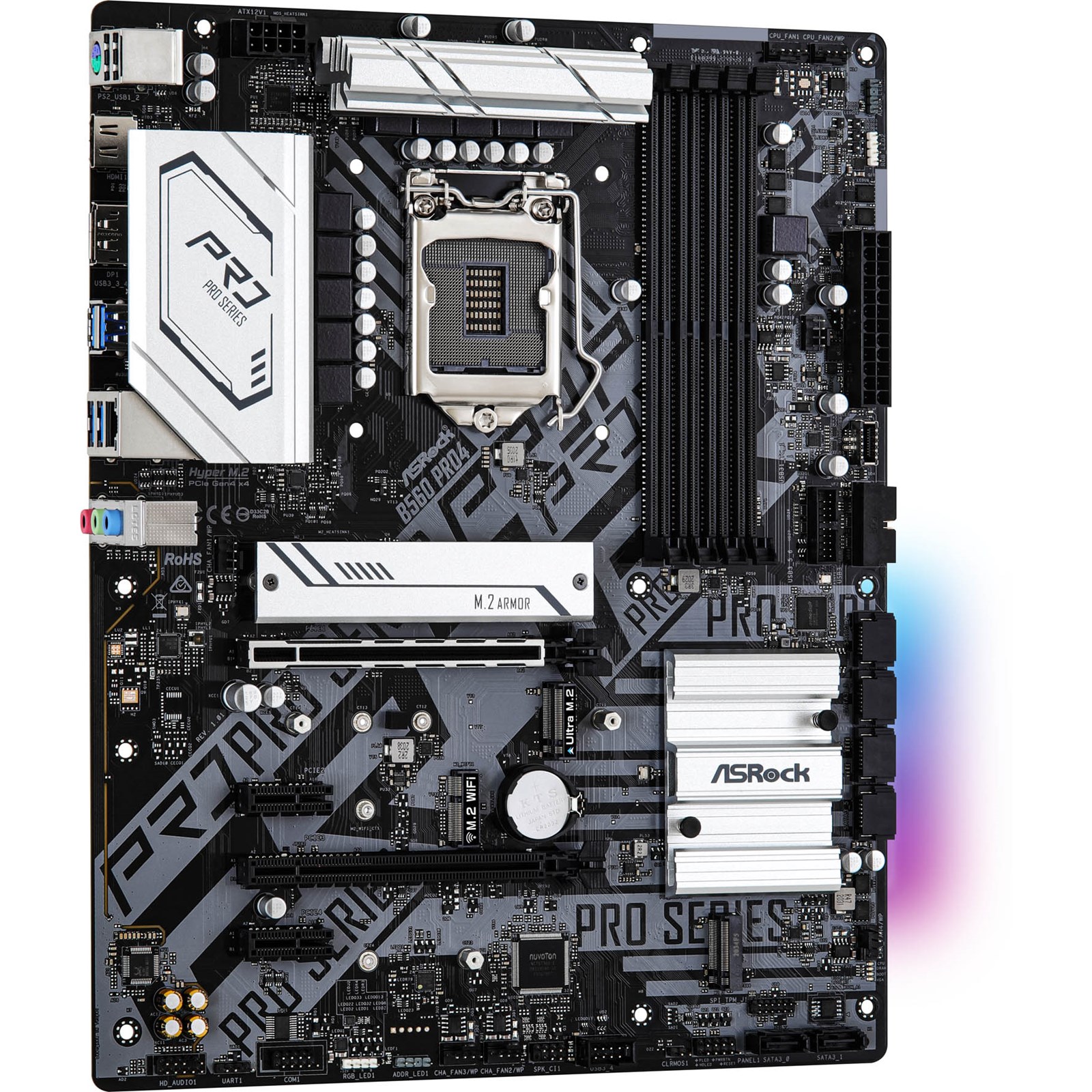

ASRock B560 Pro4 Intel Socket 1200 B560 Chipset ATX Motherboard
ASRock B560 Pro4 Intel Socket 1200 Motherboard
CPU
| CPU Socket | Socket 1200 |
| CPU Brand | Intel |
| Installed Processors (Max) | 0 (1) |
| Supported Processor Manufacturer | Intel |
| Supported Processors | 10th Gen Intel Core Processors and 11th Gen Intel Core Processors |
| 64-bit Support | Yes |
| Socket | LGA1200 |

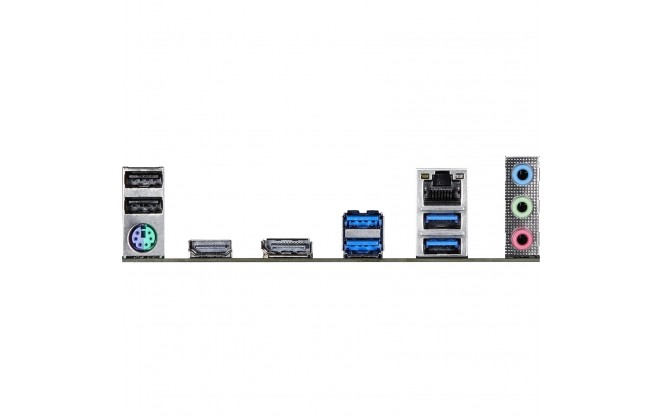

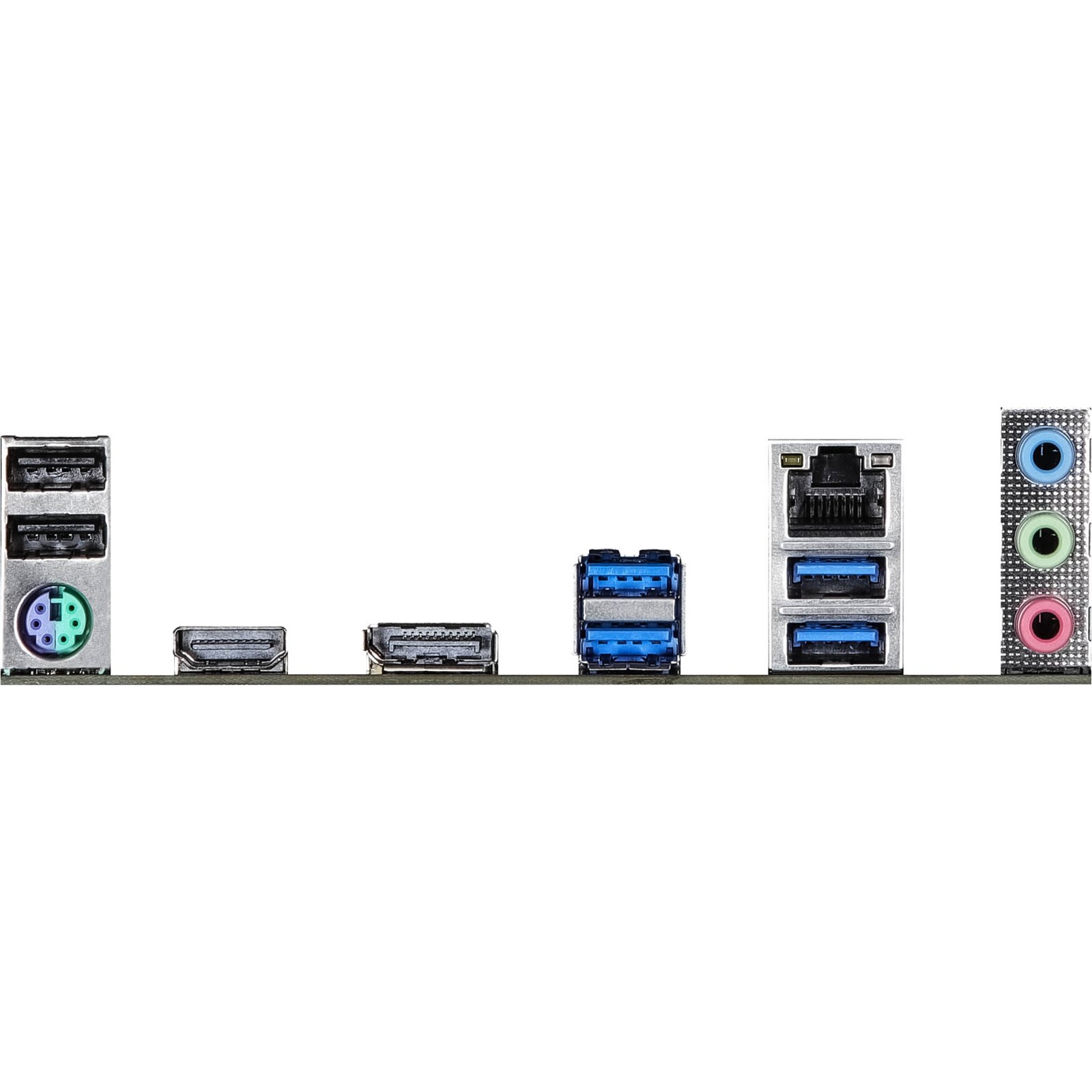

Rear Panel I/O Ports
| USB Ports | 4 x USB 3.0 2 x USB 2.0 |
| DisplayPorts | 1 x DisplayPort 1.4 |
| HDMI Port | 1 x HDMI 2.0 |
| Keyboard/Mouse Combo Port | 1 x PS/2 |
| RJ-45 Ports | 1 x RJ-45 |
| Audio Line In Ports | 1 x 3.5mm Jack |
| Audio Line Out Ports | 1 x 3.5mm Jack |
| Microphone In Port | 1 x 3.5mm Jack |
Internal I/O Connectors
| SATA Connectors | 6 x SATA III |
| USB Connectors | 1 x USB 3.0 Type-C header (supports 1 port) 2 x USB 3.0 headers (supports 4 ports) 1 x USB 2.0 header (supports 2 ports) |
| Speaker | 1 x Speaker header |
| Front Panel Connectors | 1 x Front Panel 1 x Front Audio |
| Cooling Fan Support | 1 x CPU fan header 1 x CPU/Water Pump fan header 5 x Chassis/Water Pump fan headers |
| Serial Connectors | 1 x COM header |
| Chassis Intrusion Connector | 1 x Chassis Intrusion header |
| TPM Header | 1 x SPI TPM header |
| Power Connector Port | 1 x 20+4-pin ATX 1 x 4+4-pin EPS |
| Other Connectors | 1 x M.2, M Key, Type 2242/2260/2280 (PCIe Gen4 x4) (only supported with 11th Gen Intel Core processors) 1 x M.2, M Key, Type 2242/2260/2280 (PCIe Gen3 x4) 1 x M.2, M Key, Type 2280/22110 (PCIe Gen3 x2 or SATA) 2 x 3-pin ARGB LED headers 2 x 4-pin ARGB LED headers |
Memory
| Memory Bus Speed | Up to 4,800+ (OC) MHz |
| Memory Type | DDR4 |
| Maximum RAM | 128 GB |
| Memory Slot | 4 x DIMM |
Motherboard
| Chipset Manufacturer | Intel |
| Northbridge | B560 |
| RAID Supported | No |
| SATA Supported | Yes |
Expansion
| Number of PCI Express Slots | 1 x PCI Express 4.0 x16 slot 1 x PCI Express 3.0 x16 slot (@ x2) 2 x PCI Express 3.0 x1 slots |
Graphics Device
| Integrated Graphics Supported | Yes |
Sound
| Integrated Sound | Realtek ALC897 |
Warranty
| Warranty | 3 Years |
Network
| Integrated Network | Intel I219V |
| Network Speeds Supported | Up to 1 Gbps |
| Wireless LAN | No |
| Bluetooth | No |
System Requirements
| Operating Systems Supported | Microsoft Windows 10 64-bit |
System
| BIOS | 128Mb AMI UEFI Legal BIOS with multilingual GUI support ACPI 6.0 Compliant wake up events SMBIOS 2.7 Support CPU Core/Cache, GT, DRAM, VPPM, VCCIN AUX, VCCIO, VCCST, VCCSA Voltage Multi-adjustment |
| Software Included (may be trial or restricted) | Yes |
| Drivers | Yes |
Physical
| Form Factor | ATX Motherboard |

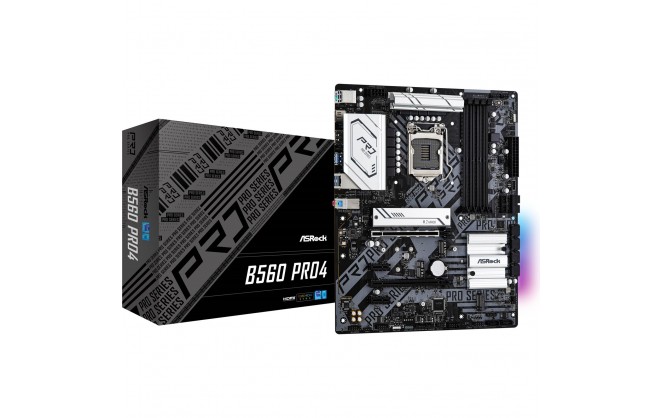

| In The Box | B560 Pro4 Motherboard Quick Installation Guide Support Disc I/O Shield 2 x SATA Cables 4 x Screws for M.2 Sockets 1 x Standoff for M.2 Socket |
| Width | 305 mm |
| Length | 244 mm |
Key Features
| On-board RGB Control | ASRock RGB LED |
| Memory Speed | 4800 MHz |
| RGB Header Type | 3-Pin ARGB |
| Addressable RGB | Yes |
| Firewire | No |
| Wireless Network | No |
| Memory Channel | Dual |
| On-board Audio Type | 7.1 |
| Number of SATA Ports | 6 port(s) |
| Number of USB Ports | 6 port(s) |
| SATA III Support | Yes |
| USB 3.0 Support | Yes |
| Multi GPU Support | No |
| VGA Connection | No |
| DVI Connection | No |
| HDMI Connection | Yes |
| DisplayPort Connection | Yes |
| Motherboard Form Factor | ATX |
| Motherboard Power Connectors | 8-Pin |
| Motherboard Chipset | Intel B560 |
| Thunderbolt | No |
| Motherboard Model | ASRock B560 Pro4 |
| USB 3.1 Support | No |
| Internal USB3.0 Header | Yes |
| M.2 Support | Yes |
Item Details
| Manufacturer | ASRock |
| Manufacturer Code | 90-MXBF10-A0UAYZ |
| Alternative Part Number | B560 PRO4 |
| EAN | 4710483933721 |
| Condition | New |
