ASRock B560 Steel Legend Intel Motherboard

  • Part Number: 90-MXBFD0-A0UAYZ
  • Manufacturer: Asrock
  • Quickfind Code: 135641

  • Stock: In Stock

£144.99 ex. vat
£173.99 inc. vat


Product Features:
  • Condition: New
  • Socket Type 1200
  • Chipset B560
  • Form Factor ATX
  • Memory Type DDR4
  • CPU Type Intel
+ Read More Information

Share:

Product Description

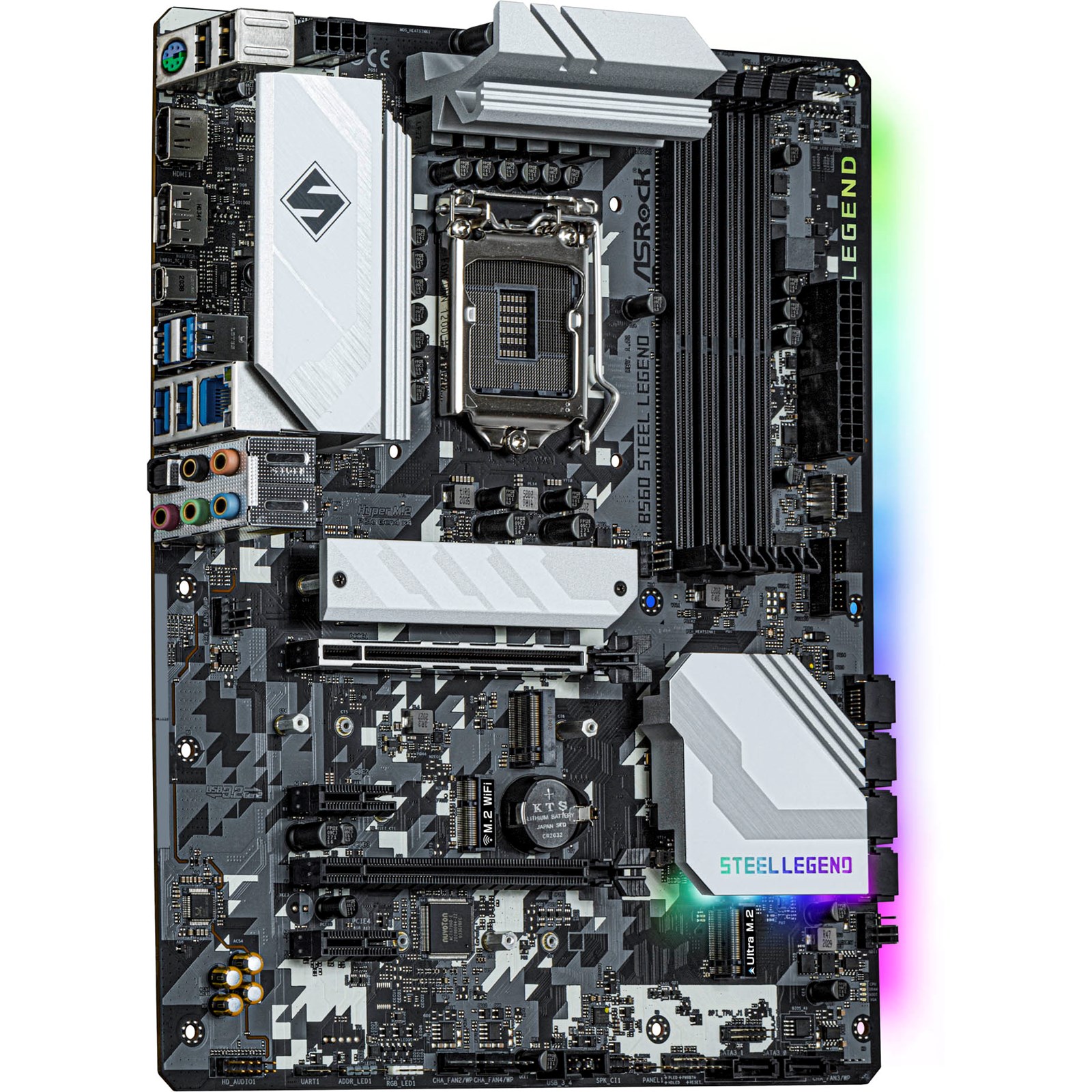

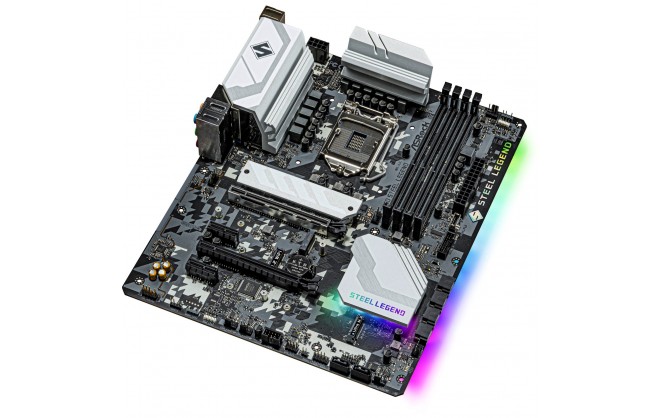

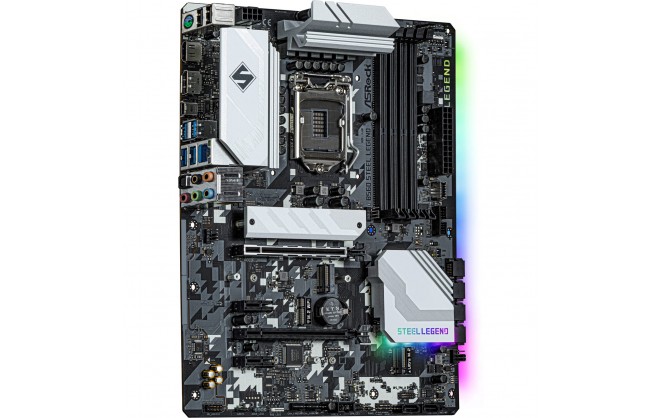

ASRock B560 Steel Legend Intel Socket 1200 B560 Chipset ATX Motherboard

Main Features

  • Supports 10th Gen Intel Core Processors and 11th Gen Intel Core Processors
  • 10 Phase Dr.MOS Power Design
  • Supports DDR4 4800MHz (OC)
  • 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x16, 2 x PCIe 3.0 x1, 1 x M.2 Key-E for WiFi
  • Graphics Output Options: HDMI, DisplayPort
  • 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio
  • 6 SATA3, 1 x Hyper M.2 (PCIe Gen4 x4), 1 x Ultra M.2 (PCIe Gen3 x4),
  • 1 x M.2 (PCIe Gen3 x2 & SATA3)
  • 1 x Front USB 3.2 Gen2x2 Type-C (20 Gb/s), 1 x Rear USB 3.2 Gen2 Type-C (10 Gb/s), 6 x USB 3.2 Gen1 (4 x Rear, 2 x Front), 4 x USB 2.0 (2 x Rear, 2 x Front)
  • Dragon 2.5 Gigabit LAN
  • ASRock Polychrome SYNC
Technical Specification

ASRock B560 Steel Legend Intel Motherboard

CPU

CPU SocketSocket 1200
CPU BrandIntel
Installed Processors (Max)0 (1)
Supported Processor ManufacturerIntel
Supported Processors10th Gen Intel Core Processors and 11th Gen Intel Core Processors
64-bit SupportYes
SocketLGA1200

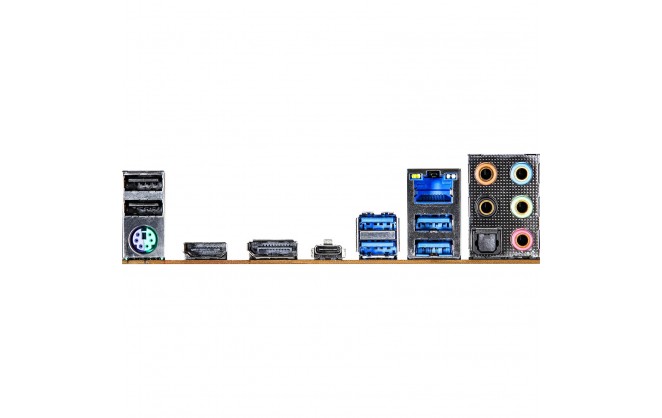

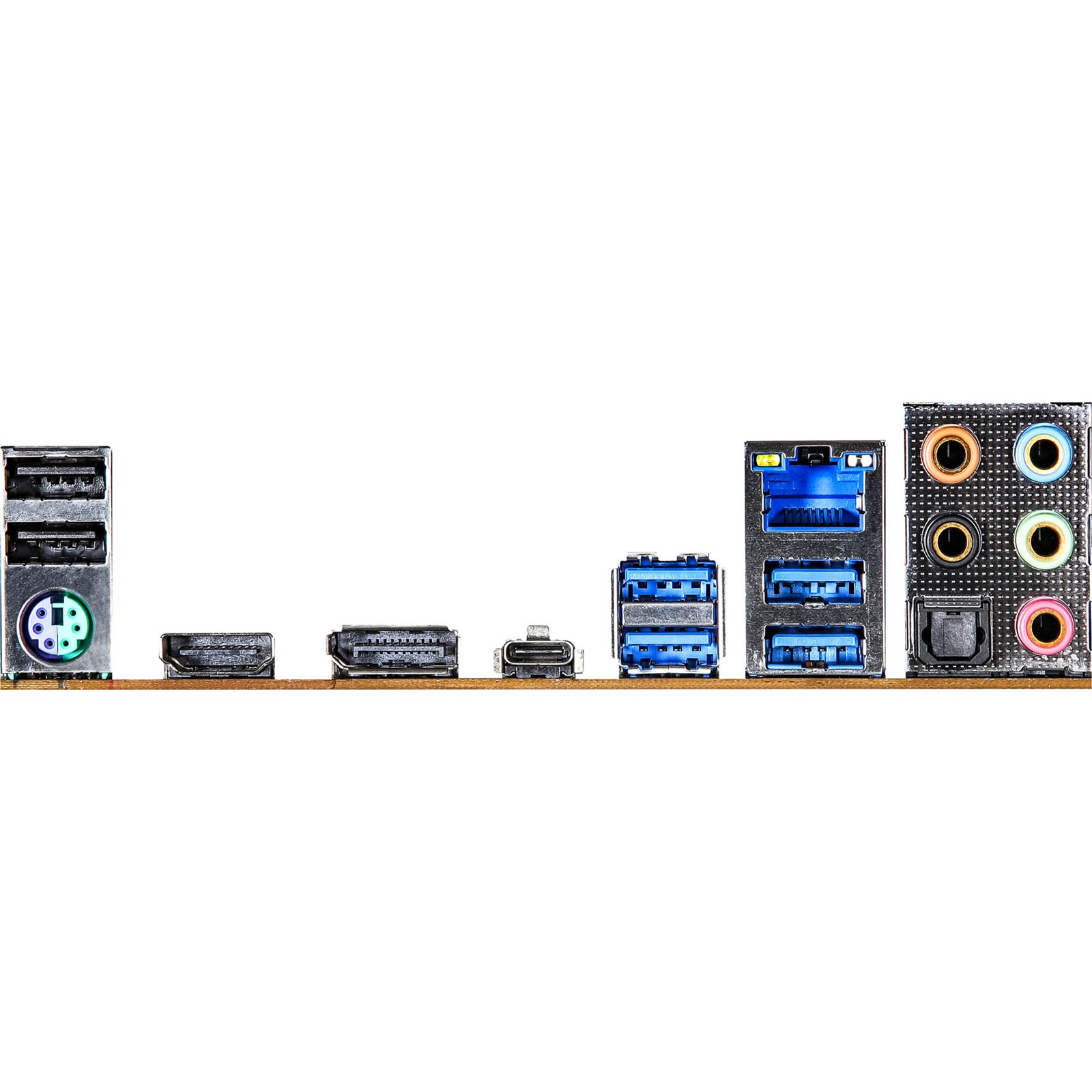

Rear Panel I/O Ports

USB Ports1 x USB 3.1 Type-C
4 x USB 3.0
2 x USB 2.0
DisplayPorts1 x DisplayPort 1.4
HDMI Port1 x HDMI 2.0
Keyboard/Mouse Combo Port1 x PS/2
RJ-45 Ports1 x RJ-45
Audio Line In Ports1 x 3.5mm Jack
Audio Line Out Ports3 x 3.5mm Jacks
Microphone In Port1 x 3.5mm Jack
S/PDIF Port1 x S/PDIF Optical Out

Internal I/O Connectors

SATA Connectors6 x SATA III
USB Connectors1 x USB 3.2 Type-C header (supports 1 port)
1 x USB 3.0 header (supports 2 ports)
1 x USB 2.0 header (supports 2 ports)
Speaker1 x Speaker header
Front Panel Connectors1 x Front Panel
1 x Front Audio
Cooling Fan Support1 x CPU fan header
1 x CPU/Water Pump fan header
5 x Chassis/Water Pump fan headers
Chassis Intrusion Connector1 x Chassis Intrusion header
TPM Header1 x SPI TPM header
Power Connector Port1 x 20+4-pin ATX
1 x 4+4-pin EPS
Other Connectors1 x M.2, M Key, Type 2260/2280 (PCIe Gen4 x4) (only supported with 11th Gen Intel Core processors)
1 x M.2, M Key, Type 2260/2280/22110 (PCI Gen3 x4)
1 x M.2, M Key, Type 2260/2280 (PCIe Gen3 x2 or SATA)

Memory

Memory Bus SpeedUp to 4,800+ (OC) MHz
Memory TypeDDR4
Maximum RAM128 GB
Memory Slot4 x DIMM

Motherboard

Chipset ManufacturerIntel
NorthbridgeB560
RAID SupportedNo
SATA SupportedYes

Expansion

Number of PCI Express Slots1 x PCI Express 4.0 x16 slot
1 x PCI Express 3.0 x16 slot (@ x2)
2 x PCI Express 3.0 x1 slots

Graphics Device

Integrated Graphics SupportedYes

Sound

Integrated SoundRealtek ALC897

Warranty

Warranty3 Years

Network

Integrated NetworkDragon RTL8125GB
Network Speeds SupportedUp to 2.5 Gbps
Wireless LANNo
BluetoothNo

System Requirements

Operating Systems SupportedMicrosoft Windows 10 64-bit

System

BIOS128Mb AMI UEFI Legal BIOS with multilingual GUI support
ACPI 6.0 Compliant wake up events
SMBIOS 2.7 Support
CPU Core/Cache, CPU GT, VCCSA, DRAM, VCCIO, VCCIO 1 2, VPPM, VCCIN AUX, VCCST Voltage Multi-adjustment
Software Included (may be trial or restricted)Yes
DriversYes

Physical

Form FactorATX Motherboard

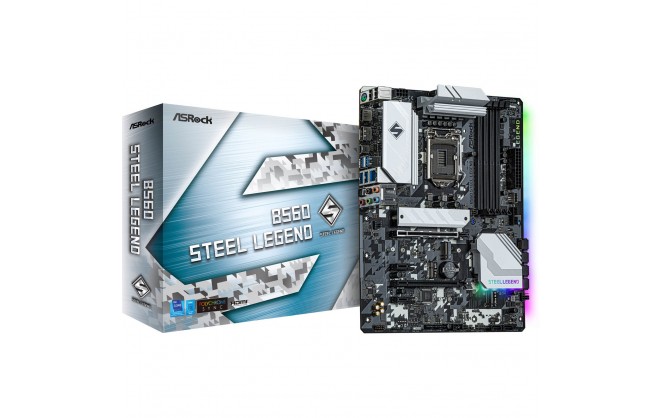

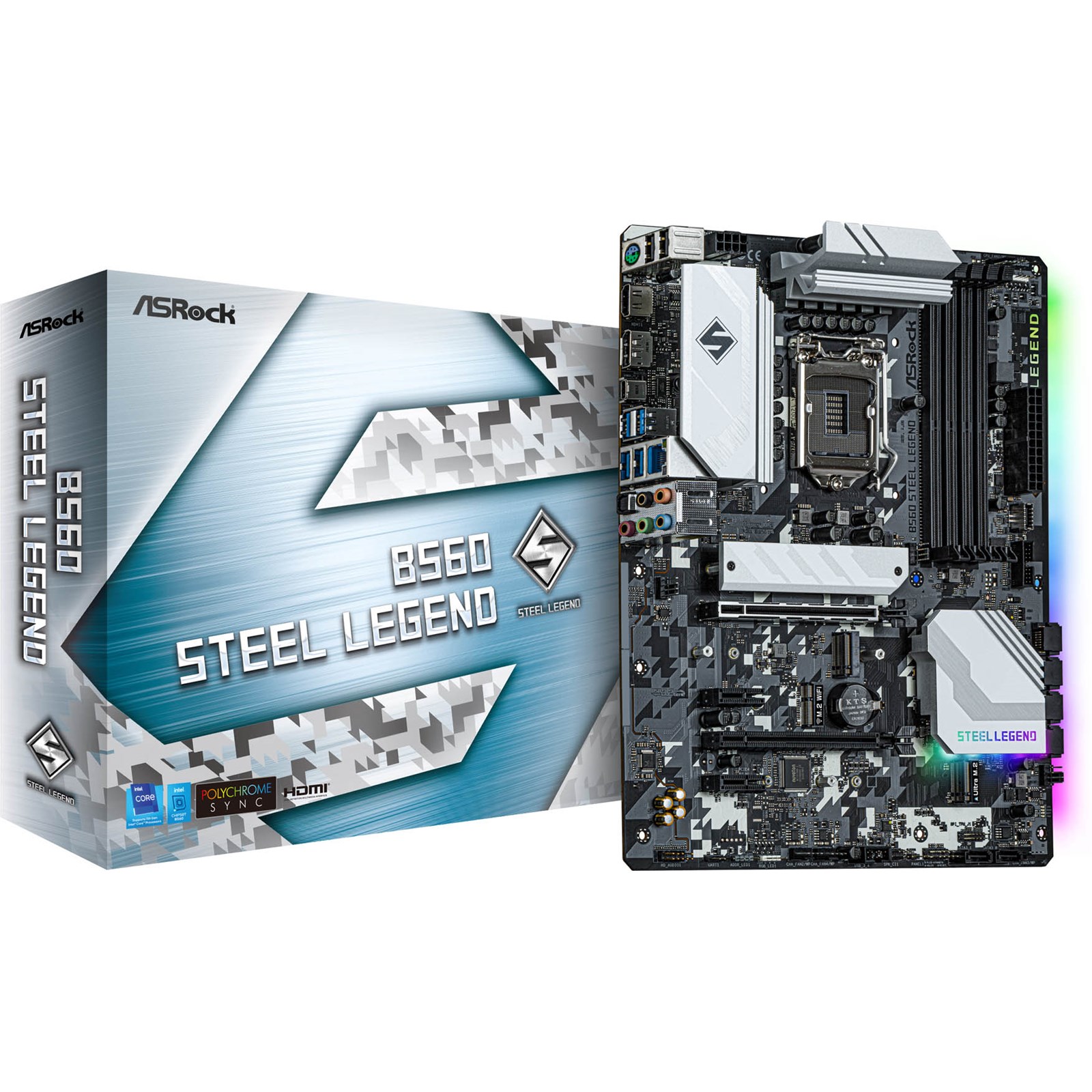

In The BoxB560 Steel Legend Motherboard
Quick Installation Guide
Support Disc
I/O Shield
2 x SATA Cables
4 x Screws for M.2 Sockets
1 x Standoff for M.2 Socket
Width305 mm
Length244 mm

Key Features

On-board RGB ControlASRock RGB LED
Memory Speed4800 MHz
RGB Header Type3-Pin ARGB
Addressable RGBYes
FirewireNo
Wireless NetworkNo
Memory ChannelDual
On-board Audio Type7.1
Number of SATA Ports6 port(s)
Number of USB Ports7 port(s)
SATA III SupportYes
USB 3.0 SupportYes
Multi GPU SupportNo
VGA ConnectionNo
DVI ConnectionNo
HDMI ConnectionYes
DisplayPort ConnectionYes
Motherboard Form FactorATX
Motherboard Power Connectors8-Pin
Motherboard ChipsetIntel B560
ThunderboltNo
Motherboard ModelASRock B560 Steel Legend
USB 3.1 SupportYes
Internal USB3.0 HeaderYes
M.2 SupportYes

Item Details

ManufacturerASRock
Manufacturer Code90-MXBFD0-A0UAYZ
Alternative Part NumberB560 STEEL LEGEND
EAN4710483933745
ConditionNew
