ASRock B560M-ITX/ac Intel Socket 1200 Motherboard

  • Part Number: 90-MXBEZ0-A0UAYZ
  • Manufacturer: Asrock
  • Quickfind Code: 135615

  • Stock: Out Stock

Contact for availability


Product Features:
  • Condition: New
  • Socket Type 1200
  • Chipset B560
  • Form Factor mITX
  • Memory Type DDR4
  • CPU Type Intel
+ Read More Information

Share:

Product Description

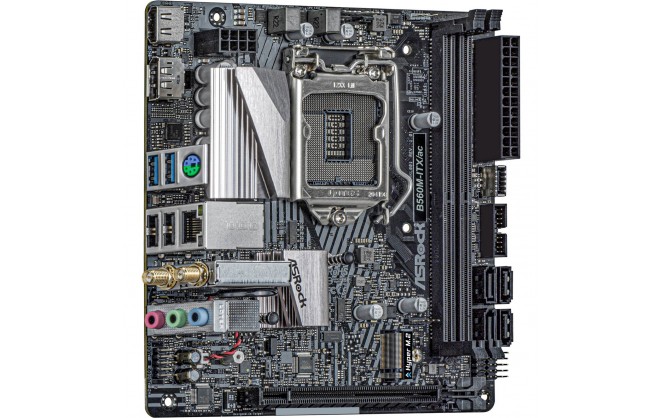

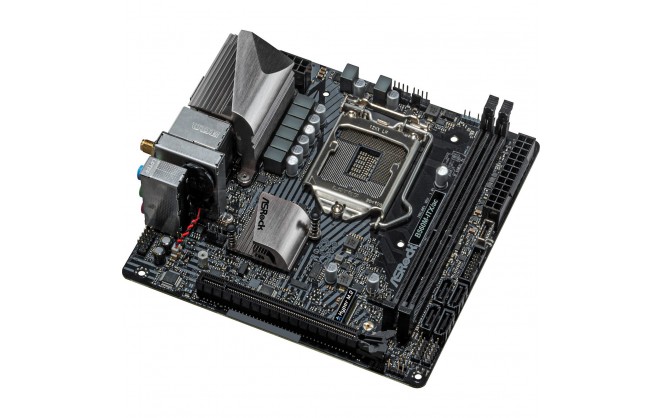

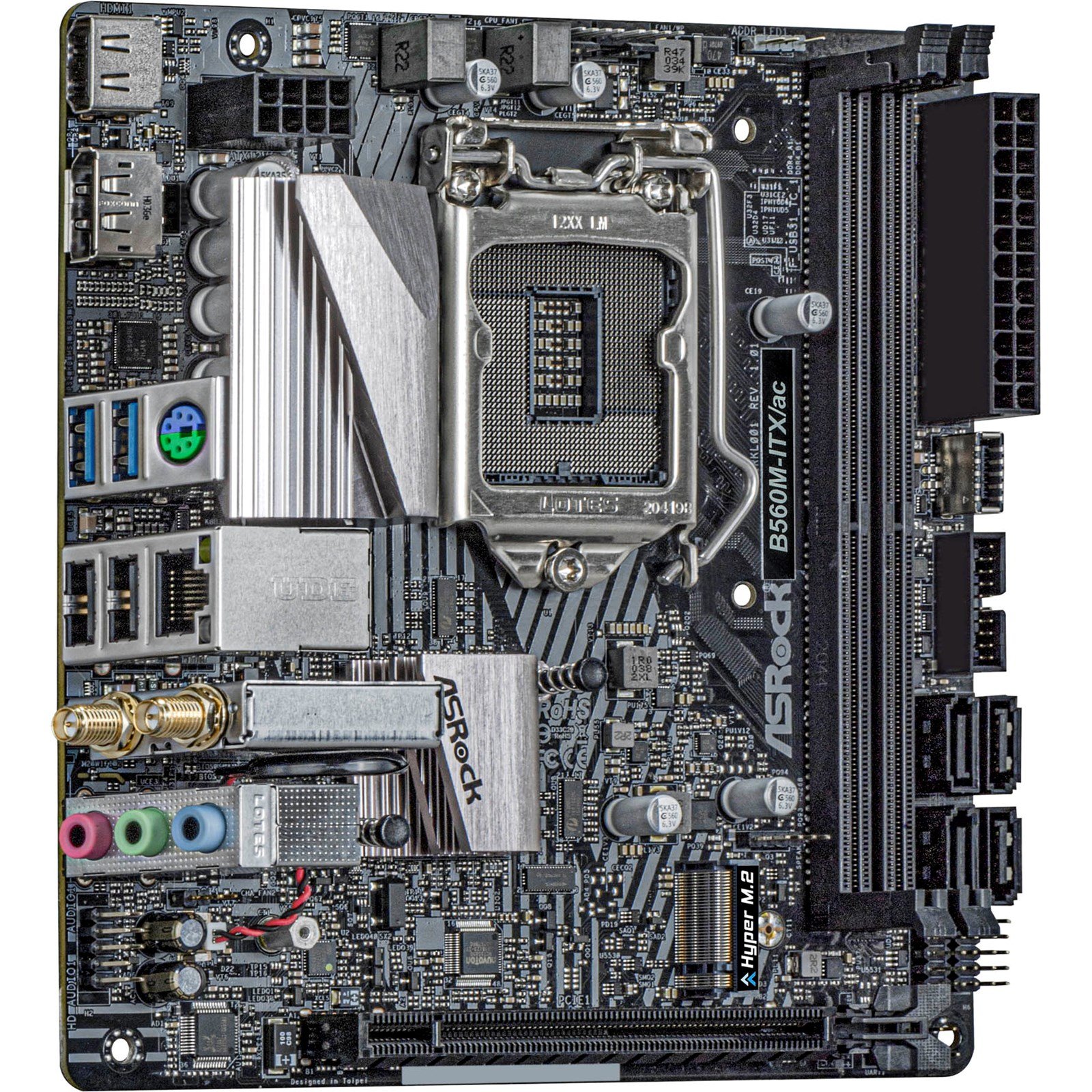

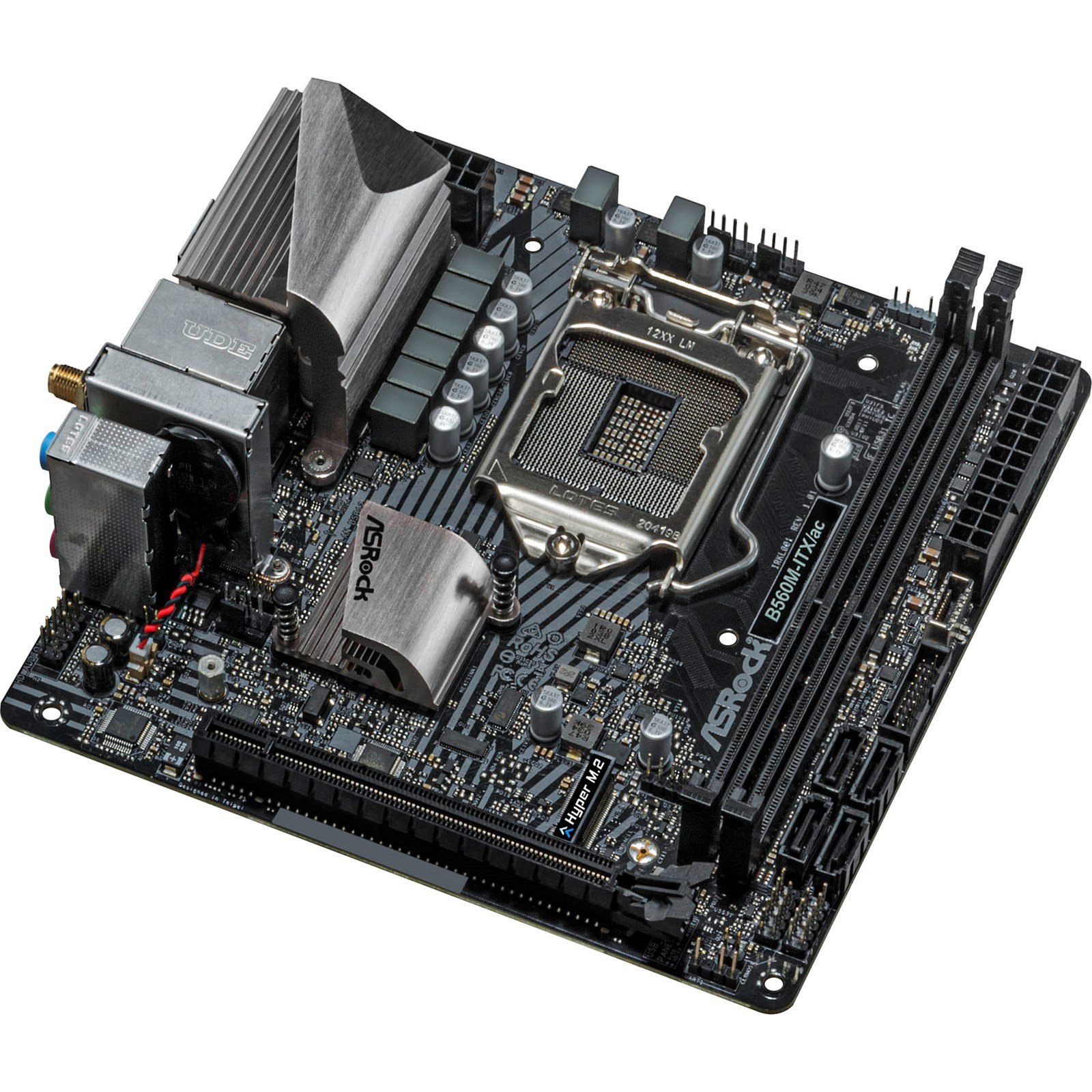

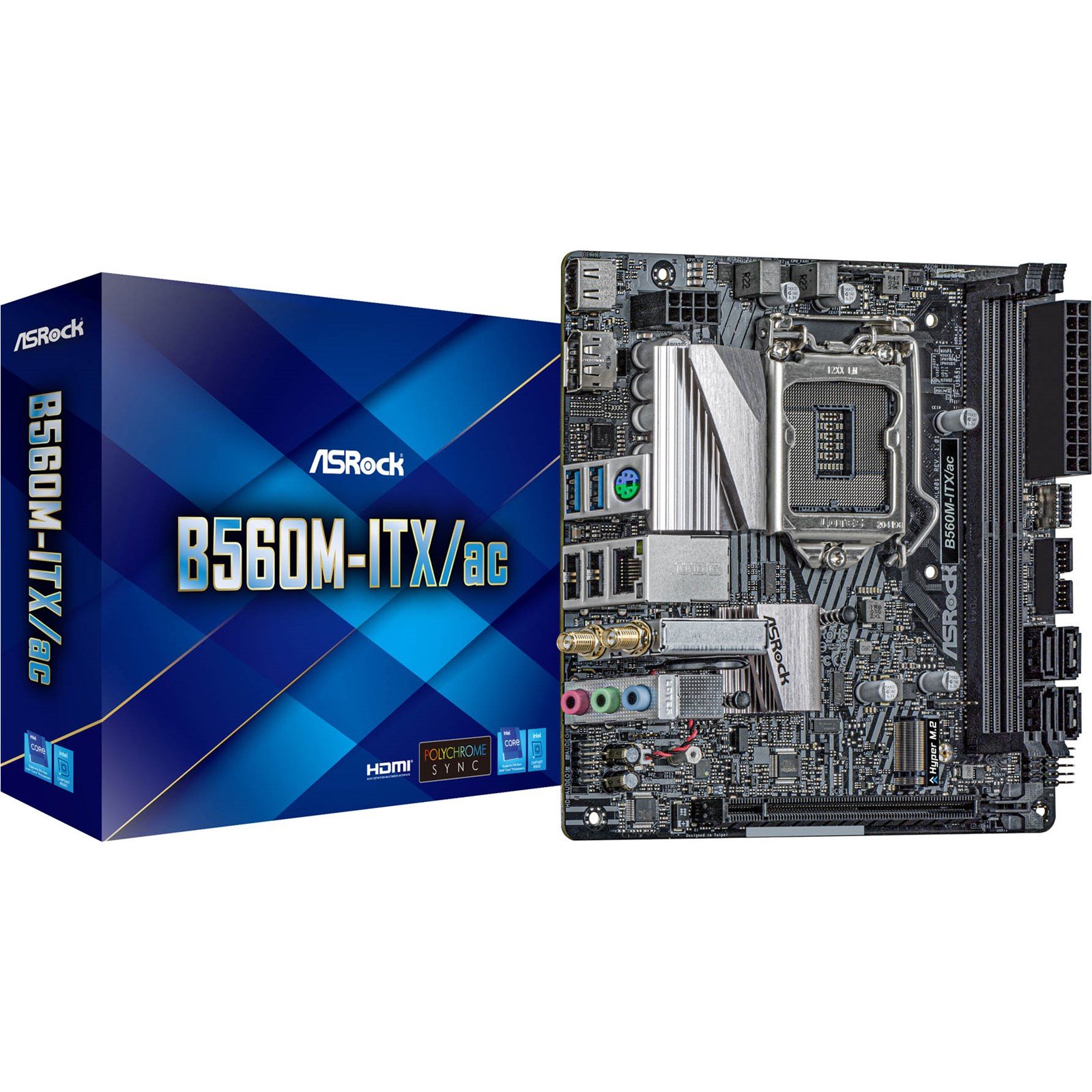

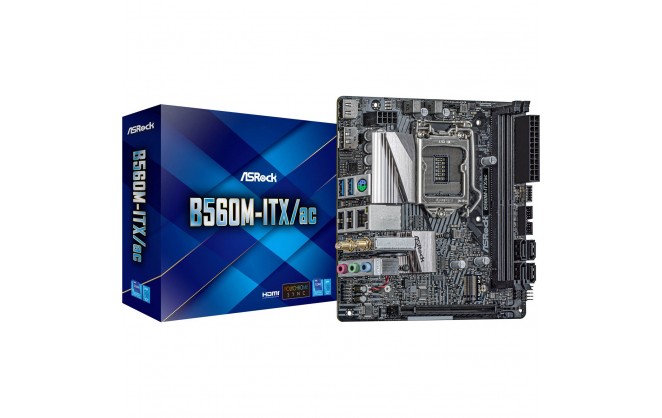

ASRock B560M-ITX/ac Intel Socket 1200 B560 Chipset Mini-ITX Motherboard

Main Features

  • Supports 10th Gen Intel Core Processors and 11th Gen Intel Core Processors
  • 6 Phase Dr.MOS Power Design
  • Supports DDR4 4600MHz (OC)
  • 1 x PCIe 4.0 x16
  • Graphics Output Options: HDMI, DisplayPort
  • 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
  • 4 SATA3, 1 x Hyper M.2 (PCIe Gen3/4 x4 & SATA3)
  • 5 x USB 3.2 Gen1 (2 x Rear, 2 x Front, 1 x Front Type-C), 4 x USB 2.0 (2 x Rear, 2 x Front)
  • Intel Gigabit LAN
  • Intel 802.11ac WiFi + BT 4.2
  • ASRock Polychrome SYNC
Technical Specification

ASRock B560M-ITX/ac Intel Socket 1200 Motherboard

CPU

CPU SocketSocket 1200
CPU BrandIntel
Installed Processors (Max)0 (1)
Supported Processor ManufacturerIntel
Supported Processors10th Gen Intel Core Processors and 11th Gen Intel Core Processors
64-bit SupportYes
SocketLGA1200

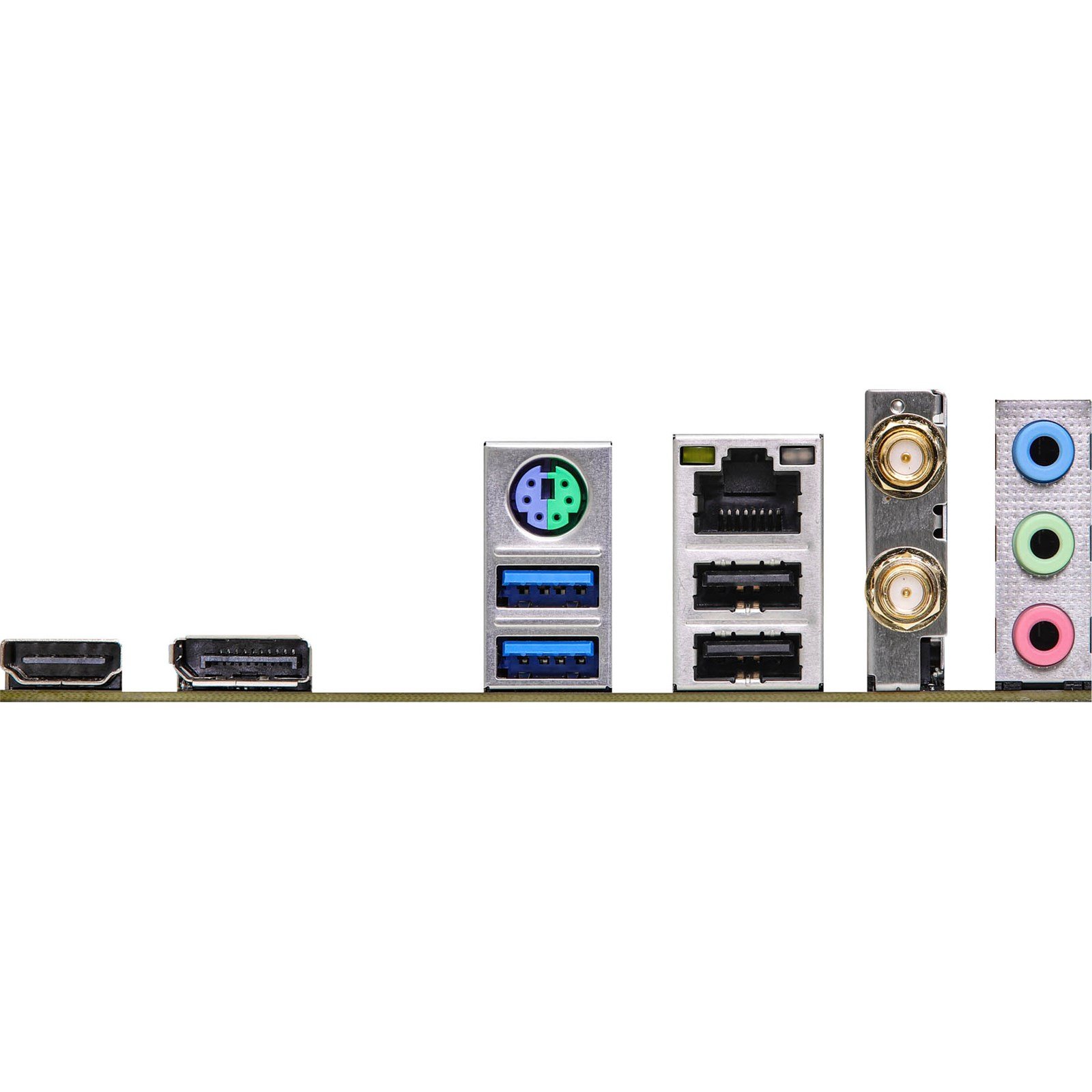

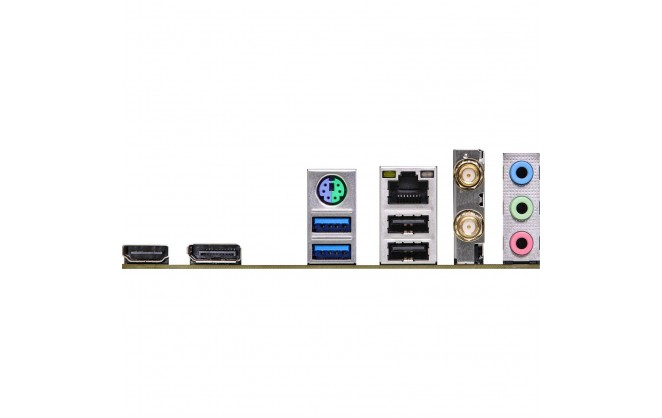

Rear Panel I/O Ports

USB Ports2 x USB 3.0
2 x USB 2.0
DisplayPorts1 x DisplayPort 1.4
HDMI Port1 x HDMI 2.0
Keyboard/Mouse Combo Port1 x PS/2
RJ-45 Ports1 x RJ-45
Audio Line In Ports1 x 3.5mm Jack
Audio Line Out Ports1 x 3.5mm Jack
Microphone In Port1 x 3.5mm Jack
Antenna Connector(s)2 x SMA Antenna

Internal I/O Connectors

SATA Connectors4 x SATA III
USB Connectors1 x USB 3.0 Type-C header (supports 1 port)
1 x USB 3.0 header (supports 2 ports)
1 x USB 2.0 header (supports 2 ports)
Front Panel Connectors1 x Front Panel
1 x Front Audio
Cooling Fan Support1 x CPU fan header
1 x Chassis/Water Pump fan header
1 x Chassis fan header
Chassis Intrusion Connector1 x Chassis Intrusion header
Power Connector Port1 x 20+4-pin ATX
1 x 4+4-pin EPS
Other Connectors1 x M.2, M Key, Type 2280 (Gen4 x4, Gen3 x4, or SATA)
1 x 3-pin ARGB LED header

Memory

Memory Bus SpeedUp to 4600+ (OC) MHz
Memory TypeDDR4
Maximum RAM64 GB
Memory Slot2 x DIMM

Motherboard

Chipset ManufacturerIntel
NorthbridgeB560
RAID SupportedNo
SATA SupportedYes

Expansion

Number of PCI Express Slots1 x PCI Express 4.0 x16

Graphics Device

Integrated Graphics SupportedYes

Sound

Integrated SoundRealtek ALC897

Warranty

Warranty3 Years

Network

Integrated NetworkIntel I219V
Network Speeds SupportedUp to 1 Gbps
Wireless LANYes (Wi-Fi 5)
Wireless Network SpeedUp to 433 Mbps
BluetoothYes
Bluetooth Version4.2

System Requirements

Operating Systems SupportedMicrosoft Windows 10 64-bit

System

BIOS128Mb AMI UEFI Legal BIOS with multilingual GUI support
ACPI 6.0 Compliant wake up events
SMBIOS 2.7 Support
CPU, CPU GT, VCCSA, DRAM, VPPM, VCCIN AUX, VCCIO, VCCST Voltage Multi-adjustment
Software Included (may be trial or restricted)Yes
DriversYes

Physical

Form FactorMini-ITX Motherboard
In The BoxB560M-ITX/ac Motherboard
Quick Installation Guide
I/O Shield
2 x SATA Cables
2 x Asrock WiFi Antennas
1 x Screw for M.2 Socket
Width170 mm
Length170 mm

Key Features

Addressable RGBYes
FirewireNo
Wireless NetworkYes
Memory ChannelDual
On-board Audio Type7.1
Number of SATA Ports4 port(s)
Number of USB Ports4 port(s)
SATA III SupportYes
USB 3.0 SupportYes
Multi GPU SupportNo
VGA ConnectionNo
DVI ConnectionNo
HDMI ConnectionYes
DisplayPort ConnectionYes
Motherboard Form FactorITX
Motherboard Power Connectors8-Pin
Motherboard ChipsetIntel B560
ThunderboltNo
Motherboard ModelASRock B560M-ITX/ac
WiFi Speed433 Mbps
USB 3.1 SupportNo
Internal USB3.0 HeaderYes
M.2 SupportYes
On-board RGB ControlASRock RGB LED
Memory Speed4600 MHz
RGB Header Type3-Pin ARGB

Item Details

ManufacturerASRock
Manufacturer Code90-MXBEZ0-A0UAYZ
Alternative Part NumberB560M-ITX/ac
EAN4710483933912
ConditionNew
