A powerful tool that combines the speed of your SSD with the capacity of your hard disk into a single, fast, easy-to-manage drive. SSDs are fast, but expensive, and offer minimal capacity. Mechanical hard drives boast large capacity for a low price, but are much slower than an SSD. AMD StoreMI technology “combines” these two types of storage into a single drive and automatically moves the data you access the most to the SSD, so you get the best of both worlds: SSD responsiveness, and mechanical hard disk capacity. You can also use up to 2GB of RAM as a last-level cache for ultra-fast data.
*AMD StoreMI software is only free with 400-series chipset based motherboards.
In addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.
*The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters.
*The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.
A new world of cinematic audio that delivers unprecedented levels of audio realism, dynamics and punch to gaming sound. Whether you’re gaming or watching a movie, Reality 3D technology lets you enable 5.1/7.1 surround sound for an additional layer of transience to your listening experience even with just a pair of headphones or stereo speakers.
The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules.
This motherboard has a pair of onboard Type-A and Type-C USB 3.1 Gen2 ports built on the rear i/o for supporting next generation USB 3.1 Gen2 devices and to deliver up to 10 Gbps data transfer rates.
Intel® LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!
It comes with 2 ounces copper inner layers, using only carefully selected copper materials for PCB layers, delivering lower temperature and higher energy efficiency for overclocking.
The advanced PCI-E Steel Slots packed with solid cover that prevent any signal interference with graphics cards. It also ensures the heavy graphics cards to be well-installed in the PCI-E slots safely.
Key Master
Consists of two major features, Sniper Key and Macro Key. It enhances your mouse and keyboard with customizable macros, sniper modes, key repeat rates and repeat delay.
F-Stream
F-Stream is Fatal1ty's multi purpose software suite with a new interface, more new features and improved utilities.
Fatal1ty Mouse Port
After plugging a USB mouse into the Fatal1ty Mouse Port and running F-Stream, gamers can choose their own preferred mouse polling rate from 125 Hz to 1000 Hz.
Premium Power Choke
Compared to traditional chokes, ASRock’s premium power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
Dual-N MOSFET
Combining two silicon dies into one MOSFET, Dual-N MOSFET provides larger die area and lower Rds(on), so the power supply for the CPU Vcore is more efficient.
Nichicon 12K Black Caps
Supreme 12K black capacitors with lifespans of at least 12,000 hours. Compared to other counterparts on high-end motherboards that merely have lifespans of around 10,000 hours, ASRock applied Nichicon 12K Black Caps that offer 20% longer lifespans and provide more stability and reliability.
Matte Black PCB
A new mysterious matte black and copper color scheme to match the prestigious components on ASRock's high-end motherboards.
High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.
2oz Copper PCB
Using only carefully selected copper materials for PCB layers, 2oz Copper PCB delivers lower temperature and higher energy efficiency for overclocking.
This is not only a standard CPU fan header, but also supports water pumps! This header provides a maximum of 2A power for supporting the most popular water pumps. User also can adjust the voltage of water pump to get higher cooling performance with lower noise.
After plugging a USB mouse into the Fatal1ty Mouse Port and running F-Stream, gamers can choose their own preferred mouse polling rate from 125 Hz to 1000 Hz.
Everything will wear off in time, but gold looks better! Gold audio jack provides stable sound transmission!
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.

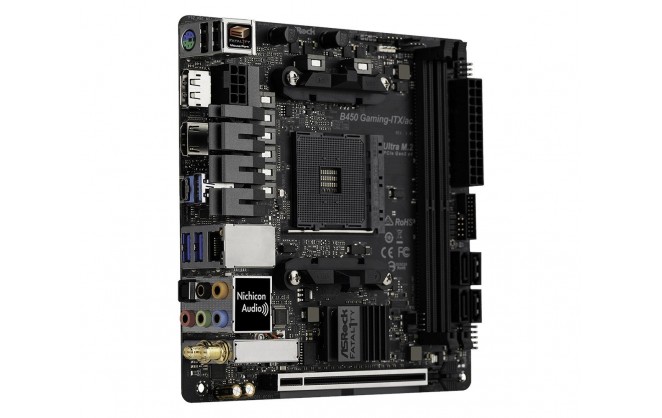

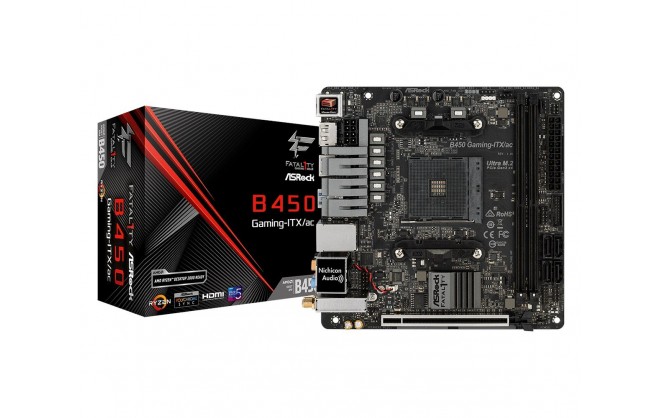

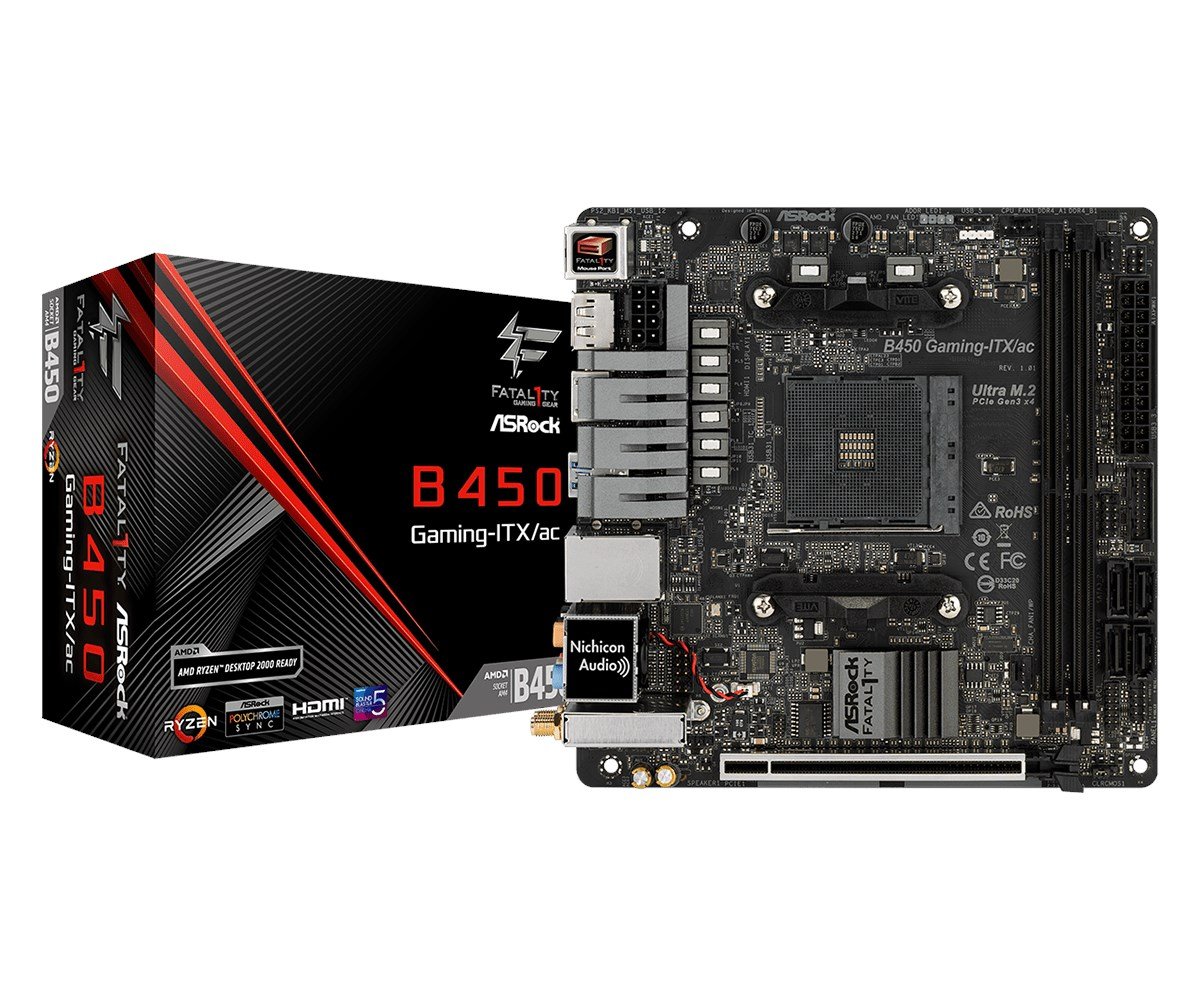

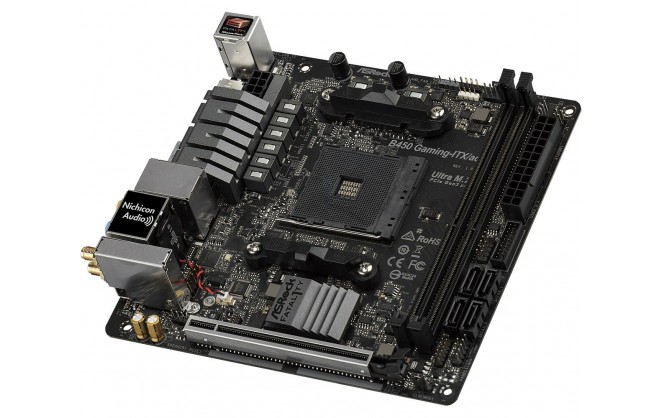

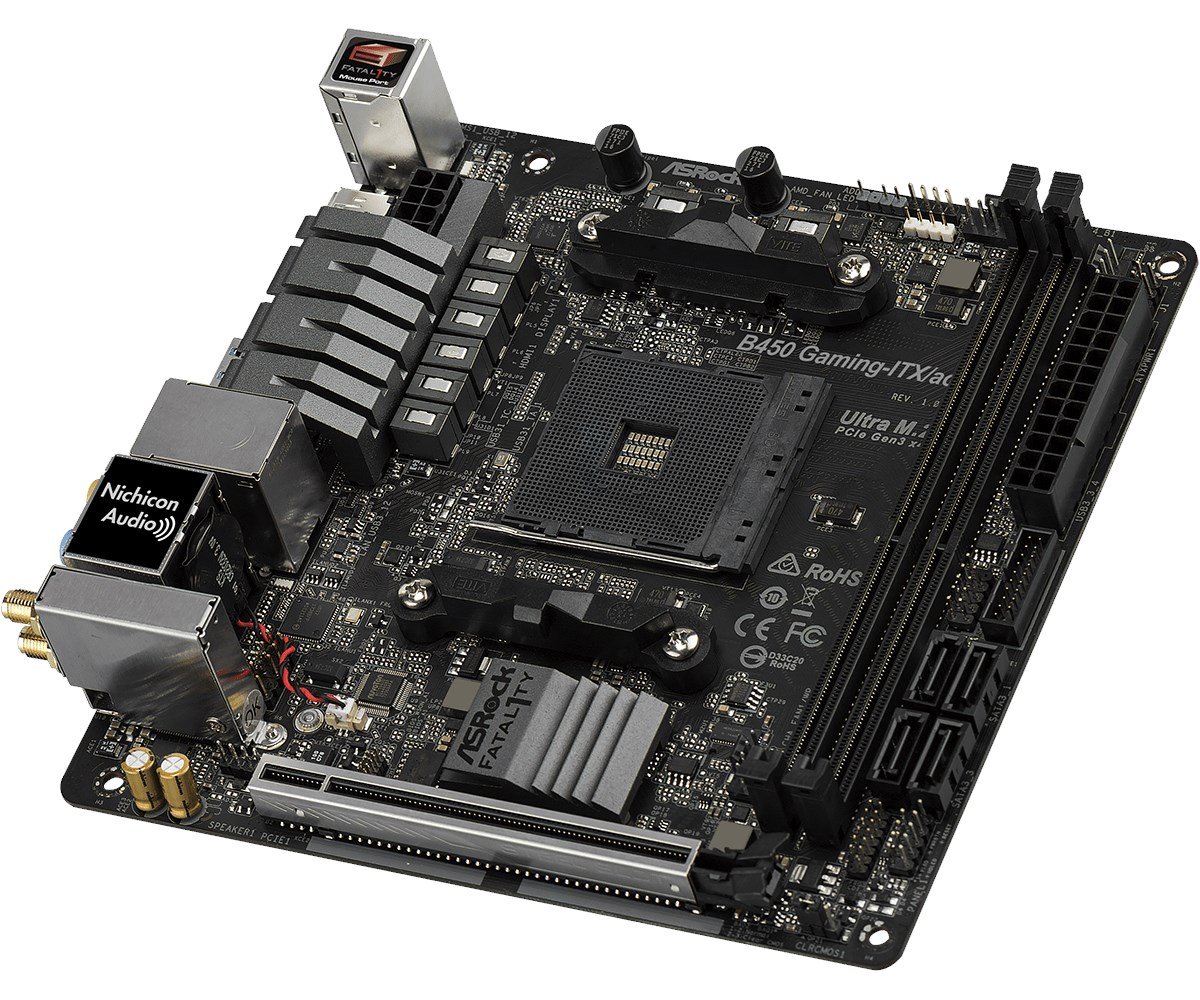

ASRock Fatal1ty B450 Gaming-ITX/ac HDMI Display Port AMD AM4 Motherboard
CPU
| CPU Socket | Socket AM4 |
| CPU Brand | AMD |
| Installed Processors (Max) | 0 (1) |
| Supported Processor Manufacturer | AMD |
| Supported Processors | Ryzen 2nd Generation Ryzen 1st Generation Ryzen with Vega graphics |
| 64-bit Support | Yes |
| Socket | AM4 |

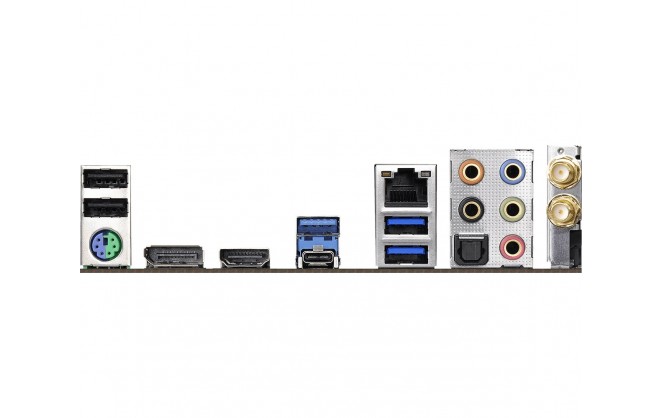

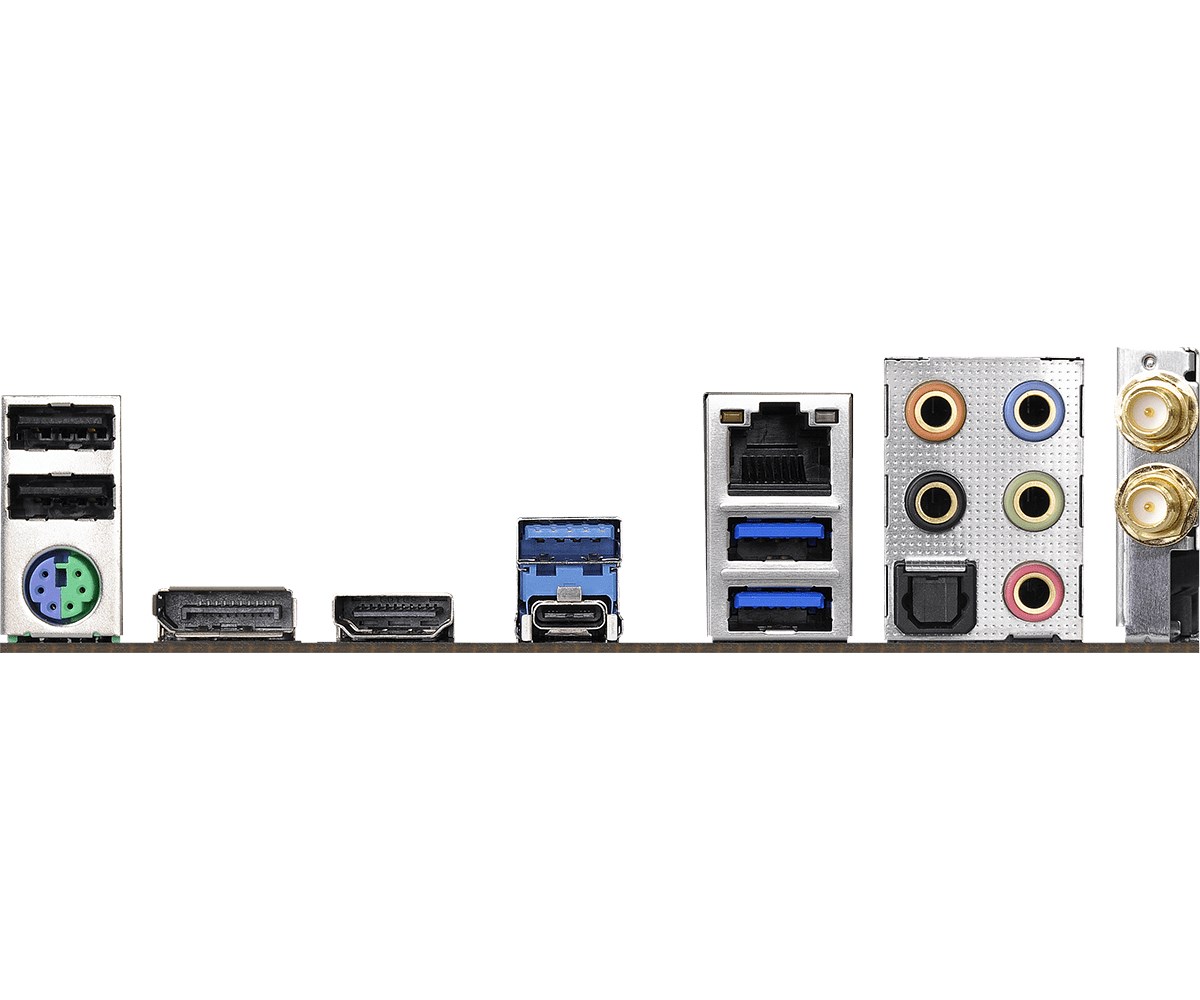

Rear Panel I/O Ports
| USB Ports | 1 x USB 3.1 Type-C 1 x USB 3.1 Type-A 2 x USB 3.0 2 x USB 2.0 |
| DisplayPorts | 1 x DisplayPort 1.2 |
| HDMI Port | 1 x HDMI |
| Antenna Connectors | 2 x Antenna |
| Keyboard/Mouse Combo Port | 1 x PS/2 |
| RJ-45 Ports | 1 x RJ-45 |
| Audio Line In Ports | 1 x 3.5mm Jack |
| Audio Line Out Ports | 4 x 3.5mm Jacks |
| Microphone In Port | 1 x 3.5mm Jack |
Internal I/O Connectors
| SATA Connectors | 4 x SATA III |
| USB Connectors | 1 x USB 3.0 1 x USB 2.0 |
| Front Panel Connectors | 1 x Front Panel 1 x Front Audio |
| Cooling Fan Support | 1 x CPU fan 2 x Chassis/Water Pump fan |
| Power Connector Port | 1 x 20+4-pin ATX 1 x 4+4-pin ATX12V |
| Other Connectors | 1 x M.2, M Key (Type 2280) 1 x AMD Fan LED header |
Memory
| Memory Bus Speed | 3466+(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 MHz |
| Memory Type | DDR4 |
| Maximum RAM | 32 GB |
| Memory Slot | 2 x DIMM |
Motherboard
| Chipset Manufacturer | AMD |
| Northbridge | B450 |
| RAID Supported | Yes |
| RAID Format | RAID 0, 1, 10 |
| SATA Supported | Yes |
Expansion
| Number of PCI Express Slots | 1 x PCI Express 3.0 x16 |
Graphics Device
| Integrated Graphics Supported | Yes |
Sound
| Integrated Sound | Realtek ALC1220 |
Network
| Integrated Network | GigaLAN Intel® I211AT |
| Network Speeds Supported | 10/100/1000 Mbps |
| Wireless LAN | Yes |
| Wireless Network Speed | Up to 433 Mbps |
| Bluetooth | Yes |
| Bluetooth Version | b4.2 |
System Requirements
| Operating Systems Supported | Microsoft Windows 10 64-bit |
System
| Software Included (may be trial or restricted) | Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar |
| Drivers | Included |
Physical
| Form Factor | Mini-ITX Motherboard |
| In The Box | Motherboard Quick Installation Guide Support CD I/O Shield 2 x SATA Cables 2 x ASRock Wi-Fi Antennas 1 x M.2 Screw |
| Width | 170 mm |
| Length | 170 mm |
Key Features
| Firewire | No |
| Wireless Network | Yes |
| Memory Channel | Dual |
| On-board Audio Type | 7.1 |
| Number of SATA Ports | 4 port(s) |
| Number of USB Ports | 6 port(s) |
| SATA III Support | Yes |
| USB 3.0 Support | Yes |
| Multi GPU Support | No |
| VGA Connection | No |
| DVI Connection | No |
| HDMI Connection | Yes |
| DisplayPort Connection | Yes |
| Motherboard Form Factor | ITX |
| Motherboard Power Connectors | 4 + 4-Pin |
| Motherboard Chipset | AMD B450 |
| Thunderbolt | No |
| WiFi Speed | 433 Mbps |
| USB 3.1 Support | Yes |
| Internal USB3.0 Header | Yes |
| M.2 Support | Yes |
| On-board RGB Control | ASRock RGB LED |
| Skip Audio Test | No |
| RGB Header Type | 3-Pin ARGB |
| Addressable RGB | Yes |
Warranty
| Warranty | 1 Year |
Item Details
| Manufacturer | ASRock |
| Manufacturer Code | 90-MXB870-A0UAYZ |
| EAN | 4717677336238 |
| Condition | New |
