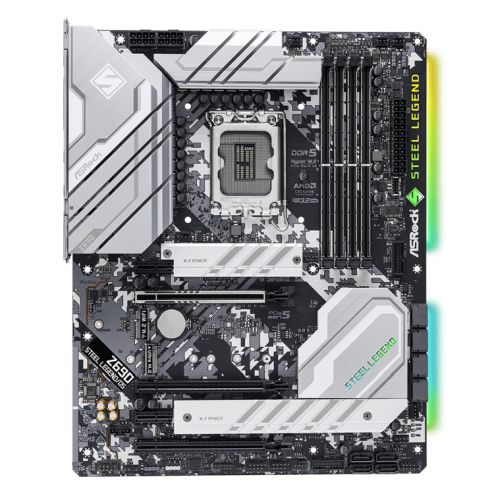

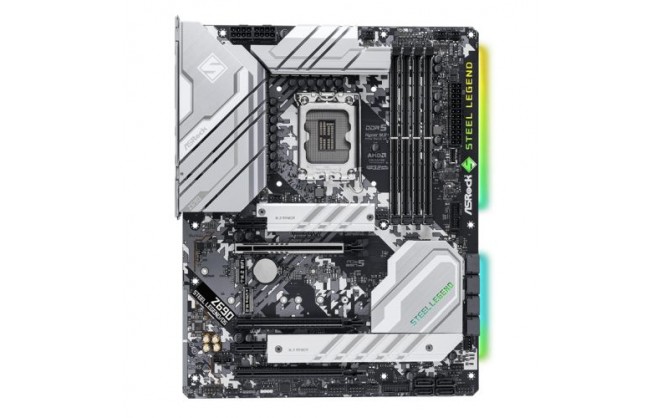

Asrock Z690 STEEL LEGEND/D5 for Intel LGA1700 CPUs

  • Part Number: Z690 STEEL LEGEND D5
  • Manufacturer: Asrock
  • Quickfind Code: 136044
  • Stock: Out Stock

Contact for availability

Product Features:
  • Condition: New
  • CPU Type Intel
  • Memory Type DDR5
  • Socket Type 1700
  • Chipset Z690
  • Form Factor ATX
+ Read More Information

Share:

Product Description
Motherboard Type
Desktop
Form Factor
ATX
Socket
Intel 1700
Chipset
Intel Z690
CPU Support
Click here for CPU support
RAM Technology
DDR5 (Dual Channel)
RAM Slots
4 x DIMM
RAM Speeds
Up to 6000+(OC)
Maximum Memory
128GB
Graphics
Integrated Graphics*

*Graphics specifications may vary between CPU types
Graphics Ports
1 x HDMI
1 x DisplayPort
Multi-GPU Support
Supports AMD CrossFire
PCI/PCI Express
1 x PCIe 5.0 x16
1 x PCIe 4.0 x16
1 x PCIe 3.0 x16
2 x PCIe 3.0 x1
Storage
8 x SATA III
1 x M.2 (2260/2280) - PCIe
1 x M.2 (2230/2242/2260/2280) - SATA & PCIe
1 x M.2 (2242/2260/2280/22110) - PCIe
RAID
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
Wireless
-
LAN
2.5GB LAN
Audio
7.1 CH HD Audio (Realtek ALC897 Audio Codec)
USB Ports Supported
1 x USB 3.2 Gen2 Type-C (at back)
1 x USB 3.2 Gen2 Type-A (at back)
8 x USB 3.2 Gen1 Type-A (4 at back, 4 at mid-board)
4 x USB 2.0 (at mid-board)
1 x Front Panel Type-C USB 3.2 Gen2x2 Header
Back Panel I/O Ports
2 x Antenna Mounting Points
1 x PS/2 Mouse/Keyboard
1 x HDMI
1 x DisplayPort 1.4
1 x Optical SPDIF Out
1 x USB 3.2 Gen2 Type-A
1 x USB 3.2 Gen2 Type-C
4 x USB 3.2 Gen1
1 x RJ-45 LAN
1 x BIOS Flashback Button
HD Audio Jacks
Internal I/O Connectors
1 x SPI TPM
1 x Power LED and Speaker
1 x RGB LED
3 x Addressable LED
1 x CPU Fan
1 x CPU/Water Pump Fan
5 x Chassis/Water Pump Fan
1 x 24 pin ATX
2 x 8 pin 12V
1 x Front Audio
1 x Thunderbolt AIC
2 x USB 2.0

2 x USB 3.2 Gen1
Accessories
Support CD
2 x SATA Data Cables
4 x Screws for M.2 Sockets
2 x Standoffs for M.2 Sockets
1 x Graphics Card Holder
Technical Specification

Asrock Z690 STEEL LEGEND/D5 for Intel LGA1700 CPUs

Motherboard Type
Desktop
Form Factor
ATX
Socket
Intel 1700
Chipset
Intel Z690
CPU Support
Click here for CPU support
RAM Technology
DDR5 (Dual Channel)
RAM Slots
4 x DIMM
RAM Speeds
Up to 6000+(OC)
Maximum Memory
128GB
Graphics
Integrated Graphics*

*Graphics specifications may vary between CPU types
Graphics Ports
1 x HDMI
1 x DisplayPort
Multi-GPU Support
Supports AMD CrossFire
PCI/PCI Express
1 x PCIe 5.0 x16
1 x PCIe 4.0 x16
1 x PCIe 3.0 x16
2 x PCIe 3.0 x1
Storage
8 x SATA III
1 x M.2 (2260/2280) - PCIe
1 x M.2 (2230/2242/2260/2280) - SATA & PCIe
1 x M.2 (2242/2260/2280/22110) - PCIe
RAID
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
Wireless
-
LAN
2.5GB LAN
Audio
7.1 CH HD Audio (Realtek ALC897 Audio Codec)
USB Ports Supported
1 x USB 3.2 Gen2 Type-C (at back)
1 x USB 3.2 Gen2 Type-A (at back)
8 x USB 3.2 Gen1 Type-A (4 at back, 4 at mid-board)
4 x USB 2.0 (at mid-board)
1 x Front Panel Type-C USB 3.2 Gen2x2 Header
Back Panel I/O Ports
2 x Antenna Mounting Points
1 x PS/2 Mouse/Keyboard
1 x HDMI
1 x DisplayPort 1.4
1 x Optical SPDIF Out
1 x USB 3.2 Gen2 Type-A
1 x USB 3.2 Gen2 Type-C
4 x USB 3.2 Gen1
1 x RJ-45 LAN
1 x BIOS Flashback Button
HD Audio Jacks
Internal I/O Connectors
1 x SPI TPM
1 x Power LED and Speaker
1 x RGB LED
3 x Addressable LED
1 x CPU Fan
1 x CPU/Water Pump Fan
5 x Chassis/Water Pump Fan
1 x 24 pin ATX
2 x 8 pin 12V
1 x Front Audio
1 x Thunderbolt AIC
2 x USB 2.0

2 x USB 3.2 Gen1
Accessories
Support CD
2 x SATA Data Cables
4 x Screws for M.2 Sockets
2 x Standoffs for M.2 Sockets
1 x Graphics Card Holder
