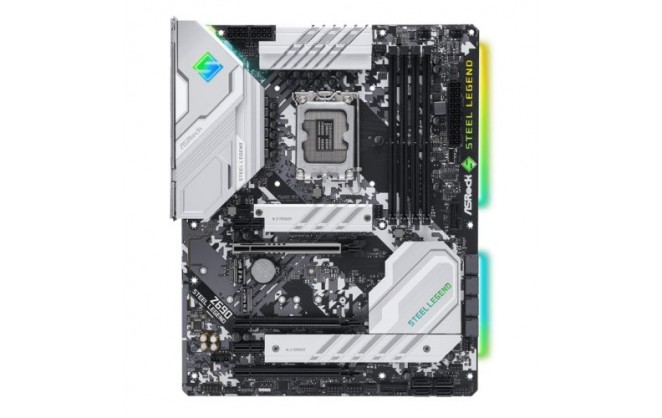

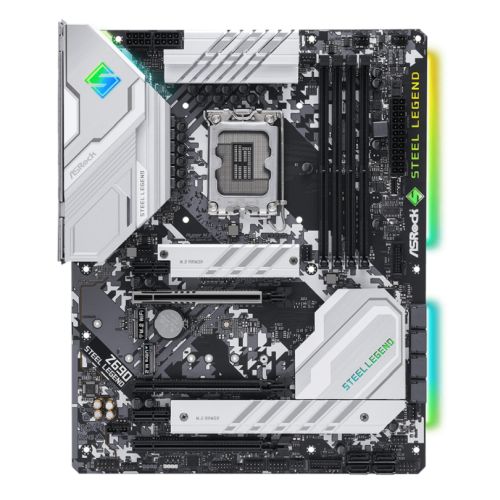

Asrock Z690 STEEL LEGEND for Intel LGA1700 CPUs

Part Number: Z690 STEEL LEGEND
Manufacturer: Asrock
Quickfind Code: 136045

Stock: Out Stock

Contact for availability

Product Features:

Condition: New
CPU Type Intel
Memory Type DDR4
Socket Type 1700
Chipset Z690
Form Factor ATX

+ Read More Information

Z690 Steel Legend

Supports 12th Gen Intel® Core™ Processors (LGA1700)
13 Phase Dr.MOS Power Design
Supports DDR4 5000MHz (OC)
1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 2 PCIe 3.0 x1
1 M.2 Key-E for WiFi
Graphics Output Options: HDMI, DisplayPort
Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
8 SATA3
2 Hyper M.2 (PCIe Gen4 x4)
1 Ultra M.2 (PCIe Gen3 x4 & SATA3)
1 USB 3.2 Gen2x2 Front Type-C
2 USB 3.2 Gen2 (Rear Type A+C)
8 USB 3.2 Gen1 (4 Rear, 4 Front)
Dragon 2.5G LAN
ASRock Graphics Card Holder.

Technical Specification

Asrock Z690 STEEL LEGEND for Intel LGA1700 CPUs

Motherboard Type

Desktop

Form Factor

ATX

Socket

Intel 1700

Chipset

Intel Z690

CPU Support

Click here for CPU support

RAM Technology

DDR4 (Dual Channel)

RAM Slots

4 x DIMM

RAM Speeds

Up to 5000+(OC)

Maximum Memory

128GB

Graphics

Integrated Graphics*

*Graphics specifications may vary between CPU types

Graphics Ports

1 x HDMI
1 x DisplayPort

Multi-GPU Support

Supports AMD CrossFire

PCI/PCI Express

1 x PCIe 5.0 x16
1 x PCIe 4.0 x16
1 x PCIe 3.0 x16
2 x PCIe 3.0 x1

Storage

8 x SATA III
1 x M.2 (2260/2280) - PCIe
1 x M.2 (2230/2242/2260/2280) - SATA & PCIe
1 x M.2 (2242/2260/2280/22110) - PCIe

RAID

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices

Wireless

LAN

2.5GB LAN

Audio

7.1 CH HD Audio (Realtek ALC897 Audio Codec)

USB Ports Supported

1 x USB 3.2 Gen2 Type-C (at back)
1 x USB 3.2 Gen2 Type-A (at back)
8 x USB 3.2 Gen1 Type-A (4 at back, 4 at mid-board)
4 x USB 2.0 (at mid-board)
1 x Front Panel Type-C USB 3.2 Gen2x2 Header

Back Panel I/O Ports

2 x Antenna
1 x PS/2 Mouse/Keyboard
1 x HDMI
1 x DisplayPort 1.4
1 x Optical SPDIF Out
1 x USB 3.2 Gen2 Type-A
1 x USB 3.2 Gen2 Type-C
4 x USB 3.2 Gen1
1 x RJ-45 LAN Port with LED
1 x BIOS Flashback Button
HD Audio Jacks

Internal I/O Connectors

1 x SPI TPM
1 x Power LED and Speaker
1 x RGB LED
3 x Addressable LED
1 x CPU Fan
1 x CPU/Water Pump Fan
5 x Chassis/Water Pump Fan
1 x 24 pin ATX
2 x 8 pin 12V
1 x Front Audio
1 x Thunderbolt AIC
2 x USB 2.0

2 x USB 3.2 Gen1
1 x Front Panel Type-C USB 3.2 Gen2x2 Header

Accessories

Quick Installation Guide, Support CD
2 x SATA Data Cables
1 x ASRock WiFi 2.4/5/6 GHz Antenna
3 x Screws for M.2 Sockets
2 x Standoffs for M.2 Sockets
1 x Graphics Card Holder
