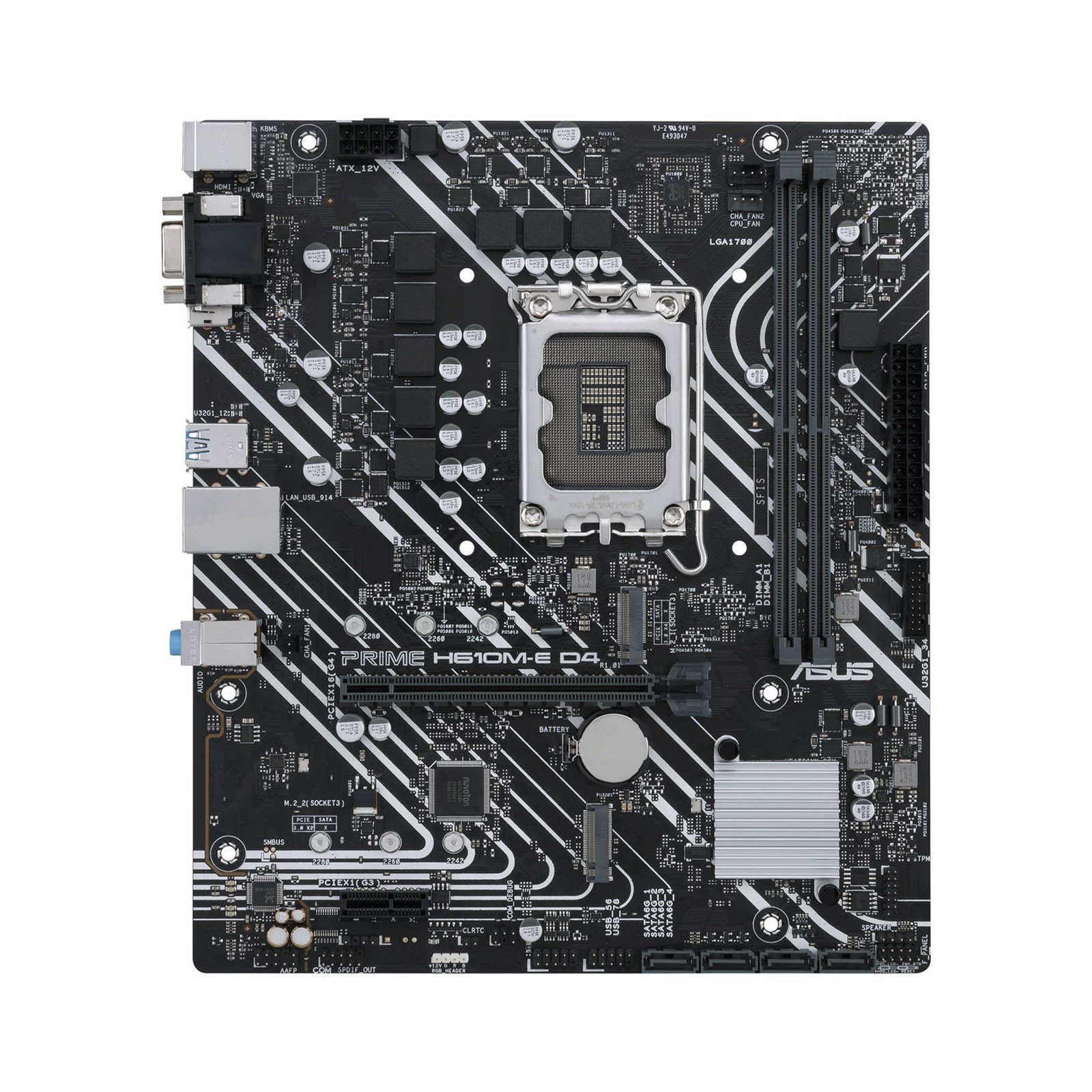

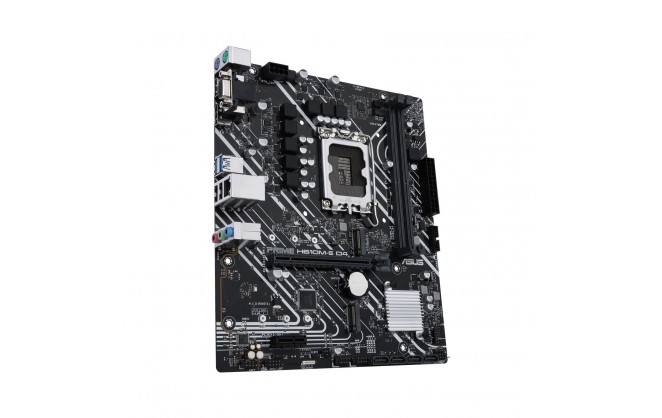

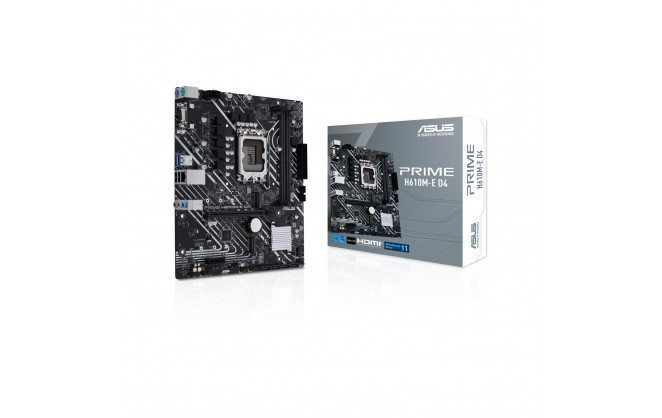

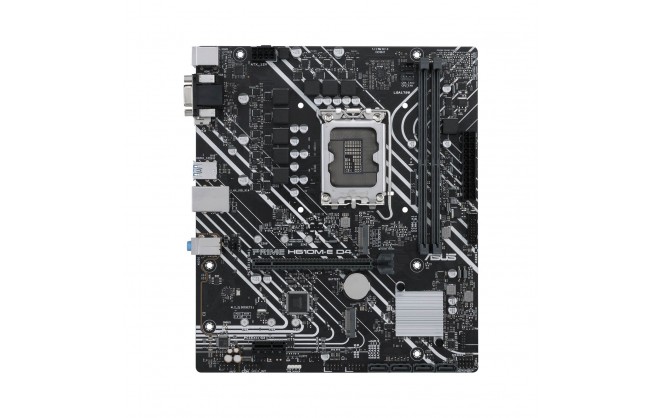

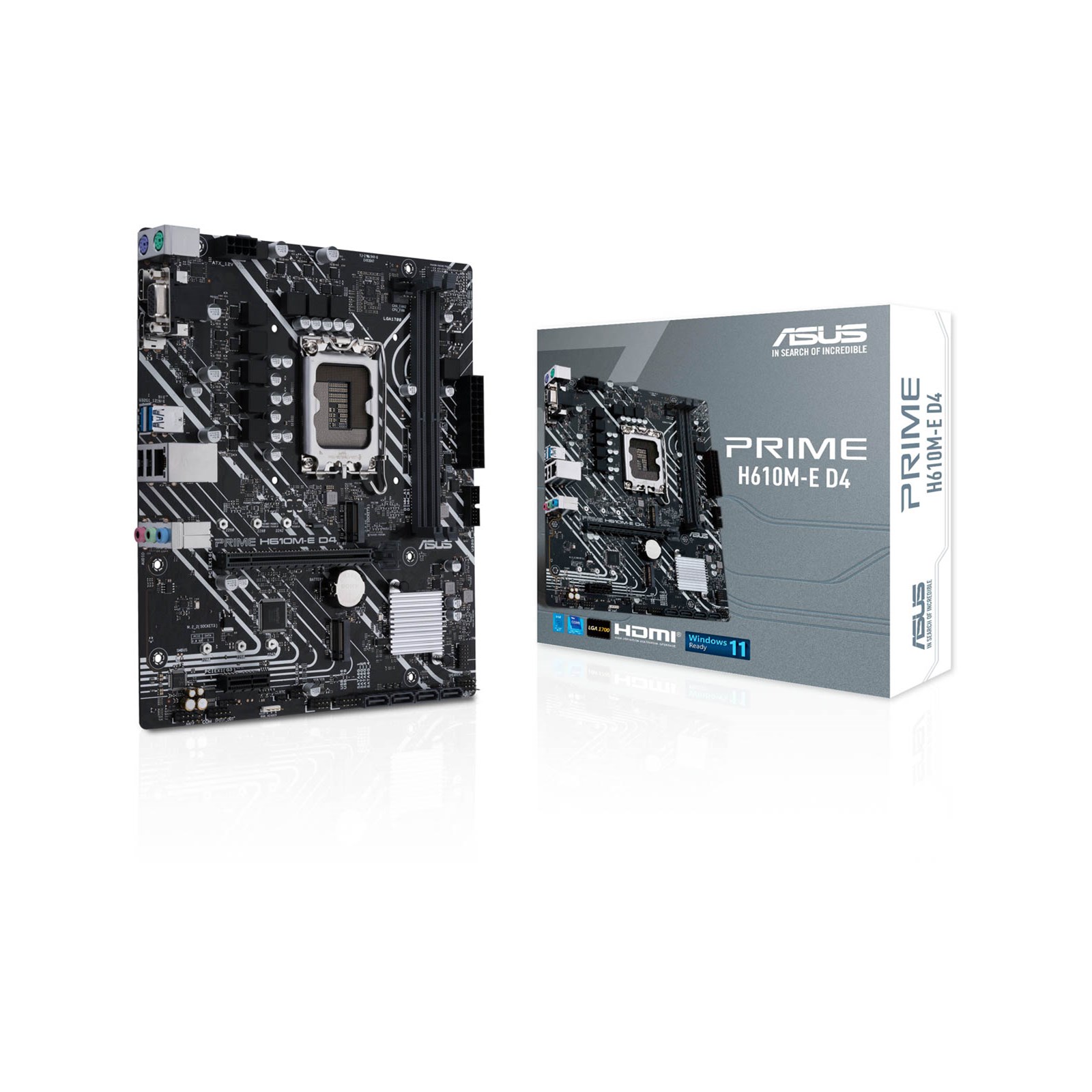

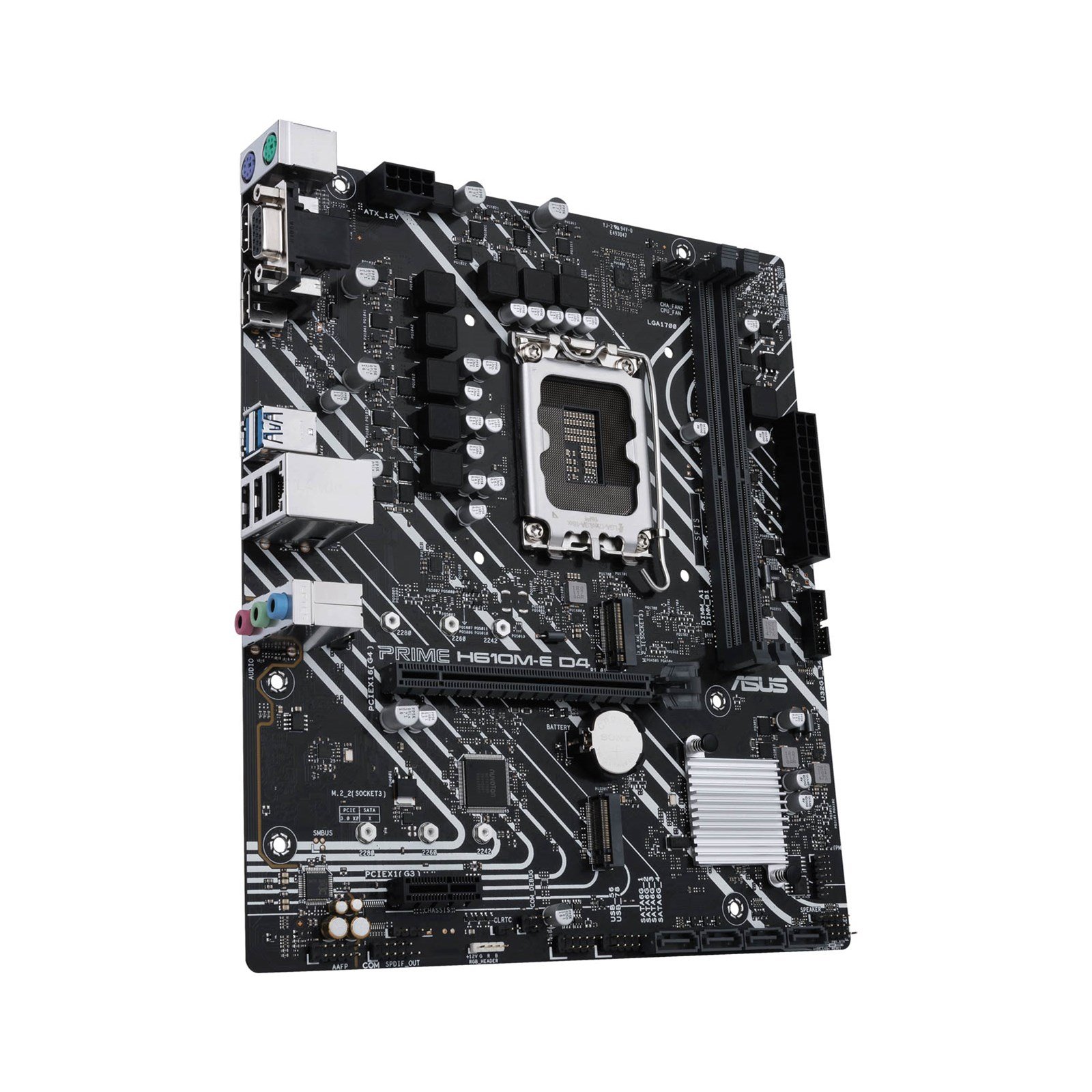

ASUS Prime H610M-E D4 Intel Motherboard

  • Part Number: 90MB19N0-M0EAY0
  • Manufacturer: ASUS
  • Quickfind Code: 135733

  • Stock: In Stock

£75.89 ex. vat
£91.07 inc. vat


Product Features:
  • Condition: New
  • Socket Type 1700
  • Chipset H610
  • Form Factor mATX
  • Memory Type DDR4
  • CPU Type Intel
+ Read More Information

Share:

Product Description

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 12th Generation Intel® processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime H610 provides users and PC DIY builders a range of performance tuning options via intuitive software and firmware features.

FLEXIBILITY

Comprehensive controls form the foundation of the ASUS Prime series. The Prime H610 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.

Intelligent Control

All-Around Energy Efficiency

The Energy Processing Unit (EPU) automatically optimizes power consumption and maximizes energy savings with Away mode — a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers.

Flexible cooling controls

Prime 600 Series motherboards offer comprehensive control over system fans, via the included Fan Xpert software. Auto-Tuning mode intelligently configures all parameters with a single click.

Precise Digital Power Control

The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.

UEFI BIOS

The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.

Advanced Tuning for Serious Tweakers

An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.

Quick and Simple Setup

EZ mode displays vital settings and stats and also offers guided wizards, drag-and-drop functionality, and one-click application of important settings — all to help you get your rig up and running in no time.

COOLING

Prime H610 series are engineered with an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.

Cooler by Design

Prime H610 series feature comprehensive cooling controls that are configurable via Fan Xpert software or via the UEFI BIOS.

Multiple Temperature Sources

Each header can dynamically reference three thermal sensors. Fan Xpert allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.

Smart Protection

A dedicated integrated circuit protects each fan header from overheating and overcurrent.

4-Pin PWM/DC Fan

Each onboard header supports auto-detection of PWM or DC fans.

PERFORMANCE

Prime H610 series are built to handle the additional cores and increased bandwidth of 12th Generation Intel® processors. ASUS H610 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.

Storage

Dual M.2 slots (up to 32 Gbps)

PRIME H610M-E D4 offers two M.2 slots that support data-transfer speeds of up to 32 Gbps via PCIe 3.0, enabling quicker boot-up and app load times with OS or application drives.

* Actual transmission speeds will be lower than the theoretical maximum speed.

Connectivity

PCIe® 4.0

Prime H610 motherboards are designed specifically for 12th Generation Intel® Core™ CPUs and offer PCIe® 4.0 connectivity for the latest GPUs. The wide bandwidth and superfast transmission speeds allow you to create feature-rich builds that can handle high loads effortlessly.

USB 3.2 Gen 1 Type-A

Numerous USB ports support high-end rigs loaded with peripherals, including rear-panel USB Type-A connectors with fast USB 3.2 Gen 1 connectivity for compatible cases.

CUSTOMIZATION

Prime H610 series add the nuanced details that improve every experience, exclusive codecs that provide pristine audio quality let you customize your system to create a uniquely personal look.

Audio

Combined onboard features deliver elevated audio

Intelligent design and premium hardware create audio quality unlike anything you've ever experienced.

Audio Shielding

Separates analog/digital signal domains, significantly reducing multi-lateral interference.

Separate Layer for Left and Right Tracks

Ensures minimal crosstalk between audio paths.

Premium Audio Capacitors

Premium parts provide an immersive sound signature, with exceptional fidelity.

Personalization

Armoury Crate

Armoury Crate is a new software utility designed to give you centralized control of supported products, from a single intuitive interface. Armoury Crate provides control of settings for ASUS products, including keyboard and mouse preferences. This software even features dedicated product registration and highlight to help you stay in touch with the ASUS community.

DIY Friendly

Q-LED Core

The Q-LED Core display produces light patterns by power LED during the Power-On Self-Test (POST) that can help users troubleshoot potential issues.

Fortified PCIe slot prevents damage

SafeSlot Core is the ASUS-exclusive PCIe slot. Featuring a fortified design that's anchored to the motherboard by a special hook, SafeSlot Core provides 1.6x stronger retention and 1.3x greater shearing resistance than standard expansion slots.

Main Features

  • Intel LGA 1700 socket: Ready for 12th Gen Intel processors
  • Comprehensive cooling: PCH heatsink and Fan Xpert 2+
  • Ultrafast connectivity: 32Gbps M.2 slot, Realtek 1 Gb Ethernet and USB 3.2 Gen 1
  • 5X Protection III: Multiple hardware safeguards for all-round protection
Technical Specification

ASUS Prime H610M-E D4 Intel Motherboard

CPU

CPU SocketSocket 1700
CPU BrandIntel
Installed Processors (Max)0 (1)
Supported Processor ManufacturerIntel
Supported Processors12th Gen Intel Core, Pentium Gold and Celeron Processors
64-bit SupportYes
SocketLGA1700

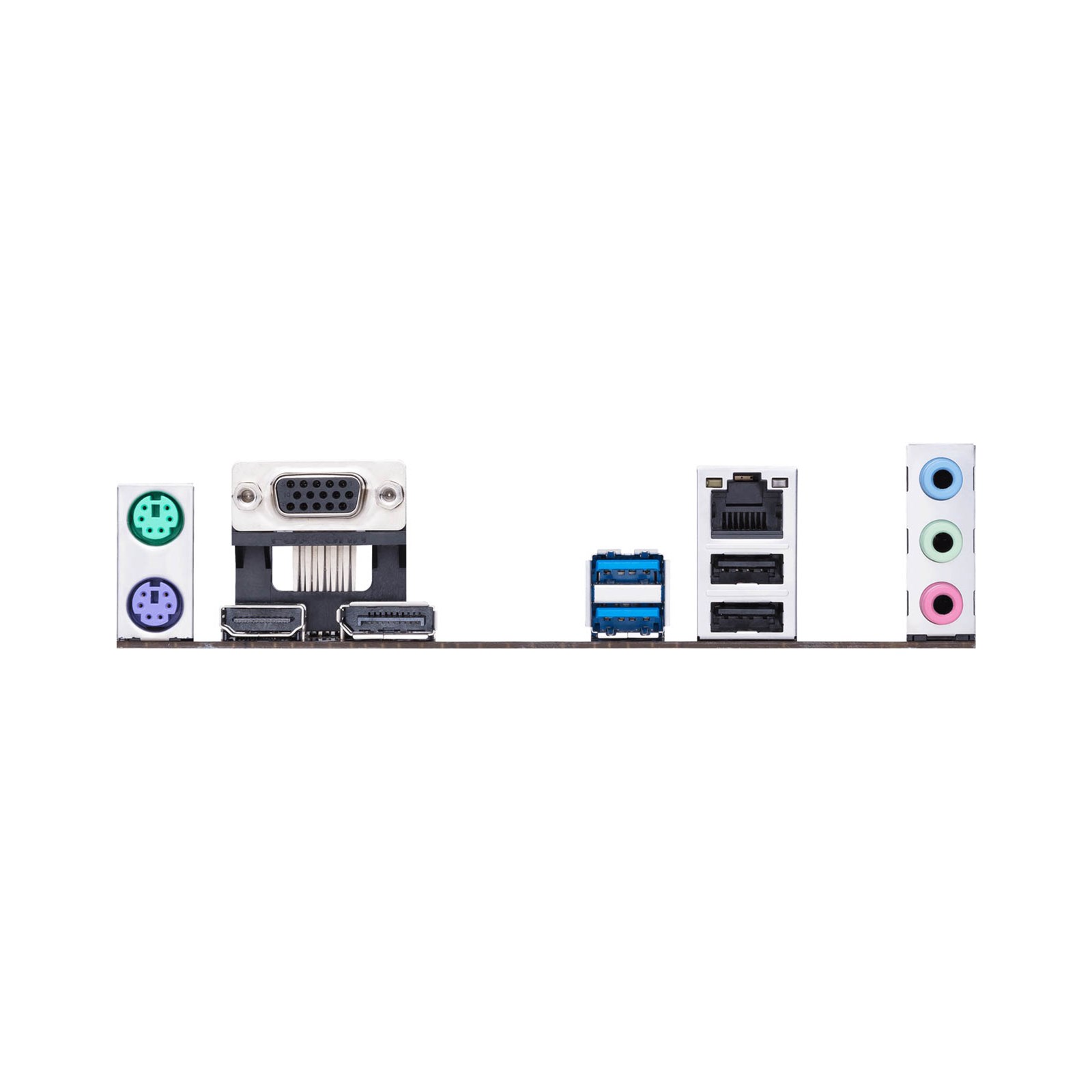

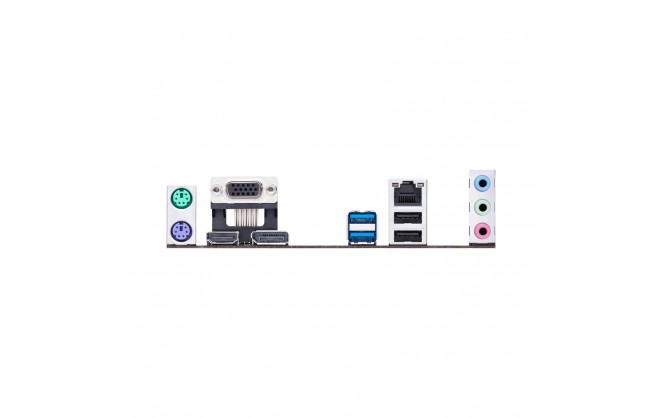

Rear Panel I/O Ports

USB Ports2 x USB 3.0
2 x USB 2.0
DisplayPorts1 x DisplayPort 1.4
HDMI Port1 x HDMI 2.1
VGA Port1 x D-Sub
Keyboard Port1 x PS/2
Mouse Port1 x PS/2
RJ-45 Ports1 x RJ-45
Audio Line In Ports1 x 3.5mm Jack
Audio Line Out Ports1 x 3.5mm Jack
Microphone In Port1 x 3.5mm Jack

Internal I/O Connectors

SATA Connectors4 x SATA III
USB Connectors1 x USB 3.0 header (supports 2 ports)
2 x USB 2.0 header (supports 4 ports)
Speaker1 x Speaker header
Front Panel Connectors1 x Front Panel
1 x Front Audio
Cooling Fan Support1 x CPU fan header
2 x Chassis fan headers
S/PDIF Connectors1 x S/PDIF Out header
Serial Connectors1 x COM header
TPM Header1 x SPI TPM header
Power Connector Port1 x 24-pin ATX
1 x 8-pin EPS
Other Connectors1 x M.2 slot, M Key, Type 2242/2260/2280 (PCIe Gen3 x4)
1 x M.2 slot, M Key, Type 2242/2260/2280 (PCIe Gen3 x2)
1 x 4-pin RGB LED header

Memory

Memory Bus SpeedUp to 3200 MHz
Memory TypeDDR4
Maximum RAM64 GB
Memory Slot2 x DIMM

Motherboard

Chipset ManufacturerIntel
NorthbridgeH610
RAID SupportedNo
SATA SupportedYes

Expansion

Number of PCI Express Slots1 x PCI Express 4.0 x16 slot
1 x PCI Express 3.0 x1 slot

Graphics Device

Integrated Graphics SupportedYes

Sound

Integrated SoundRealtek

Warranty

Warranty3 Years

Network

Integrated NetworkRealtek
Network Speeds SupportedUp to 1 Gbps
Wireless LANNo
BluetoothNo

System Requirements

Operating Systems SupportedMicrosoft Windows 11 / 10 64-bit

System

BIOS128 Mb Flash ROM, UEFI AMI BIOS
Jumpers1 x Clear CMOS
Software Included (may be trial or restricted)Yes
DriversYes

Physical

Form FactorMicroATX Motherboard
In The BoxASUS Prime H610M-E D4 Motherboard
2 x SATA 6Gb/s cables
1 x I/O Shield
1 x M.2 SSD screw package
1 x Support DVD
1 x User Guide
Width244 mm
Length211 mm

Key Features

RGB Header Type4-Pin RGB
Addressable RGBNo
FirewireNo
Wireless NetworkNo
Memory ChannelDual
On-board Audio Type7.1
Number of SATA Ports4 port(s)
Number of USB Ports4 port(s)
SATA III SupportYes
USB 3.0 SupportYes
Multi GPU SupportNo
VGA ConnectionYes
DVI ConnectionNo
HDMI ConnectionYes
DisplayPort ConnectionYes
Motherboard Form FactormATX
Motherboard Power Connectors8-Pin
Motherboard ChipsetIntel H610
ThunderboltNo
Motherboard ModelASUS Prime H610M-E D4
USB 3.1 SupportNo
Internal USB3.0 HeaderYes
M.2 SupportYes
On-board RGB ControlASUS Aura Sync
Memory Speed3200 MHz

Item Details

ManufacturerASUS
Manufacturer Code90MB19N0-M0EAY0
EAN4711081514787
ConditionNew
