Breakneck memory speed and bleeding-edge overclocking technologies are among a few of the many ways the ROG Crosshair X670E Extreme succeeds where its rivals falter.
Take Ryzen beyond the already impressive sum of its parts. Dynamic OC Switcher and Core Flex create additional frequency waypoints for single and multi-threaded workloads, allowing Ryzen to break boundaries and achieve peak performance in all games and apps.
Tuning is now faster and smarter than ever before. ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits. Predicted values can be engaged automatically or used as a launching ground for further experimentation.
Lightly-threaded tasks get fantastic uplift using AMD Precision Boost Overdrive (PBO), but all-core frequencies can be pushed higher via traditional overclocking. The Dynamic OC Switcher lets you use them both, dynamically engaging PBO or your preferred settings based on the CPU current or temperature.
Core Flex empowers you to smash limits farther than ever before by letting you control clock, power, and thermals in creative new ways. In its simplest form, you can maximize base clock during lighter loads and set breakpoints to gradually reduce CPU core frequency as temperature or current increases. But the system is extremely adaptable, supporting multiple user-controlled functions that can manipulate power, current, and temperature limits independently so that you can bend CPU performance to your will.
For next-level frequency flexibility, the ROG Crosshair X670E Extreme features a built-in clock generator that isolates CPU base clock from memory, PCIe, and the Infinity Fabric speed. Drive CPU performance to its absolute brink while maintaining the stability of related clock domains.
The ROG Overclocker’s Tooklit is a powerful set of hardware-level controls to enhance your overclocking experience. Some are quick and easy time savers, while others offer masterful functionality to help you smash benchmarks and break records.
For truly advanced performance optimization, the ROG Crosshair X670E Extreme includes the ROG True Voltician, a miniature oscilloscope that connects to an onboard USB header and displays waveforms for the CPU Vcore, VCCIN, and System Agent rails. It can also be used to monitor a video card or power supply, and users can even run the True Voltician software on one PC while they get readings from another.
Take Ryzen beyond the already impressive sum of its parts. Dynamic OC Switcher and Core Flex create additional frequency waypoints for single and multi-threaded workloads, allowing Ryzen to break boundaries and achieve peak performance in all games and apps.
Today's CPU architectures place incredible demands on motherboard power design by transitioning from deep power-saving modes, going from lower-power mode to full load in an instant. The latest ROG VRM architecture rises to the challenge by utilizing teamed power stages to rapidly swing current, while maintaining exemplary thermal performance.
Comprehensive memory tuning options are the cornerstone of ROG motherboards. With the ROG Crosshair X670E Extreme, you can extract all of the potential out of your DDR5 modules, regardless of if they're from an extreme-speed kit or an entry-level set that would otherwise be locked.
For those who want to fly past stock DDR5 speeds, the ROG Crosshair X670E Extreme is primed and ready for enthusiast-grade kits courtesy of vast AMD EXtended Profiles for Overclocking (EXPO) support. Seasoned veterans can further tweak performance via the extensive array of settings in the UEFI.
ASUS Enhanced Memory Profile (AEMP) is an exclusive firmware feature for PMIC-restricted memory modules. AEMP automatically detects the memory chips on your kit and then presents optimized frequency, timing and voltage profiles that you can effortlessly apply to unleash performance.
Massive heatsinks across its entire frame and around every M.2 drive ensure unassailable performance by keeping your system cool, quiet, and composed.
A VRM heatsink on the MOSFETs and chokes is connected to the aluminum I/O cover via an embedded heatpipe to increase mass and surface area for dissipation.
A dedicated heatsink draws heat away from both chipsets to maintain optimum operating temperature.
A high-quality thermal pad improves overall heat transfer from the system by bridging the heat generated by the power stages to the heatsink. For future maintenance, a replacement thermal pad can also be found in the package.
A plate of electro-galvanized steel strengthens the spine of the ROG Crosshair X670E Extreme to prevent bending
A large aluminum heatsink gives extensive surface area to cool both of the onboard M.2 drives, and each has a dedicated backplate for additional heat dissipation.
An extensive array of headers line the ROG Crosshair X670E Extreme for precise cooling control and monitoring.
Each header can be set to monitor and react to three user-configurable thermal sensors for workload-based cooling, and all settings can be easily managed by Fan Xpert 4 or UEFI.
Dual water-temperature headers and a flow-rate header feed information straight into Armoury Crate, allowing you to track coolant temperatures and the flow rate of the entire loop.
A dedicated header can supply over 3 amps to a high-performance PWM or DC water pumps.
The ROG Crosshair X670E Extreme bears the same mounting hole alignment as AM4 platforms, so it is backward compatible with many existing coolers, including all AIO offerings from ASUS and ROG.
The ROG Fan Controller offers an additional six headers that can be controlled via FanXpert 4. The card features two temperature-sensor headers, along with two thermistors that can be attached to various components. There are also six ARGB headers to illuminate ARGB fans.
With PCIe 5.0 pumping through its lanes, the ROG Crosshair X670E Extreme all but eliminates loading and transfer times for a legion of connected devices.
Fully embracing the new standard, the ROG Crosshair X670E Extreme offers abundant Gen 5 support to give unfettered bandwidth to the fastest SSDs and graphics cards available.
The ROG Crosshair X670E Extreme features two onboard M.2 slots, all of which are PCIe 5.0-ready to offer blistering 16 GB/s speeds.
The ROG GEN-Z.2 is the natural successor to the ROG DIMM.2 module. It inherits all the perks that made the original easy to install and use, and then raises the bar by adopting PCIE 5.0 on one slot and adding a suitagbly upgraded thermal solution to deal with the heat of next-gen drives.
For even more storage, the bundled PCIe 5.0 M.2 Card features an additional Gen 5-ready slot, and boasts ample surface area for dissipating the heat of a full-size 22110 drive.
Both of the x16 expansion slots ahave the PCIe 5.0 treatment to offer incredible speeds up to 64 GB/s for compatible devices. To bear the brunt of massive graphics cards, they are also protected with SafeSlot retention brackets, and the top slot can be released easily thanks to the Q-Release button.
USB 3.2 Gen 2x2 adds an additional lane that can boost Type-C data transfers with speeds of up to 20 Gbps. The port also features Quick Charge 4+ technology that can quickly charge devices up to 60W*.
* Requires a PCIe power supply cable to be plugged into the nearby 6-pin connector.
Each USB4® port delivers up to 40 Gbps of bidirectional bandwidth for the latest super-speed devices and drives. External display support reaches up to 8K output if one of the ports is in use, or both can be employed for dual 4K displays.
Onboard WiFi 6E technology takes advantage of newly available spectrum in the 6 GHz band to provide up to seven 160 MHz channels for ultrafast throughput and better performance in dense wireless environments.
*WiFi 6E availability and features are dependent on regulatory limitations and co-existence with 5 GHz WiFi. To learn more about the ASUS WiFi 6 ecosystem, please visit: asus.com/content/WiFi6/#WIFI-6E.
Designed to meet the demanding requirements of power users and content creators, onboard Marvell® AQtion 10 Gbps Ethernet provides a new level of home networking. With up to 10 times the bandwidth of standard gigabit Ethernet, you'll enjoy streaming uncompressed 4K UHD videos and system backups and file transfers that are faster than ever before.
Onboard Intel® 2.5 Gbps Ethernet gives your wired connection a boost, with speeds that are 2.5 times faster than standard Ethernet connections for speedy file transfers, lag-free gaming, and high-resolution video streaming.
ROG SupremeFX audio technology delivers an exceptional 113 dB signal-to-noise ratio on the line-in connection to provide exceptional recording quality. There’s also a low-dropout regulator for cleaner power delivery to the SupremeFX ALC4082 codec, and an integrated ESS® ES9218 quad DAC capable of reaching -115dB THD+N for superior front-panel output. The combined solution allows for end-to-end 32-bit 384 kHz resolution playback that conveys all the subtlety and nuances of each audio track.
Blocks electromagnetic interference from the motherboard or add-ons to provide cleaner audio.
The ESS® ES9218 integrated quad DAC amplifier is capable of providing -114 dB total harmonic distortion (THD+N) for standard audio devices, and can ramp up to 2Vrms on supported audiophile hardware. In addition, the 121 dB dynamic range (DNR) provides an extremely low noise-floor, further accentuating dynamics and punch.
Instead of the conventional high definition audio (HDA) interface, the ALC4082 codec uses a USB interface to deliver studio-level sound reaching up to 32-bit 384 kHz audio resolution.
Unique design allows the codec's impedance-sensing function to be ported with either the front or rear headphone outputs.
Fine-quality components that produce a warmer, natural sound with exceptional clarity and fidelity.
A bevy of innovative tools are at your fingertips to oversee and dominate every aspect of your system.
Balance the thermals and acoustics of any build with a single click. A proprietary ASUS algorithm slashes unnecessary noise while running a quick stress test, and then monitors CPU temperatures to dynamically adjust fans to optimal speeds.
This utility leverages a massive deep-learning database to reduce over 5 million types of background noise from incoming or outgoing audio, helping ensure crystal-clear communication in games or calls.
GameFirst VI optimizes networking performance by allocating bandwidth in real time based on application usage scenarios and corresponding learning algorithms.
Conventional motherboards use single-ended sensing tapped from a location that isn't ideal, leading to a large disparity between the actual voltage fed to the CPU and the value reported to software. The ROG Crosshair X670E Extreme features a differential-sensing circuit and delicate IC that simplify overclocking and tuning by allowing you to track voltages more accurately.
Complementing the Extreme’s might are customizable displays that let you inspire awe directly from the heart of your rig.
This innovative display features an RGB grid of mini LEDs that can be programmed with custom lighting designs and unique animations. For added immersion, sound-triggered effects can be selected to add visualizations to live audio or even pulse to the rhythm of a person’s voice.
Up your game with complementary Aura Sync enhanced aesthetics, featuring preset lighting effects that can be easily synchronized across compatible ROG graphics cards, monitors, keyboards, and mice to give your setup a unified look.
The ROG Crosshair X670E Extreme includes LiveDash, a built-in 2-inch OLED panel that adds life and flavor to the center of your rig. During startup, the display shows traditional POST codes to help with monitoring and troubleshooting, and while the system is running it can be programmed to show system metrics, such as CPU frequency and temperature. But if you want to add a personal touch, the default GIF can be replaced with a custom image or animation.
Sonic Studio supports HRTF-based (head-related transfer function*) virtual surround for headsets, casting an immersive aural landscape that draws you deeper into the action. The intuitive Sonic Studio interface also offers a range of EQ options and one-click presets, allowing you to tailor acoustics to suit personal preferences or the characteristics of your headset.
Through the pre-loaded DTS® Sound Unbound™ app, the ROG Crosshair X670E Extreme envelops you in rich audio, conjuring whole new levels of immersion for extraordinary gaming and entertainment experiences. By exploiting Microsoft spatial sound technology, DTS Sound Unbound creates an audial 3D space — putting you right in the middle of the soundscape, where you can sense the location and direction of every gunshot, footstep, or other sound in your virtual environment.
* DTS Sound Unbound requires in-game support. Check with developers for supported titles.
Armoury Crate is a software utility designed to give you centralized control of supported gaming products, making it easy to tune the look and feel of your system. From a single intuitive interface, Armoury Crate helps you customize RGB lighting and effects for compatible devices and synchronize them with Aura Sync to create a unified lighting scheme across your system. In addition, Armoury Crate’s Fan Xpert4 tool provides comprehensive control over fans, water pumps and all-in-one (AIO) coolers.
You can also use Armoury Crate to download drivers, software and user manuals, register products, and tap into a special news feed that connects you to the global ASUS gaming community.
The ROG Crosshair X670E Extreme includes a one-year AIDA64 Extreme subscription, a tool that provides detailed information about hardware and software, as well as benchmarks to measure the performance of the entire system or individual components. AIDA64 Extreme includes a monitoring and diagnostics feature to detect and prevent hardware issues. All vital system sensors can be tracked in real time, allowing voltage readings, fan speeds, and temperature information to be displayed on the desktop or sent to dedicated displays or to the LCD panels of ROG AIO liquid coolers*.
*Support available for ROG Ryujin II and later models.
Featuring a magnetic base and adjustable slider and hinge, the ROG Graphics Card Holder banishes sag and provides support where it’s needed most.

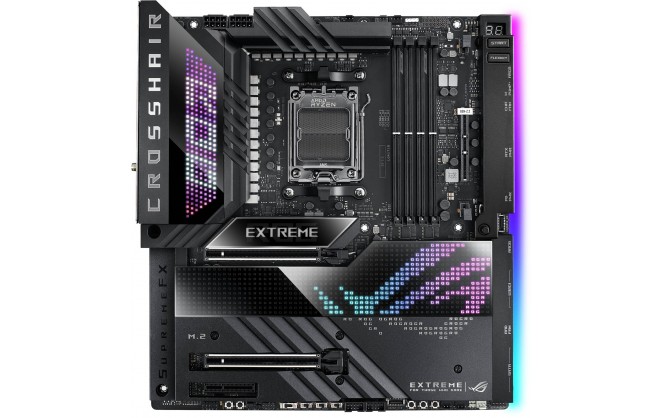

ASUS ROG Crosshair X670E Extreme eATX Motherboard AMD Socket AM5
CPU
| CPU Socket | Socket AM5 |
| CPU Brand | AMD |
| Installed Processors (Max) | 0 (1) |
| Supported Processor Manufacturer | AMD |
| Supported Processors | AMD Ryzen 7000 Series Desktop Processors |
| 64-bit Support | Yes |
| Socket | AM5 |
Rear Panel I/O Ports
| USB Ports | 2 x USB-C 4.0 1 x USB-C 3.2 1 x USB-C 3.1 8 x USB 3.1 |
| RJ-45 Ports | 2 x RJ-45 |
| Audio Line In Ports | 1 x 3.5mm Jack |
| Audio Line Out Ports | 3 x 3.5mm Jacks |
| Microphone In Port | 1 x 3.5mm Jack |
| S/PDIF Port | 1 x S/PDIF Optical Out |
| Antenna Connector(s) | 2 x SMA Antennas |
Internal I/O Connectors
| SATA Connectors | 6 x SATA III |
| USB Connectors | 1 x USB-C 3.2 header (supports 1 port) 1 x USB-C 3.1 header (supports 1 port) 2 x USB 3.0 headers (supports 4 ports) 2 x USB 2.0 headers (supports 4 ports) |
| Front Panel Connectors | 1 x Front Panel 1 x Front Audio |
| Cooling Fan Support | 1 x CPU fan header 1 x CPU_OPT fan header 2 x Chassis fan headers 2 x Radiator fan headers 1 x W_PUMP+ header 1 x Water In header 1 x Water Out header 1 x Water Flow header |
| Power Connector Port | 1 x 24-pin ATX 2 x 8-pin EPS 1 x 6-pin PCIe |
| Other Connectors | 2 x M.2 slots, Key M, Type 2242/2260/2280 (PCIe Gen5) 1 x GEN-Z.2 slot, supporting 2 x M.2 slots, Key M, Type 2242/2260/2280/22110 (PCIe Gen5 & PCIe Gen4) 1 x 6-pin ARGB header (supports 2 x 3-pin ARGB LED headers) 1 x 3-pin ARGB LED header 1 x 4-pin RGB LED header 1 x OSC Sense header 1 x Thermal Sensor header |
Memory
| Memory Type | DDR5 |
| Maximum RAM | 128 GB |
| Memory Slot | 4 x DIMM |
Motherboard
| Northbridge | X670E |
| RAID Supported | Yes |
| RAID Format | RAID 0, 1, 10 |
| SATA Supported | Yes |
Expansion
| Number of PCI Express Slots | 2 x PCI Express 5.0 x16 slots (@ x16 or x8/x8) 1 x PCI Express 4.0 x4 slot |
Graphics Device
| Integrated Graphics Supported | Yes |
Sound
| Integrated Sound | ROG SupremeFX ALC4082 |
Warranty
| Warranty | 3 Years |
Network
| Integrated Network | 1 x Marvell Aqtion 1 x Intel |
| Network Speeds Supported | Marvell: Up to 10 Gbps Intel: Up to 2.5 Gbps |
| Wireless LAN | Yes (Wi-Fi 6E) |
| Wireless Network Speed | Up to 2.4 Gbps |
| Bluetooth | Yes |
| Bluetooth Version | 5.2 |
System Requirements
| Operating Systems Supported | Microsoft Windows 11 64-bit |
System
| BIOS | 2 x 256 Mb Flash ROM, UEFI AMI BIOS |
| Jumpers | 1 x LN2 Mode |
| Software Included (may be trial or restricted) | Yes |
| Drivers | Yes |
Physical
| Form Factor | E-ATX Motherboard |
| Width | 305 mm |
| Length | 277 mm |
Key Features
| Firewire | |
| IDE/EIDE Supported | |
| SCSI/SAS Supported | |
| Wireless Network | Yes |
| Chipset Manufacturer | AMD |
| Number of PCI Slots | slot(s) |
| Number of PCI-X Slots | slot(s) |
| Main Colour | |
| Socket(s) | |
| Memory Channel | Dual |
| On-board Audio Type | 7.1 |
| Number of SATA Ports | 6 port(s) |
| Number of USB Ports | 12 port(s) |
| SATA III Support | Yes |
| USB 3.0 Support | Yes |
| Multi GPU Support | No |
| VGA Connection | No |
| DVI Connection | No |
| HDMI Connection | No |
| DisplayPort Connection | No |
| Motherboard Form Factor | eATX |
| Wake on LAN | |
| Motherboard Power Connectors | 8 + 8-Pin |
| Motherboard Chipset | AMD X670E |
| Thunderbolt | No |
| Motherboard Model | ASUS ROG Crosshair X670E Extreme |
| WiFi Speed | 2400 Mbps |
| USB 3.1 Support | Yes |
| Internal USB3.0 Header | Yes |
| Cooler Height | mm |
| M.2 Support | Yes |
| On-board RGB Control | ASUS Aura Sync |
| Memory Speed | MHz |
| Skip Audio Test | |
| RGB Header Type | 3-Pin ARGB |
| Addressable RGB | Yes |
| Internal USB Type-C Header | Yes |
| Radiator Length | mm |
| Microsoft Processor List | |
| Power Requirement (auto) | 100 W |
| Cooler count | |
| Max Memory Speed Supported (Non-overclocked) | MHz |
| Max Memory Speed Supported (overclocked) | MHz |
| CPU Power Pins (female) | 16 |
| PCI Express Power Pins (female) | 6 |
| Total M.2 Slots | 2 |
| Maximum NVMe M.2 ports | 2 |
| PCI-e slots | |
| SATA ports | 6 |
| No. of front USB2.0 ports supported | 4 |
| No. of front USB3.0 ports supported | 4 |
| No. of front USB-C ports supported | 2 |
Graphics
| Graphics Chipset |
Item Details
| Manufacturer | ASUS |
| Manufacturer Code | 90MB1B10-M0EAY0 |
| Alternative Part Number | ROG CROSSHAIR X670E EXTREME |
| EAN | 4711081847854 |
| UPC | 195553847858 |
| Condition | New |
