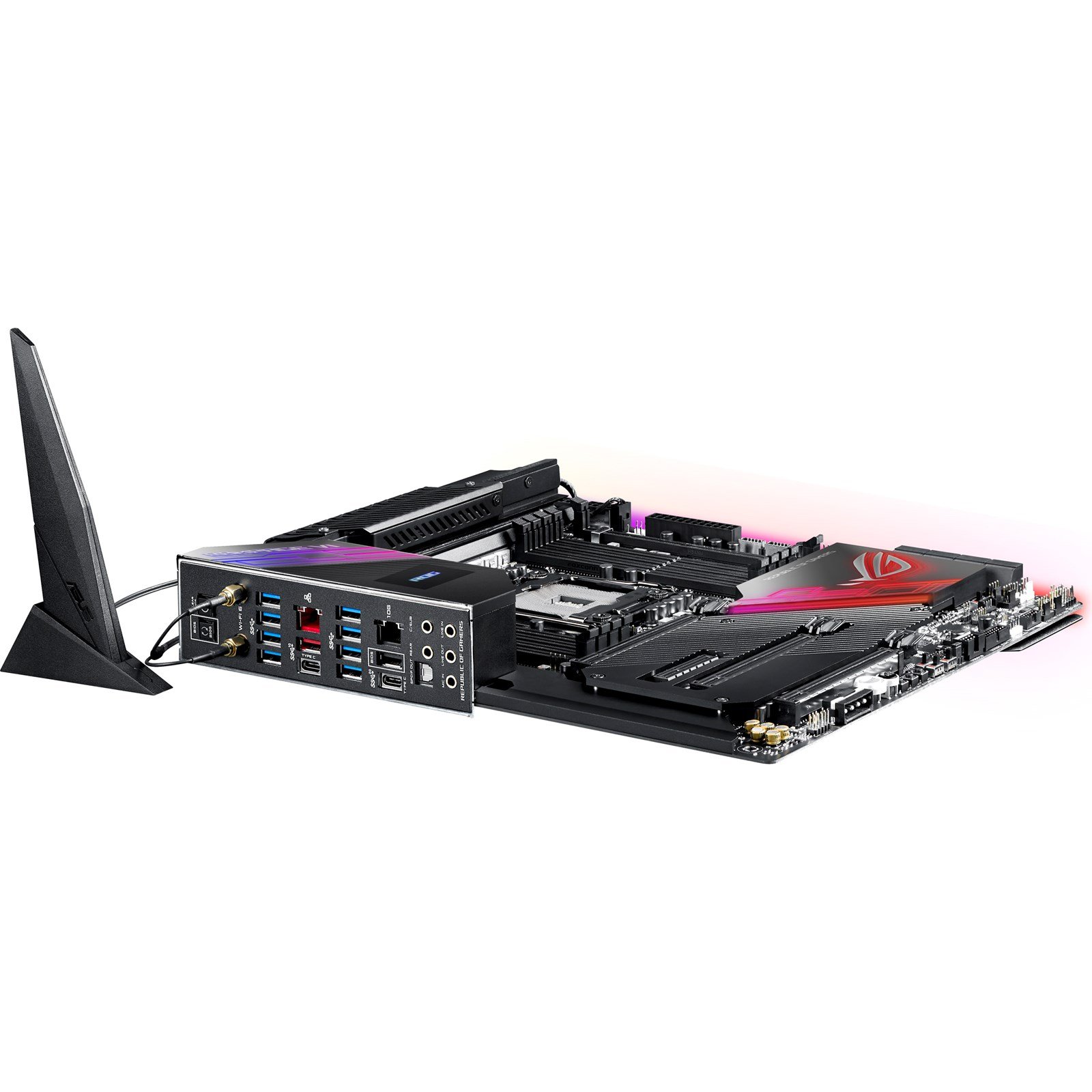

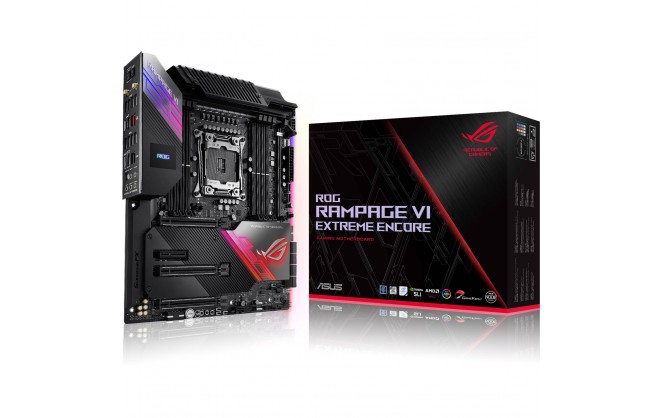

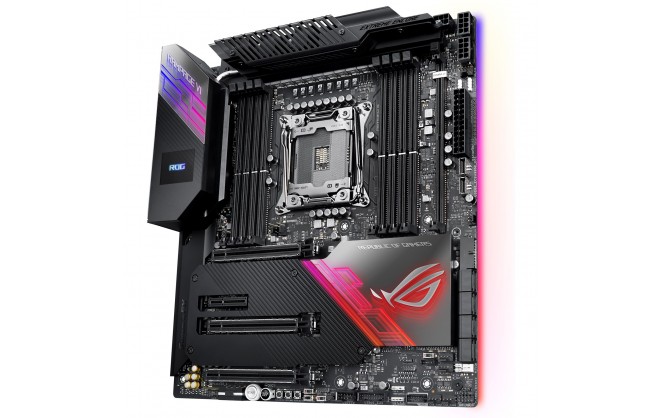

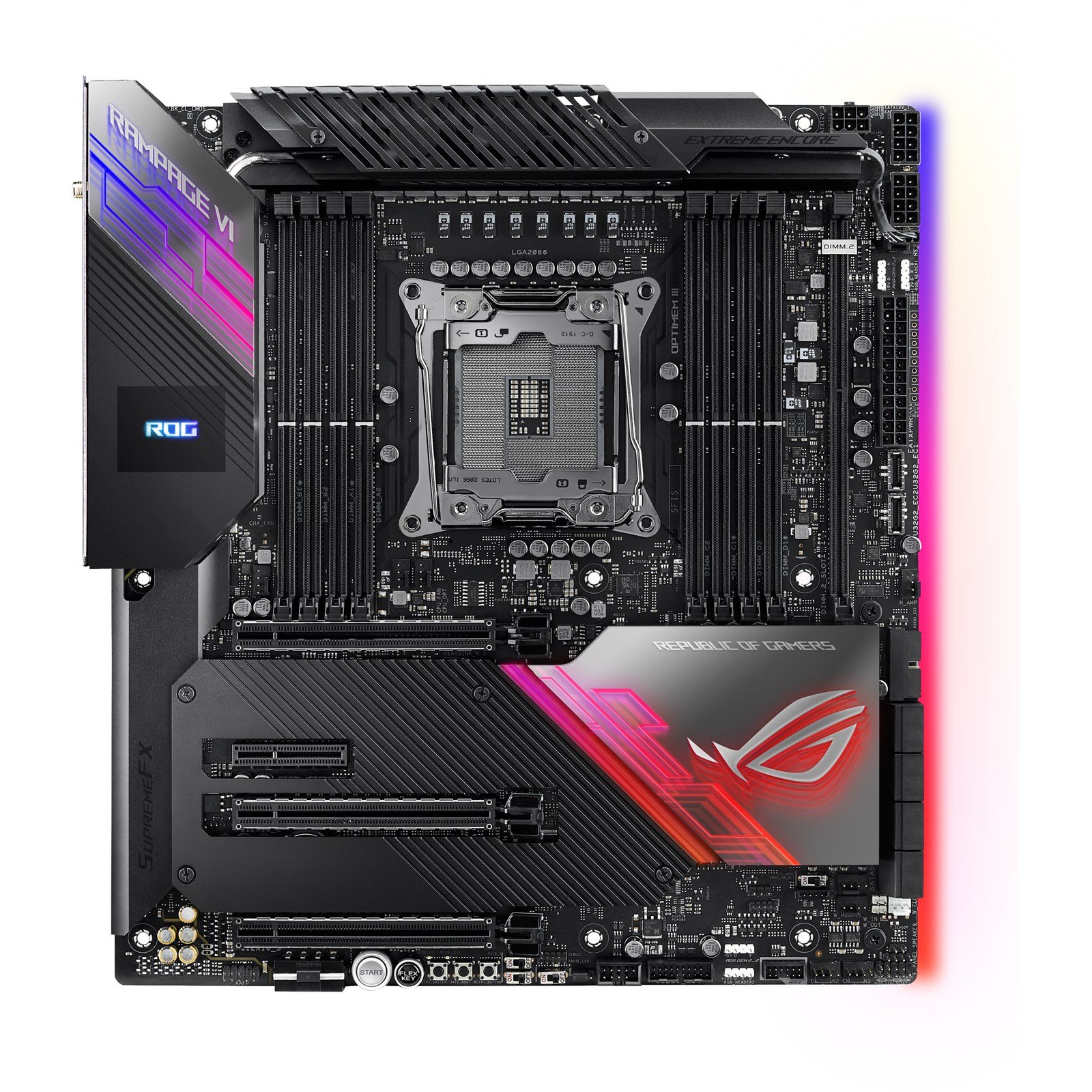

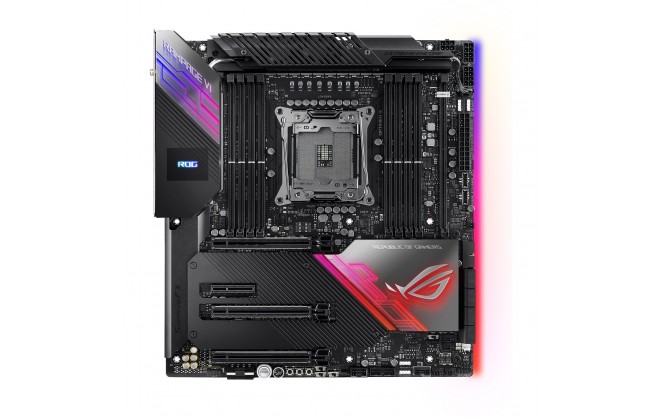

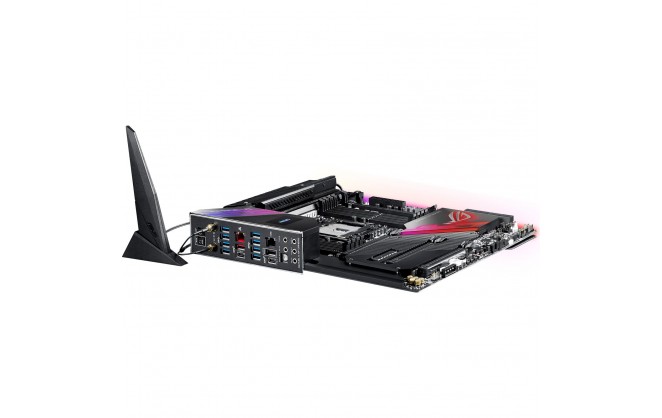

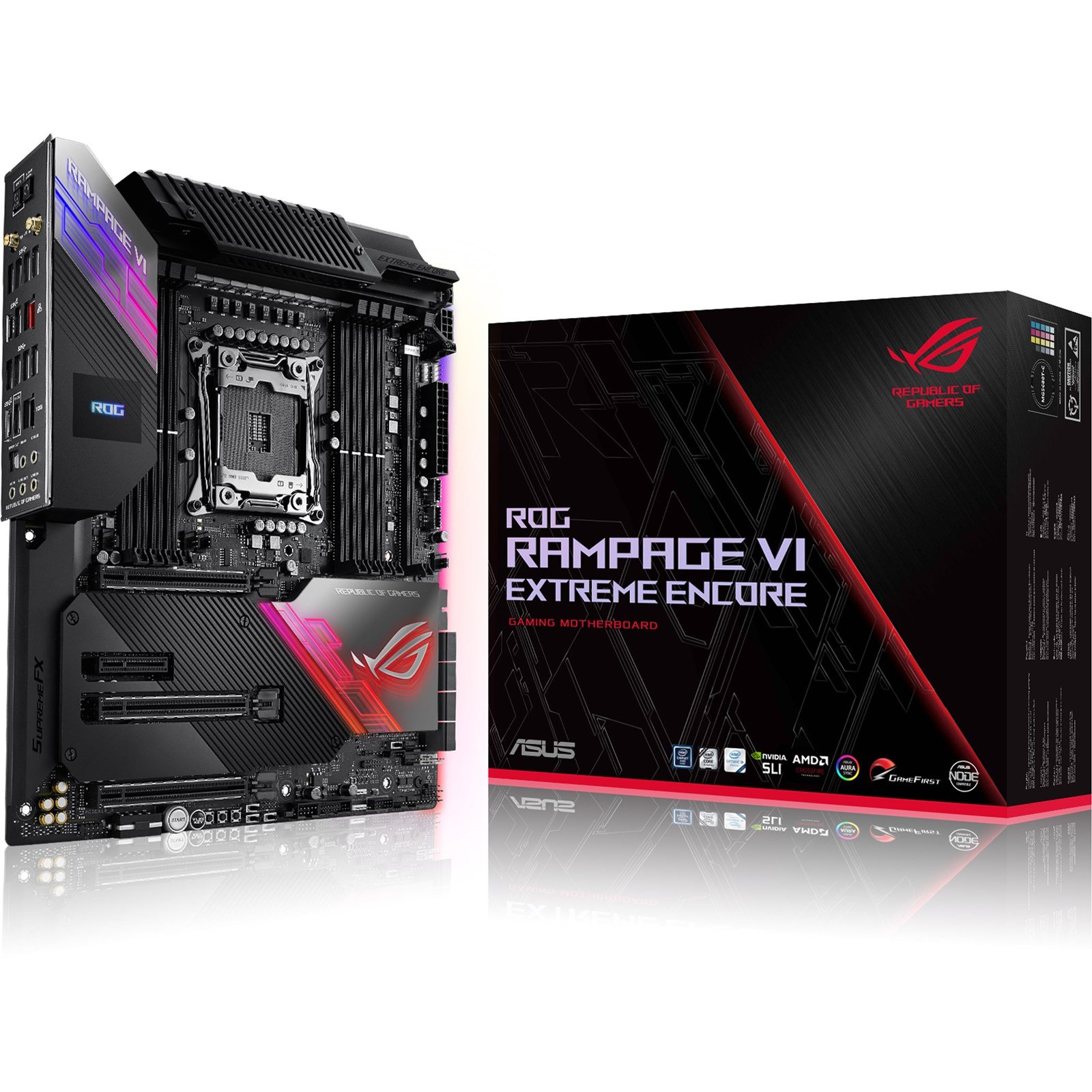

The ROG Rampage – reimagined. ASUS ROG Rampage VI Extreme Encore EATX motherboard delivers extreme, dominating performance
Teamed Power Architecture
Modern CPU architectures up the ante for motherboard power design by transitioning from deep power saving modes to full load almost instantaneously. Our latest VRM architecture rises to the challenge by utilizing teamed power stages to rapidly swing current, while maintaining exemplary thermal performance.
OPTIMEM III DDR4 4266+ MHZ (O.C.)
OptiMem III is a major milestone in our pursuit to create motherboards that offer the most memory overclocking headroom. When applied to the X299 platform, OptiMem III increases frequency margin to the point that the board is no longer a bottleneck. Pair the Extreme Encore with a capable chip and memory kit and achieve frequencies up to DDR4-4300MHz in a 4 or 8-DIMM configuration.
Effective cooling is extremely important for processing beasts that feature up to 18 cores. ROG Rampage VI Extreme Encore is fully armed with multiple heatsinks and a backplate to provide the best foundation for extreme PC systems, enabling higher performance at lower temperatures.
Cooling Heatsinks
Active cooling VRM heatsink
Custom Delta Superflo fans located within the heatsink kick on after 60° C and allow the Rampage VI Extreme Encore to handle sustained power draw of over 500 watts.
Aluminum I/O cover
An aluminum I/O cover is connected to the primary heatsink via an embedded heatpipe, increasing mass and surface area.
Aluminum heatsink cover
The heatsink cover is crafted from pure aluminum to efficiently cool the two onboard M.2 drives.
DIMM.2 heatsinks
The ROG DIMM.2 module now passively cools M.2 drives with metal heatsinks that also keep your build looking clean.
Solid steel backplate
A steel, electro-galvanized, cold-rolled coil construction backplate strengthens the motherboard to prevent bending, and adds additional mass to siphon heat from the VRM.
PCH heatsink
A PCH heatsink blends seamlessly with the aluminum heatsink cover and prominently features the ROG logo.
ROG Water-Cooling Zone
Dual water-temperature headers and a flow-rate header feed information straight into the AI Suite utility, allowing you to track coolant temperatures and the flow rate of the entire loop.
Fan Extension Card II
ROG Rampage VI Extreme Encore includes the new Fan Extension Card II, which adds six headers that are controllable via FanXpert 4. The card features three temperature-sensor headers to complement the one available onboard, and also comes with three thermistors that can be affixed to different components. In addition to supplying extra headers for cooling, it provides three RGB headers to provide illuminated effects for your RGB fan.
Rampage VI Extreme Encore is packed with intuitive and flexible tools that let you customize every aspect of your system to deliver the performance and features you want. Take advantage of 5-Way Optimization for intelligent, automatic overclocking. Or enjoy full manual control via comprehensive UEFI BIOS settings.
AI Overclocking
ASUS AI Overclocking makes automatic tuning faster and smarter than ever before. Available in Windows or directly through the UEFI, it profiles the CPU and cooler to predict the optimal configuration for each individual system.
Accurate Voltage Monitoring
Conventional motherboards use single-ended sensing tapped from a location that isn't ideal, leading to a large disparity between the actual voltage fed to the CPU and the value reported to software. The Encore features a differential sensing circuit that simplifies overclocking and tuning by allowing you to track voltages more accurately.
UEFI BIOS
The renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your rig. It offers intelligently simplified options for newcomers to PC DIY, as well as comprehensive features for seasoned veterans.
Performance Level Up
The dashboard-style control panel of AI Suite 3 lets you fine-tune almost every aspect of your Rampage VI Extreme Encore system with ease. Get the best balance between performance, cooling, stability, and efficiency via one simple and intuitive interface.
Along with customizable audio profiles and tools to optimize storage and networking performance, the Rampage VI Extreme Encore includes future-proof USB ports to accommodate a wide variety of devices to ensure that your machine is ready for any task.
Storage
Four M.2 slots let you fully utilize the Intel VROC and NVMe RAID to achieve ultimate SSD storage speeds.
VROC
The exclusive ROG DIMM.2 module allow you to take advantage of the Intel Virtual RAID on CPU (VROC) feature* by connecting two M.2 drives in RAID configuration. With VROC, your RAID arrays are easily configured to be bootable, and traditional DMI bottlenecks are eliminated.
*Additional purchase of Intel VROC hardware key required for RAID 1, 5 or 10
PCH RAID
Wired directly to the X299 PCH, the two onboard M.2 slots can be used in chipset-based RAID configurations to improve storage performance or provide a layer of redundancy.
USB 3.2 Gen 2x2
Reversible USB 3.2 Gen 2x2 Type-C™ ports provide ultimate flexibility and blazing data-transfer speeds of up to 20 Gbps.
USB 3.2 Gen 2 front-panel connectors
Two front-panel USB 3.2 connectors are ready to accommodate a wide variety of devices.
Wi-Fi 6 (AX200)
Onboard Wi-Fi 6 (802.11ax) supports ultrafast network speeds, improved capacity and better performance in dense Wi-Fi environments, providing exceptional online gaming experiences.
10 Gbps onboard Ethernet
Designed to meet the demanding requirements of power users and content creators, 10 Gbps onboard Ethernet provides a new level of home networking. With up to 10X the bandwidth of standard gigabit Ethernet, you'll enjoy streaming uncompressed 4K UHD videos, and backups and file transfers that are faster than ever before.
Intel Ethernet
ROG Rampage VI Extreme Encore features the latest Intel® Ethernet (I219-V) for faster, smoother gaming. This Intel controller has a natural synergy with Intel processors and chipsets, reducing CPU overhead and offering exceptionally high TCP and UDP throughput – so there's more power for games and other tasks.
SupremeFX
ROG is renowned for superior onboard audio, and Rampage VI Extreme Encore is no exception. The front-panel headphone output features a SABRE9018Q2C integrated DAC/amp capable of reaching -115dB THD+N to provide playback that conveys all the subtlety and nuances of even the highest-quality audio track. The improved resolution derived from the ESS Hyperstream™ DAC architecture expands the soundstage to give a better sense of positioning. Beyond resolution, the 121dB DNR provides an extremely low noise-floor, further accentuating dynamics and punch. And, when you want to shift priority to musicality, our Sonic Studio software provides an array of EQ options, allowing the sound signature to be tweaked to suit your cans.
In addition to extraordinary performance, Rampage VI Extreme Encore provides extensive styling and customization options to let you build a system that truly stands apart.
Grow Your Gaming World
Gear up with ROG components, from graphics and monitors to mice and keyboards. And up your game with complementary aesthetics, control and compatibility. The ROG ecosystem is more extensive than any competing brand, so enjoy greater choice as your system expands.
Addressable Gen 2 RGB Header
The Addressable Gen 2 headers are now capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new headers also offer backward-compatibility with existing Aura RGB gear.
Gamefirst V Network Control
GameFirst V is an ROG-exclusive tool that lets you build an ROG networking ecosystem with an ROG router. Select the best Wi-Fi channel for maximum stability and minimum interference, optimize network traffic and your connection for lag-free online gaming, team your gateways and keep tabs on bandwidth-hogging apps — all from an intuitive interface that enables easy, on-the-fly adjustments.
Sonic Studio III
Sonic Studio supports HRTF-based (head-related transfer function*) virtual surround for headsets, casting an immersive aural landscape that draws you deeper into the action. The intuitive Sonic Studio interface also offers a range of EQ options and one-click presets, allowing you to tailor acoustics to suit personal preferences or the characteristics of your headset.
*A head-related transfer function is an audio algorithm derived from sound data recorded through a dummy head. Test tones are played from a spherical grid around the dummy head to obtain subtle changes in sounds that come from different directions. The results are combined into an algorithm that allows Sonic Studio's virtual surround to process sound true to life.
DTS : Sound Unbound?
ROG Rampage VI Extreme Encore includes a pre-loaded DTS Sound Unbound app that envelops you in audio as never before, conjuring whole new levels of immersion for extraordinary gaming and entertainment experiences. By exploiting Windows Sonic spatial technology, DTS Sound Unbound delivers audio in a virtual 3D space — putting you right in the middle of the soundscape, where you can sense the location and direction of every gunshot, footstep or other sound in your virtual environment.
* DTS Sound Unbound requires in-game support. Check with developers for titles that offer support.
OLED
ROG Extreme motherboards are equipped with a built-in color OLED panel that displays useful information and customizable graphics. During the power-on, self-test (POST) phase, OLED shows key progress stats in simple language, using traditional POST codes. Then, during normal operation, the panel shows a choice of CPU frequency, device temperatures, fan speeds or information from the Water-Cooling Zone. You're also able to customize the default OLED GIF, so it'll display your own image or animation.
Armoury Crate
Armoury Crate is a software utility designed to provide centralized control of supported ROG gaming products. From a single intuitive interface, Armoury Crate puts command of all your Aura gear at your fingertips with the new Aura Creator suite ready. The software also provides control of settings for a select and growing number of ROG products, making it easier to tune the look and feel of your system. Armoury Crate even features dedicated product registration and ROG news areas to help you stay in touch with the ROG gaming community.
ASUS ROG Rampage VI Extreme Encore Motherboard
CPU
| CPU Socket | Socket 2066 |
| CPU Brand | Intel |
| Installed Processors (Max) | 0 (1) |
| Supported Processor Manufacturer | Intel |
| Supported Processors | Intel® Socket 2066 Core™ X-Series Processors |
| 64-bit Support | Yes |
| Socket | LGA2066 |
Rear Panel I/O Ports
| USB Ports | 1 x USB 3.2 Type-C 1 x USB 3.1 Type-C 1 x USB 3.1 Type-A 8 x USB 3.0 1 x USB 2.0 |
| Antenna Connectors | 2 x Antenna |
| RJ-45 Ports | 2 x RJ-45 |
| Audio Line In Ports | 1 x 3.5mm Jack |
| Audio Line Out Ports | 3 x 3.5mm Jacks |
| Microphone In Port | 1 x 3.5mm Jack |
| S/PDIF Port | 1 x S/PDIF Optical Out |
Internal I/O Connectors
| SATA Connectors | 8 x SATA III |
| USB Connectors | 2 x USB 3.1 2 x USB 3.0 1 x USB 2.0 |
| Speaker | 1 x Speaker |
| Front Panel Connectors | 1 x Front Panel 1 x Front Audio |
| Cooling Fan Support | 1 x CPU fan 1 x CPU OPT fan 3 x Chassis fans 1 x H_AMP fan 1 x HS_FAN 2 x W_PUMP+ 1 x W_IN 1 x W_OUT 1 x W_FLOW |
| Power Connector Port | 1 x 20+4-pin ATX 2 x 4+4-pin EPS 1 x 6-pin EZ_PLUG 1 x 4-pin EZ_PLUG |
| Other Connectors | 2 x M.2, Socket 3, M Key (Type 2242/2260/2280) 2 x Aura Addressable Strip headers 2 x Aura RGB Strip headers 1 x VROC_HW_Key 1 x Node 2 x Thermal Sensor |
Memory
| Memory Bus Speed | 4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3800(O.C.)/3600(O.C.)/3466(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz |
| Memory Type | DDR4 |
| Maximum RAM | 256 GB |
| Memory Slot | 8 x DIMM |
Motherboard
| Chipset Manufacturer | Intel |
| Northbridge | X299 |
| RAID Supported | Yes |
| RAID Format | RAID 0, 1, 5, 10 |
| SATA Supported | Yes |
Expansion
| Number of PCI Express Slots | 3 x PCI Express 3.0 x16 (@ x16, x16/x16, x16/x16/x8) 1 x PCI Express 3.0 x4 |
Graphics Device
| Integrated Graphics Supported | No |
Sound
| Integrated Sound | ROG SupremeFX 8-Channel High Definition Audio CODEC S1220 |
Network
| Integrated Network | Aquantia AQC-107 Intel® I219V |
| Network Speeds Supported | 1000/2500/5000/10000 Mbps 10/100/1000 Mbps |
| Wireless LAN | Yes |
| Wireless Network Speed | Up to 2.4 Gbps |
| Bluetooth | Yes |
| Bluetooth Version | 5.0 |
System Requirements
| Operating Systems Supported | Microsoft® Windows® 10 64-bit |
System
| BIOS | 2 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2 |
| Jumpers | 1 x Clear CMOS 1 x CPU_OV |
| SLi/Crossfire Features | Supports NVIDIA® 3-Way/2-Way SLI® Technology Supports AMD 3-Way/2-Way CrossFireX™ Technology |
Physical
| Form Factor | E-ATX Motherboard |
| In The Box | Motherboard User's manual 1 x ROG logo plate sticker 6 x SATA 6Gb/s cable(s) 3 x M.2 Screw Package 1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant) 1 x Fan Extension Card II (6 x 4-pin Chassis Fan connectors, 3 x RGB headers, 3 x 2-pin Thermal sensor header) 1 x Fan Extension Card II power cable 1 x Fan Extension Card II NODE connector cable 1 x Fan Extension Card II screw package 1 x Q-Connector 1 x ROG Logo Sticker(s) 1 x Extension Cable for RGB strips (80 cm) 1 x Extension cable for Addressable LED 3 x Thermistor cable(s) 1 x USB drive with utilities and drivers 1 x ROG coaster(s) 1 x USB 3.2 Gen 1 Header to USB 2.0 adapter cable 1 x ROG weave SATA 6G cable 1 x ROG DIMM.2 with heatsink 1 x M.2 Pad for ROG DIMM.2 1 x 2-in-1 Rubber pad 1 x ROG Multi-Bit screwdriver |
| Width | 305 mm |
| Length | 277 mm |
Key Features
| Motherboard Chipset | Intel X299 |
| Thunderbolt | No |
| WiFi Speed | 2400 Mbps |
| USB 3.1 Support | Yes |
| Internal USB3.0 Header | Yes |
| M.2 Support | Yes |
| On-board RGB Control | ASUS Aura Sync |
| Memory Speed | 4266 MHz |
| Skip Audio Test | Yes |
| RGB Header Type | 3-Pin ARGB |
| Addressable RGB | Yes |
| Firewire | No |
| Wireless Network | Yes |
| Memory Channel | Quad |
| On-board Audio Type | 7.1 |
| Number of SATA Ports | 8 port(s) |
| Number of USB Ports | 12 port(s) |
| SATA III Support | Yes |
| USB 3.0 Support | Yes |
| Multi GPU Support | Both |
| VGA Connection | No |
| DVI Connection | No |
| HDMI Connection | No |
| DisplayPort Connection | No |
| Motherboard Form Factor | eATX |
| Motherboard Power Connectors | 8 + 8-Pin |
Warranty
| Warranty | 1 Year |
Item Details
| Manufacturer | ASUS |
| Manufacturer Code | 90MB11K0-M0EAY0 |
| Alternative Part Number | ROG RAMPAGE VI EXTREME ENCORE |
| EAN | 4718017478144 |
| Condition | New |
