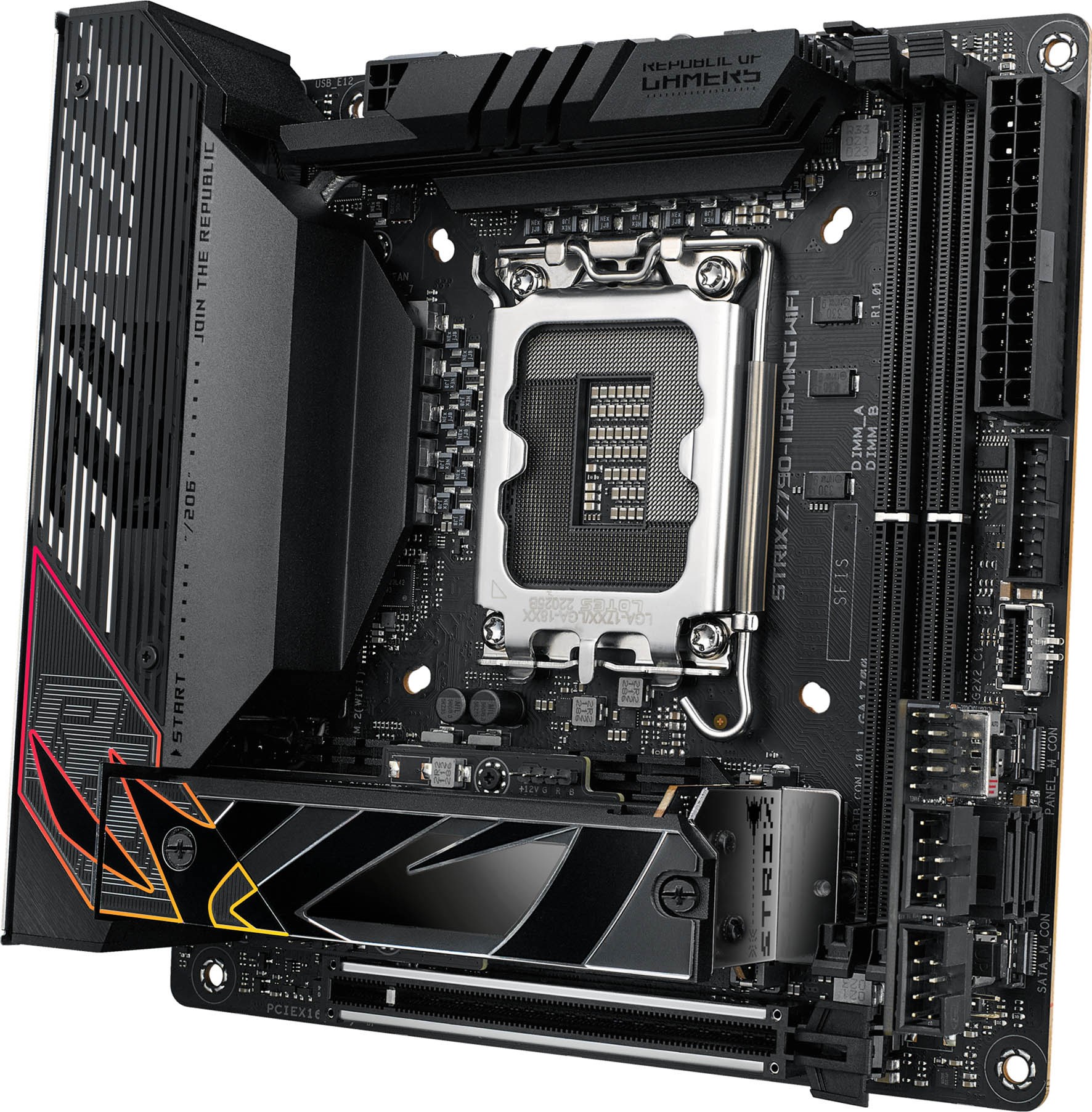

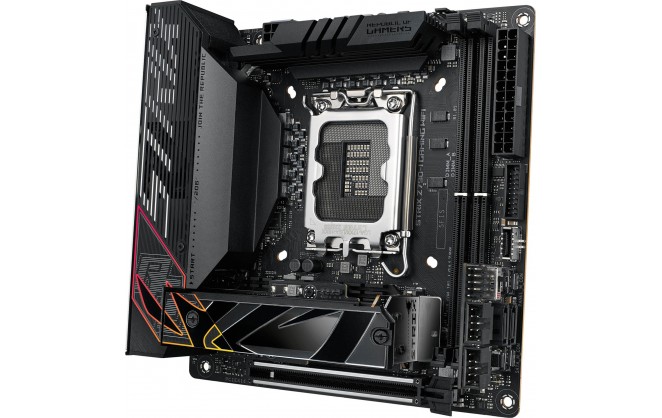

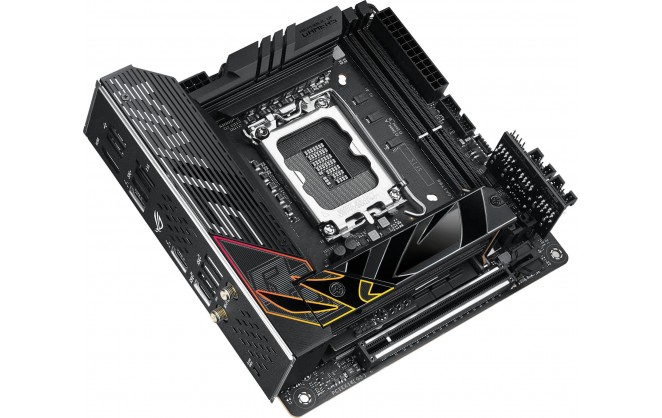

ASUS ROG Strix Z790-I Gaming WiFi ITX Motherboard Intel LGA 1700 Socket

  • Part Number: 90MB1CM0-M0EAY0
  • Manufacturer: ASUS
  • Quickfind Code: 135985

  • Stock: In Stock

£306.89 ex. vat
£368.27 inc. vat


Product Features:
  • Condition: New
  • Socket Type 1700
  • Chipset Z790
  • Form Factor mITX
  • Memory Type DDR5
  • CPU Type Intel
+ Read More Information

Share:

Product Description

Main Features

  • Intel LGA 1700 socket: Ready for 13th Gen Intel Core processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors
  • SFF Innovations: ROG Strix Hive moves OC controls and connectivity to the desktop while allowing for a larger audio solution, and the ROG FPS-II Card vertically mounts USB and SATA ports for a better building experience
  • Robust Power Solution: 10 + 1 power solution rated for 105A per stage with ProCool II power connectors, high-quality alloy chokes, and durable capacitors to support multi-core processors
  • Optimized VRM Thermals: Thick heatsinks with integrated I/O cover high-conductivity thermal pads, and connected with an L-shaped heatpipe
  • Multi-Layer M.2 Stack: Both a PCIe5.0 M.2 slot and a PCIe 4.0 M.2 are sandwiched between thick heatsinks in a space-saving and thermally-efficient array
  • Abundant Connectivity: Two Thunderbolt 4 ports, USB 3.2 Gen 2x2 Type-C rear I/O port and front-panel connector, four additional USB 3.2 Gen 2 and Gen 1 ports, PCIe 5.0 x16 SafeSlot, and HDMI 2.1
  • High-Performance Networking: On-board Intel Wi-Fi 6E (802.11ax) and Intel 2.5 Gb Ethernet with ASUS LANGuard
  • Intelligent Control: ASUS-exclusive AI Overclocking, AI Cooling II, AI Networking and Two-Way AI Noise Cancelation to simplify setup and improve performance
  • Immersive Gaming Audio: ALC4050 with ESS SABRE 9260Q DAC, along with DTS Sound Unbound and Sonic Studio III
  • Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including one RGB header and one addressable Gen 2 headers
  • DIY Friendly Design: AI Overclocking button, M.2 Q-Latch, Pre-mounted I/O shield, FlexKey button, BIOS FlashBack button, and Clear CMOS button
  • Renowned Software: Bundled 60-day AIDA64 Extreme free trial subscription and intuitive UEFI BIOS dashboard with integrated MemTest86
Technical Specification

ASUS ROG Strix Z790-I Gaming WiFi ITX Motherboard Intel LGA 1700 Socket

CPU

CPU SocketSocket 1700
CPU BrandIntel
Installed Processors (Max)0 (1)
Supported Processor ManufacturerIntel
Supported Processors13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors
64-bit SupportYes
SocketLGA1700

Rear Panel I/O Ports

USB Ports2 x Thunderbolt 4
1 x USB-C 3.2
3 x USB 3.1
1 x USB 3.0
2 x USB 2.0
HDMI Port1 x HDMI 2.1
RJ-45 Ports1 x RJ-45
Antenna Connector(s)2 x SMA Antenna

Internal I/O Connectors

SATA Connectors2 x SATA III
USB Connectors1 x USB-C 3.2 header (supports 1 port)
1 x USB 3.0 header (supports 2 ports)
Front Panel Connectors1 x Front Panel
1 x Front Audio
Cooling Fan Support1 x CPU fan header
1 x AIO pump header
1 x Chassis fan header
Power Connector Port1 x 24-pin ATX
1 x 8-pin EPS
Other Connectors1 x M.2 slot, Key M, Type 2280 (PCIe Gen5 or Gen4)
1 x M.2 slot, Key M, Type 2242/2260/2280 (PCIE Gen4)
1 x 3-pin ARGB LED header
1 x 4-pin RGB LED header
1 x Thermal Sensor
2 x USB-C for ROG FPS-II Card

Memory

Memory Bus SpeedUp to 7000 (OC) MHz
Memory TypeDDR5
Maximum RAM64 GB
Memory Slot2 x DIMM

Motherboard

NorthbridgeZ790
RAID SupportedNo
SATA SupportedYes

Expansion

Number of PCI Express Slots1 x PCI Express 5.0 x16 slot

Graphics Device

Integrated Graphics SupportedYes

Sound

Integrated SoundROG ALC4050

Warranty

Warranty3 Years

Network

Integrated NetworkIntel
Network Speeds SupportedUp to 2.5 Gbps
Wireless LANYes (Wi-Fi 6E)
Wireless Network SpeedUp to 2.4 Gbps
BluetoothYes
Bluetooth Version5.2

System Requirements

Operating Systems SupportedMicrosoft Windows 11 64-bit

System

BIOS256 Mb Flash ROM, UEFI AMI BIOS
Software Included (may be trial or restricted)Yes
DriversYes

Physical

Form FactorITX Motherboard
In The BoxMotherboard
2 x SATA 6Gb/s cables
1 x ROG USB2.0 splitter cable
1 x Panel Cable
1 x ROG FPS-II Card
1 x ROG STRIX HIVE
1 x USB Type-C power connection cable
1 x Thermal pad for M.2
1 x ASUS Wi-Fi moving antennas
1 x Cable ties pack
1 x Rubber Package(s) for M.2
1 x Q-Latch package(s) for M.2
1 x ROG key chain
1 x ROG Strix stickers
1 x ROG Strix thank you card
1 x User guide
Width170 mm
Length170 mm

Key Features

Firewire
IDE/EIDE Supported
SCSI/SAS Supported
Wireless NetworkYes
Chipset ManufacturerIntel
Number of PCI Slotsslot(s)
Number of PCI-X Slotsslot(s)
Main Colour
Socket(s)
Memory ChannelDual
On-board Audio Type7.1
Number of SATA Ports2 port(s)
Number of USB Ports7 port(s)
SATA III SupportYes
USB 3.0 SupportYes
Multi GPU SupportNo
VGA ConnectionNo
DVI ConnectionNo
HDMI ConnectionYes
DisplayPort ConnectionNo
Motherboard Form FactorITX
Wake on LAN
Motherboard Power Connectors8-Pin
Motherboard ChipsetIntel Z790
ThunderboltYes
Motherboard ModelASUS ROG Strix Z790-I Gaming WiFi
WiFi Speed2400 Mbps
USB 3.1 SupportYes
Internal USB3.0 HeaderYes
Cooler Heightmm
M.2 SupportYes
On-board RGB ControlASUS Aura Sync
Memory Speed7000 MHz
Skip Audio Test
RGB Header Type3-Pin ARGB
Addressable RGBYes
Internal USB Type-C HeaderYes
Radiator Lengthmm
Microsoft Processor List
Power Requirement (auto)30 W
Cooler count
Max Memory Speed Supported (Non-overclocked)5600 MHz
Max Memory Speed Supported (overclocked)7000 MHz
CPU Power Pins (female)8
PCI Express Power Pins (female)
Total M.2 Slots2
Maximum NVMe M.2 ports2
PCI-e slots
SATA ports2
No. of front USB3.0 ports supported2
No. of front USB-C ports supported1

Graphics

Graphics Chipset

Item Details

ManufacturerASUS
Manufacturer Code90MB1CM0-M0EAY0
Alternative Part NumberROG STRIX Z790-I GAMING WIFI
EAN4711081947493
UPC195553947497
ConditionNew
