£196.89 ex. vat
£236.27 inc. vat
Share:
ASUS TUF GAMING B660M-PLUS WIFI D4 takes all the essential elements of the latest Intel® processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard offers rock-solid and stable performance for marathon gaming. Aesthetically, TUF GAMING B660M-PLUS WIFI D4 sports the new TUF Gaming logo and incorporates simple geometric design elements to reflect the dependability and stability that defines the TUF Gaming series.
With upgraded power delivery and comprehensive cooling options to drive the 12th Gen Intel Core™ processors, plus support for faster memory and storage, TUF GAMING B660M series motherboards are the perfect foundation for your next high-core-count battle rig.
TUF GAMING motherboards are designed to be easy to set up and configure just the way you want — even for first-time builders. The TUF GAMING Alliance ecosystem makes selecting compatible parts easy, while Armoury Crate software provides Fan Xpert 2+ and hardware information and offers full full control of Two-Way AI Noise Cancellation, RGB lighting and peripheral settings. The TUF GAMING platform gives you the arsenal you need to build and optimize your dream gaming rig, without unnecessary complexity.
TUF GAMING B660M series motherboards provide a high-performance gaming package with a long list of features to improve your experiences, including ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS gaming, and onboard RGB lighting that syncs with attached accessories to help you create a personalized gaming atmosphere.

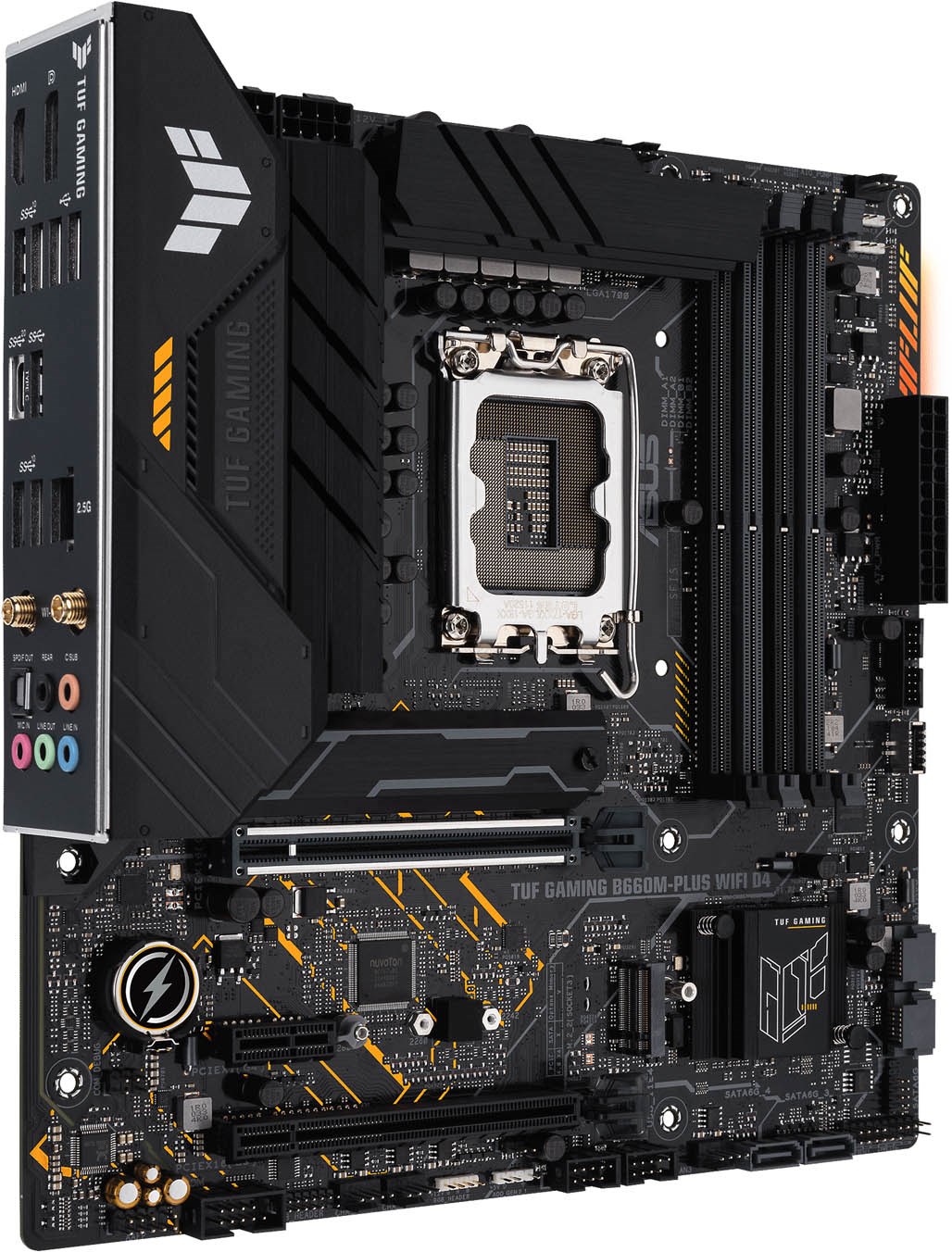

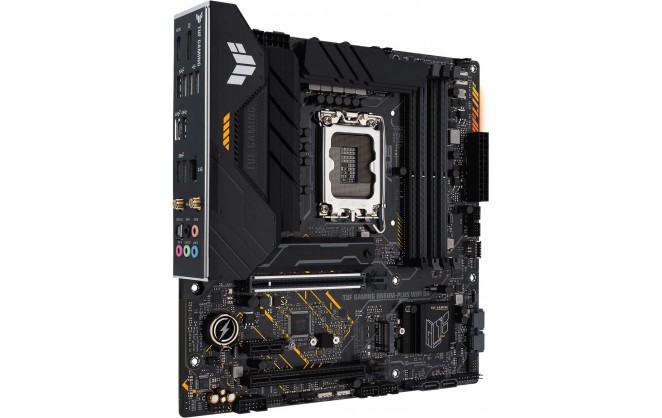

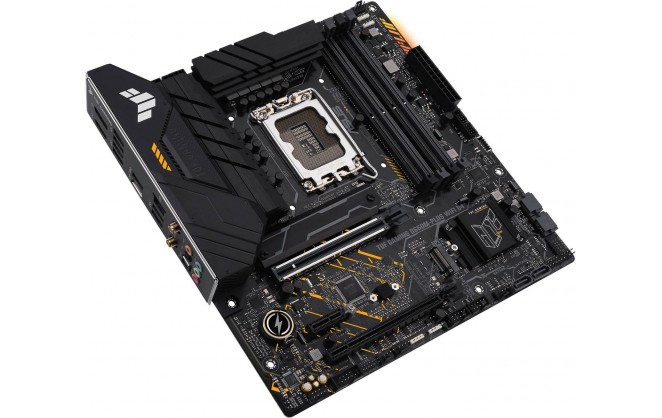

ASUS TUF Gaming B660M-Plus WIFI D4 Motherboard
CPU
| CPU Socket | Socket 1700 |
| CPU Brand | Intel |
| Installed Processors (Max) | 0 (1) |
| Supported Processor Manufacturer | Intel |
| Supported Processors | 12th Gen Intel Core, Pentium Gold and Celeron Processors |
| 64-bit Support | Yes |
| Socket | LGA1700 |

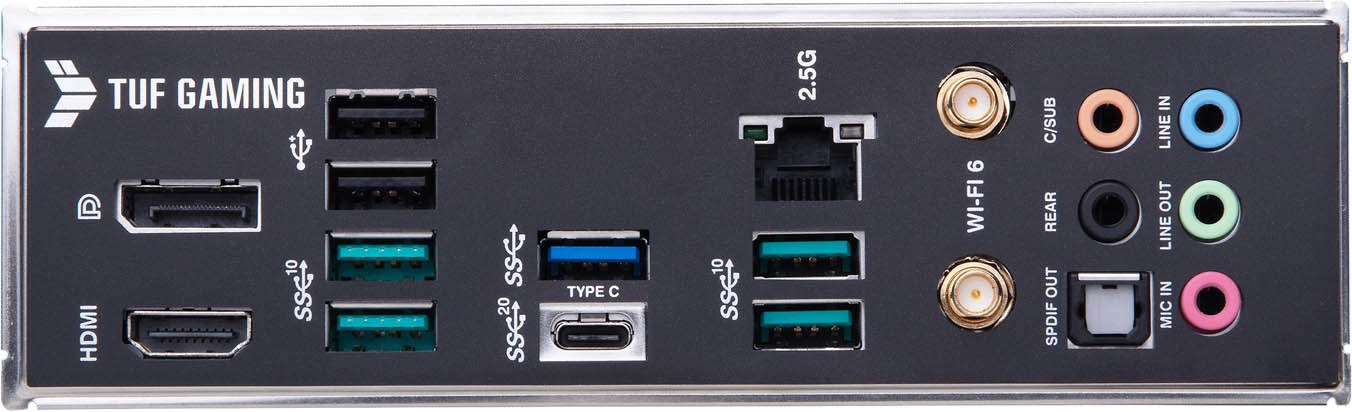

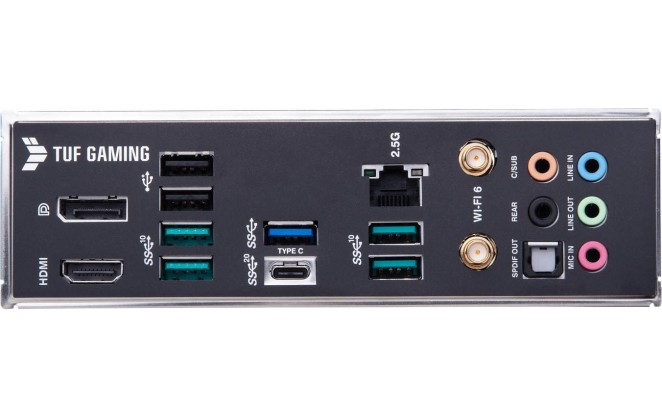

Rear Panel I/O Ports
| USB Ports | 1 x USB-C 3.2 4 x USB 3.1 1 x USB 3.0 2 x USB 2.0 |
| DisplayPorts | 1 x DisplayPort 1.4 |
| HDMI Port | 1 x HDMI 2.1 |
| RJ-45 Ports | 1 x RJ-45 |
| Audio Line In Ports | 1 x 3.5m Jack |
| Audio Line Out Ports | 3 x 3.5mm Jacks |
| Microphone In Port | 1 x 3.5m Jack |
| S/PDIF Port | 1 x S/PDIF Optical Out |
| Antenna Connector(s) | 2 x SMA Antenna |
Internal I/O Connectors
| SATA Connectors | 4 x SATA III |
| USB Connectors | 1 x USB-C 3.0 header (supports 1 port) 1 x USB 3.0 header (supports 2 ports) 2 x USB 2.0 headers (supports 4 ports) |
| Front Panel Connectors | 1 x Front Panel 1 x Front Audio |
| Cooling Fan Support | 1 x CPU fan header 1 x CPU_OPT fan header 1 x AIO Pump header 3 x Chassis fan headers |
| Thunderbolt Port(s) | 1 x Thunderbolt header |
| Serial Connectors | 1 x COM header |
| Chassis Intrusion Connector | 1 x Chassis Intrusion header |
| Power Connector Port | 1 x 24-pin ATX 1 x 8-pin EPS 1 x 4-pin EPS |
| Other Connectors | 2 x M.2 slots, Key M, Type 2242/2260/2280 (PCIe Gen4) 3 x 3-pin ARGB LED headers 1 x 4-pin RGB LED header |
Memory
| Memory Bus Speed | 5333 MHz |
| Memory Type | DDR4 |
| Maximum RAM | 128 GB |
| Memory Slot | 4 x DIMM |
Motherboard
| Chipset Manufacturer | Intel |
| Northbridge | B660 |
| RAID Supported | Yes |
| RAID Format | RAID 0, 1, 5, 10 |
| SATA Supported | Yes |
Expansion
| Number of PCI Express Slots | 1 x PCI Express 5.0 x16 slot 1 x PCI Express 3.0 x16 slot (@ x4) 1 x PCI Express 4.0 x1 slot |
Graphics Device
| Integrated Graphics Supported | Yes |
Sound
| Integrated Sound | Realtek |
Warranty
| Warranty | 3 Years |
Network
| Integrated Network | Realtek |
| Network Speeds Supported | Up to 2.5 Gbps |
| Wireless LAN | Yes (Wi-Fi 6) |
| Wireless Network Speed | Up to 2.4 Gbps |
| Bluetooth | Yes |
| Bluetooth Version | 5.2 |
System Requirements
| Operating Systems Supported | Microsoft Windows 11 / 10 64-bit |
System
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Jumpers | 1 x Clear CMOS |
| Software Included (may be trial or restricted) | Yes |
| Drivers | Yes |
Physical
| Form Factor | MicroATX Motherboard |
| In The Box | ASUS TUF Gaming B660M-Plus WIFI D4 2 x SATA 6Gb/s cables 1 x ASUS Wi-Fi moving antennas 1 x M.2 Rubber Package 1 x M.2 SSD screw package 1 x TUF Gaming sticker 1 x Support DVD 1 x TUF Certification card 1 x User guide |
| Width | 244 mm |
| Length | 244 mm |
Key Features
| USB 3.1 Support | Yes |
| Internal USB3.0 Header | Yes |
| M.2 Support | Yes |
| On-board RGB Control | ASUS Aura Sync |
| Memory Speed | 5333 MHz |
| RGB Header Type | 3-Pin ARGB |
| Addressable RGB | Yes |
| Internal USB Type-C Header | Yes |
| Power Requirement (auto) | 60 W |
| Max Memory Speed Supported (Non-overclocked) | 3200 MHz |
| Max Memory Speed Supported (overclocked) | 5333 MHz |
| CPU Power Pins (female) | 12 |
| Total M.2 Slots | 2 |
| Maximum NVMe M.2 ports | 2 |
| Maximum SATA M.2 ports | 2 |
| SATA ports | 4 |
| USB2.0 headers | 4 |
| USB3.0 headers | 2 |
| USB-C headers | 1 |
| Firewire | No |
| Wireless Network | Yes |
| Memory Channel | Dual |
| On-board Audio Type | 7.1 |
| Number of SATA Ports | 4 port(s) |
| Number of USB Ports | 8 port(s) |
| SATA III Support | Yes |
| USB 3.0 Support | Yes |
| Multi GPU Support | No |
| VGA Connection | No |
| DVI Connection | No |
| HDMI Connection | Yes |
| DisplayPort Connection | Yes |
| Motherboard Form Factor | mATX |
| Motherboard Power Connectors | 4 + 8-Pin |
| Motherboard Chipset | Intel B660 |
| Thunderbolt | No |
| Motherboard Model | ASUS TUF Gaming B660M-Plus WIFI D4 |
| WiFi Speed | 2400 Mbps |
Item Details
| Manufacturer | ASUS |
| Manufacturer Code | 90MB1930-M0EAY0 |
| Alternative Part Number | TUF GAMING B660M-PLUS WIFI D4 |
| EAN | 4711081516859 |
| UPC | 195553516853 |
| Condition | New |
