£230.89 ex. vat
£277.07 inc. vat
Share:
TUF Gaming X570-Pro (Wi-Fi) distills the essential elements of the latest AMD platform and combines them with game-ready features and proven durability. Engineered with military-grade components, upgraded power solutions and a comprehensive set of cooling options, these motherboards deliver rock-solid performance with unwavering gaming stability.
When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance — an ASUS collaboration with trusted industry partners that ensures easier building, the best compatibility, and complementary aesthetics from components to case.
With upgraded power delivery and comprehensive cooling options to fuel AMD's latest CPUs, plus support for faster memory and storage, TUF Gaming X570-Pro (Wi-Fi) is the perfect foundation for your next high-core-count AMD battle rig.
TUF Gaming motherboards are designed to be easy to set up and configure just the way you want, even for first-time builders. From the TUF Gaming Alliance ecosystem that makes compatibility and part-picking easy to a one-stop software portal for all your configurations, TUF Gaming motherboards give you everything you need to build your dream gaming rig without adding complexity.
TUF Gaming X570-Pro (Wi-Fi) provides a complete, high-performance gaming package with a long list of features to improve your experience, including ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS gaming, and onboard RGB lighting that syncs with attached accessories to help you create a personalized gaming atmosphere.

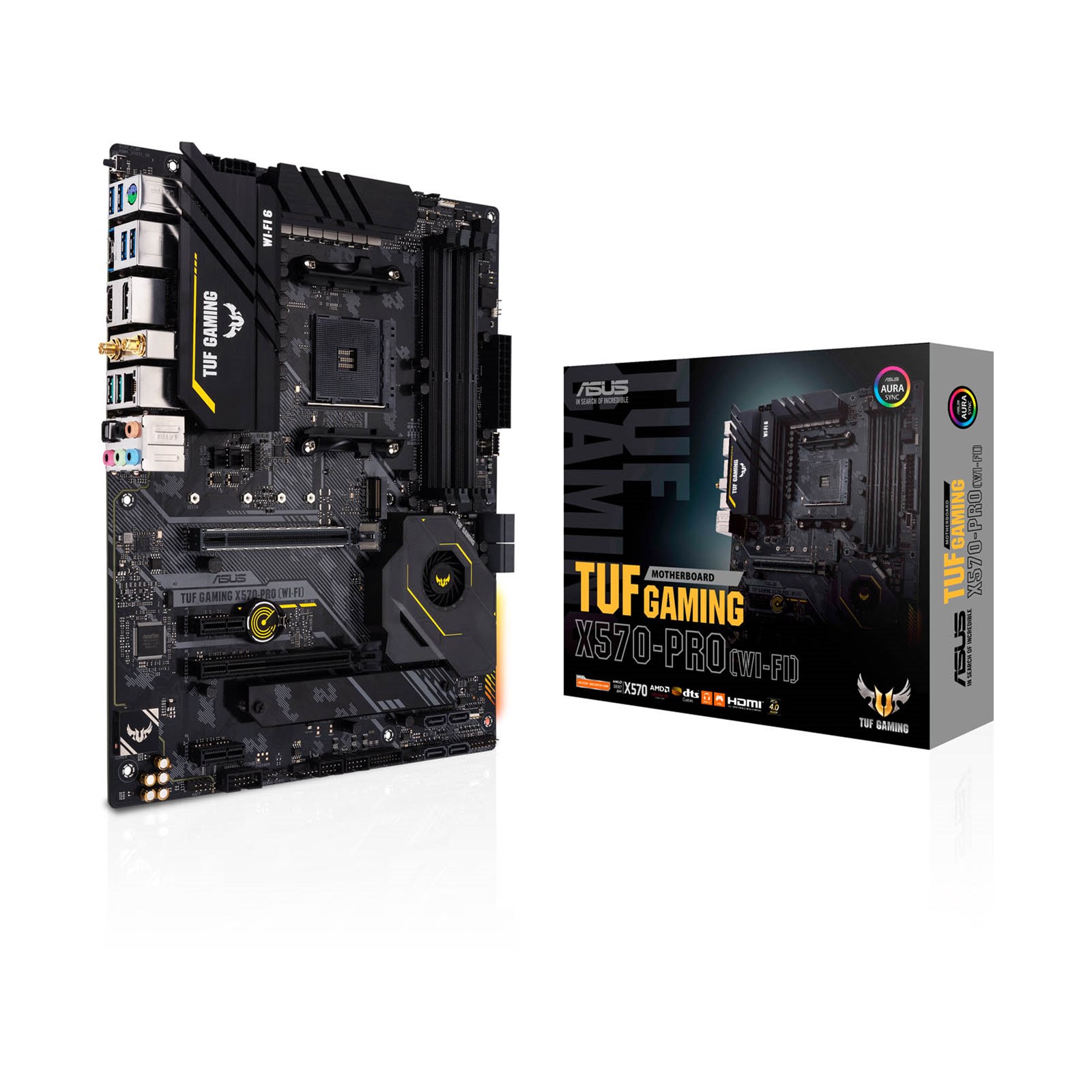

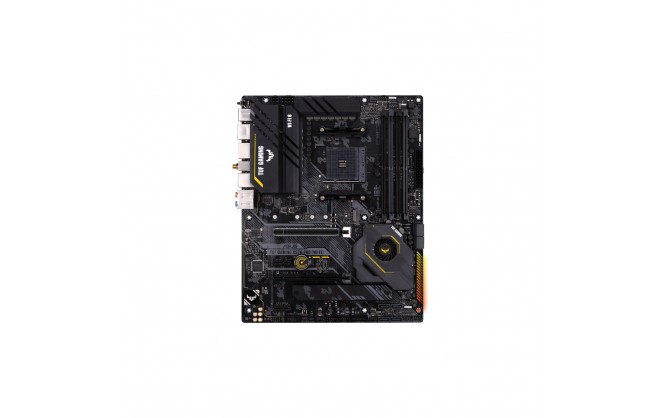

ASUS TUF GAMING X570-PRO (WI-FI) AMD Motherboard
CPU
| CPU Socket | Socket AM4 |
| CPU Brand | AMD |
| Installed Processors (Max) | 0 (1) |
| Supported Processor Manufacturer | AMD |
| Supported Processors | AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors/3rd, 2nd and 1st Gen AMD Ryzen with Radeon Graphics Processors |
| 64-bit Support | Yes |
| Socket | AM4 |
Rear Panel I/O Ports
| USB Ports | 1 x USB-C 3.1 2 x USB 3.1 4 x USB 3.0 |
| DisplayPorts | 1 x DisplayPort 1.2 |
| HDMI Port | 1 x HDMI 1.4b |
| Keyboard/Mouse Combo Port | 1 x PS/2 |
| RJ-45 Ports | 1 x RJ-45 |
| Audio Line In Ports | 1 x 3.5mm Jack |
| Audio Line Out Ports | 3 x 3.5mm Jacks |
| Microphone In Port | 1 x 3.5mm Jack |
| S/PDIF Port | 1 x S/PDIF Optical Out |
| Antenna Connector(s) | 2 x SMA Antenna |
Internal I/O Connectors
| SATA Connectors | 8 x SATA III |
| USB Connectors | 1 x USB-C 3.1 header (supports 1 port) 1 x USB 3.0 header (supports 2 ports) 2 x USB 2.0 headers (supports 4 ports) |
| Front Panel Connectors | 1 x Front Panel 1 x Front Audio |
| Cooling Fan Support | 1 x CPU fan header 1 x CPU_OPT fan header 3 x Chassis fan headers 1 x AIO_PUMP header |
| Serial Connectors | 1 x COM header |
| TPM Header | 1 x SPI TPM header |
| Power Connector Port | 1 x 24-pin ATX 1 x 8-pin EPS 1 x 4-pin EPS |
| Other Connectors | 2 x M.2 slots, Socket 3, M Key, Type 2242/2260/2280/22110 (PCIe Gen4 or SATA) 1 x 3-pin ARGB LED header 2 x 4-pin RGB LED headers |
Memory
| Memory Bus Speed | Up to 5,100 MHz (OC) |
| Memory Type | DDR4 |
| Maximum RAM | 128 GB |
| Memory Slot | 4 x DIMM |
Motherboard
| Chipset Manufacturer | AMD |
| Northbridge | X570 |
| RAID Supported | Yes |
| RAID Format | RAID 0, 1, 10 |
| SATA Supported | Yes |
Expansion
| Number of PCI Express Slots | 2 x PCI Express 4.0 x16 slots (@ x16, x4) 2 x PCI Express 4.0 x1 slots |
Graphics Device
| Integrated Graphics Supported | Yes |
Sound
| Integrated Sound | Realtek ALCS2100A |
Warranty
| Warranty | 3 Years |
Network
| Integrated Network | Intel I225-V |
| Network Speeds Supported | Up to 2.5 Gbps |
| Wireless LAN | Yes (Wi-Fi 6) |
| Wireless Network Speed | Up to 2.4 Gbps |
| Bluetooth | Yes |
| Bluetooth Version | 5.1 |
System Requirements
| Operating Systems Supported | Microsoft Windows 10 64-bit |
System
| BIOS | 256Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.2, ACPI 6.2, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, F4 AURA ON/OFF, Last Modified log, F9 Search, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information |
| Jumpers | 1 x Clear CMOS |
| Software Included (may be trial or restricted) | Yes |
| Drivers | Yes |
| SLi/Crossfire Features | Supports AMD 2-Way CrossFireX Technology |
Physical
| Form Factor | ATX Motherboard |

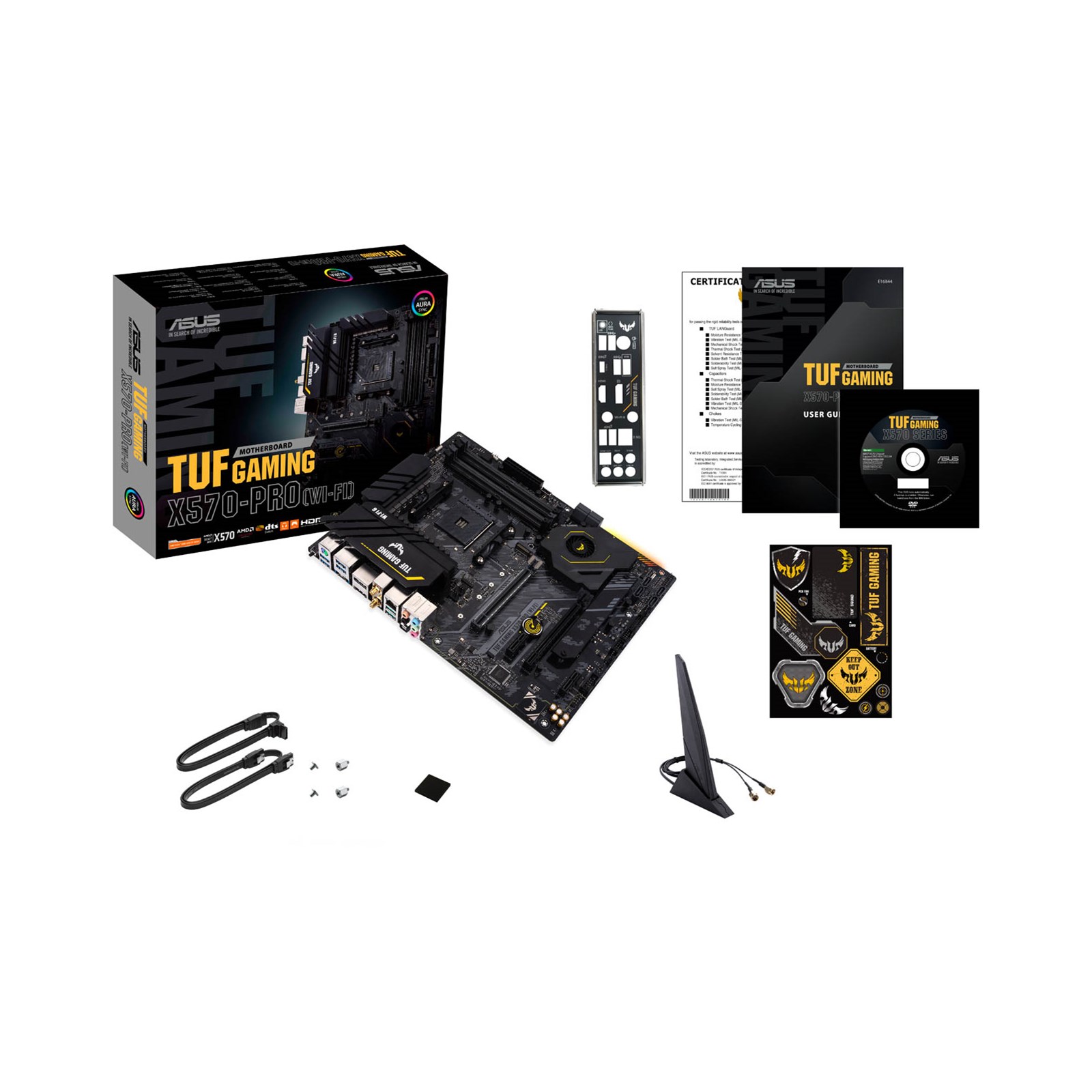

| In The Box | ASUS TUF GAMING X570-PRO (WI-FI) Motherboard User Manual I/O Shield 2 x SATA Cables 1 x M.2 Screw Package Support DVD 1 x ASUS 2T2R Wi-Fi Antennas TUF Gaming Sticker TUF Certification Card 1 x M.2 Rubber Package |
| Width | 305 mm |
| Length | 244 mm |
Key Features
| Motherboard Power Connectors | 4 + 8-Pin |
| Motherboard Chipset | AMD X570 |
| Thunderbolt | No |
| Motherboard Model | ASUS TUF Gaming X570 Pro (Wi-Fi) |
| WiFi Speed | 2400 Mbps |
| USB 3.1 Support | Yes |
| Internal USB3.0 Header | Yes |
| M.2 Support | Yes |
| On-board RGB Control | ASUS Aura Sync |
| Memory Speed | 5100 MHz |
| RGB Header Type | 3-Pin ARGB |
| Addressable RGB | Yes |
| Firewire | No |
| Wireless Network | Yes |
| Memory Channel | Dual |
| On-board Audio Type | 7.1 |
| Number of SATA Ports | 8 port(s) |
| Number of USB Ports | 7 port(s) |
| SATA III Support | Yes |
| USB 3.0 Support | Yes |
| Multi GPU Support | ATi CrossFire |
| VGA Connection | No |
| DVI Connection | No |
| HDMI Connection | Yes |
| DisplayPort Connection | Yes |
| Motherboard Form Factor | ATX |
Item Details
| Manufacturer | ASUS |
| Manufacturer Code | 90MB15H0-M0EAY0 |
| EAN | 4718017900324 |
| UPC | 192876900321 |
| Condition | New |
