Exclusive Realtek 8118 Gaming LAN
High Speed Gigabit LAN with Automatic Bandwidth Allocation
Realtek 8118 LAN is a high performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users the most comprehensive features and the fastest and smoothest Internet experience.
NVMe PCIe Gen3 x4 2280 M.2 Connector (Up to 32 Gb/s)
GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential.
Smart Fan 5
With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.
Hybrid Fan Pin Headers
Assume complete control over your liquid cooling setup! Smart Fan 5 receives up-to-the-second information on flow-rate through the Hybrid Fan Pin Headers—giving you absolute mastery over your PC.
All Hybrid Fan Headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or Voltage mode.
High-End Audio Capacitors
GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.
Audio Noise Guard
GIGABYTE motherboards feature an audio noise guard that essentially separates the board's sensitive analog audio components from potential noise pollution at the PCB level. LED trace path lighting Illuminates to show the separation of the PCB layers.
CEC 2019 Ready
Save the power as easy as one click
CEC Requirement : PC power consumption must be under a certain level when it's in off mode, idle mode, stand-by mode. With high power efficiency hardware components and fine tuned BIOS, GIGABYTE motherboards can achieve lower power consumption under idle mode and fully comply with new CEC 2019 (California Energy Commission) power consumption requirement.
XSplit Gamecaster + Broadcaster: Cast Your Game Anytime, Anywhere
Now set up your stage and share the greatest gaming moments with XSplit Gamecaster + Broadcaster! Fully optimized social media integration is ready for real-time chats—keeping you notified yet focused in the game. It takes just one click to stream your gameplay to Twitch. Host your game like a pro!
*Free 14 days XSplit Gamecaster + Broadcaster Premium License.

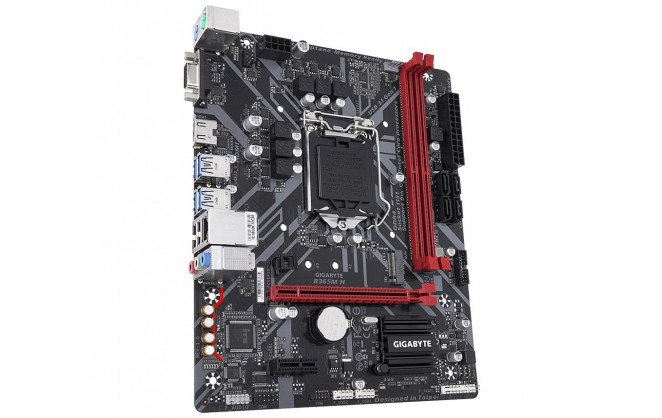

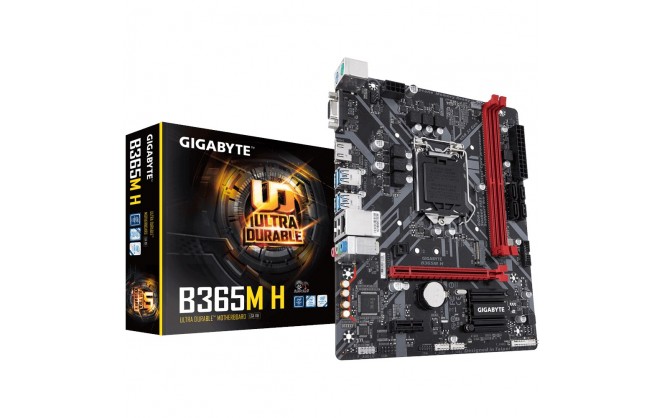

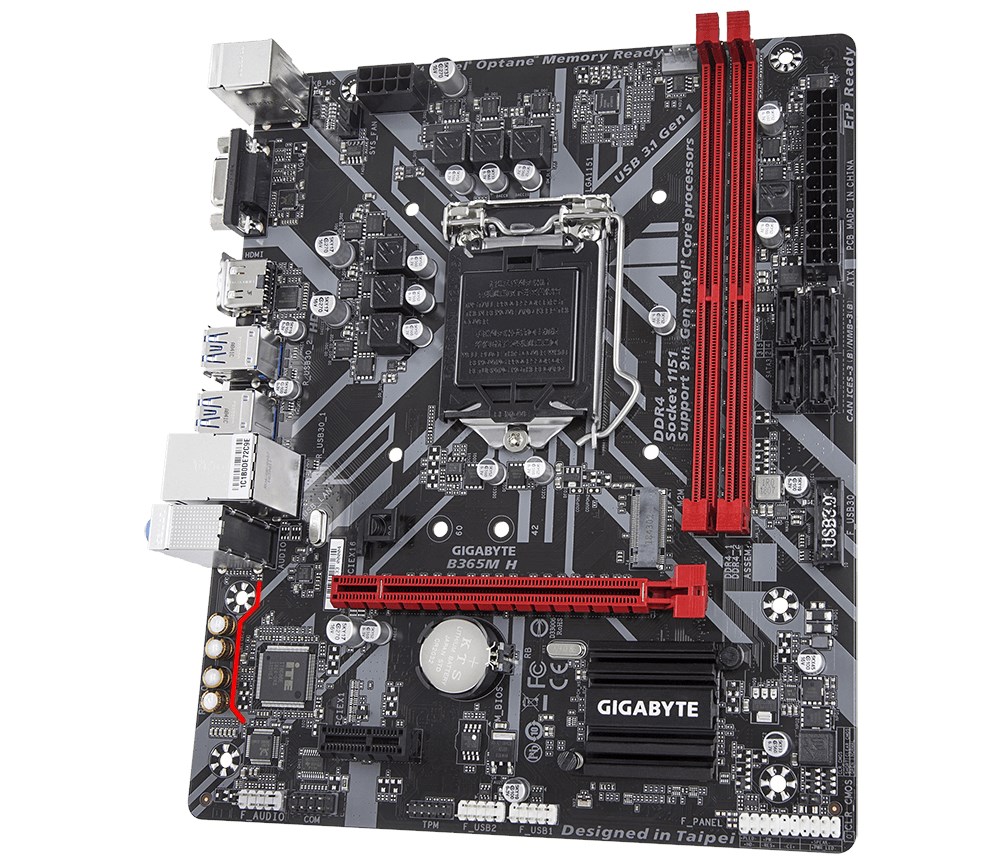

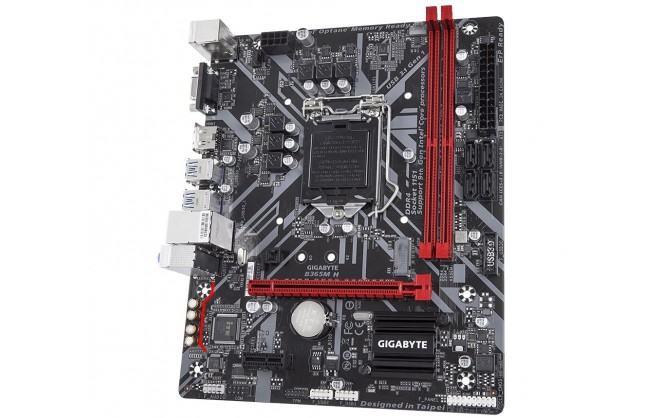

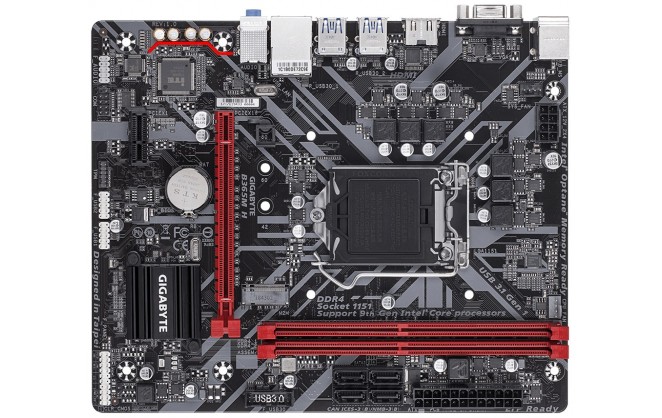

Gigabyte B365M H Intel Socket 1151 9th Gen DDR4 Retail Motherboard
CPU
| CPU Socket | Socket 1151 |
| CPU Brand | Intel |
| Installed Processors (Max) | 0 (1) |
| Supported Processor Manufacturer | Intel |
| Supported Processors | Support for 9th and 8th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors |
| 64-bit Support | Yes |
| Socket | LGA1151 |
Rear Panel I/O Ports
| USB Ports | 4 x USB 3.0 2 x USB 2.0 |
| HDMI Port | 1 x HDMI |
| VGA Port | 1 x D-Sub |
| Keyboard Port | 1 x PS/2 |
| Mouse Port | 1 x PS/2 |
| RJ-45 Ports | 1 x RJ-45 |
| Audio Line In Ports | 1 x 3.5mm Jack |
| Audio Line Out Ports | 1 x 3.5mm Jack |
| Microphone In Port | 1 x 3.5mm Jack |
Internal I/O Connectors
| SATA Connectors | 4 x SATA III |
| USB Connectors | 1 x USB 3.0 2 x USB 2.0 |
| Front Panel Connectors | 1 x Front Panel 1 x Front Audio |
| Cooling Fan Support | 1 x CPU fan 1 x System fan |
| Serial Connectors | 1 x COM |
| TPM Header | 1 x TPM |
| Power Connector Port | 1 x 20+4-pin ATX 1 x 4+4-pin EPS |
| Other Connectors | 1 x M.2, Socket 3, M Key (Type 2242/2260/2280) |
Memory
| Memory Bus Speed | 2666/2400/2133 MHz |
| Memory Type | DDR4 |
| Maximum RAM | 32 GB |
| Memory Slot | 2 x DIMM |
Motherboard
| Chipset Manufacturer | Intel |
| Northbridge | B365 |
| RAID Supported | Yes |
| RAID Format | RAID 0, 1, 5, 10 |
| SATA Supported | Yes |
Expansion
| Number of PCI Express Slots | 1 x PCI Express 3.0 x16 1 x PCI Express 3.0 x1 |
Graphics Device
| Integrated Graphics Supported | Yes |
Sound
| Integrated Sound | Realtek® ALC887 |
Network
| Integrated Network | Realtek® GbE |
| Network Speeds Supported | 10/100/1000 Mbps |
| Wireless LAN | No |
| Bluetooth | No |
System Requirements
| Operating Systems Supported | Microsoft Windows 10 64-bit |
System
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Jumpers | 1 x Clear CMOS |
| Software Included (may be trial or restricted) | Norton® Internet Security (OEM version) Realtek 8118 Gaming LAN bandwidth Control Utility |
Physical
| Form Factor | MicroATX Motherboard |
| Width | 226 mm |
| Length | 185 mm |
Key Features
| Firewire | No |
| Wireless Network | No |
| Memory Channel | Dual |
| On-board Audio Type | 7.1 |
| Number of SATA Ports | 4 port(s) |
| Number of USB Ports | 6 port(s) |
| SATA III Support | Yes |
| USB 3.0 Support | Yes |
| Multi GPU Support | No |
| VGA Connection | Yes |
| DVI Connection | No |
| HDMI Connection | Yes |
| DisplayPort Connection | No |
| Motherboard Form Factor | mATX |
| Motherboard Power Connectors | 8-Pin |
| Motherboard Chipset | Intel B365 |
| Thunderbolt | No |
| Motherboard Model | Gigabyte B365M H |
| USB 3.1 Support | No |
| Internal USB3.0 Header | Yes |
| M.2 Support | Yes |
| On-board RGB Control | None |
| Skip Audio Test | No |
| RGB Header Type | None |
| Addressable RGB | No |
Warranty
| Warranty | 1 Year |
Item Details
| Manufacturer | Gigabyte |
| Manufacturer Code | B365M H |
| EAN | 4719331806606 |
| Condition | New |
