Direct 6+2 Phases Digital VRM Solution with Low RDS(on) MOSFETs
Cleaner and more efficient power delivery to the CPU with better thermal performance ensure stability under high CPU frequencies and heavy loading.
Smart Fan 6
Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.
Fan Stop
fan silence. With Fan Stop, map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperature—all of it can be customized to your liking.
Support for DDR4 XMP Up to 4600MHz and Beyond**
GIGABYTE is offering a tested and proven platform that ensures proper compatibility with profiles up to 4600MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their GIGABYTE motherboard.
Hi-End Audio
High-End Audio Capacitors
GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.
Audio Noise Guard
GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.
Dual PCIe 4.0*/3.0 x4 M.2 Connectors
GIGABYTE Ultra Durable Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their Systems’ potential.
Exclusive Realtek 8118 Gaming LAN
High Speed Gigabit LAN with Automatic Bandwidth Allocation
Realtek 8118 LAN is a high performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users the most comprehensive features and the fastest and smoothest Internet experience.
High Definition Digital Outputs***
Enjoy true HD display capability using the most commonly integrated digital output technologies on today’s HD displays and TVs.
RGB FUSION 2.0
With B560 Motherboard, RGB Fusion 2.0 is even better with Addressable LEDs.**** RGB Fusion 2.0 offers users the option to control onboard RGB and external RGB / Addressable LED light strips for their PC. Already feature filled with colors and patterns, RGB Fusion 2.0 on B560 Series Motherboards are now upgraded with Addressable LED support. With external Addressable LED strips*, where each LED is digitally addressable, users can experience even more patterns, styles, and illuminations.
With B560 Motherboard will support either 5v or 12v Addressable LED lighting strips and up to 300 LED lights. RGB Fusion 2.0 with Addressable LEDs comes with new patterns and various speed settings with more to come.
GIGABYTE RGB Fusion APP
Don't just make your PC shine, make it a work of art that friends will envy. With the GIGABYTE RGB Fusion mobile app users can watch as they control the lighting within their gaming PC. This gives users ease of access as they try and adjust colors and speeds for different modes, all this can be achieved away from the keyboard and monitor of their PC.
Solid Pin Power Connectors
B560 motherboards feature solid plated ATX 12V 8pin power connectors to offer a stable power supply during CPU overloading.
Solid Pin Power connector advantages
Q-Flash Plus
Update the BIOS easily without installing the CPU, memory and graphics card.
With GIGABYTE Q-Flash Plus, you don’t need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you’re good to go!
START SULFURIZATION PROTECTION
Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning.
*Actual support may vary by CPU.
**XMP Profile support may vary depending on memory module.
***Maximum support of 3 independent display at one time.
****Addressable LEDs are available only on select Motherboards, external LED Strips, Addressable LED Strips are not included with Motherboard purchase.

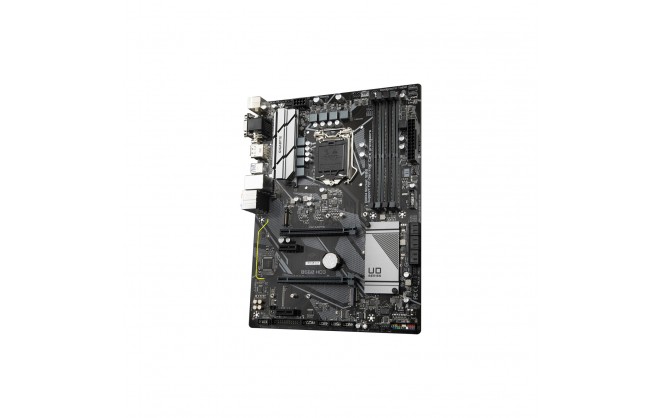

Gigabyte B560 HD3 Intel Socket 1200 Motherboard
CPU
| CPU Socket | Socket 1200 |
| CPU Brand | Intel |
| Installed Processors (Max) | 0 (1) |
| Supported Processor Manufacturer | Intel |
| Supported Processors | 11th and 10th Gen Intel Core Series Processors |
| 64-bit Support | Yes |
| Socket | LGA1200 |
Rear Panel I/O Ports
| USB Ports | 4 x USB 3.0 2 x USB 2.0 |
| DisplayPorts | 1 x DisplayPort 1.4 |
| HDMI Port | 1 x HDMI 1.4 |
| VGA Port | 1 x D-Sub |
| Keyboard/Mouse Combo Port | 1 x PS/2 |
| RJ-45 Ports | 1 x RJ-45 |
| Digital Port | 1 x DVI-D DL |
| Audio Line In Ports | 1 x 3.5mm Jack |
| Audio Line Out Ports | 4 x 3.5mm Jacks |
| Microphone In Port | 1 x 3.5mm Jack |
Internal I/O Connectors
| SATA Connectors | 6 x SATA III |
| USB Connectors | 1 x USB 3.0 header (supports 2 ports) 3 x USB 2.0 headers (supports 6 ports) |
| Front Panel Connectors | 1 x Front Panel 1 x Front Audio |
| Cooling Fan Support | 1 x CPU fan header 1 x Water Cooling CPU fan header 3 x System fan headers |
| S/PDIF Connectors | 1 x S/PDIF Out header |
| Parallel Connectors | 1 x Parallel header |
| Serial Connectors | 1 x COM header |
| TPM Header | 1 x TPM header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) |
| Power Connector Port | 1 x 24-pin ATX 1 x 8-pin EPS |
| Other Connectors | 1 x M.2, Socket 3, M Key, Type 2260/2280/22110 (PCIe Gen4) for 11th Gen processors only 1 x M.2, Socket 3, M Key, Type 2260/2280/22110 (PCIe Gen3 or SATA) 1 x 3-pin ARGB LED header 1 x 4-pin RGB LED header |
Memory
| Memory Bus Speed | 5333(O.C.) / DDR4 5133(O.C.) / DDR4 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz |
| Memory Type | DDR4 |
| Maximum RAM | 128 GB |
| Memory Slot | 4 x DIMM |
Motherboard
| Chipset Manufacturer | Intel |
| Northbridge | B560 |
| RAID Supported | No |
| SATA Supported | Yes |
Expansion
| Number of PCI Express Slots | 1 x PCI Express 4.0 x16 slot 1 x PCI Express 3.0 x16 slot (@ x4) 2 x PCI Express 3.0 x1 |
Graphics Device
| Integrated Graphics Supported | Yes |
Sound
| Integrated Sound | Realtek |
Warranty
| Warranty | 3 Years |
Network
| Integrated Network | Realtek GbE |
| Network Speeds Supported | Up to 1 Gbps |
| Wireless LAN | No |
| Bluetooth | No |
System Requirements
| Operating Systems Supported | Microsoft Windows 10 64-bit |
System
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Jumpers | 1 x Clear CMOS |
| Software Included (may be trial or restricted) | Yes |
| Drivers | Yes |
Physical
| Form Factor | ATX Motherboard |
| Width | 305 mm |
| Length | 225 mm |
Key Features
| Internal USB3.0 Header | Yes |
| M.2 Support | Yes |
| On-board RGB Control | Gigabyte RGB Fusion |
| Memory Speed | 5333 MHz |
| RGB Header Type | 3-Pin ARGB |
| Addressable RGB | Yes |
| Firewire | No |
| Wireless Network | No |
| Memory Channel | Dual |
| On-board Audio Type | 7.1 |
| Number of SATA Ports | 6 port(s) |
| Number of USB Ports | 6 port(s) |
| SATA III Support | Yes |
| USB 3.0 Support | Yes |
| Multi GPU Support | No |
| VGA Connection | Yes |
| DVI Connection | Yes |
| HDMI Connection | Yes |
| DisplayPort Connection | Yes |
| Motherboard Form Factor | ATX |
| Motherboard Power Connectors | 4 + 4-Pin |
| Motherboard Chipset | Intel B560 |
| Thunderbolt | No |
| Motherboard Model | Gigabyte B560 HD3 |
| USB 3.1 Support | No |
Item Details
| Manufacturer | Gigabyte |
| Manufacturer Code | B560 HD3 |
| EAN | 4719331815509 |
| UPC | 889523027158 |
| Condition | New |
