£45.90 ex. vat
£55.08 inc. vat
Share:

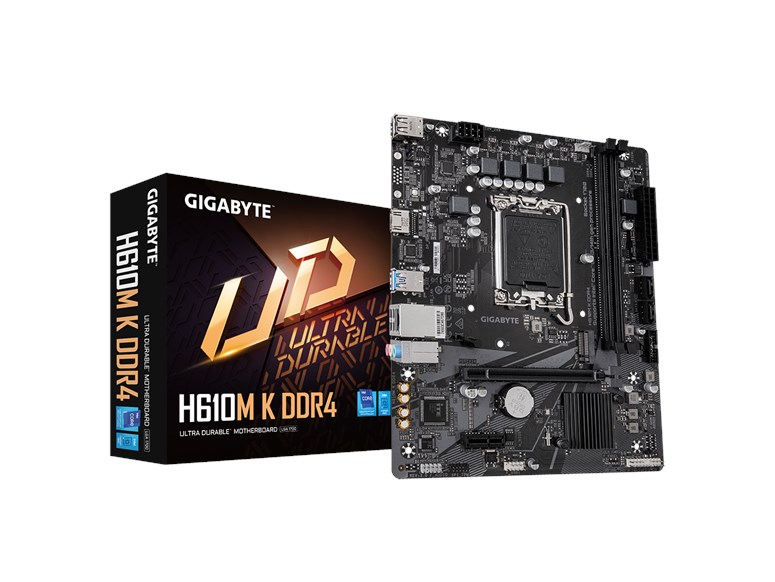

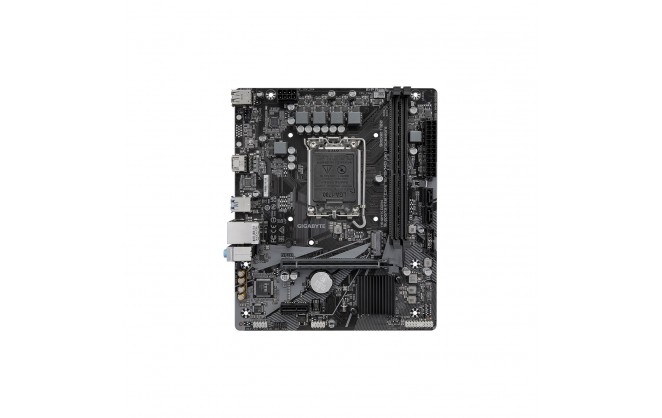

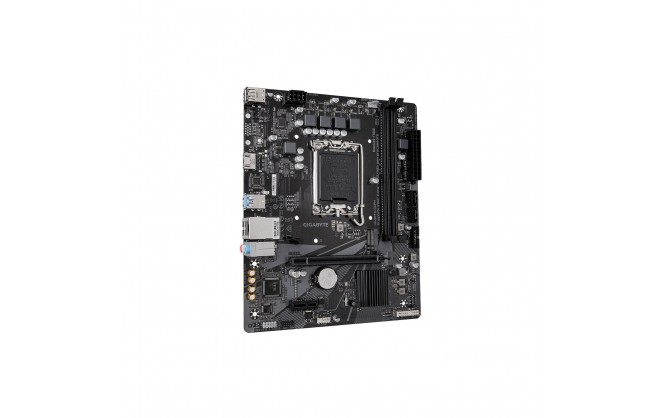

Gigabyte H610M K DDR4 Motherboard
Gigabyte H610M K DDR4 mATX Socket 1700 Motherboard
CPU
| CPU Socket | Socket 1700 |
| CPU Brand | Intel |
| Installed Processors (Max) | 0 (1) |
| Supported Processor Manufacturer | Intel |
| Supported Processors | 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors |
| 64-bit Support | Yes |
| Socket | LGA1700 |

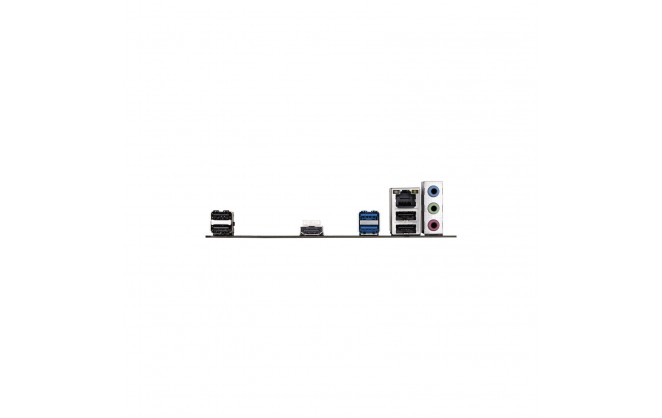

Rear Panel I/O Ports
| USB Ports | 2 x USB 3.0 4 x USB 2.0 |
| HDMI Port | 1 x HDMI 2.1 |
| RJ-45 Ports | 1 x RJ-45 |
| Audio Line In Ports | 1 x 3.5mm Jack |
| Audio Line Out Ports | 1 x 3.5mm Jack |
| Microphone In Port | 1 x 3.5mm Jack |
Internal I/O Connectors
| SATA Connectors | 2 x SATA III |
| USB Connectors | 1 x USB 3.0 header (supports 2 ports) 1 x USB 2.0 header (supports 2 ports) |
| Front Panel Connectors | 1 x Front Panel 1 x Front Audio |
| Cooling Fan Support | 1 x CPU fan header 1 x System fan header |
| TPM Header | 1 x TPM header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only) |
| Power Connector Port | 1 x 24-pin ATX 1 x 8-pin EPS |
| Other Connectors | 1 x M.2 slot, Socket 3, M Key, Type 2260/2280 (PCIe Gen3) |
Memory
| Memory Bus Speed | Up to 3200 MHz |
| Memory Type | DDR4 |
| Maximum RAM | 64 GB |
| Memory Slot | 2 x DIMM |
Motherboard
| Northbridge | Intel H610 |
| RAID Supported | Yes |
| SATA Supported | Yes |
Expansion
| Number of PCI Express Slots | 1 x PCI Express 4.0 x16 slot 1 x PCI Express 3.0 x1 slot |
Graphics Device
| Integrated Graphics Supported | Yes |
Warranty
| Warranty | 3 Years |
Sound
| Integrated Sound | Realtek |
Network
| Integrated Network | Realtek |
| Network Speeds Supported | Up to 1 Gbps |
| Wireless LAN | No |
| Bluetooth | No |
System Requirements
| Operating Systems Supported | Microsoft Windows 11 |
System
| Jumpers | 1 x Clear CMOS |
| Software Included (may be trial or restricted) | Yes |
| Drivers | Yes |
Physical
| Form Factor | mATX Motherboard |
| Width | 185 mm |
| Length | 226 mm |
Key Features
| RDIMM Memory Supported | No |
| RDIMM Memory Required | No |
| Wireless Network | No |
| Motherboard Width | 185 mm |
| Motherboard Height | 226 mm |
| mSATA Supported | No |
| U.2 Supported | No |
| Main Colour | Black |
| Memory Channel | Dual |
| On-board Audio Type | 7.1 |
| Number of SATA Ports | 2 port(s) |
| Number of USB Ports | 6 port(s) |
| USB 3.0 Support | Yes |
| Multi GPU Support | No |
| VGA Connection | No |
| DVI Connection | No |
| HDMI Connection | Yes |
| DisplayPort Connection | No |
| Motherboard Form Factor | mATX |
| Motherboard (EPS) Power Connectors | 4+4-Pin |
| Motherboard Chipset | Intel H610 |
| Thunderbolt | No |
| Motherboard Model | Gigabyte H610M K DDR4 |
| USB 3.1 Support | No |
| Internal USB3.0 Header | Yes |
| M.2 Support | Yes |
| On-board RGB Control | None |
| RGB Header Type | None |
| Addressable RGB | No |
| Internal USB Type-C Header | No |
| Power Requirement (auto) | 60 W |
| Max Memory Speed Supported (Non-overclocked) | 3200 MT/s |
| CPU Power Pins (female) | 8 |
| Total M.2 Slots | 1 |
| Maximum NVMe M.2 ports | 1 |
| SATA ports | 2 |
| No. of front USB2.0 ports supported | 2 |
| No. of front USB3.0 ports supported | 2 |
Item Details
| Manufacturer | Gigabyte |
| Manufacturer Code | H610M K DDR4 |
| EAN | 4719331851675 |
| UPC | 889523035498 |
