Features• Supports 7th / 6th Gen Intel® Core™ / Pentium® / Celeron® processors for LGA 1151 socket.
• Supports DDR4-2400 Memory.
• DDR4 Boost: Give your DDR4 memory a performance boost.
• Audio Boost: Reward your ears with studio grade sound quality for a HI-FI experience.
• EZ Debug LED: Easiest way to troubleshoot.
• Turbo M.2: Delivering Speeds Up to 32Gb/s, Intel Optane Memory Ready.
• X-Boost: Great tool to boost your USB & Storage performance.
• Double ESD Protection: Double layer grounding motherboard mounting holes.
• Military Class 5, Guard-Pro: Latest evolution in high quality components for best protection and efficiency.
• Click BIOS: Secure and Reliable UEFI BIOS solution.

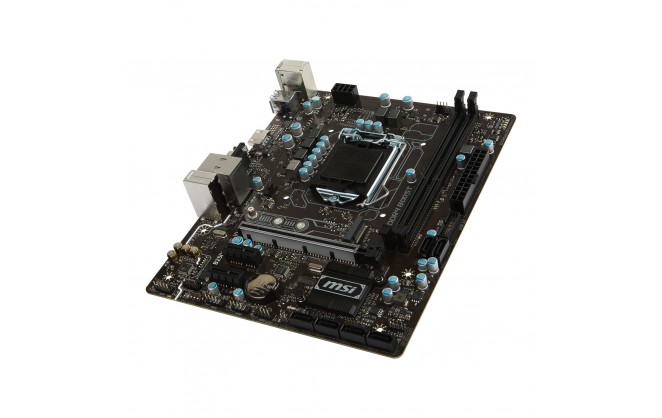

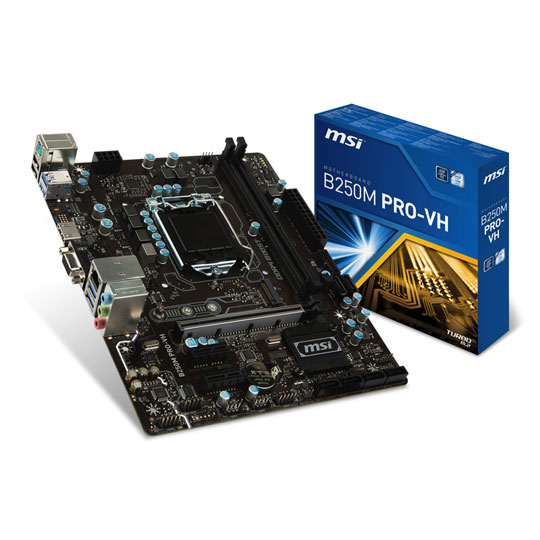

MSI B250M-Pro VH Intel B250 Socket 1151 DDR4 Micro-ATX Motherboard
| CPU | o Supports 6th/7th Gen Intel® Core™ i3/i5/i7 processors, and Intel® Pentium® and Celeron® processors for Socket LGA1151 |
| Chipset | o Intel® B250 Chipset |
| Memory | o 2 x DDR4 memory slots, support up to 32GB- 7th Gen processors support DDR4 2400/ 2133 MHz*- 6th Gen processors support DDR4 2133 MHz*o Dual channel memory architectureo Supports non-ECC, un-buffered memoryo Supports Intel® Extreme Memory Profile (XMP)* Please refer to www.msi.com for more information on compatible memory.** DDR4 memory modules can only run at maximum of 2400 MHz for 7th Gen processors and 2133 MHz for 6 th Gen processors on XMP mode. |
| Onboard Graphics Outputs | o 1 x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hzo 1x HDMI™ port, supports a maximum resolution of 4096x2160@30Hz(7th CPU), 4096x2160@24Hz(6th CPU), 2560x1600@60Hz |
| PCI Slots | o 1 x PCIe 3.0 x16 slotso 2 x PCIe 3.0 x1 slots |
| Storage | o Intel® B250 Chipseto 6 x SATA 6Gb/s portso 1 x M.2 slots (Key M)*- Support up to PCIe 3.0 x4 and SATA 6Gb/- Supports 2242/ 2260/ 2280 storage devices- Intel® Optane™ Memory Ready- Support PCIe 3.0 x4 NVMe U.2 SSD with Turbo U.2 Host card*** The SATA2 port will be unavailable when an M.2 SATA SSD module has been installed in the M.2 slot.** The Turbo U.2 Host Card is not included, please purchase separately. |
| USB | - 6 x USB 3.1 Gen1 (SuperSpeed USB) ports (4 ports on the back panel, 2 ports available through the internal USB connector)ƒ- 6 x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 4 ports available through the internal USB connectors) |
| Audio | o Realtek® ALC887 Codec- 7.1-Channel High Definition Audio |
| LAN | o 1 x Realtek® RTL8111H Gigabit LAN controller |
| Form Factor | o 8.9 in. x 7.3 in. (22.6 cm x 18.5 cm)o Micro-ATX Form Factor |
