Cooling your PC is essential for reliable performance. We've made sure to include enough fan headers with full control to allow you to cool your system any way you want.
Outsmart and outperform your opponents in-game using an array of unique MSI GAMING tools. Clever hardware & software tools, created to keep you one step ahead of the competition and boost your skills.
This MSI GAMING motherboard supports all the latest storage standards. This allows you to connect any ultra-fast storage device, giving you in-game benefits. Start games faster, load levels faster and have a real advantage over your enemies.
Integrating the very best of cutting edge technologies on MSI hardware provides a smooth VR ride. Through joint efforts with major VR brands, combined with unique MSI features geared to VR, MSI brings gamers and VR professionals a vivid and realistic experience in which content truly comes alive.
Get the most immersive sound experience when gaming. MSI Audio Boost delivers the highest sound quality through the use of premium quality audio components. This lets you enjoy breathtaking, game-changing sound to create the most exciting gameplay.
Get ready to crush your enemies on the battlefield with MSI GAMING LAN. Featuring the highest quality components tuned to deliver the best online gaming experience without lag.
MSI motherboards are crammed with features to fuel your gaming rig's memory with more speed, higher overclockability and increased stability.
Founded on experience and with a long history of creating the best performing motherboards packed with smart features, you can count on this motherboard to deliver the best performance under the most extreme conditions. Countless system tuning and troubleshooting tools are at your disposal to push your system to new heights and satisfy even the most demanding tweaker.
Transfer your favorite games, music and movies over USB faster than ever. MSI offers a wide variety of options to connect and boost your USB 3.0 devices, delivering lightning-fast transfer speeds up to 5Gb/s!
With years of experience in creating performance enhancing tools that are easy to use, only the highest quality applications are at your disposal. Use these tools to get the most out of your motherboard and achieve victory when gaming.
Using only the finest quality components and integrating the latest technological innovations delivers the best possible gaming and professional experience. Rigorous quality testing under the most extreme conditions ensures a super reliable, high performance motherboard.
We made sure our BIOS contains all the latest options and is easy to use for everyone. The extensive features let you fine-tune your system to deliver reliable maximum performance when gaming.

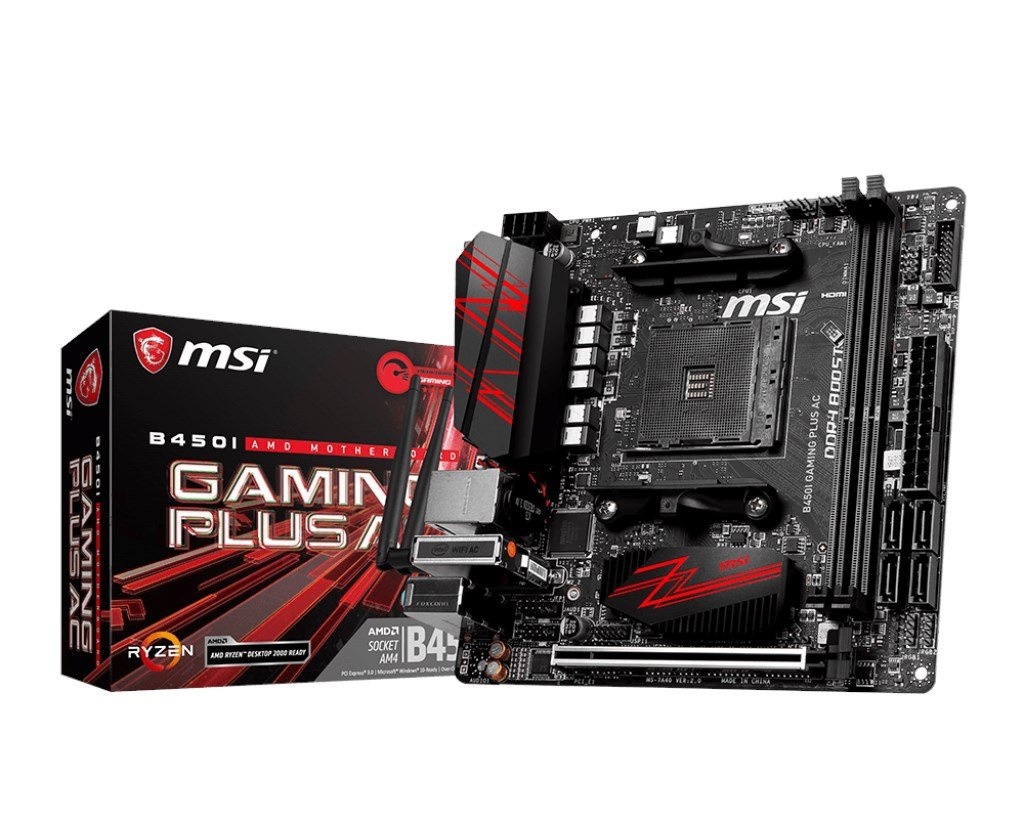

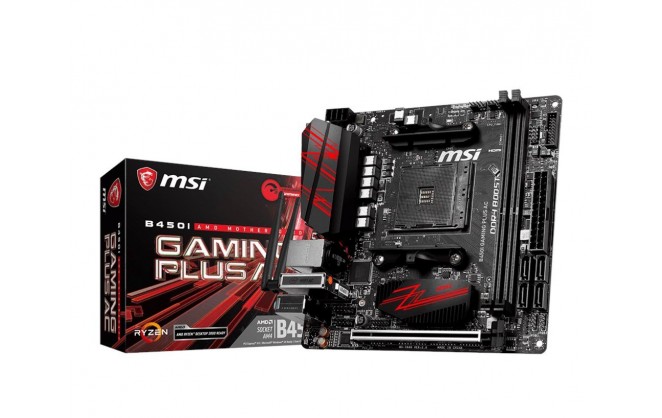

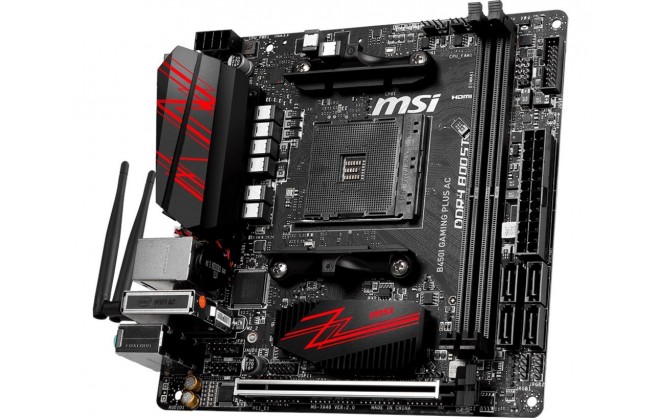

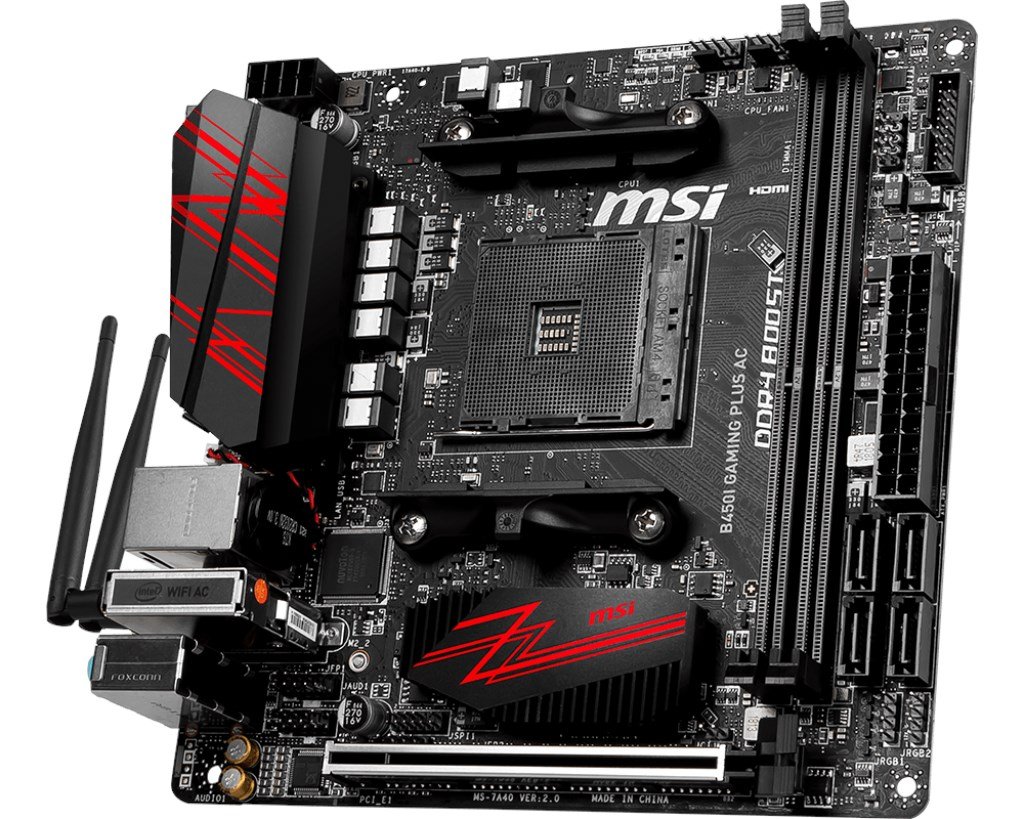

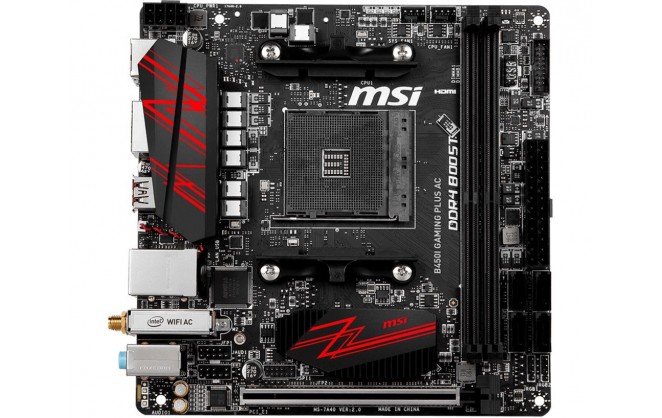

MSI B450I GAMING PLUS AC AM4 DDR4 mITX Motherboard Retail
CPU
| CPU Socket | Socket AM4 |
| CPU Brand | AMD |
| Installed Processors (Max) | 0 (1) |
| Supported Processor Manufacturer | AMD |
| Supported Processors | Ryzen™ 1st and 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics Processors |
| 64-bit Support | Yes |
| Socket | AM4 |

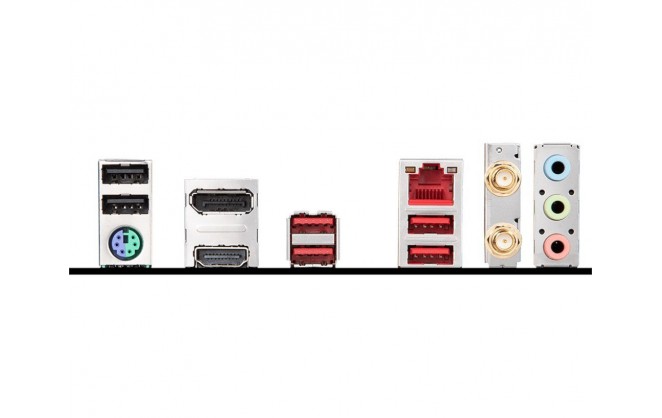

Rear Panel I/O Ports
| USB Ports | 4 x USB 3.0 2 x USB 2.0 |
| DisplayPorts | 1 x DisplayPort |
| HDMI Port | 1 x HDMI |
| Antenna Connectors | 2 x SMA Antennas |
| Keyboard/Mouse Combo Port | 1 x PS/2 |
| RJ-45 Ports | 1 x RJ-45 |
| Audio Line In Ports | 1 x 3.5mm Jack |
| Audio Line Out Ports | 1 x 3.5mm Jack |
| Microphone In Port | 1 x 3.5mm Jack |
Internal I/O Connectors
| SATA Connectors | 4 x SATA III |
| USB Connectors | 1 x USB 3.0 1 x USB 2.0 |
| Front Panel Connectors | 1 x Front Panel 1 x Front Audio |
| Cooling Fan Support | 1 x CPU fan 1 x System fan |
| Chassis Intrusion Connector | 1 x Chassis Intrusion |
| Power Connector Port | 1 x 20+4-pin ATX 1 x 4+4-pin ATX12V |
| Other Connectors | 1 x M.2, Key M, PCIe 3.0 x4/SATA (Type 2280) 2 x 5050 RGB LED headers |
Memory
| Memory Bus Speed | 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz |
| Memory Type | DDR4 |
| Maximum RAM | 32 GB |
| Memory Slot | 2 x DIMM |
Motherboard
| Chipset Manufacturer | AMD |
| Northbridge | B450 |
| RAID Supported | Yes |
| RAID Format | RAID 0, 1, 10 |
| SATA Supported | Yes |
Expansion
| Number of PCI Express Slots | 1 x PCI Express 3.0 x16 (@ x16, or x8 with G-Series CPUs) |
Graphics Device
| Integrated Graphics Supported | Yes |
Sound
| Integrated Sound | Realtek® ALC887 |
Network
| Integrated Network | Realtek® 8111H |
| Network Speeds Supported | 10/100/1000 Mbps |
| Wireless LAN | Yes |
| Wireless Network Speed | Up to 433 Mbps |
| Bluetooth | Yes |
| Bluetooth Version | 4.2, 4.1, BLE, 4.0, 3.0, 2.1, 2.1+EDR |
System Requirements
| Operating Systems Supported | Windows® 10 64-bit |
System
| Jumpers | 1 x Clear CMOS |
| Drivers | Included |
Physical
| Form Factor | Mini-ITX Motherboard |
| In The Box | B450I GAMING PLUS AC Motherboard User Guide Quick Start Guide Warranty Card Support DVD 2 x SATA Cables I/O Shield |
| Width | 170 mm |
| Length | 170 mm |
Key Features
| Firewire | No |
| Wireless Network | Yes |
| Memory Channel | Dual |
| On-board Audio Type | 7.1 |
| Number of SATA Ports | 4 port(s) |
| Number of USB Ports | 6 port(s) |
| SATA III Support | Yes |
| USB 3.0 Support | Yes |
| Multi GPU Support | No |
| VGA Connection | No |
| DVI Connection | No |
| HDMI Connection | Yes |
| DisplayPort Connection | Yes |
| Motherboard Form Factor | ITX |
| Motherboard Power Connectors | 4 + 4-Pin |
| Motherboard Chipset | AMD B450 |
| Thunderbolt | No |
| Motherboard Model | MSI B450I GAMING PLUS AC |
| WiFi Speed | 433 Mbps |
| USB 3.1 Support | No |
| Internal USB3.0 Header | Yes |
| M.2 Support | Yes |
| On-board RGB Control | None |
| Skip Audio Test | No |
| RGB Header Type | None |
| Addressable RGB | No |
Warranty
| Warranty | 1 Year |
Item Details
| Manufacturer | MSI |
| Manufacturer Code | B450I GAMING PLUS AC |
| EAN | 4719072587000 |
| Condition | New |
