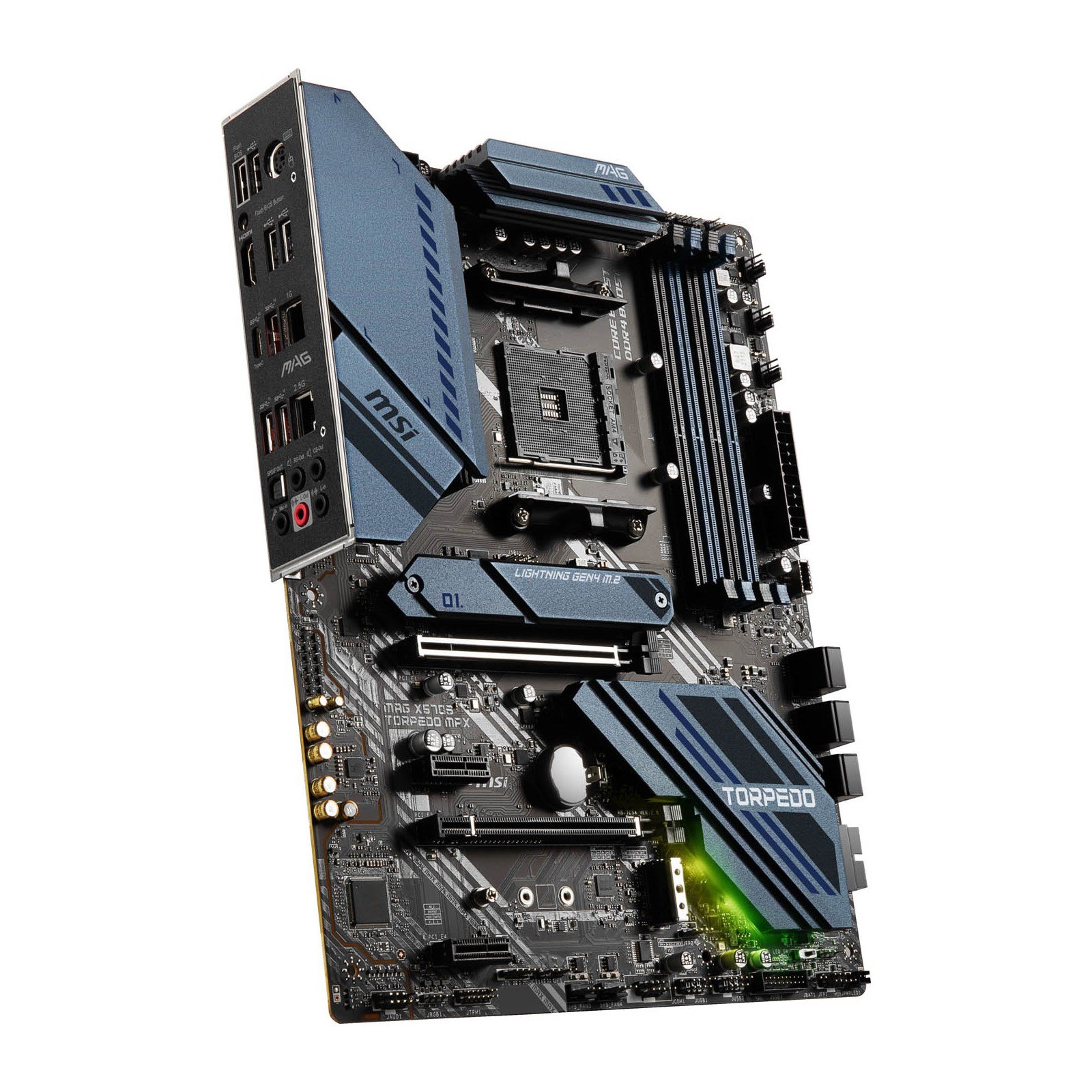

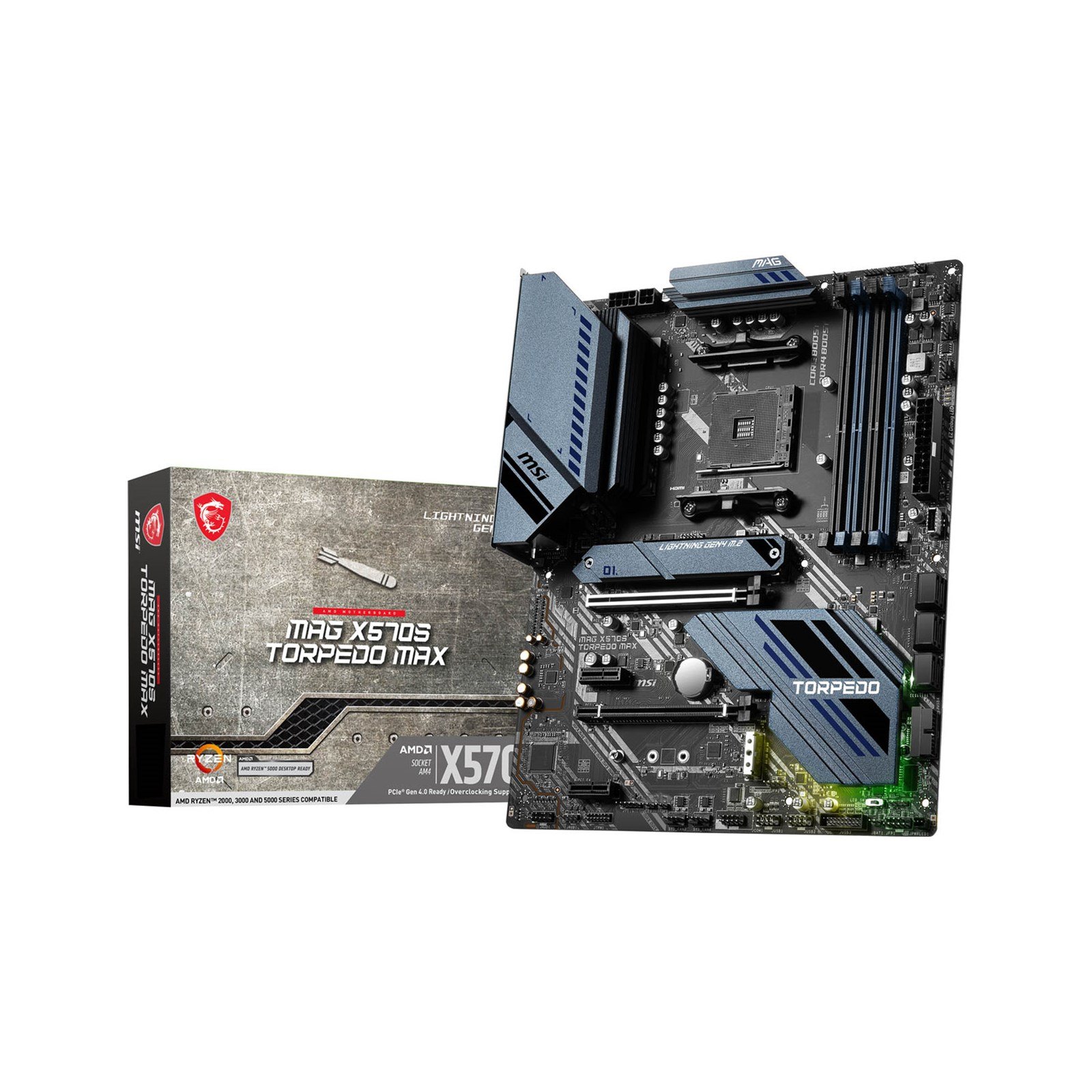

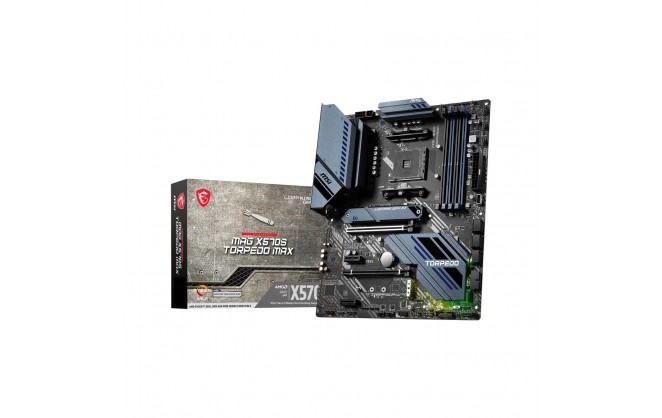

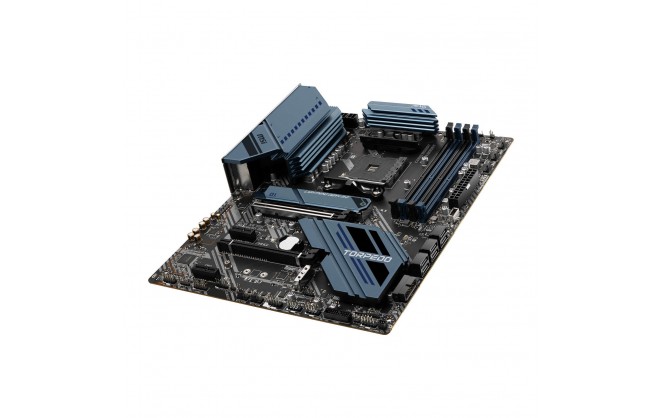

MSI MAG X570S TORPEDO MAX AMD Motherboard
CPU
| CPU Socket | Socket AM4 |
| CPU Brand | AMD |
| Installed Processors (Max) | 0 (1) |
| Supported Processor Manufacturer | AMD |
| Supported Processors | AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors |
| 64-bit Support | Yes |
| Socket | AM4 |

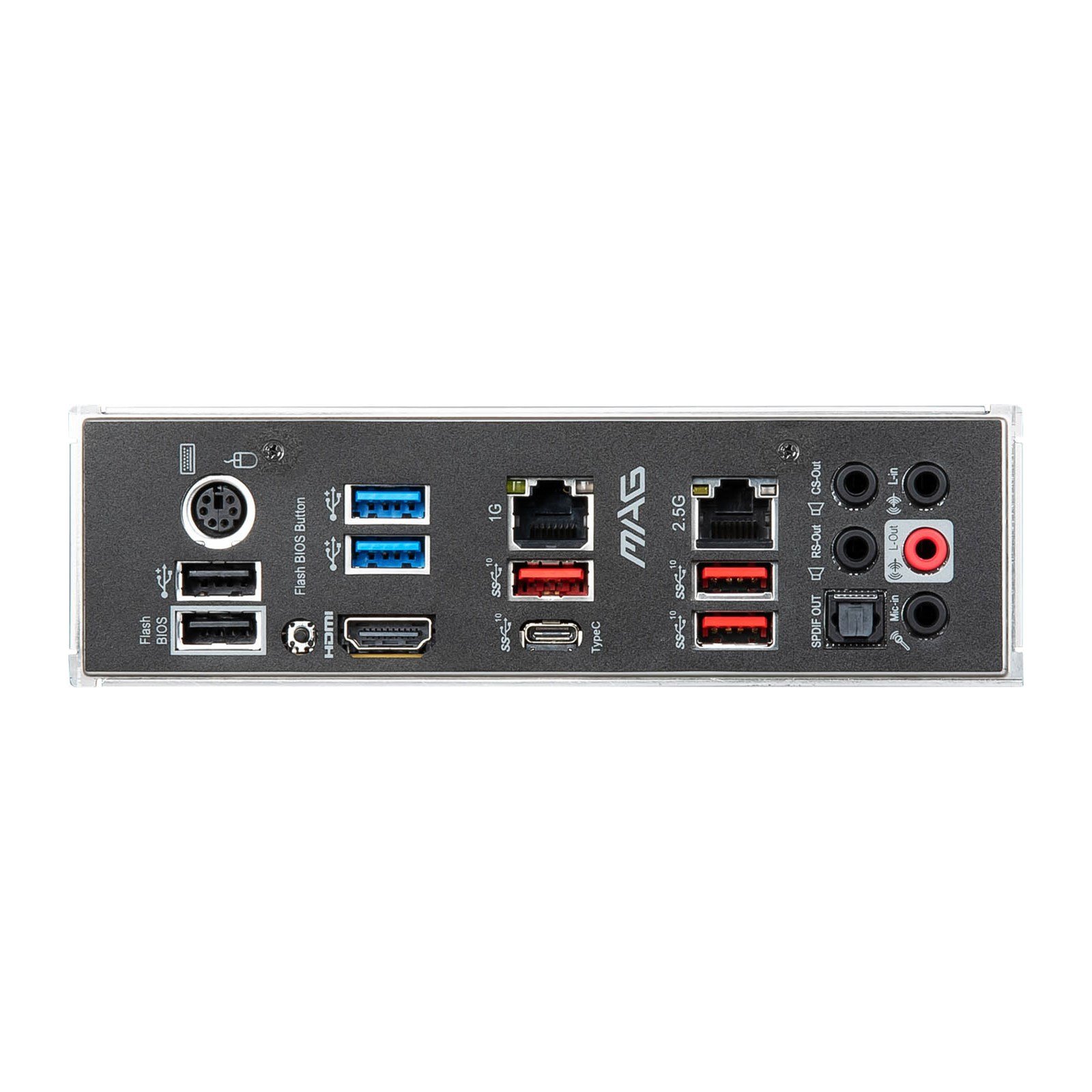

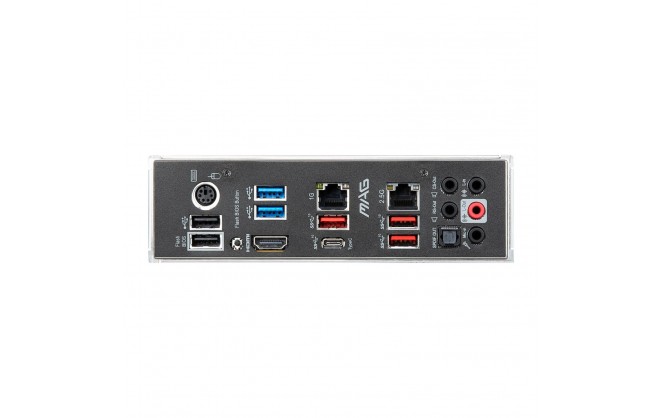

Rear Panel I/O Ports
| USB Ports | 1 x USB 3.1 Type-C 3 x USB 3.1 2 x USB 3.0 2 x USB 2.0 |
| HDMI Port | 1 x HDMI 2.1 |
| Keyboard/Mouse Combo Port | 1 x PS/2 |
| RJ-45 Ports | 2 x RJ-45 |
| Audio Line In Ports | 1 x 3.5mm Jack |
| Audio Line Out Ports | 3 x 3.5mm Jacks |
| Microphone In Port | 1 x 3.5mm Jack |
| S/PDIF Port | 1 x S/PDIF Optical Out |
Internal I/O Connectors
| SATA Connectors | 6 x SATA III |
| USB Connectors | 1 x USB 3.1 Type-C header (supports 1 port) 2 x USB 3.0 headers (supports 4 ports) 2 x USB 2.0 headers (supports 4 ports) |
| Front Panel Connectors | 1 x Front Panel 1 x Front Audio |
| Cooling Fan Support | 1 x CPU fan header 1 x Water Pump header 4 x System fan headers |
| Serial Connectors | 1 x COM header |
| Chassis Intrusion Connector | 1 x Chassis Intrusion header |
| TPM Header | 1 x TPM header |
| Power Connector Port | 1 x 24-pin ATX 1 x 8-pin EPS 1 x 4-pin EPS |
| Other Connectors | 1 x M.2 slot, Key M, Type 2280/22110 (PCIe 4.0, PCIe 3.0 or SATA) 1 x M.2 slot, Key M, Type 2242/2260/2280 (PCIe 4.0, PCIe 3.0 or SATA) 2 x 3-pin ARGB LED headers 2 x 4-pin RGB LED headers |
Memory
| Memory Bus Speed | Up to 5100 MHz |
| Memory Type | DDR4 |
| Maximum RAM | 128 GB |
| Memory Slot | 4 x DIMM |
Motherboard
| Chipset Manufacturer | AMD |
| Northbridge | X570 |
| RAID Supported | Yes |
| RAID Format | RAID 0, 1, 10 |
| SATA Supported | Yes |
Expansion
| Number of PCI Express Slots | 2 x PCI Express 4.0 x16 slots (@ x16/x4) 2 x PCI Express 3.0 x1 slots |
Graphics Device
| Integrated Graphics Supported | Yes |
Sound
| Integrated Sound | Realtek ALC4080 |
Warranty
| Warranty | 3 Years |
Network
| Integrated Network | Realtek 8125B Realtek 8111H |
| Network Speeds Supported | 8125B: Up to 2.5 Gbps 811H: Up to 1 Gbps |
System Requirements
| Operating Systems Supported | Microsoft Windows 10 64-bit |
System
| Software Included (may be trial or restricted) | Yes |
| Drivers | Yes |
| SLi/Crossfire Features | Supports AMD CrossFire Technology |
Physical
| Form Factor | ATX Motherboard |
| In The Box | Motherboard User Manual Quick Installation Guide 2 x SATA Cables M.2 Screw/Standoff Sets USB Drive MSI Case Badge MAG Stickers Reward Program/Shout Out Flyer MSI Product Catalog Product Registration Card |
| Width | 305 mm |
| Length | 244 mm |
Key Features
| RGB Header Type | 3-Pin ARGB |
| Addressable RGB | Yes |
| Internal USB Type-C Header | Yes |
| Firewire | No |
| Wireless Network | No |
| Memory Channel | Dual |
| On-board Audio Type | 7.1 |
| Number of SATA Ports | 6 port(s) |
| Number of USB Ports | 8 port(s) |
| SATA III Support | Yes |
| USB 3.0 Support | Yes |
| Multi GPU Support | ATi CrossFire |
| VGA Connection | No |
| DVI Connection | No |
| HDMI Connection | Yes |
| DisplayPort Connection | No |
| Motherboard Form Factor | ATX |
| Motherboard Power Connectors | 4 + 8-Pin |
| Motherboard Chipset | AMD X570 |
| Thunderbolt | No |
| Motherboard Model | MSI MAG X570S TORPEDO MAX |
| USB 3.1 Support | Yes |
| Internal USB3.0 Header | Yes |
| M.2 Support | Yes |
| On-board RGB Control | MSI Mystic Sync |
| Memory Speed | 5100 MHz |
Wireless Communications
| Bluetooth | No |
Item Details
| Manufacturer | MSI |
| Manufacturer Code | MAG X570S TORPEDO MAX |
| EAN | 4719072868772 |
| UPC | 824142263730 |
| Condition | New |
