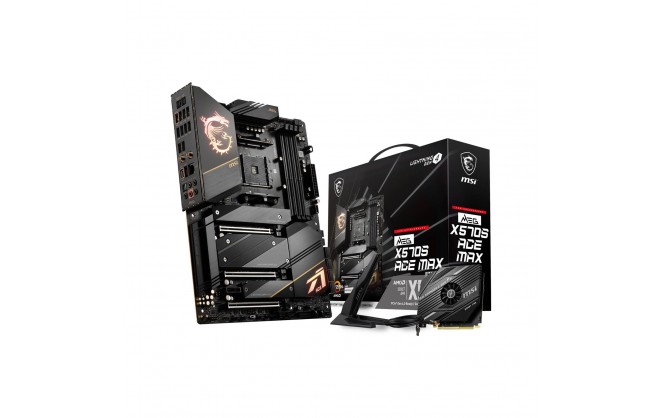

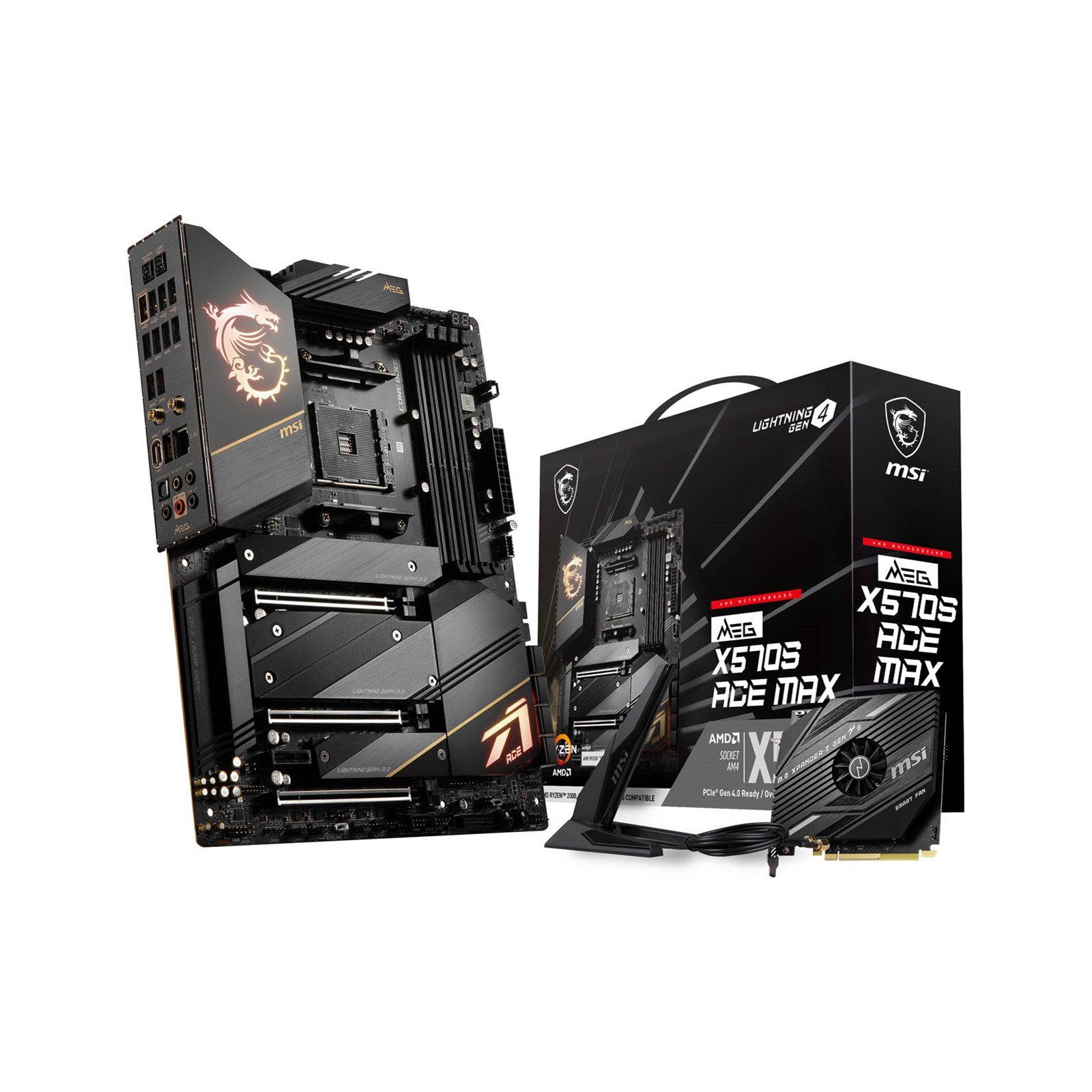

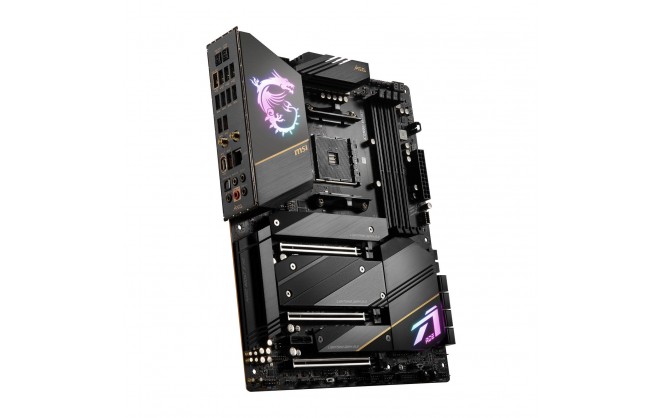

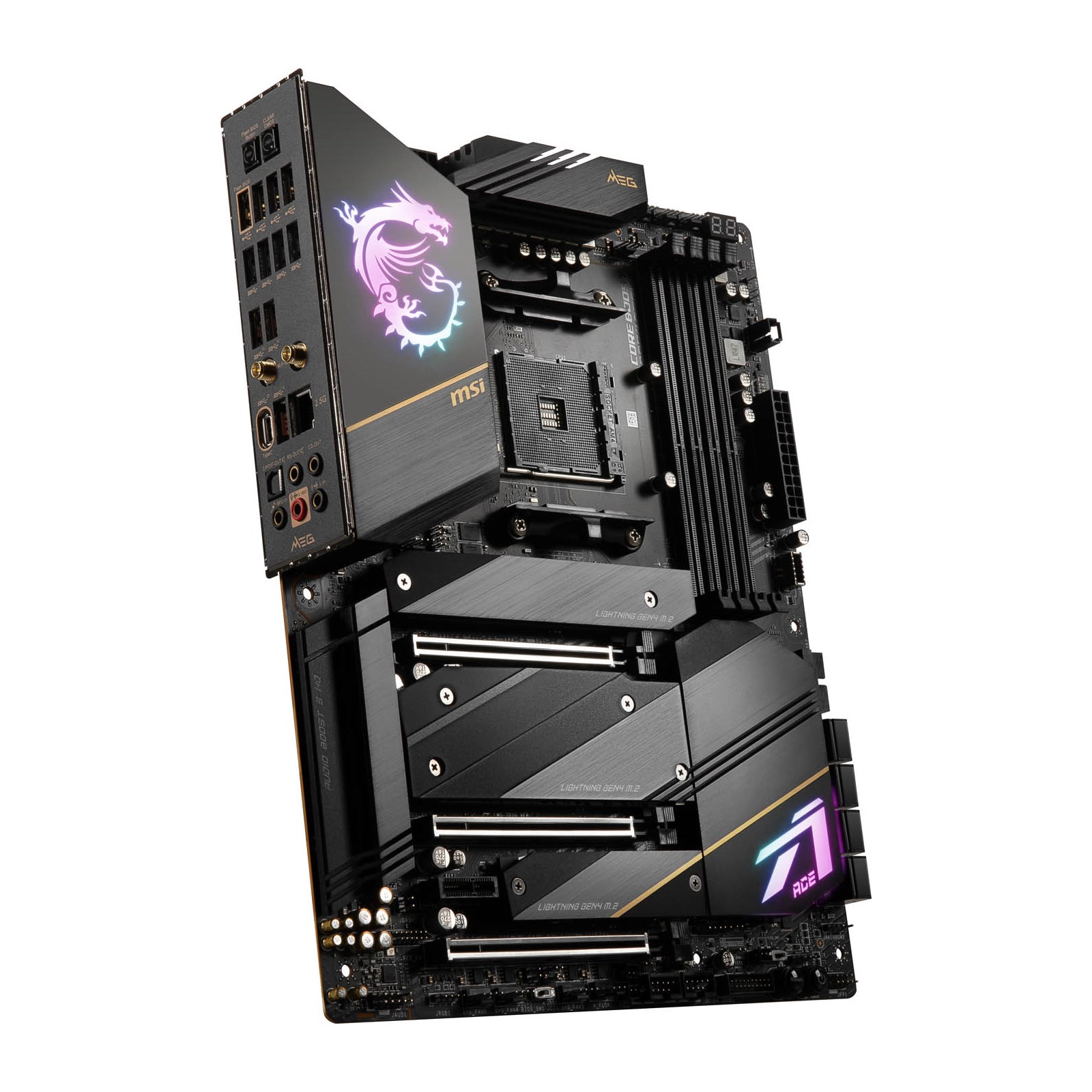

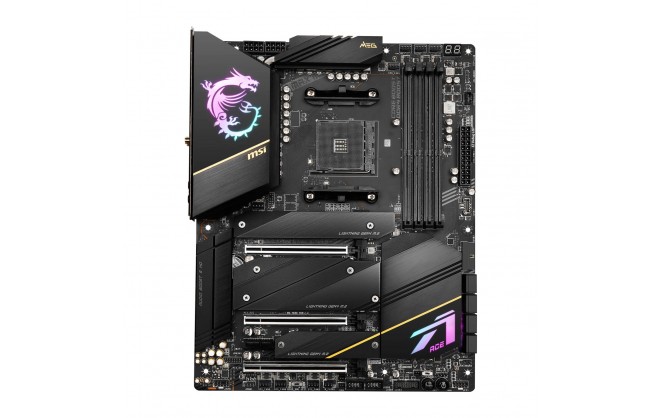

MSI MEG X570S ACE MAX AMD Socket AM4 Motherboard

  • Part Number: MEG X570S ACE MAX
  • Manufacturer: MSI
  • Quickfind Code: 135817
  • Stock: Out Stock

Contact for availability

Product Features:
  • Condition: New
  • Socket Type AM4
  • Chipset X570S
  • Form Factor ATX
  • Memory Type DDR4
  • CPU Type AMD
+ Read More Information

Share:

Product Description

Main Features

  • Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors
  • Supports DDR4 Memory, Dual Channel 5300(OC) MHz+
  • Extreme Power Design: Direct 16+2+1 phases with 90A Smart Power Stage and dual CPU power connectors to unleash the maximum performance.
  • Quadruple M.2 Connectors: Onboard 4x M.2 connectors for the maximum storage performance with Lightning Gen 4 solution. Double-sided M.2 Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster.
  • Premium Thermal Solution: Aluminum Cover, VRM Heat-pipe, 7W/mK thermal pads, Double-sided M.2 Shield Frozr and MOSFET Baseplate to ensure the extreme performance with low temp.
  • 2.5G LAN with latest Wi-Fi 6E solution: Onboard 2.5G LAN with LAN manager and latest Wi-Fi 6E solution which supports 6GHz spectrum delivering the best online gaming experience.
  • Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2 with M.2 double-side Shield Frozr, Lightning USB 20G.
  • Server Grade PCB with 2oz Thickened Copper: Provides higher performance and long-lasting system stability without any compromise.
  • Audio Boost 5 HD: Ultimate audio solution with premium audio processor combining ESS audio DAC and amplifier deliver the breathtaking experience.
Technical Specification

MSI MEG X570S ACE MAX AMD Socket AM4 Motherboard

CPU

CPU SocketSocket AM4
CPU BrandAMD
Installed Processors (Max)0 (1)
Supported Processor ManufacturerAMD
Supported ProcessorsRyzen 5000 Series, 5000 G-Series 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors
64-bit SupportYes
SocketAM4

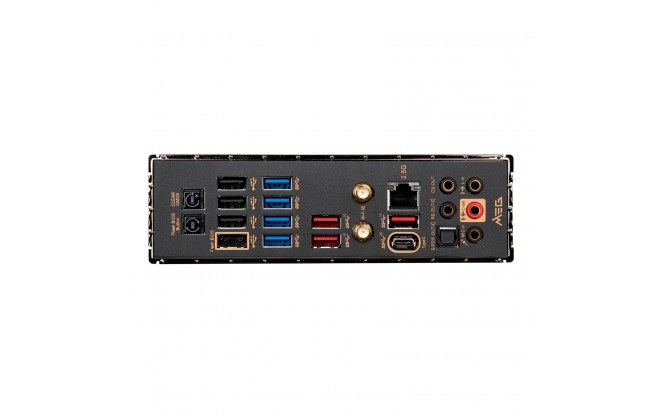

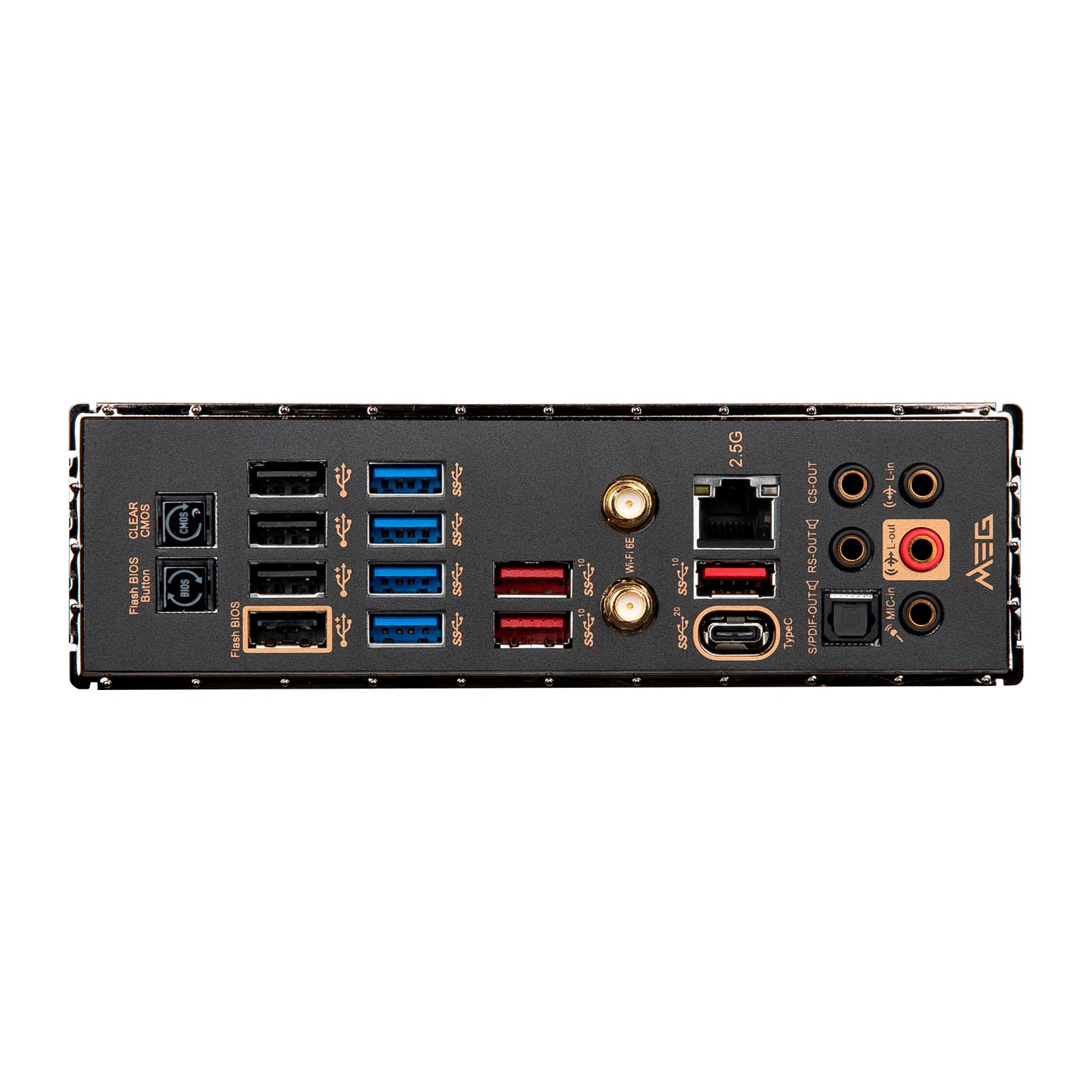

Rear Panel I/O Ports

USB Ports1 x USB-C 3.2
3 x USB 3.1
4 x USB 3.0
4 x USB 2.0
RJ-45 Ports1 x RJ-45
Audio Line In Ports1 x 3.5mm Jack
Audio Line Out Ports3 x 3.5mm Jacks
Microphone In Port1 x 3.5mm Jack
S/PDIF Port1 x S/PDIF Optical Out
Antenna Connector(s)2 x SMA Antennas

Internal I/O Connectors

SATA Connectors8 x SATA III
USB Connectors1 x USB-C 3.1 header (supports 1 port)
2 x USB 3.0 headers (supports 4 ports)
2 x USB 2.0 headers (supports 4 ports)
Front Panel Connectors1 x Front Panel
1 x Front Audio
Cooling Fan Support1 x CPU fan header
1 x Water Pump header
6 x System fan headers
Chassis Intrusion Connector1 x Chassis Intrusion header
TPM Header1 x TPM header
Power Connector Port1 x 24-pin ATX
2 x 8-pin EPS
Other Connectors2 x M.2 slots, Key M, Type 2280/22110 (PCIe Gen4, PCIe Gen3, SATA)

1 x M.2 slot, Key M, Type 2260/2280 (PCIe Gen4, PCIe Gen3, SATA)
1 x M.2 slot, Key M, Type 2260/2280 (PCIe Gen4, PCIe Gen3)
2 x Thermal Sensor headers
1 x Water Flow Meter header
1 x Tuning Controller header
2 x 3-pin ARGB LED headers
1 x 4-pin RGB LED header
1 x 3-pin CORSAIR LED header

Memory

Memory Bus SpeedUp to 5300 MHz
Memory TypeDDR4
Maximum RAM128 GB
Memory Slot4 x DIMM

Motherboard

Chipset ManufacturerAMD
NorthbridgeX570
RAID SupportedYes
RAID FormatRAID 0, 1, 10
SATA SupportedYes

Expansion

Number of PCI Express Slots2 x PCI Express 4.0 x16 slots (@ x16/x0 or x8/x8)
1 x PCI Express 4.0 x16 slot (@ x8)
1 x PCI Express 4.0 x1 slot

Graphics Device

Integrated Graphics SupportedNo

Sound

Integrated SoundRealtek ALC4082

Warranty

Warranty3 Years

Network

Integrated NetworkRealtek RTL8125B
Network Speeds SupportedUp to 2.5 Gbps
Wireless LANYes (Wi-Fi 6)
Wireless Network SpeedUp to 2.4 Gbps
BluetoothYes
Bluetooth Version5.2

System Requirements

Operating Systems SupportedMicrosoft Windows 10 64-bit

System

Software Included (may be trial or restricted)Yes
DriversYes
SLi/Crossfire FeaturesSupports NVIDIA SLI Technology
Supports AMD CrossFire Technology

Physical

Form FactorATX Motherboard
In The BoxMotherboard
Wi-Fi Antenna
USB Drive
M.2 XPANDER-Z GEN4 S
Cleaning Brush
Case Badge
User Manual
Quick Installation Guide
MEG Stickers
Cable Stickers
Reward Program / Shout Out Flyer
Product Catalog
Registration Card
M.2 Screw / Standoff Sets
Screwdrivers
2 x Thermistor Cable
1-to-2 RGB LED Extension Y Cable
CORSAIR RGB LED Extension Cable
Rainbow RGB LED Extension Cable
4 x SATA Cables
Width305 mm
Length244 mm

Key Features

WiFi Speed2400 Mbps
USB 3.1 SupportYes
Internal USB3.0 HeaderYes
M.2 SupportYes
On-board RGB ControlMSI Mystic Sync
Memory Speed5300 MHz
RGB Header Type3-Pin ARGB
Addressable RGBYes
Internal USB Type-C HeaderYes
FirewireNo
Wireless NetworkYes
Memory ChannelDual
On-board Audio Type7.1
Number of SATA Ports8 port(s)
Number of USB Ports12 port(s)
SATA III SupportYes
USB 3.0 SupportYes
Multi GPU SupportBoth
VGA ConnectionNo
DVI ConnectionNo
HDMI ConnectionNo
DisplayPort ConnectionNo
Motherboard Form FactorATX
Motherboard Power Connectors8 + 8-Pin
Motherboard ChipsetAMD X570
ThunderboltNo
Motherboard ModelMSI MEG X570S ACE MAX

Item Details

ManufacturerMSI
Manufacturer CodeMEG X570S ACE MAX
EAN4719072872397
UPC824142266021
ConditionNew
