DIY FRIENDLY
MSI motherboards feature tons of convenient and smart design, such as convenient pin-header keep out zone, friendly SATA & USB location and so on, so DIY users can pick and choose any gaming rig they want.
ENHANCED PERFORMANCE
MSI motherboards feature all the latest solution for enthusiast gamers and prosumers. CPU and memory enhancement and fast storage and USB transfer speed are ready to be on the battlefield.
IN-GAME ADVANTAGE
MSI motherboards are built with enhanced audio and advanced LAN networking capabilities that turn any gaming experience into an immerse one.
EXHILARATING AND INSPIRING
Each MSI motherboard is built based on the specific topic in order to match different tastes and favors. Furthermore, MSI also adopts the modern style to design the heatsink through huge surface and sleek but simple cuts in order to make the heatsink and appearance looks ripped and powerful. Combined with neutral color, such as black, grey and silver, as the main background, MSI motherboard can perfect fit different RGB LED effects and strongly shows the gamers tunes.
LOYAL COMRADE
With years of experience, MSI is no stranger to building high-performance motherboards. Our R&D and engineering teams have reviewed countless designs, evaluated a wide selection of high quality components, and developed products for reliability even under extreme conditions.

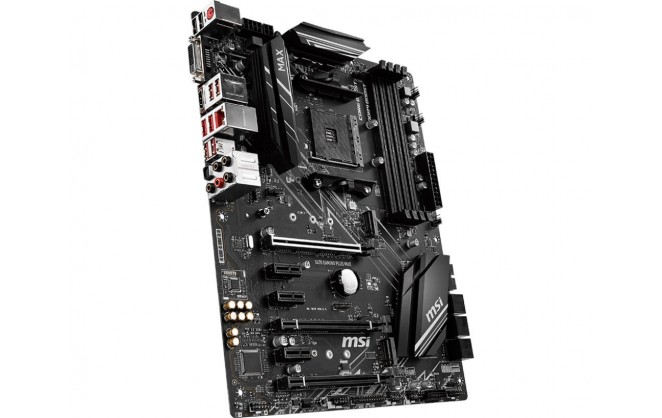

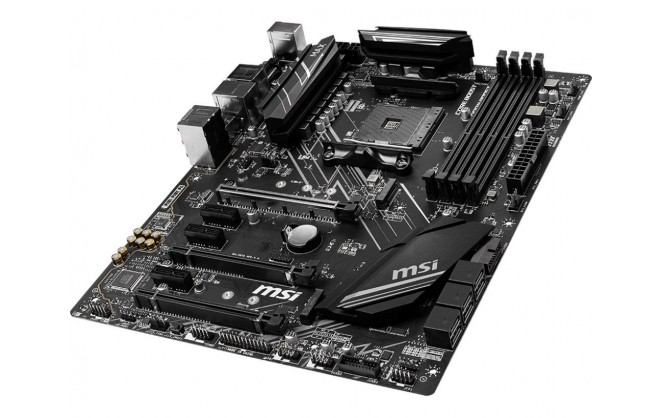

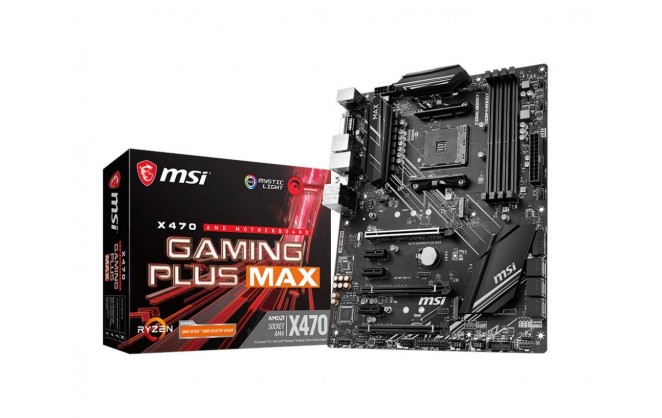

MSI X470 GAMING PLUS MAX AM4 DDR4 Retail ATX Motherboard
CPU
| CPU Socket | Socket AM4 |
| CPU Brand | AMD |
| Installed Processors (Max) | 0 (1) |
| Supported Processor Manufacturer | AMD |
| Supported Processors | Supports 1st, 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics / Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4 |
| 64-bit Support | Yes |
| Socket | AM4 |
Rear Panel I/O Ports
| USB Ports | 2 x USB 3.1 4 x USB 3.0 2 x USB 2.0 |
| HDMI Port | 1 x HDMI |
| Keyboard/Mouse Combo Port | 1 x PS/2 |
| RJ-45 Ports | 1 x RJ-45 |
| Digital Port | 1 x DVI-D |
| Audio Line In Ports | 1 x 3.5mm Jack |
| Audio Line Out Ports | 3 x 3.5mm Jacks |
| Microphone In Port | 1 x 3.5mm Jack |
| S/PDIF Port | 1 x S/PDIF Optical Out |
Internal I/O Connectors
| SATA Connectors | 6 x SATA |
| USB Connectors | 2 x USB 3.0 2 x USB 2.0 |
| Front Panel Connectors | 1 x Front Panel 1 x Front Audio |
| Cooling Fan Support | 1 x CPU fan 1 x PUMP fan 4 x System fans |
| Parallel Connectors | 1 x Parallel |
| Serial Connectors | 1 x COM |
| Chassis Intrusion Connector | 1 x Chassis Intrusion |
| TPM Header | 1 x TPM |
| Power Connector Port | 1 x 20+4-pin ATX 1 x 4+4-pin EPS 1 x 4-pin EPS |
| Other Connectors | 1 x M.2, Socket 3, Key M (Type 2242/2260/2280/22110) 1 x M.2, Socket 3, Key M (Type 2242/2260/2280) 2 x 5050 RGB LED strip 12V connectors |
Memory
| Memory Bus Speed | 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866/ 4000/ 4133 MHz |
| Memory Type | DDR4 |
| Maximum RAM | 64 GB |
| Memory Slot | 4 x DIMM |
Motherboard
| Chipset Manufacturer | AMD |
| Northbridge | X470 |
| RAID Supported | Yes |
| RAID Format | RAID 0, 1, 10 |
| RAID Controllers | X470 Chipset |
| SATA Supported | Yes |
| SATA Controllers | X470 Chipset |
Expansion
| Number of PCI Express Slots | 2 x PCI Express 3.0 x16 (@ x16, x8/x8) 1 x PCI Express 2.0 x16 (@ x4) 3 x PCI Express 2.0 x1 |
Graphics Device
| Integrated Graphics Supported | Yes |
Sound
| Integrated Sound | Realtek® ALC892 |
Network
| Integrated Network | Realtek® 8111H |
| Network Speeds Supported | 10/100/1000 Mbps |
| Wireless LAN | No |
| Bluetooth | No |
System Requirements
| Operating Systems Supported | Microsoft® Windows® 10 64-bit |
System
| Jumpers | 1 x Clear CMOS |
| Drivers | Yes |
Physical
| Form Factor | ATX Motherboard |
| In The Box | X470 GAMING PLUS MAX Motherboard User Guide Shout Out Flyer Quick Installation Guide Standoff Notice SATA Cable Lables 2 x SATA Cables I/O Shield Warranty Card MSI Case Badge Support Disc |
| Width | 305 mm |
| Length | 244 mm |
Key Features
| M.2 Support | Yes |
| On-board RGB Control | MSI Mystic Sync |
| Memory Speed | 4133 MHz |
| Skip Audio Test | No |
| RGB Header Type | 4-Pin RGB |
| Addressable RGB | No |
| Firewire | No |
| Wireless Network | No |
| Memory Channel | Dual |
| On-board Audio Type | 7.1 |
| Number of SATA Ports | 6 port(s) |
| Number of USB Ports | 8 port(s) |
| SATA III Support | Yes |
| USB 3.0 Support | Yes |
| Multi GPU Support | No |
| VGA Connection | No |
| DVI Connection | Yes |
| HDMI Connection | Yes |
| DisplayPort Connection | No |
| Motherboard Form Factor | ATX |
| Motherboard Power Connectors | 4 + 8-Pin |
| Motherboard Chipset | AMD X470 |
| Thunderbolt | No |
| Motherboard Model | MSI X470 GAMING PLUS MAX |
| USB 3.1 Support | Yes |
| Internal USB3.0 Header | Yes |
Warranty
| Warranty | 1 Year |
Item Details
| Manufacturer | MSI |
| Manufacturer Code | X470 GAMING PLUS MAX |
| EAN | 4719072667658 |
| UPC | 824142194799 |
| Condition | New |
