1000W MSI MPG A1000GS PCIE5 Modular 80+ Gold PSU

Part Number: MPG A1000GS PCIE5
Manufacturer: MSI
Quickfind Code: 140511

Stock: In Stock

£153.88 ex. vat
£184.66 inc. vat

Product Features:

Condition: New
Capacity 1000W
Connection Fully Modular
Form Factor ATX 3.1
Certification 80+ Gold
Main Colour Black

+ Read More Information

MPG A1000GS PCIE5

The MPG A1000GS PCIE5 provides 80 PLUS Gold certified power efficiency, Dual-native 12V-2x6 connectors to support the latest gaming graphics cards, and is ATX 3.1-ready. Cooling is managed by a durable and silent 135 mm Fluid-dynamic bearing (FDB) fan. Outfitted with a half bridge LLC DC-to-DC topology and semi-digital design, and a fully modular design, embossed Jacket cables with pre-installed cable organizers simplify cable management for a cleaner and more efficient setup.

Dual PCIe 5.1 GPU Support (Dual-native 12V-2x6 Connectors)

Through the Dual-native 12V-2x6 PCIe connectors, the PSU can deliver up to 600W of power per port to a PCIe 5.1 GPU. The new connector structure, along with its distinctive yellow color, helps to easily identify and prevent loose connections.

Gold Efficiency Certified

The efficiency of a power supply directly impacts system performance and power consumption.

A Gold certification represents an exceptional standard for energy efficiency, offering up to 90% efficiency. This ensures reduced power consumption while maintaining peak performance at higher efficiency levels.

135 mm FDB Fan

A 135 mm Fluid-Dynamic Bearing (FDB) fan offers reliable cooling performance that balances both noise and temperature output.

Low Noise Operation

This power supply is designed for quiet operation, keeping noise levels as low as a peaceful night.

It also includes a Zero Fan Mode for completely silent performance during low loads.

Embossed Jacket Modular Cables

The sleek matt black embossed jacket cables not only elevates its appearance but also makes cable management significantly easier and more sophisticated for users.

A fully modular design means that only the connectors required by the build are used. This significantly reduces cable clutter, simplifying the overall build and improving airflow.

100% Server-grade 105°C Capacitors

This power supply features 100% Server-grade 105°C capacitors alongside advanced Infineon CoolMOS and SiC SBD components. It is designed for efficient power conversion and ensures long-lasting, safe operation.

Half-bridege LCC Topology + DC-to-DC

Robust internals support a wide range of AC inputs, while delivering stable output for high performance components.

A half-bridge LLC with DC-to-DC converter includes an active PFC design.

Extensive Connectivity

A wide range of connectivity options provides extensive hardware support.

Connect and upgrade multiple hard drives, SSDs, graphics cards and other components quickly and easily.

Main Features

Supports Nvidia GeForce RTX 50 series graphics cards
2 x native 12V-2x6 connector
Dual-color 12V-2x6 cable
80 PLUS Gold certified
Optimized the sound level
100% all Server-grade 105 degree C capacitor
Embossed Jacket Cables, the cables are more bending and routing
Industrial level protection with OCP/ OTP/ OPP/ SCP/ OVP/ UVP/ SIP/ NLO

Technical Specification

1000W MSI MPG A1000GS PCIE5 Modular 80+ Gold PSU

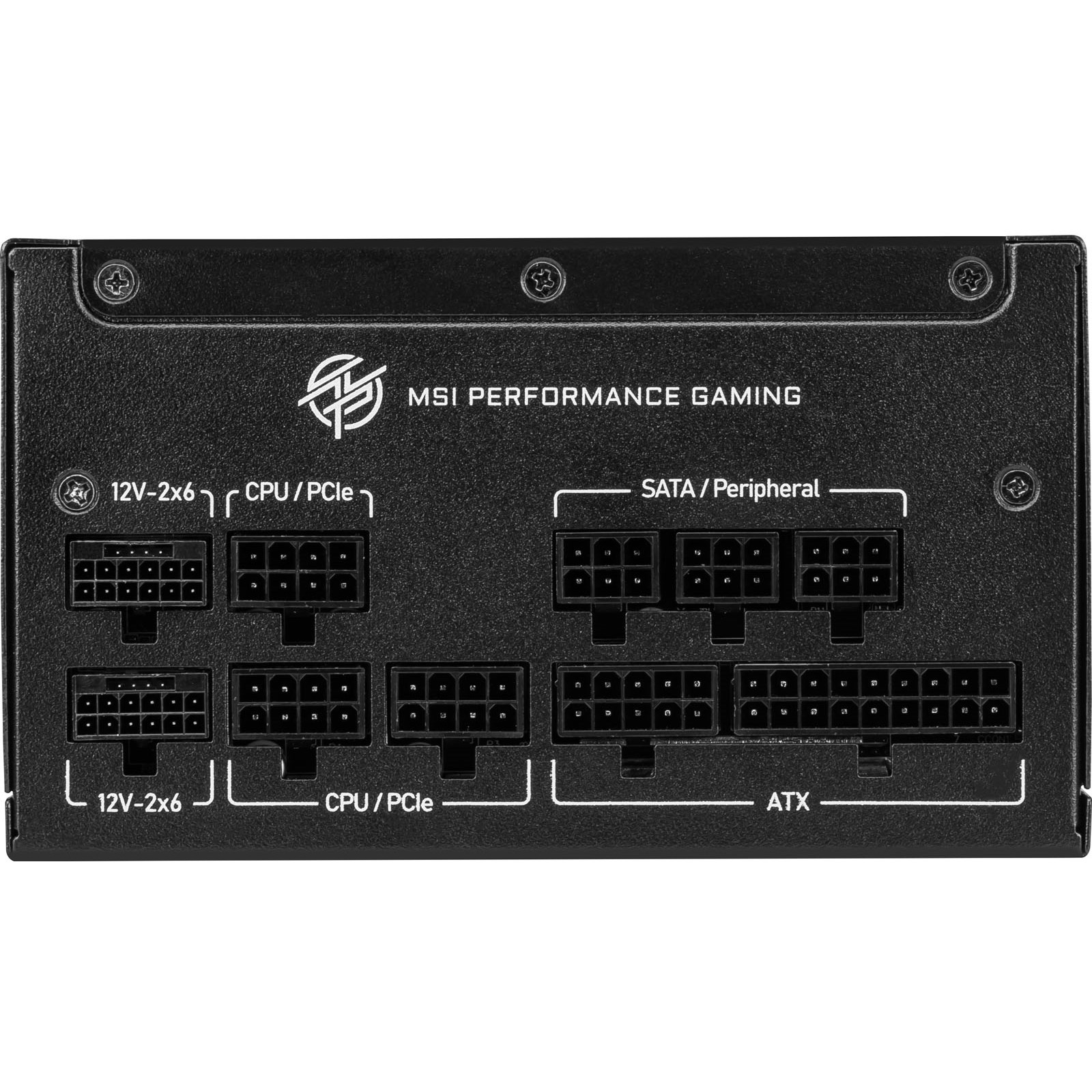

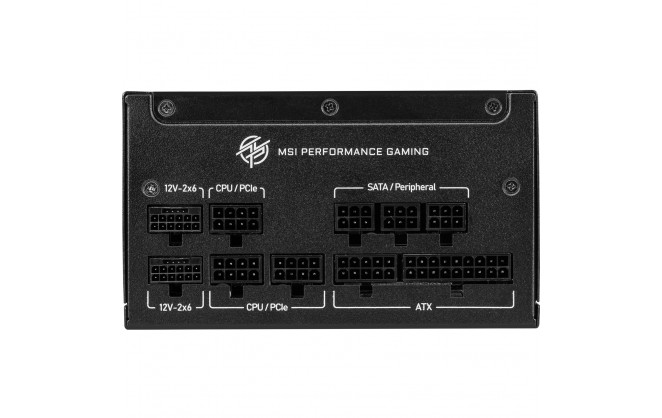

Interfaces/Ports

SATA Connectors	8
CPU Connectors	2 x 4+4-pin EPS
PCI Connectors	1 x 6+2-pin PCIe
Motherboard Connectors	1 x 24-pin ATX
Molex Connectors	4
Other Connectors	2 x 12V-2x6

Compliance

ATX Spec	ATX 3.1
Standards	80 PLUS Gold Certified Cybenetics Gold ETA rating
Safety	OCP/ OTP/ OPP/ SCP/ OVP/ UVP/ SIP/ NLO

Electrical

Voltage	100 ~ 240 V
Power	1000 W
Frequency Range	50 ~ 60 Hz

Physical

Form Factor	ATX Power Supply
Case Colour	Black
Width	150 mm
Depth	150 mm
Height	86 mm

Warranty

10 Years

Key Features

Main Colour	Black
Modular Cables	Modular
80Plus Rated	80 Plus Gold
PSU Form Factor	ATX
PCIe Connectors	1
Motherboard (EPS) Power Connectors	2 x 4+4-Pin
PCIe Pin Type	6+2-Pin
PSU Depth	150 mm
Cybenetics Efficiency ETA Cert.	Gold
CPU Power Pins (male)	16
PCIe Power Pins (male)	8
12VHPWR 16-pin Connector	Yes
Create Your Own Gaming PC (CCL)	Yes
12V-2x6 Rating	600W
