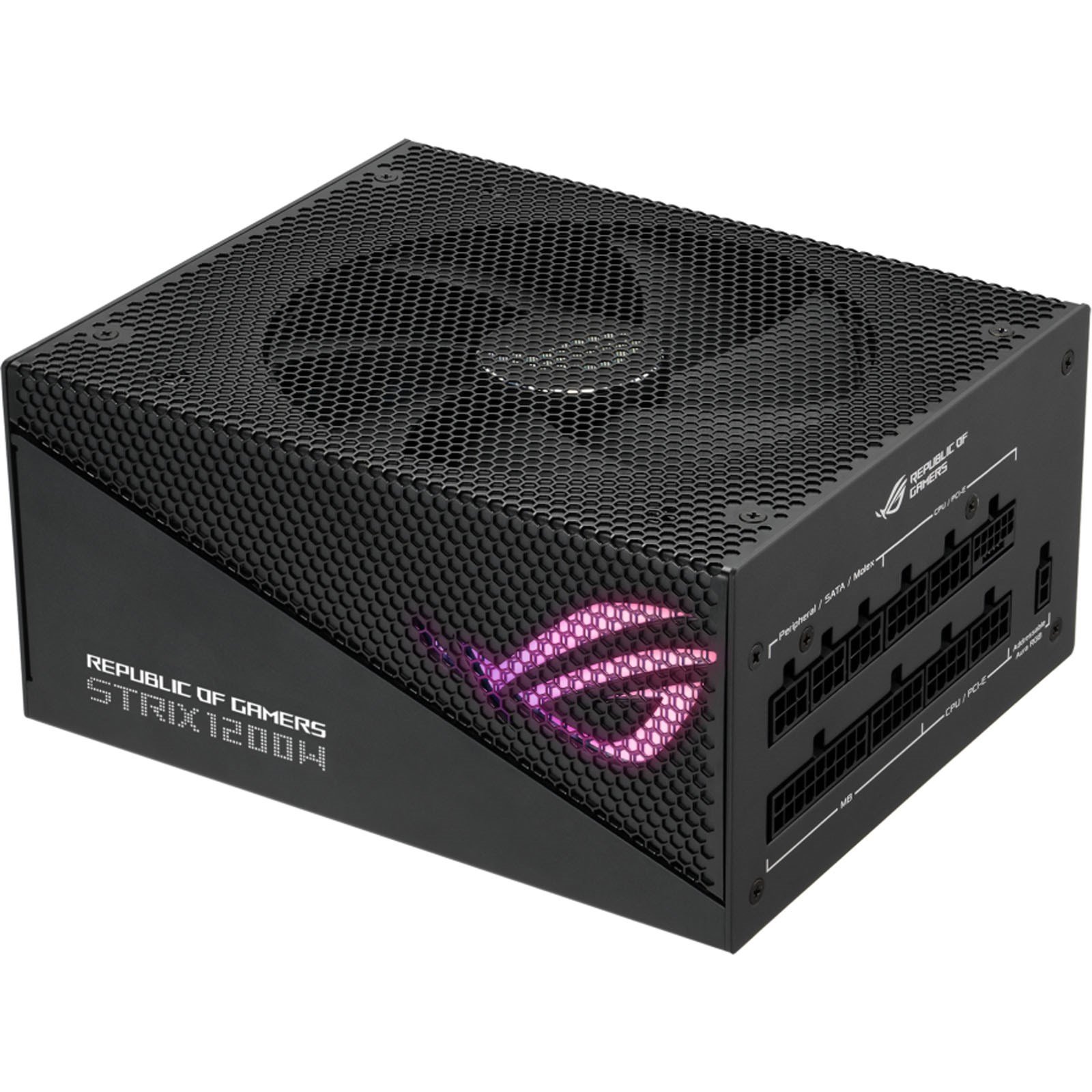

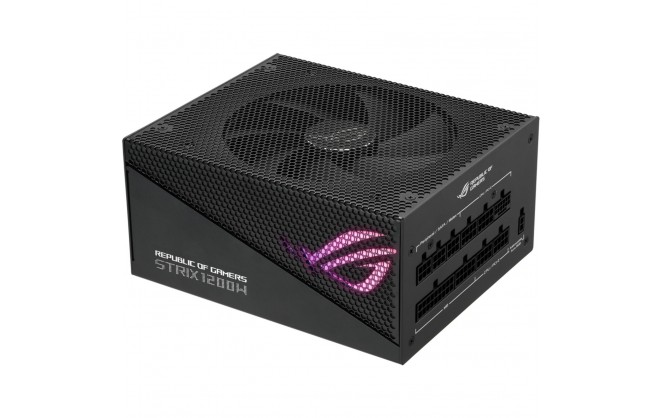

The ROG Strix 1200W Gold Aura Edition is encased in a strong, sleek aluminum chassis that also acts as a heatsink for the internal power transformer, further helping to reduce temperatures and minimize noise.
ROG heatsinks facilitate lower temperatures, longer component lifespan, and extended 0dB operation.

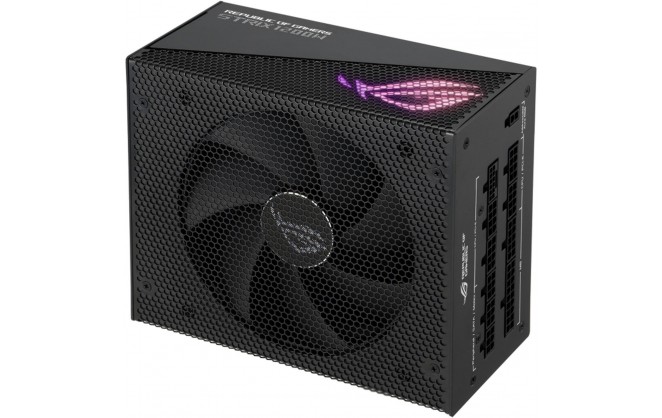

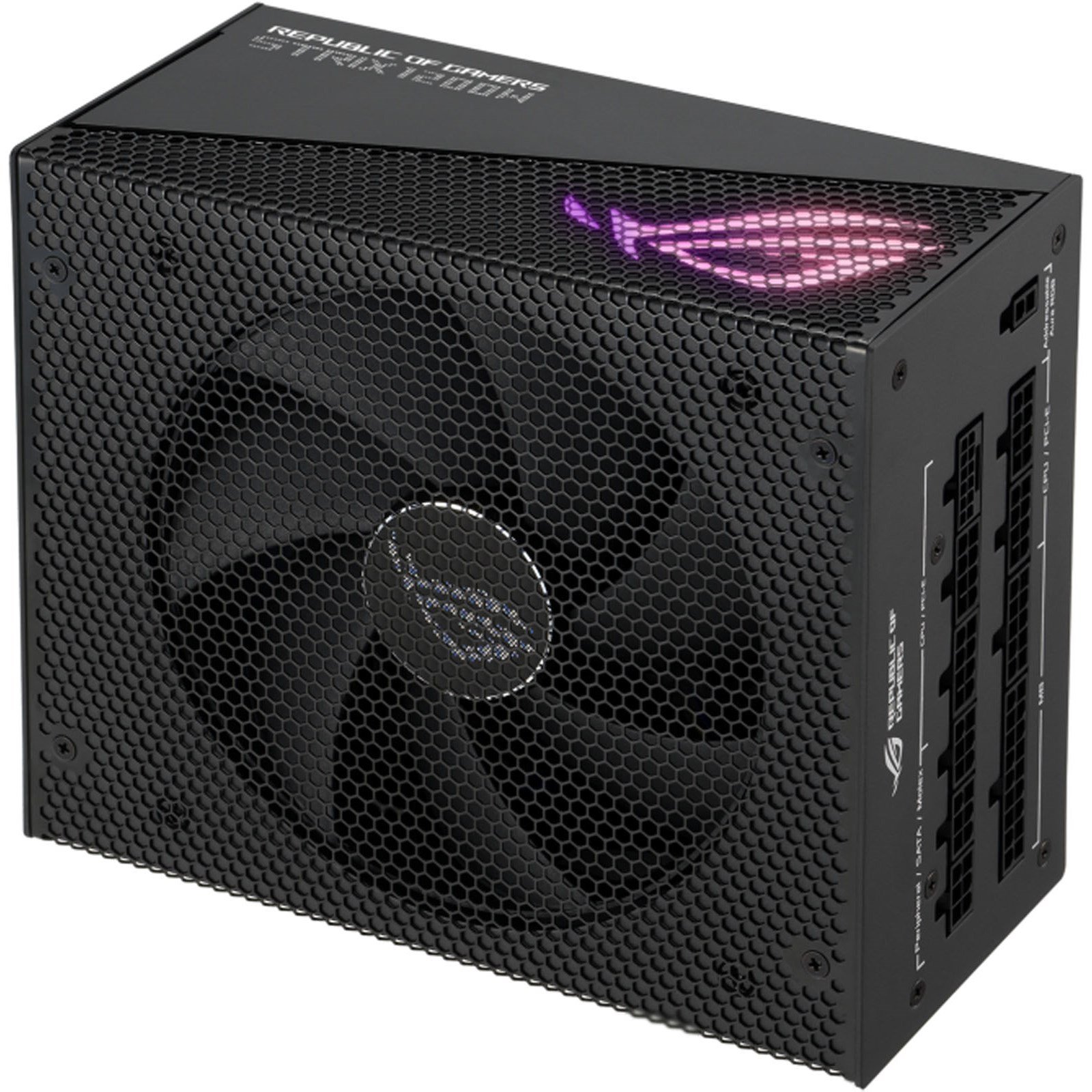

Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure. For ROG Strix Aura Edition PSUs, we've scaled that design to 135mm so it keeps things cool at low RPMs while producing less noise.
Dual ball bearings boast a remarkable lifespan of 80,000 hours, lasting twice as long as sleeve bearings and exceeding even fluid dynamic bearings. Ensuring long-lasting, reliable cooling with minimal noise for ROG STRIX Aura Editions.
To reduce noise output, the PWM-controlled fan shuts off entirely when the PSU load is 50% or below.
Upgraded PCIe® connectors featuring superior thermal conductivity ensure cooler operation and improved power delivery efficiency. This translates to a significant 29% reduction in connector temperatures (up to -12.28°C), promoting optimal performance and stability for even the most demanding graphics cards.
Top-end Japanese capacitors ensure efficient operation and have helped the ROG Strix Aura Edition PSUs earn an 80 PLUS Gold certification. The increased efficiency also results in less heat, reducing noise and increasing reliability.
The latest power specification updates have landed. ATX 3.0 ushers in tighter voltage and current regulation guidelines for next-gen hardware - and ROG Strix Aura Edition steps ahead of the curve by being fully compliant. A 16-pin PCIe cable ripe for piping up to 600W of power to PCIe Gen 5.0 graphics cards is bundled with the PSU, readying your build for the next-gen.
Made from a pliable premium material, these etched cables are easily flexible during installation, and they operate at temperatures 50°C lower than the safety limit when routed for cable management. These cables also meet the rigorous standards of the UL1581 flame test and UL758 certification, helping to ensure a smooth PC DIY experience and exceptional safety.
Addressable RGB lighting is built right in to the ROG Strix 1200W Gold Aura Edition, so it’s all set to integrate with the Aura Sync illumination ecosystem – adding aesthetic style to raw power.
We're so confident about the reliability of the ROG Strix 1200W Gold Aura Edition that we back it with a 10-year warranty.

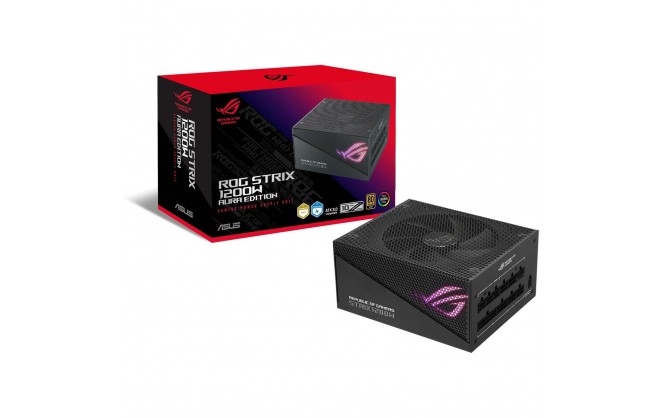

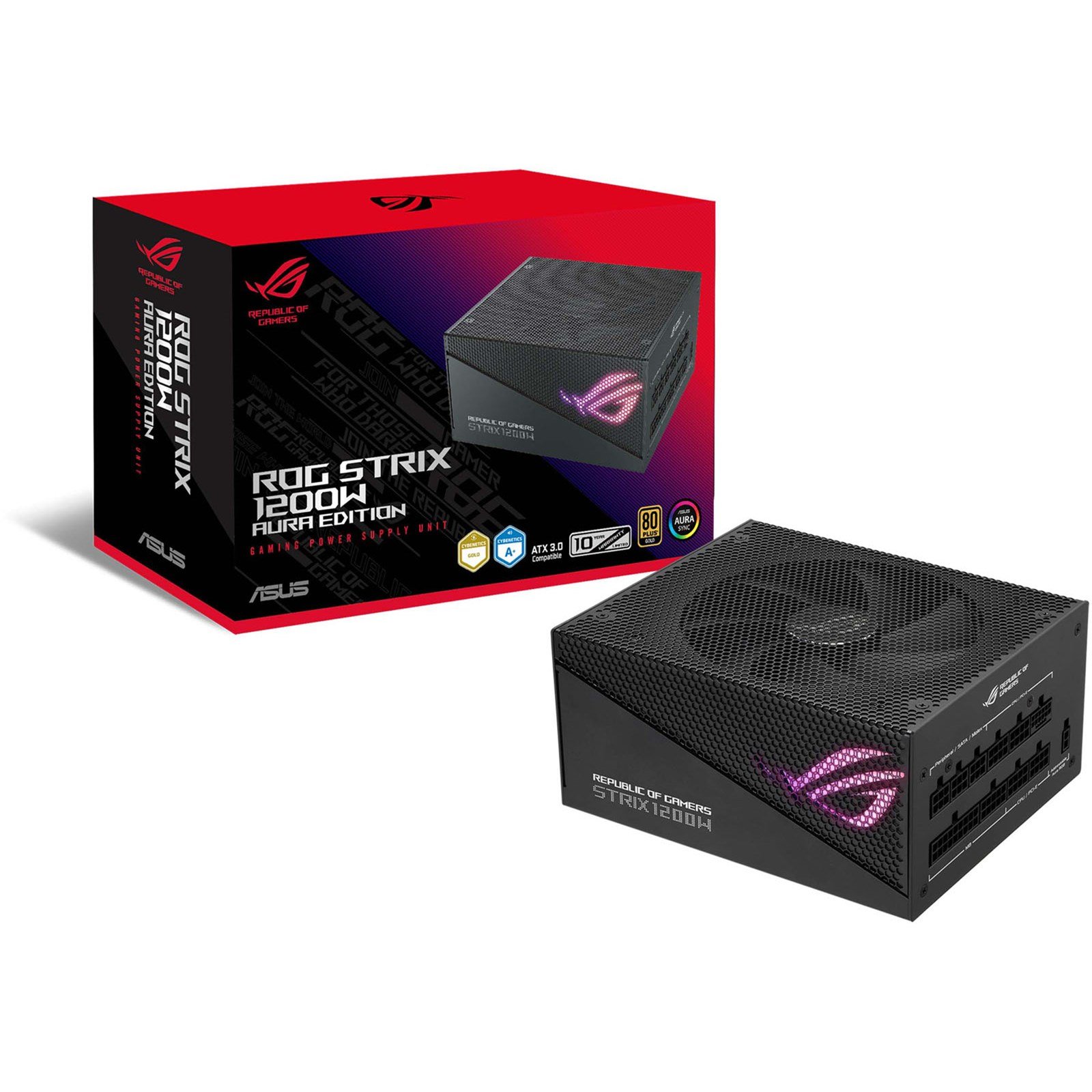

1200W ASUS ROG Strix Gold Aura Edition Modular 80+ Gold Power Supply

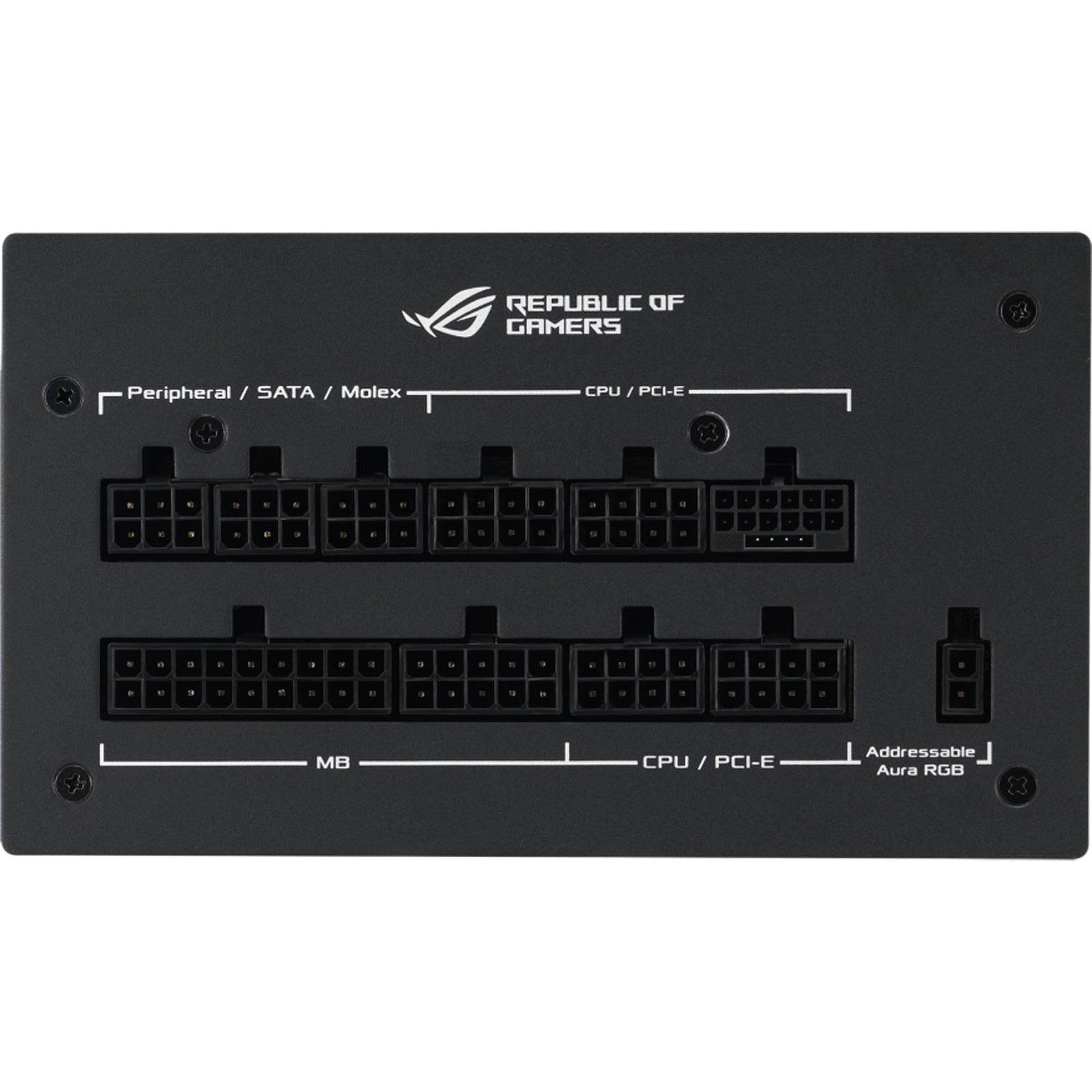

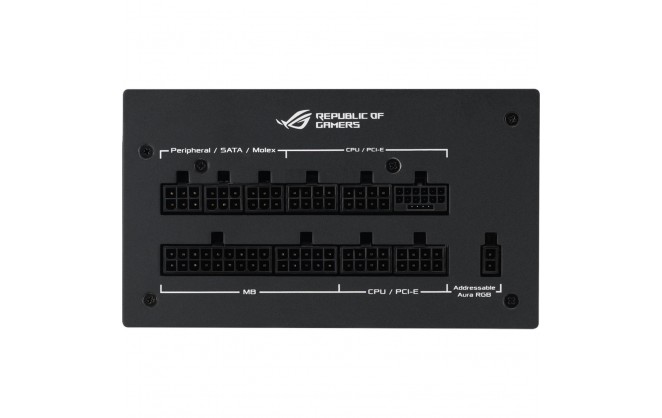

Interfaces/Ports
| SATA Connectors | 5 |
| CPU Connectors | 2 x 4+4-pin EPS |
| PCI Connectors | 4 x 6+2-pin PCIe |
| Motherboard Connectors | 1 x 24-pin ATX |
| Molex Connectors | 4 |
| Other Connectors | 1 x 12VHPWR |
Compliance
| ATX Spec | ATX 3.0 |
| Standards | 80 PLUS Gold Certified |
| Safety | OPP/OVP/UVP/SCP/OCP/OTP |
Electrical
| Voltage | 100 ~ 240 V |
| Power | 1200 W |
| Power Cord | Yes |
Physical
| Form Factor | ATX Power Supply |
| Case Colour | Black |
| In The Box | Power Supply Modular Cables ARGB Cable User Manual |
| Width | 150 mm |
| Depth | 180 mm |
| Height | 86 mm |
| Weight | 3.23 kg |
Warranty
| Warranty | 10 Years |
Key Features
| Main Colour | Black |
| Modular Cables | Modular |
| 80Plus Rated | 80 Plus Gold |
| PSU Form Factor | ATX |
| PCIe Connectors | 4 |
| Motherboard (EPS) Power Connectors | 2 x 4+4-Pin |
| PCIe Pin Type | 6+2-Pin |
| PSU Depth | 180 mm |
| Cybenetics Efficiency ETA Cert. | Gold |
| Cybenetics Lambda Noise Cert. | A+ |
| CPU Power Pins (male) | 16 |
| PCIe Power Pins (male) | 32 |
| 12VHPVR 16-pin Connector | Yes |
| Create Your Own Gaming PC (CCL) | Yes |
Item Details
| Manufacturer | ASUS |
| Manufacturer Code | 90YE00P0-B0NA00 |
| Alternative Part Number | ROG-STRIX-1200G-AURA-GAMING |
| EAN | 4711081721475 |
| Condition | New |
