The ASRock TAICHI 1650T supports both current and future standards, fully compliant with ATX12V V3.1 and PCIe Gen 5.1. Ideal for both current systems and future builds, this power supplies can handle up to 235% power excursion and respond swiftly to power spikes, ensuring reliable, safe power for your components.
With ASRock Classic Green connectors, users can easily see if the connector has been plugged properly.
The NTC sensor at the VGA connector monitors the temperature and sends signal the PSU to ensure safe operation.
When this switch is enabled, it boosts the +5V voltage by 200mV to maintain optimal performance. If no voltage drop occurs, the PSU will regulate the +5V rail to approximately +5.2V, ensuring consistent power delivery.
iCOOL Mode ON: The power supply runs more efficiently. The fan stays off during low to medium loads, reducing noise and improving energy efficiency. The fan only activates when the load or temperature increases.
iCOOL Mode OFF: The fan runs continuously, regardless of load. This may increase noise slightly but provides consistent cooling and better performance under heavy loads.
The TAICHI Series TITANIUM Power Supply guarantees unmatched power efficiency and peak performance, delivering exceptional reliability for the most demanding systems.
The Taichi series power supply operates at less than 20 dB of noise on average, earning the prestigious Cybenetics Lambda A+ certification. This recognition underscores the Taichi series' outstanding noise control performance, making it an exceptional choice for users seeking ultra-quiet operation.
The industrial-leading components deliver high efficiency and reliability.
Full suite of protections to keep all components safe during normal to extreme power levels. ASRock offers an outstanding 10 –Year warranty, guaranteeing long term reliable and peace of mind operation.

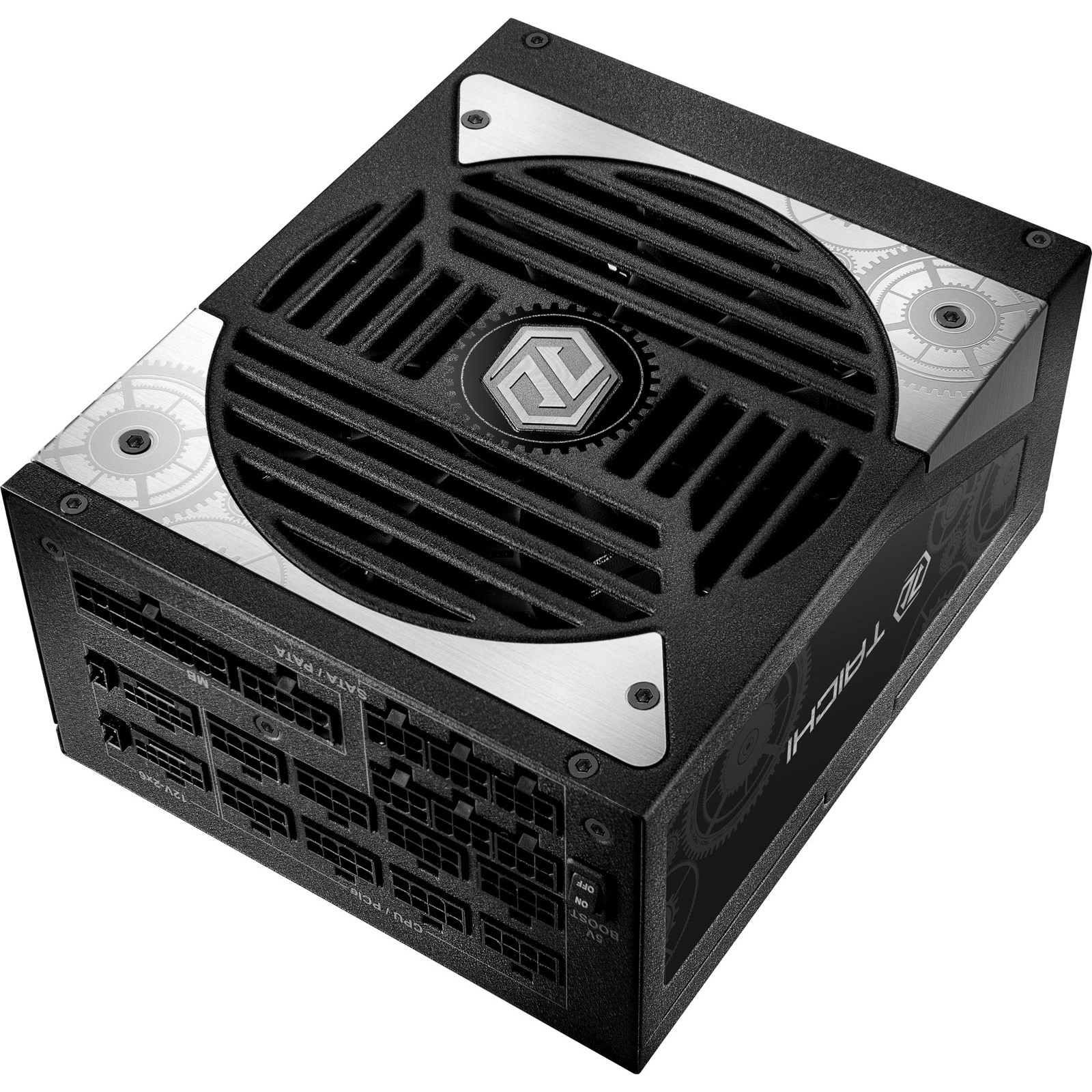

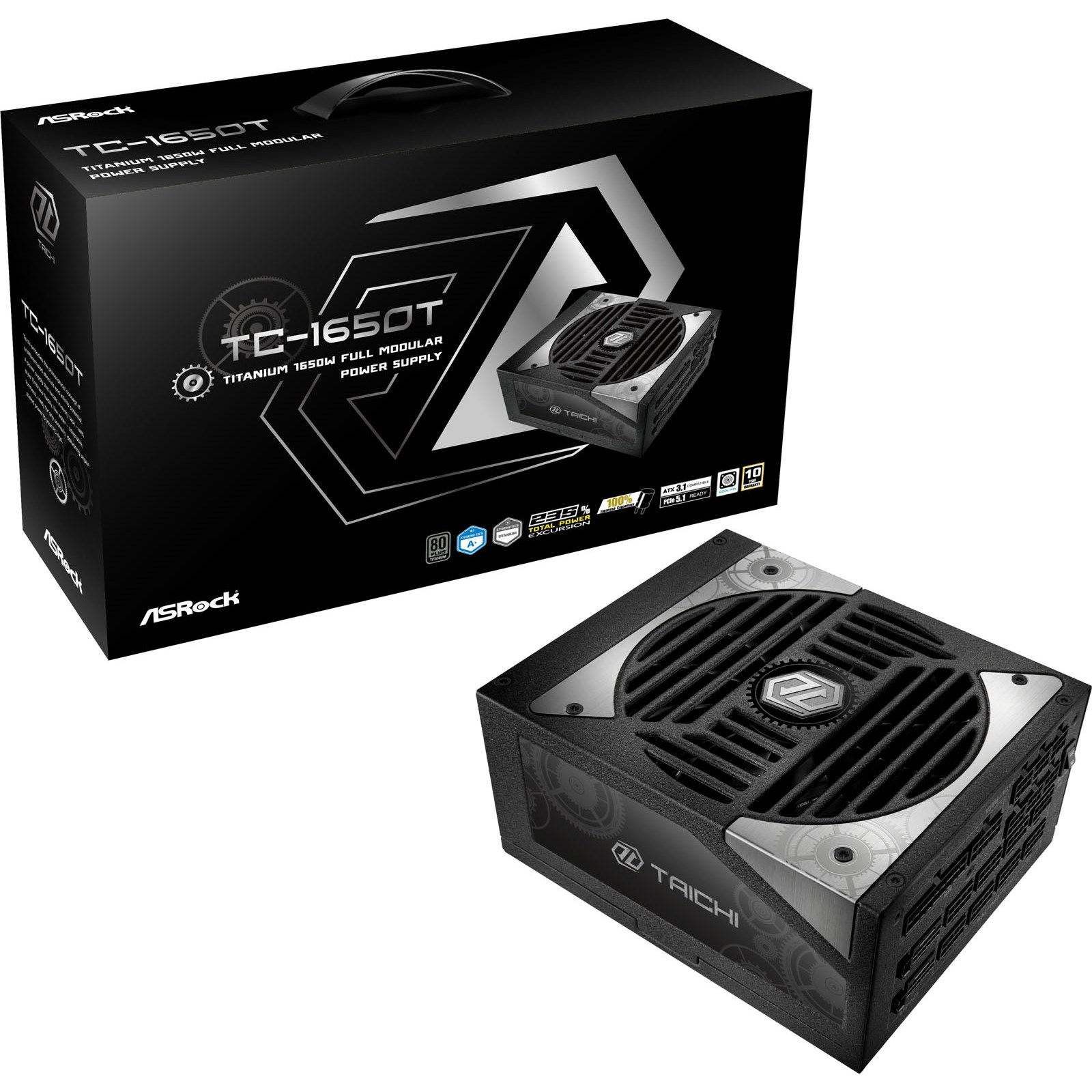

1650W ASRock Taichi 1650T Modular 80+ Titanium PSU

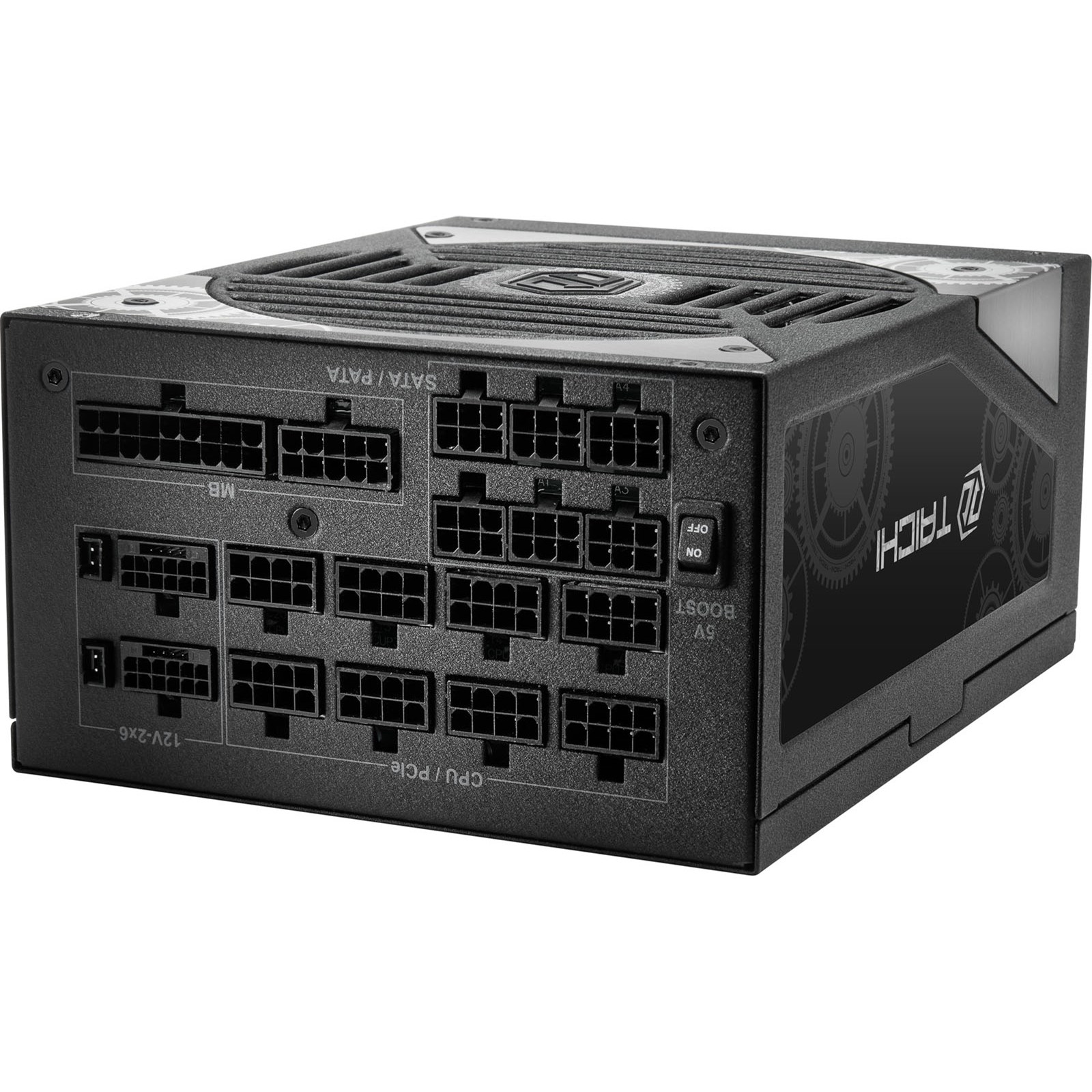

Interfaces/Ports
| SATA Connectors | 12 |
| CPU Connectors | 2 x 4+4-pin EPS |
| PCI Connectors | 8 x 6+2-pin PCIe |
| Motherboard Connectors | 1 x 24-pin ATX |
| Molex Connectors | 6 |
| Other Connectors | 2 x 12VHPWR |
Compliance
| ATX Spec | ATX 3.1 |
| Standards | 80 PLUS Titanium Certified Cybenetics Titanium ETA & A+ LAMBDA |
| Safety | OCP, SCP, OVP, UVP, OTP, OPP |
Electrical
| Power | 1650 W |
| Power Cord | No |
Physical
| Form Factor | ATX Power Supply |
| Case Colour | Black |
| Width | 150 mm |
| Depth | 180 mm |
| Height | 86 mm |
Warranty
| Warranty | 10 Years |
Key Features
| Main Colour | Black |
| Modular Cables | Modular |
| 80Plus Rated | 80 Plus Titanium |
| PSU Form Factor | ATX |
| PCIe Connectors | 8 |
| Motherboard (EPS) Power Connectors | 2 x 4+4-Pin |
| PCIe Pin Type | 6+2-Pin |
| PSU Depth | 180 mm |
| Cybenetics Efficiency ETA Cert. | Titanium |
| Cybenetics Lambda Noise Cert. | A+ |
| CPU Power Pins (male) | 16 |
| PCIe Power Pins (male) | 64 |
| 12VHPWR 16-pin Connector | Yes |
| Create Your Own Gaming PC (CCL) | Yes |
| 12V-2x6 Rating | 300W |
Item Details
| Manufacturer | ASRock |
| Manufacturer Code | 90-UXT165-TFGAAB |
| EAN | 4710483949845 |
