The 80 Plus Silver certification (230V EU) guarantees a 90% efficiency rate at a 50% load, resulting in reduced power wastage, diminished heat generation, and minimized fan noise.
The P650SS can sustain up to 2x total power excursion. It is fully compatible with Intel PSDG (Power Supply Design Guide) ATX 3.0 standard which supports up to 200% power excursion, reaches 70% low load efficiency and complies with required power supply timing standards.
High-performance Fluid Dynamic Bearing fan uses oil film shock absorption technology to effectively reduce noise, making it quieter than conventional sleeve fan and providing more than twice the lifespan. In addition, the fan will detect the current power usage and temperature, automatically adjust the fan speed to minimize the noise.
The utilization of flat cables minimizes clutter while enhancing the thermal performance of the chassis.
The single +12V rail delivers optimal power output, stability, and hardware compatibility. This design not only simplifies power cable installation but also stands as the most effective choice for overclocking purposes.
To guarantee the stable operation of your entire computer system under any circumstances, we have incorporated a range of protective features including OCP, OTP, OVP, OPP, UVP, and SCP. Moreover, we have obtained safety certifications from various countries to ensure the consistent and secure functioning of your system.

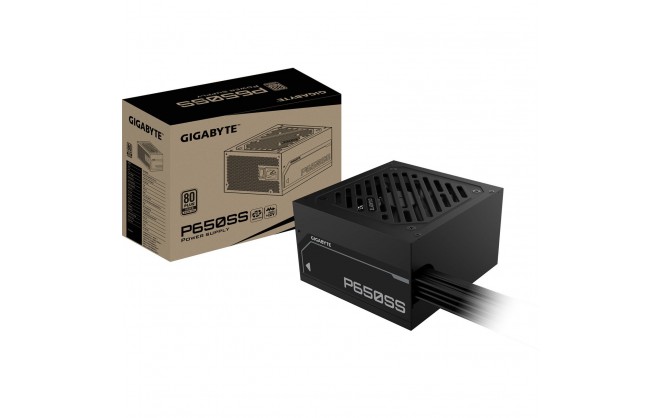

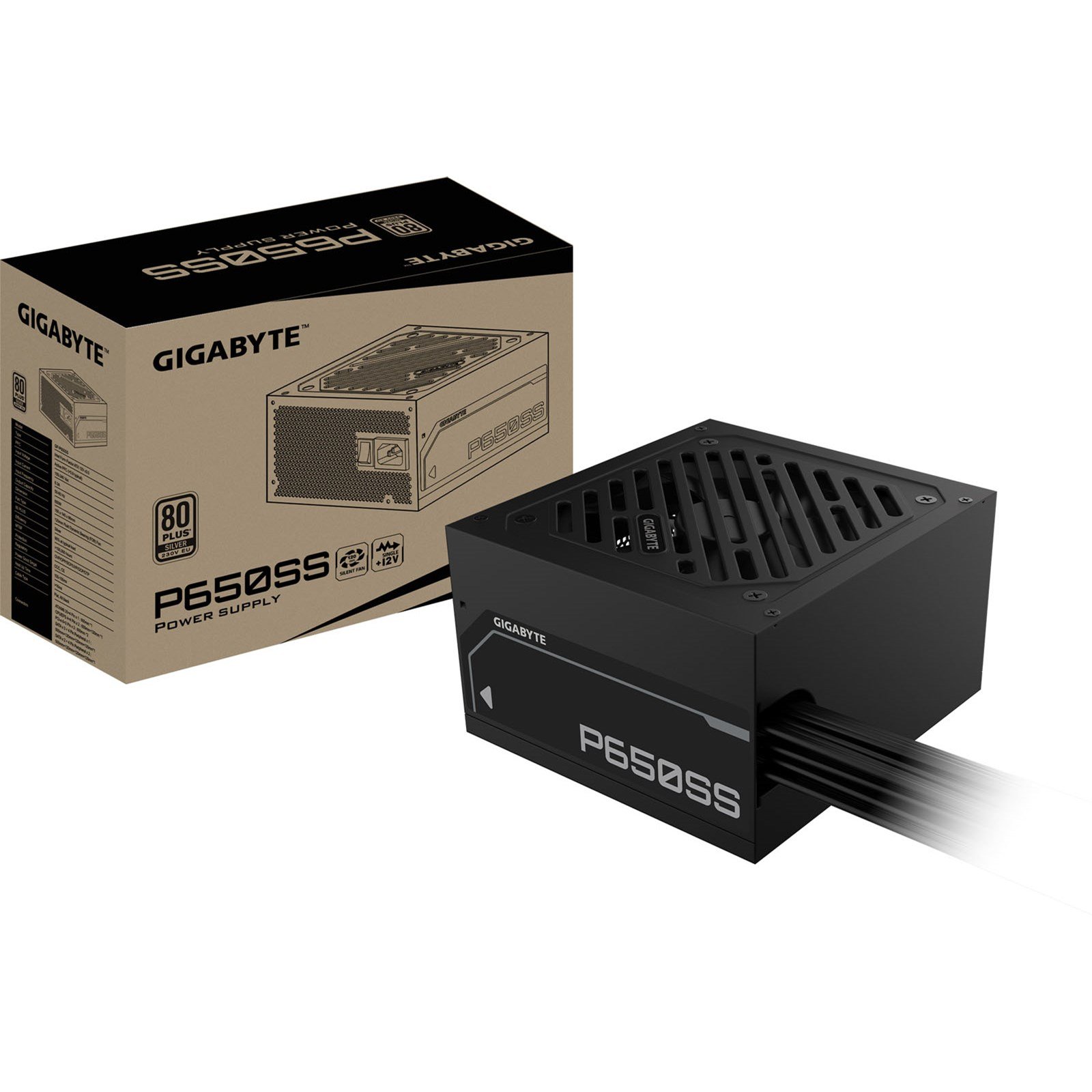

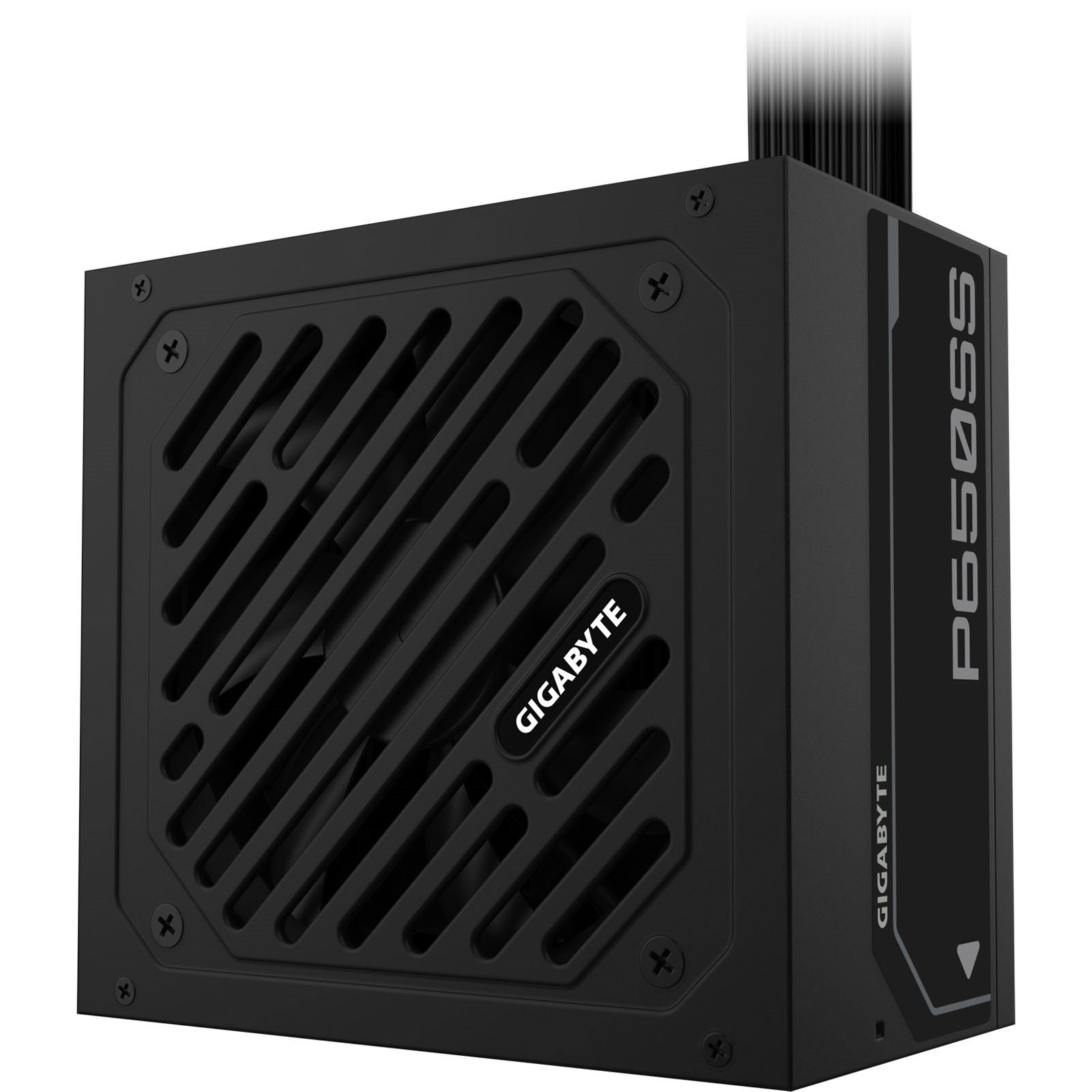

650W Gigabyte P650SS 80+ Silver Power Supply
Interfaces/Ports
| SATA Connectors | 5 |
| CPU Connectors | 2 x 4+4-pin EPS |
| PCI Connectors | 4 x 6+2-pin PCIe |
| Motherboard Connectors | 1 x 24-pin ATX |
| Molex Connectors | 3 |
Compliance
| ATX Spec | ATX 3.0 |
| Standards | 80 PLUS Silver Certified |
| Safety | OVP/OPP/SCP/UVP/OCP/OTP |
Electrical
| Voltage | 155 ~ 240 V AC |
| Power | 650 W |
| Power Cord | UK |
Physical
| Form Factor | ATX Power Supply |
| Case Colour | Black |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
Warranty
| Warranty | 3 Years |
Key Features
| Main Colour | Black |
| Modular Cables | No |
| 80Plus Rated | 80 Plus Bronze |
| PSU Form Factor | ATX |
| PCIe Connectors | 4 |
| Motherboard (EPS) Power Connectors | 2 x 4+4-Pin |
| PCIe Pin Type | 6+2-Pin |
| PSU Depth | 140 mm |
| CPU Power Pins (male) | 16 |
| PCIe Power Pins (male) | 32 |
| 12VHPVR 16-pin Connector | No |
| Create Your Own Gaming PC (CCL) | Yes |
Item Details
| Manufacturer | Gigabyte |
| Manufacturer Code | GP-P650SS-EU |
| EAN | 4719331554095 |
| Condition | New |
