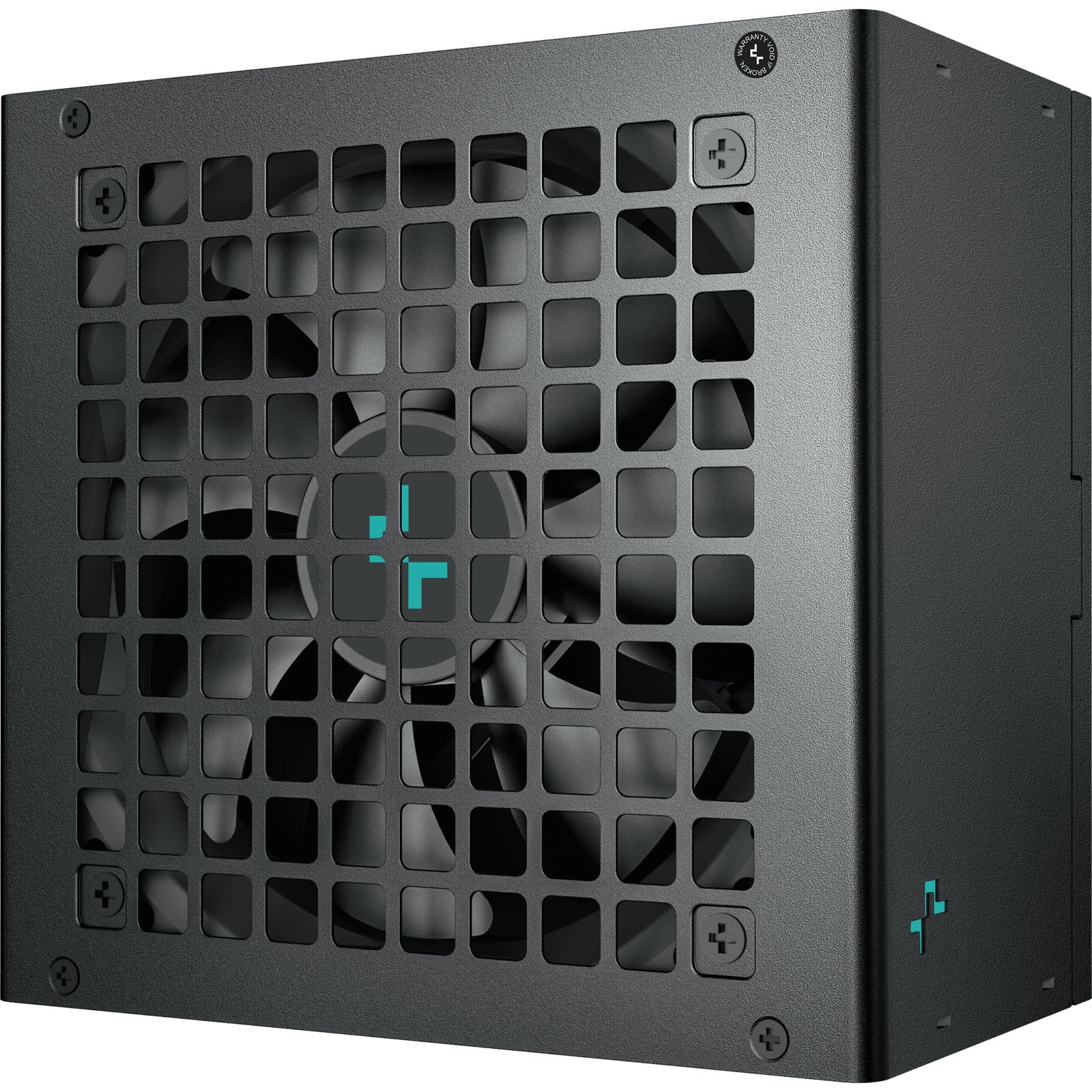

750W DeepCool PL750D 80+ Bronze PSU

Part Number: R-PL750D-FC0B-UK-V2
Manufacturer: Asrock
Quickfind Code: 140524

Stock: In Stock

£52.99 ex. vat
£63.59 inc. vat

Product Features:

Condition: New
Capacity 750W
Connection Fully Wired
Form Factor ATX 3.1
Certification 80+ Bronze
Main Colour Black

+ Read More Information

NATIVE ATX3.1

Based on INTEL's latest ATX3.1 standard, the PL750D has the ability to provide twice the total system power for 0.1 ms, so power spikes will never be an issue. A native PCIe 5.1 power connector is included and has been rated up to 450 watts.

PREMIUM ELECTROLYTIC CAPACITORS

High-grade electrolytic capacitors allow the PL-D series of PSUs to keep the hold-up time to ≥ 16 ms under full load (100%), and they can easily handle power outages.

ROCK SOLID RELIABILITY

Provides reliable and stable power thanks to a well-designed dual-transistor forward topology. The PL-D utilizes active PFC and DC to DC conversion. The entire unit is made of high-quality parts and can operate at altitudes of up to 5,000 meters above sea level.

PAST, PRESENT, AND FUTURE

Equipped with three PCIe, two EPS, and a 16AWG 12V-2x6 cable, the PL-D PSUs provide stable and consistent power for legacy and next-generation PCs for the foreseeable future.

BOLD BRONZE

Certified 80 PLUS Bronze, ensuring at least 85% efficiency under typical loads (50%).

PEACE OF MIND

Includes a slew of well-rounded safeguards, including: OPP, OVP, SCP, OTP, OCP, UVP, SIP, NLO.

EXCEPTIONAL WARRANTY

Standing behind the high standards DeepCool has set for our products, a 5-year limited warranty is included to ensure worry-free service.

Technical Specification

750W DeepCool PL750D 80+ Bronze PSU

Interfaces/Ports

SATA Connectors	8
CPU Connectors	2 x 4+4-pin EPS
PCI Connectors	3 x 6+2-pin PCIe
Motherboard Connectors	1 x 24-pin ATX
Molex Connectors	2
Other Connectors	1 x 12V-2x6

Compliance

ATX Spec	ATX 3.1
Standards	80 PLUS Bronze Certified
Safety	OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO

Electrical

Voltage	100 ~ 240 V
Power	750 W
Frequency Range	50 ~ 60 Hz
Power Cord	Yes

Environmental

Operating Temperature

0 ~ 40 °C

Physical

Form Factor	ATX Power Supply
Case Colour	Black
In The Box	Power Supply Manuals Screws Power Cable
Width	150 mm
Depth	140 mm
Height	86 mm

Warranty

5 Years

Key Features

Main Colour	Black
Modular Cables	No
80Plus Rated	80 Plus Bronze
PSU Form Factor	ATX
PCIe Connectors	3
Motherboard (EPS) Power Connectors	2 x 8-Pin
PCIe Pin Type	6+2-Pin
PSU Depth	140 mm
CPU Power Pins (male)	16
PCIe Power Pins (male)	24
12VHPWR 16-pin Connector	Yes
Create Your Own Gaming PC (CCL)	Yes
12V-2x6 Rating	300W
