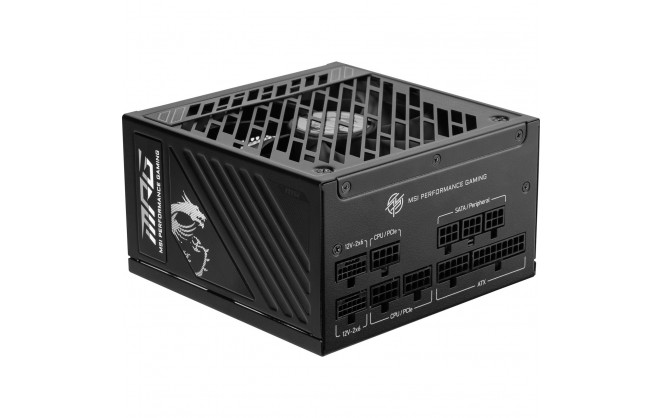

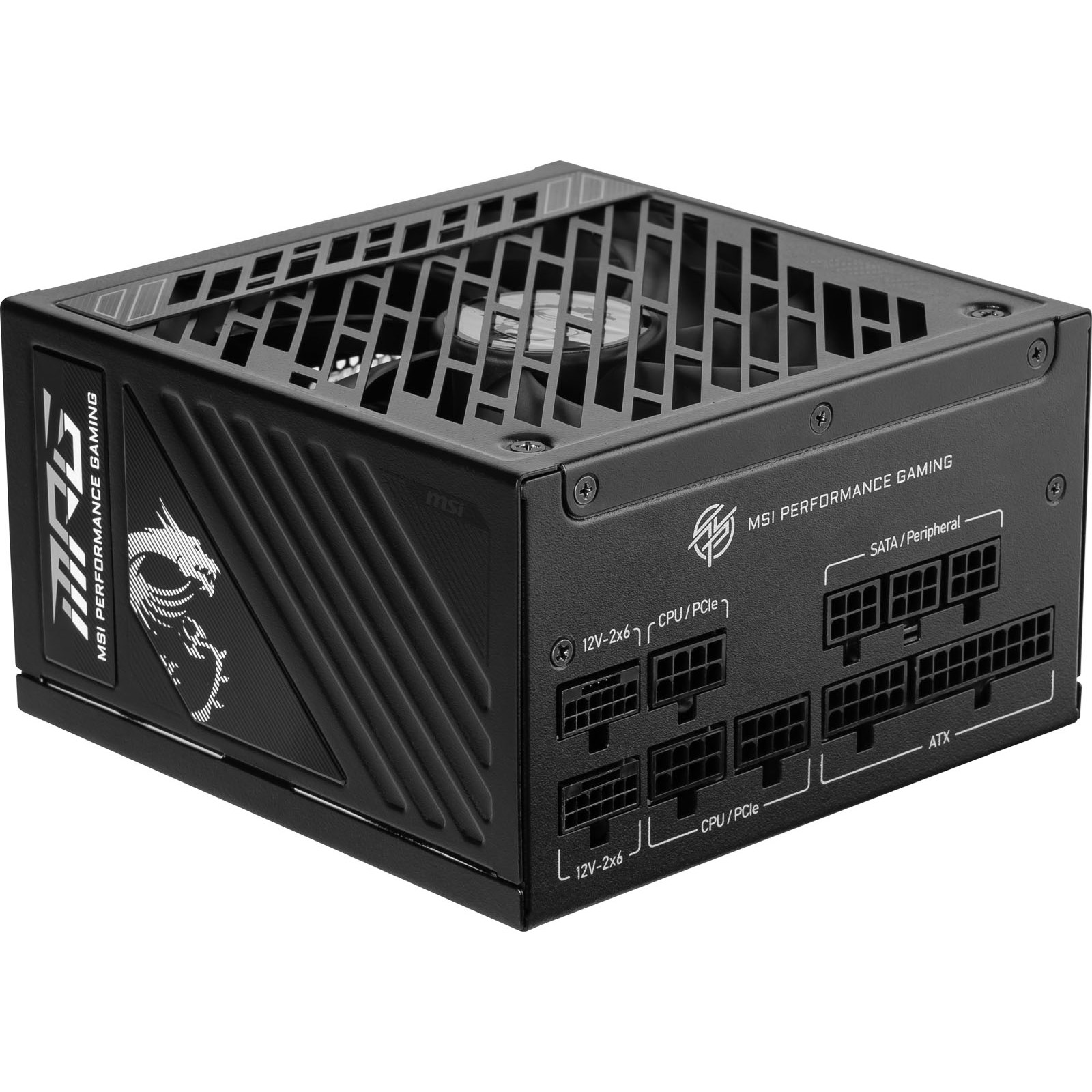

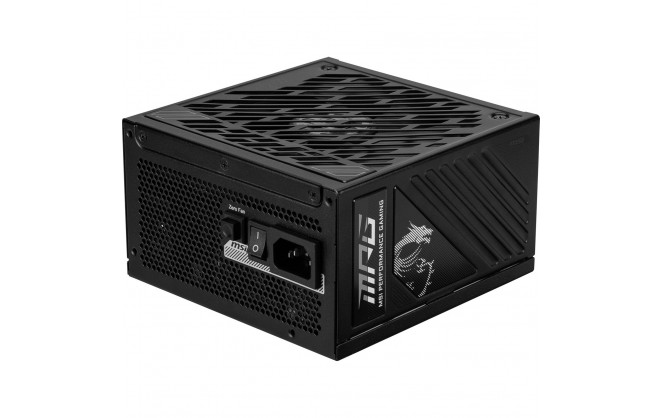

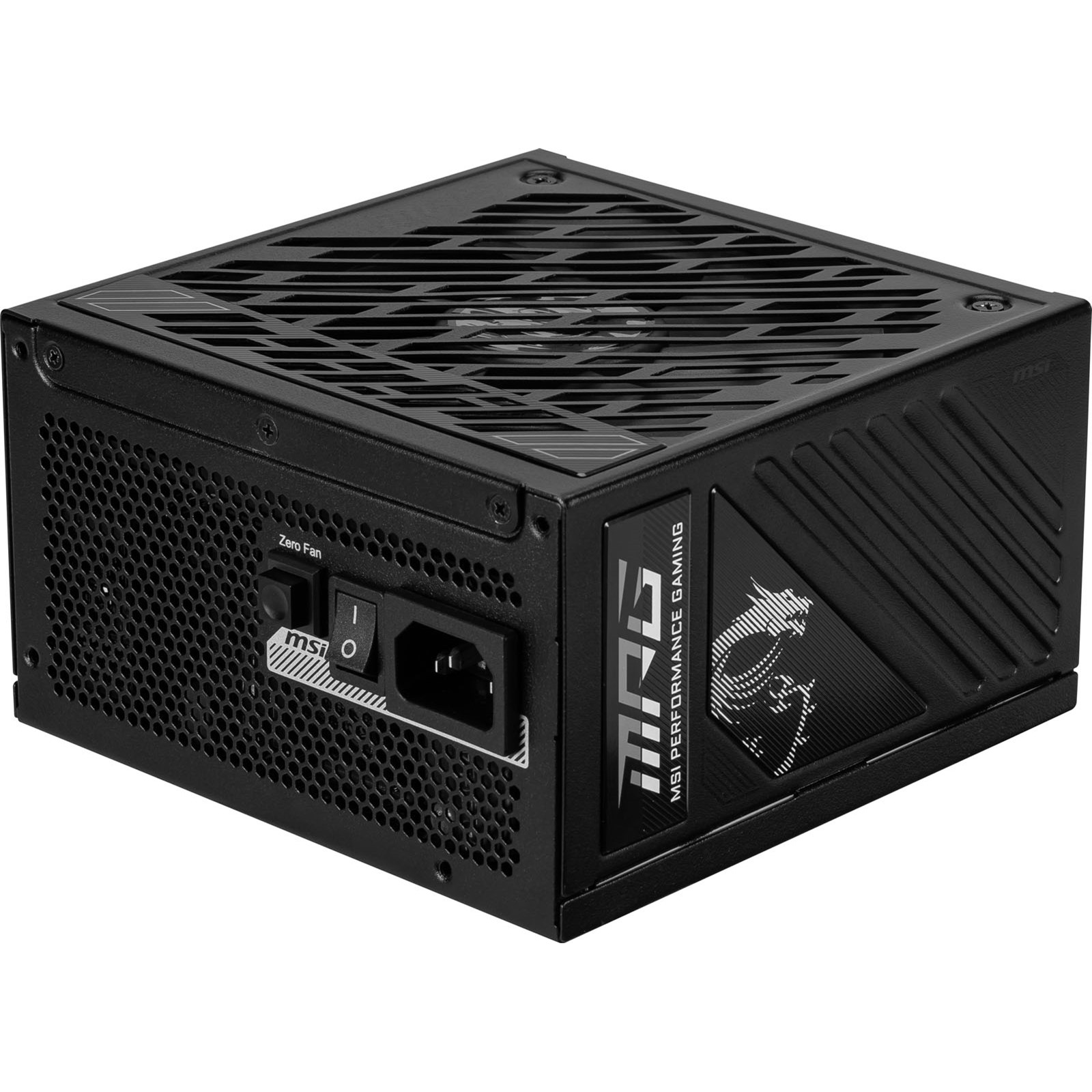

850W MSI MPG A850GS PCIE5 Modular 80+ Gold PSU

PCIe 5.1 GPU Support (Native 12V-2x6 Connectors)

Through the native 12V-2x6 PCIe connectors, the PSU can deliver up to 600W of power per port to a PCIe 5.1 GPU. The new connector structure, along with its distinctive yellow color, helps to easily identify and prevent loose connections.

Gold Efficiency Certified

The efficiency of a power supply directly impacts system performance and power consumption.

A Gold certification represents an exceptional standard for energy efficiency, offering up to 90% efficiency. This ensures reduced power consumption while maintaining peak performance at higher efficiency levels.

135 mm FDB Fan

A 135 mm Fluid-Dynamic Bearing (FDB) fan offers reliable cooling performance that balances both noise and temperature output.

Low Noise Operation

This power supply is designed for quiet operation, keeping noise levels as low as a peaceful night. It proudly achieves the prestigious Cybenetics A++ Certification, representing the minimal noise.

It also includes a Zero Fan Mode for completely silent performance during low loads.

Embossed Jacket Modular Cables

The sleek matt black embossed jacket cables not only elevates its appearance but also makes cable management significantly easier and more sophisticated for users.

A fully modular design means that only the connectors required by the build are used. This significantly reduces cable clutter, simplifying the overall build and improving airflow.

100% Server-grade 105°C Capacitors

This power supply features 100% Server-grade 105°C capacitors alongside advanced Infineon CoolMOS and SiC SBD components. It is designed for efficient power conversion and ensures long-lasting, safe operation.

Half-bridege LCC Topology + DC-to-DC

Robust internals support a wide range of AC inputs, while delivering stable output for high performance components.

A half-bridge LLC with DC-to-DC converter includes an active PFC design.

Extensive Connectivity

A wide range of connectivity options provides extensive hardware support.

Connect and upgrade multiple hard drives, SSDs, graphics cards and other components quickly and easily.

SATA Connectors	8
CPU Connectors	2 x 4+4-pin EPS
PCI Connectors	3 x 6+2-pin PCIe
Motherboard Connectors	1 x 24-pin ATX
Molex Connectors	4
Other Connectors	1 x 12V-2x6

ATX Spec	ATX 3.1
Standards	80 PLUS Gold Certified Cybenetics ETA Gold certified Cybenetics Lambda A++ certified
Safety	OCP/ OTP/ OPP/ SCP/ OVP/ UVP/ SIP/ NLO

Voltage	100 ~ 240 V
Power	850 W
Frequency Range	50 ~ 60 Hz

Form Factor	ATX Power Supply
Case Colour	Black
Width	150 mm
Depth	150 mm
Height	86 mm

Main Colour	Black
Modular Cables	Modular
80Plus Rated	80 Plus Gold
PSU Form Factor	ATX
PCIe Connectors	3
Motherboard (EPS) Power Connectors	2 x 4+4-Pin
PCIe Pin Type	6+2-Pin
PSU Depth	150 mm
Cybenetics Efficiency ETA Cert.	Gold
Cybenetics Lambda Noise Cert.	A++
CPU Power Pins (male)	16
PCIe Power Pins (male)	24
12VHPWR 16-pin Connector	Yes
Create Your Own Gaming PC (CCL)	Yes
12V-2x6 Rating	450W

850W MSI MPG A850GS PCIE5 Modular 80+ Gold PSU

Product Features:

Product Description

PCIe 5.1 GPU Support (Native 12V-2x6 Connectors)

Gold Efficiency Certified

135 mm FDB Fan

Low Noise Operation

Embossed Jacket Modular Cables

100% Server-grade 105°C Capacitors

Half-bridege LCC Topology + DC-to-DC

Extensive Connectivity

Main Features

Technical Specification

Recently Viewed

Antec Signature 1000W Modular 80+ Platinum PSU

CORSAIR 3500X RGB Mid Tower E-ATX Gaming PC Case - Black

Corsair 32GB DDR3 1866MHz Vengeance Black Low Profile

AOC C27G4ZXU 27" Full HD Curved Gaming Monitor

Manufacturer	MSI
Manufacturer Code	MPG A850GS PCIE5
EAN	4711377244039
UPC	824142376317
