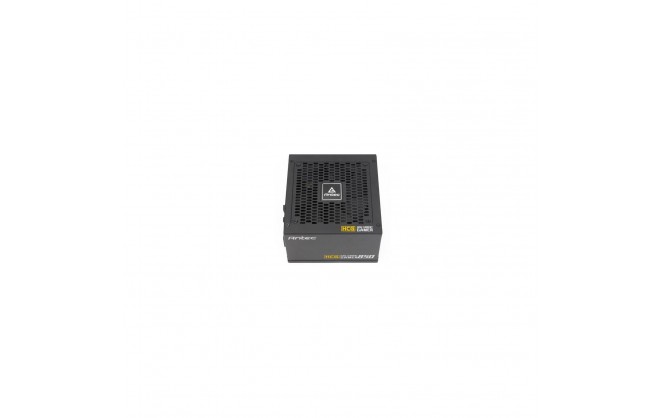

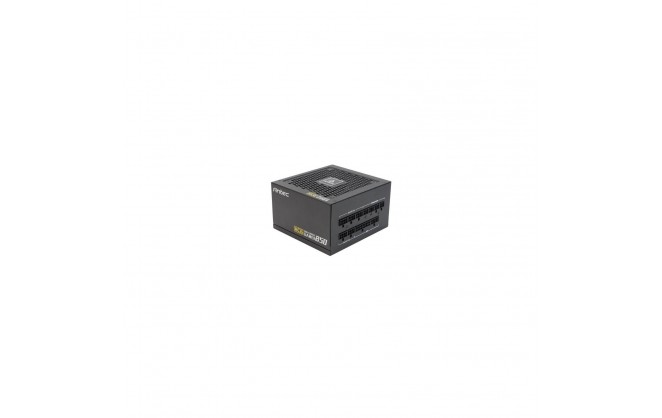

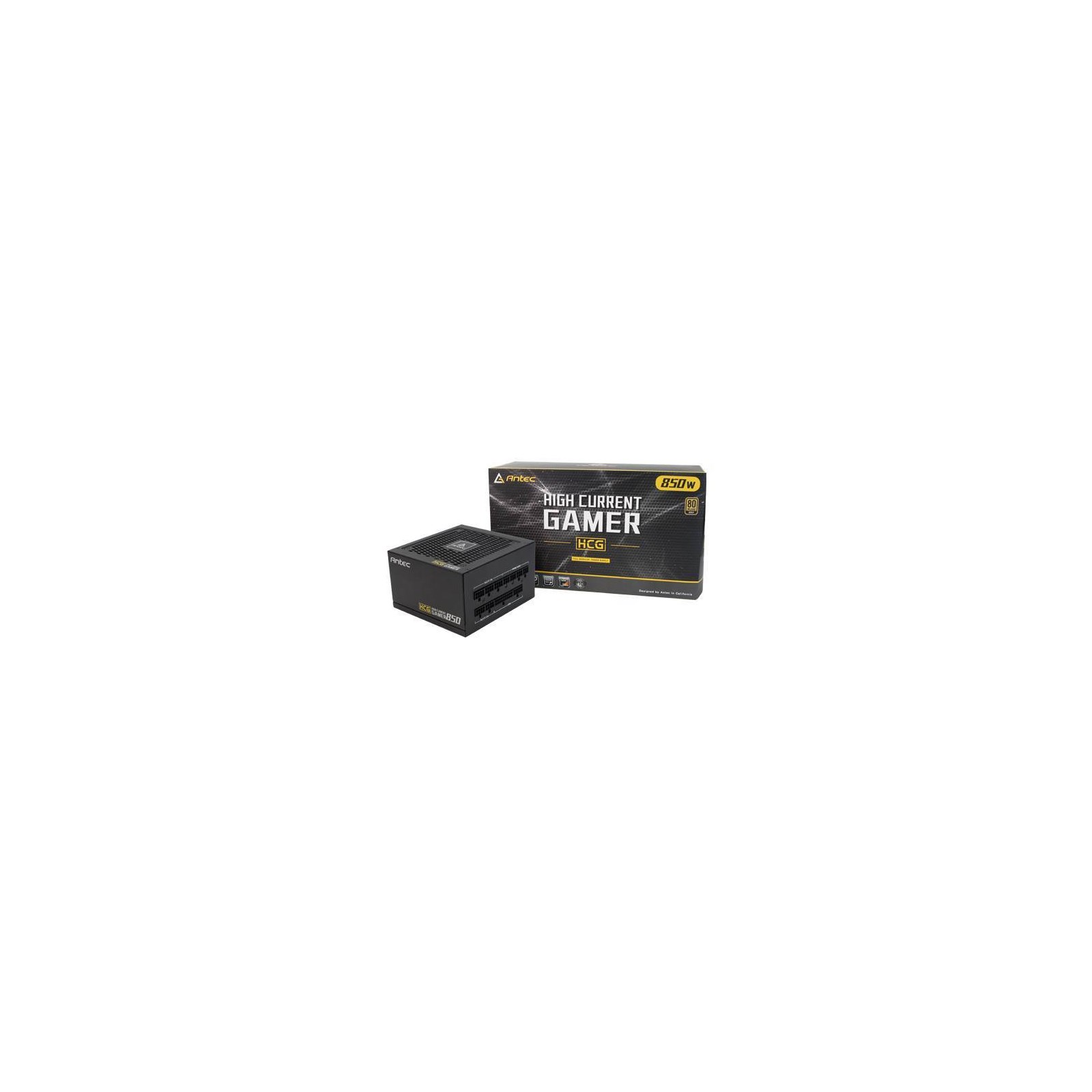

Antec High Current Gamer 850W Modular 80+ Gold PSU

Part Number: 0-761345-11643-5
Manufacturer: Antec
Quickfind Code: 140281

Stock: Out Stock

Contact for availability

Product Features:

Condition: New
Capacity 850W
Connection Fully Modular
Form Factor ATX
Certification 80+ Gold
Main Colour Black

+ Read More Information

Product Description

The latest generation of High Current Gamer Gold power supplies offer unparalleled stability and 80 PLUS® Gold-certified efficiency, thanks to the top-grade Japanese capacitors and Active PFC. Advanced thermal control with the Zero RPM mode enables optimal balance between silence and cooling, and a quiet 120 mm fluid dynamic bearing fan completes the package. The CircuitShield™ suite of industrial-grade protections ensures that the power delivered to your system is safe and reliable in any environment.

If loads of power, high-level engineering and extreme efficiency are what you’re after, the High Current Gamer Gold series is the winner.

120mm FDB FAN

The whisper-quiet, fluid-dynamic bearing fan provides high airflow with the durability and longevity that is a signature of Antec quality.

Main Features

Guaranteed 850W of Continuous Power from Antec

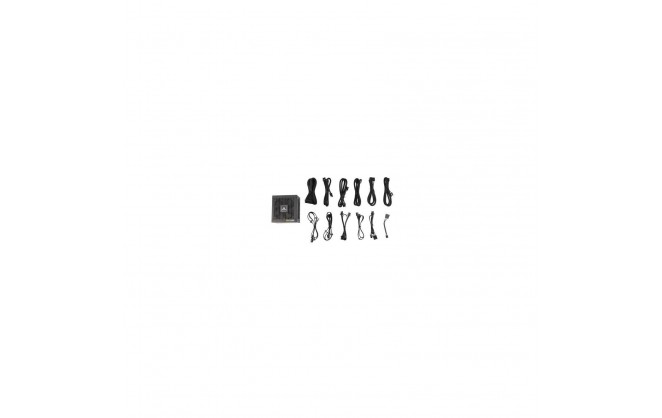

100% Modular-Improves airflow and reduces clutter
80 PLUS® GOLD certified-Up to 92% efficient, to reduce your electricity bill
PhaseWave™ Design-A server-class full-bridge LLC design with a synchronous rectification based on a DC-DC topology
Antec Quality 10-year warranty and lifetime global 24/7 support
120mm FDB Silence-Whisper-quiet high-quality fluid-dynamic bearing fan with long lifetime
Zero RPM Manager-An advanced low voltage fan control with fan-off mode at low loads for absolute silence
99%+12V - Output for maximum CPU & GPU support
CircuitShield™-Full suite of industrial grade protections: OCP, OVP, UVP, SCP, OPP, OTP, SIP, NLO
100% Japanese capacitors achieve unprecedented tight voltage regulation & low ripple & noise to maximize your system's performance
28(18+10) pin MBU socket - For possible future MBU connectors
ATX12V 2.4-Engineered according to the newest PSU guideline and compatible with the latest CPU generation
Compact size 140mm depth power supply is the best choice for compact ATX chassis

Technical Specification

Antec High Current Gamer 850W Modular 80+ Gold PSU

Interfaces/Ports

SATA Connectors	10
CPU Connectors	2 x 4+4-pin EPS
PCI Connectors	6 x 6+2-pin PCIe
Motherboard Connectors	1 x 20+4-pin ATX
Molex Connectors	5

Compliance

Standards	cTUVus/TUV/CB/RCM/CE/EAC/CCC/BSMI/FCC/KR
Safety	OCP/OVP/UVP/SCP/OPP/OTP/SIP/NLO

Electrical

Voltage	100 ~ 240 VAC
Power	850 W
Frequency Range	50 ~ 60 Hz

Environmental

Operating Temperature

0 ~ 40 °C

Physical

Form Factor	ATX Power Supply Unit
Case Colour	Black
Width	150 mm
Depth	140 mm
Height	86 mm
Weight	2.46 kg

Warranty

10 Years

Key Features

Modular Cables	Modular
80Plus Rated	80 Plus Gold
PSU Form Factor	ATX
PCI-E Connectors	6
Motherboard Power Connectors	4 + 4-Pin x 2
PCI-E Pin Type	6+2-Pin
PSU Depth	140 mm
ETA Efficiency Cert.	A
Lambda Noise Cert.	S++
