The ROG Strix Series PSUs bring high-end cooling and premium components together for an ultra-quiet high-performance product aimed at core gamers. Massive ROG heatsinks trickle down from the mighty ROG Thor series and Axial-tech fan design from our premium NVIDIA RTX™ graphics cards also make an appearance. Below the surface, low RDS (on) MOSFETs and premium Japanese capacitors take on power delivery with ease. The result is an incredibly quiet and efficient power supply with the reserves to handle the most intense gaming scenarios.
Let it sink in
The integrated ROG heatsinks have 2x more volume than traditional designs, resulting in significantly lower temperatures inside ROG Strix Series PSUs. This extends the lifespan of components and allows 0dB operation for a longer duration than standard designs. The heatsinks are so effective that fan noise stays whisper quiet, even under full load.
Better, faster, stronger
Originally developed for top-end ROG graphics cards, Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure. For ROG Strix series power supplies, we've scaled that design to 135mm so it keep things cool at low RPMs while producing less noise.
2x longer lifespan
Different bearing types have unique pros and cons. In a PSU, durability is paramount, so we built a dual ball bearing setup that will last up to twice as long as a sleeve bearing design.
Quiet intelligence
An onboard controller brings the 135mm fan to a standstill when thermal design power (TDP) is below 40%, letting you enjoy light gaming in relative silence. Above 40% TDP, the fans automatically start up again.
Heart of gold
Top-end Japanese capacitors ensure efficient operation and have helped the Strix earn an 80 PLUS Gold certification. The increased efficiency also results in less heat, reducing noise and increasing reliability.
A e s t h e t i c
Getting everything looking right can be a challenging aspect of any setup. The ROG Strix Series PSUs aim to make your life a little easier with a convenient magnetic logo and stickers that help you reskin the visible side to your liking.
Plug in
Each model comes with fully modular 24-pin, 6+2-pin PCI-e, and 8-pin CPU cables that have embedded capacitors to reduce voltage ripple. And if you'd like to add a dash of color to your build, the included CableMod coupon will set you on your way towards next-level customization.
A decade of power
We're so confident about the reliability of the ROG Strix Series PSUs that we back them with a 10-year warranty.

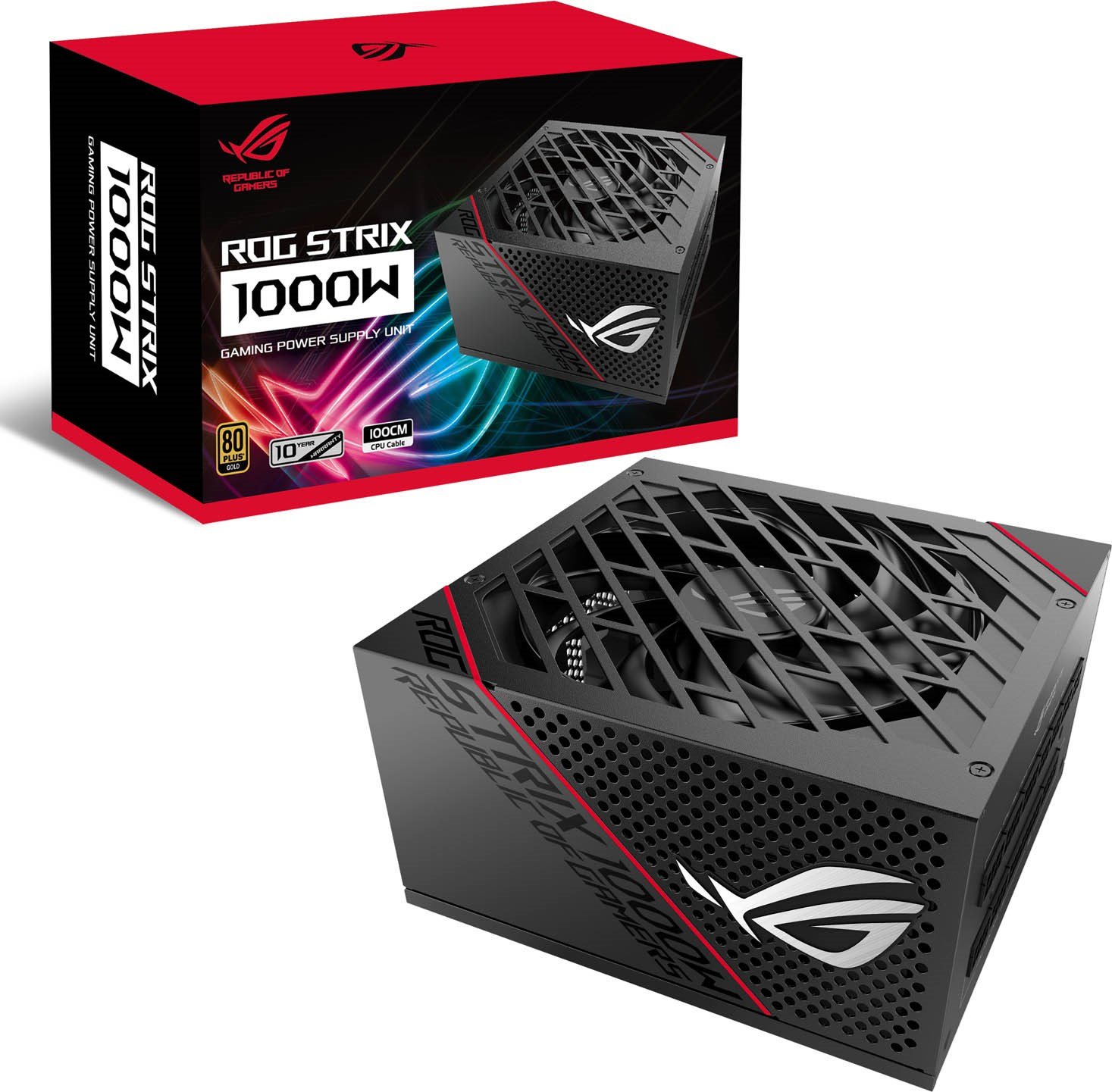

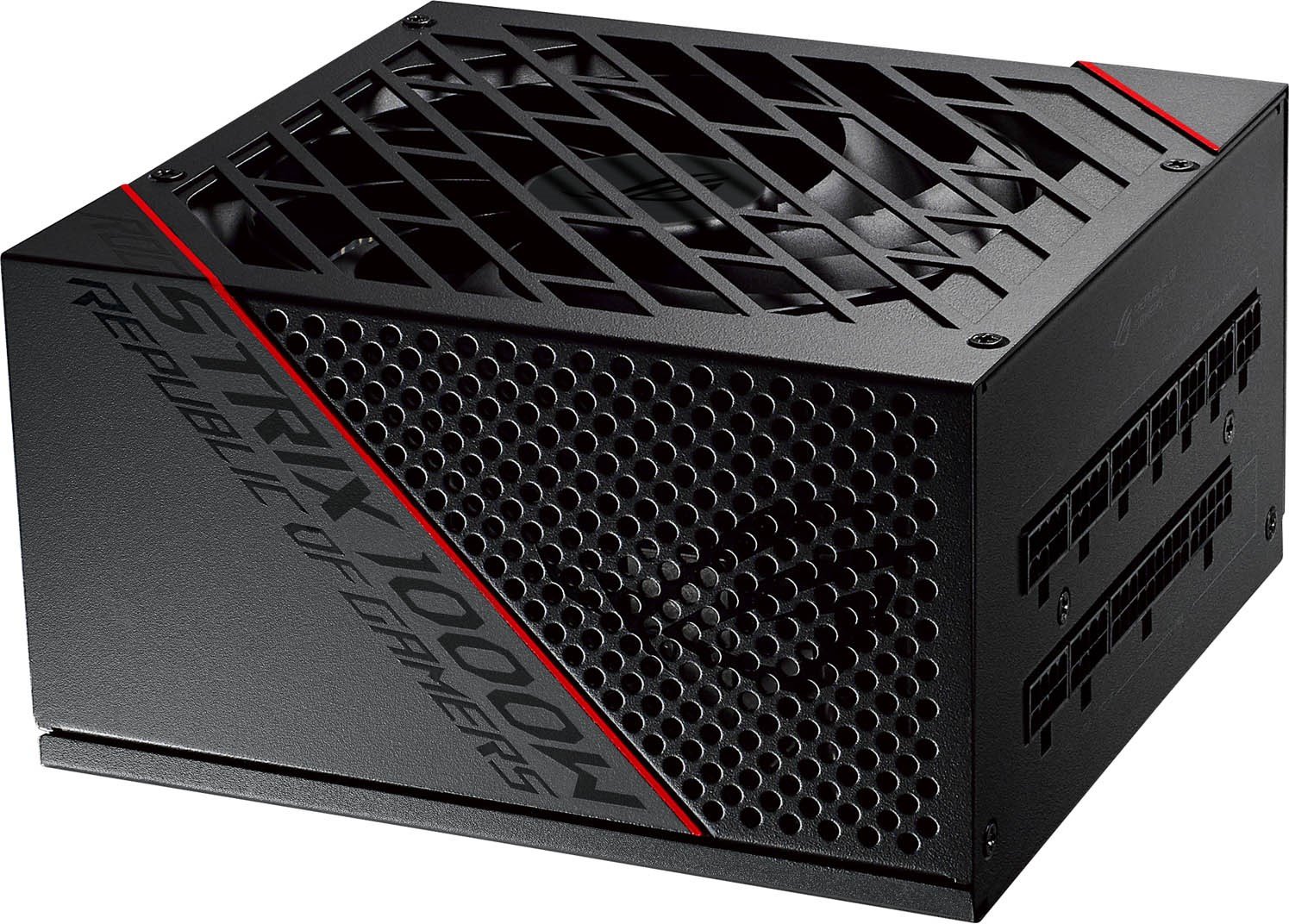

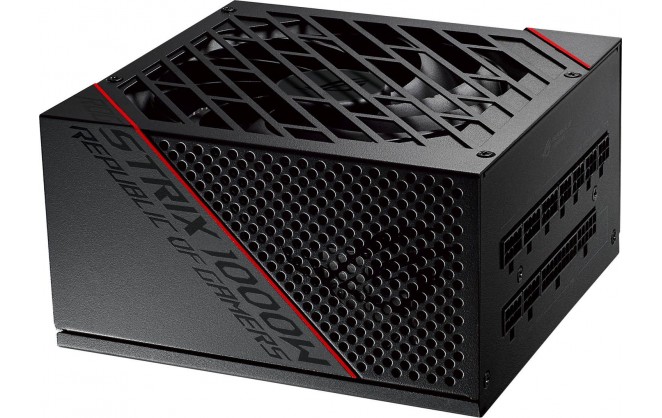

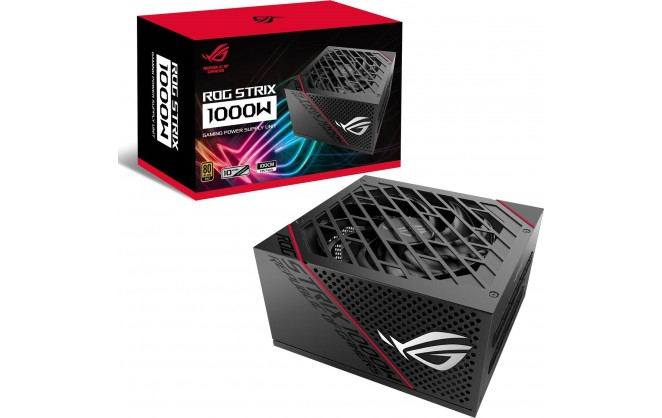

ASUS ROG Strix 1000W Modular 80+ Gold PSU
Interfaces/Ports
| SATA Connectors | 8 |
| CPU Connectors | 2 x 4+4-pin EPS |
| PCI Connectors | 6 x 6+2-pin PCIe |
| Motherboard Connectors | 1 x 24-pin ATX |
| Molex Connectors | 6 |
Compliance
| Standards | 80 PLUS Gold Certified |
| Safety | OPP/OVP/SCP/OCP/OTP |
Electrical
| Voltage | 100 ~ 240 V AC |
| Power | 1000 W |
| Power Cord | Yes |
Physical
| Form Factor | ATX Power Supply |
| Case Colour | Black |
| In The Box | Power Supply Power Cable Screws ROG Badge ROG Logo Magnet ROG Label |
| Width | 150 mm |
| Depth | 160 mm |
| Height | 86 mm |
Warranty
| Warranty | 10 Years |
Key Features
| Modular Cables | Modular |
| 80Plus Rated | 80 Plus Gold |
| PSU Form Factor | ATX |
| PCI-E Connectors | 6 |
| Motherboard Power Connectors | 4 + 4-Pin x 2 |
| PCI-E Pin Type | 6+2-Pin |
| PSU Depth | 160 mm |
Item Details
| Manufacturer | ASUS |
| Manufacturer Code | 90YE00A5-B0NA00 |
| Alternative Part Number | ROG-STRIX-1000G |
| EAN | 4718017845571 |
| Condition | New |
